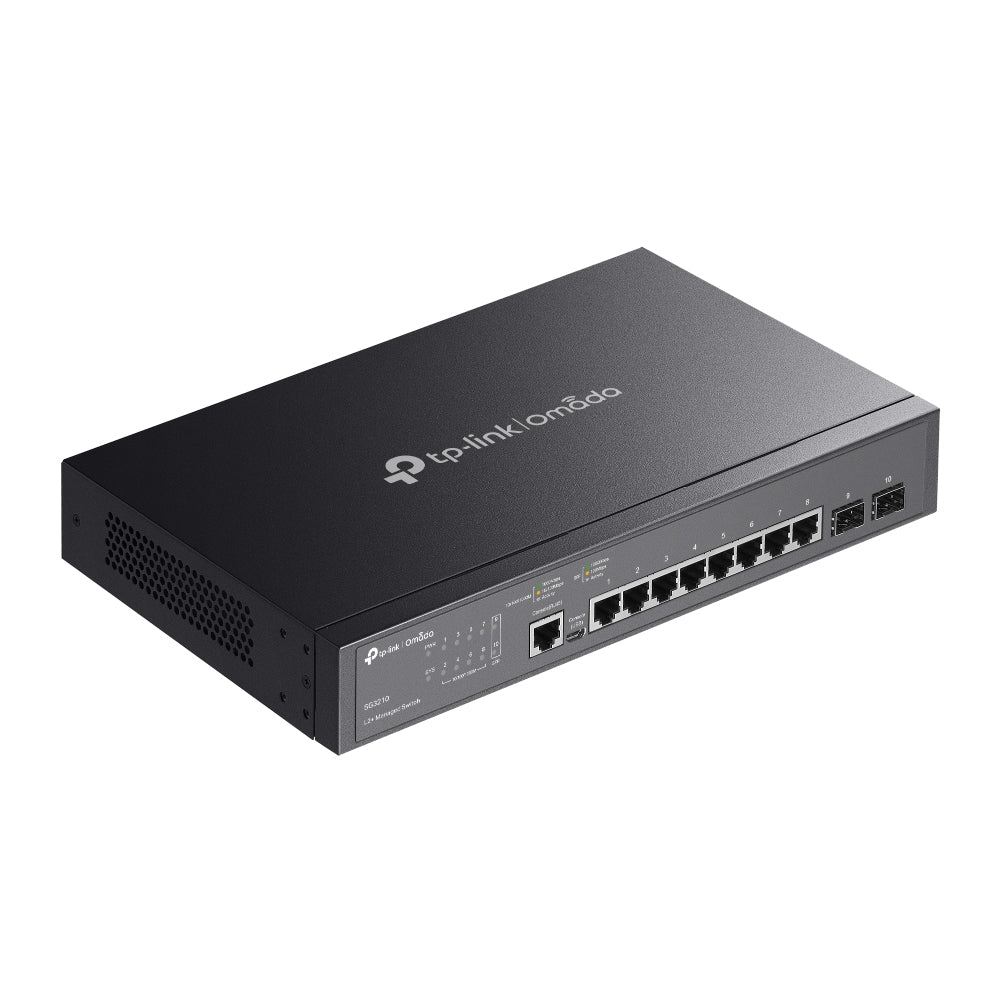

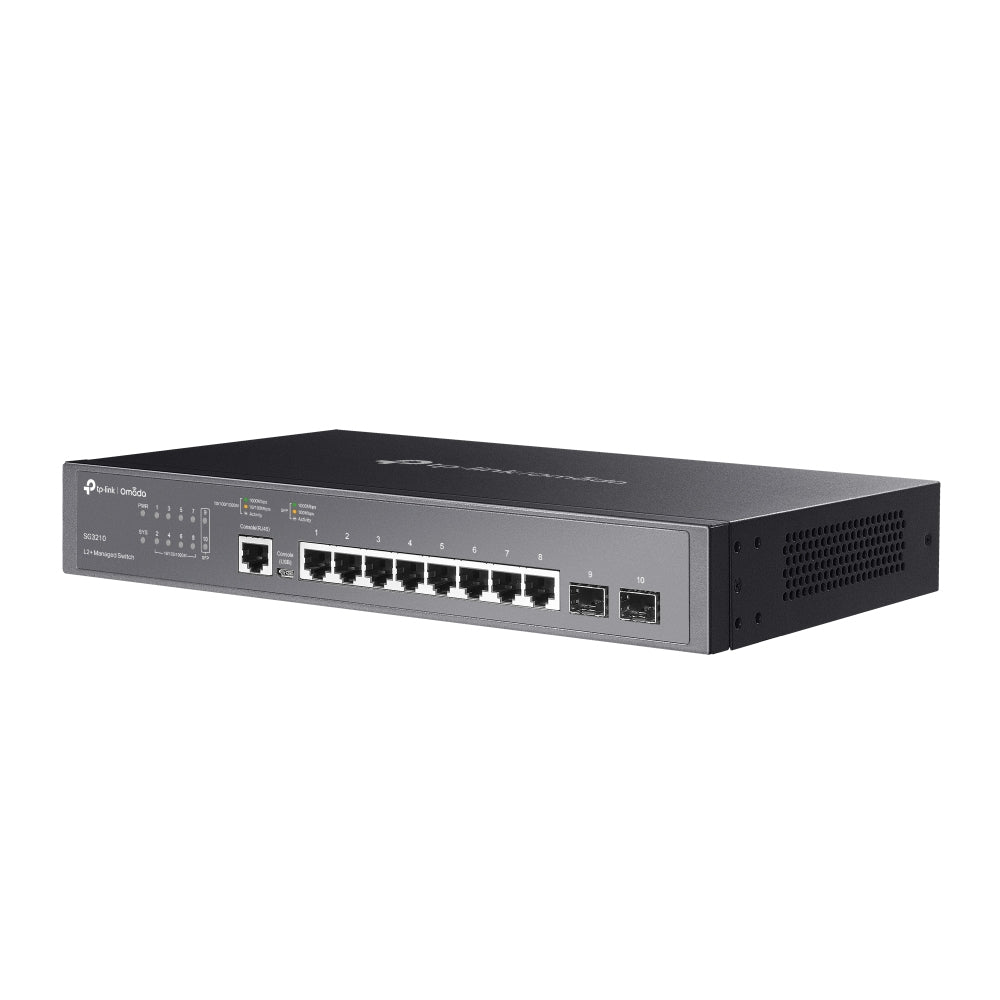

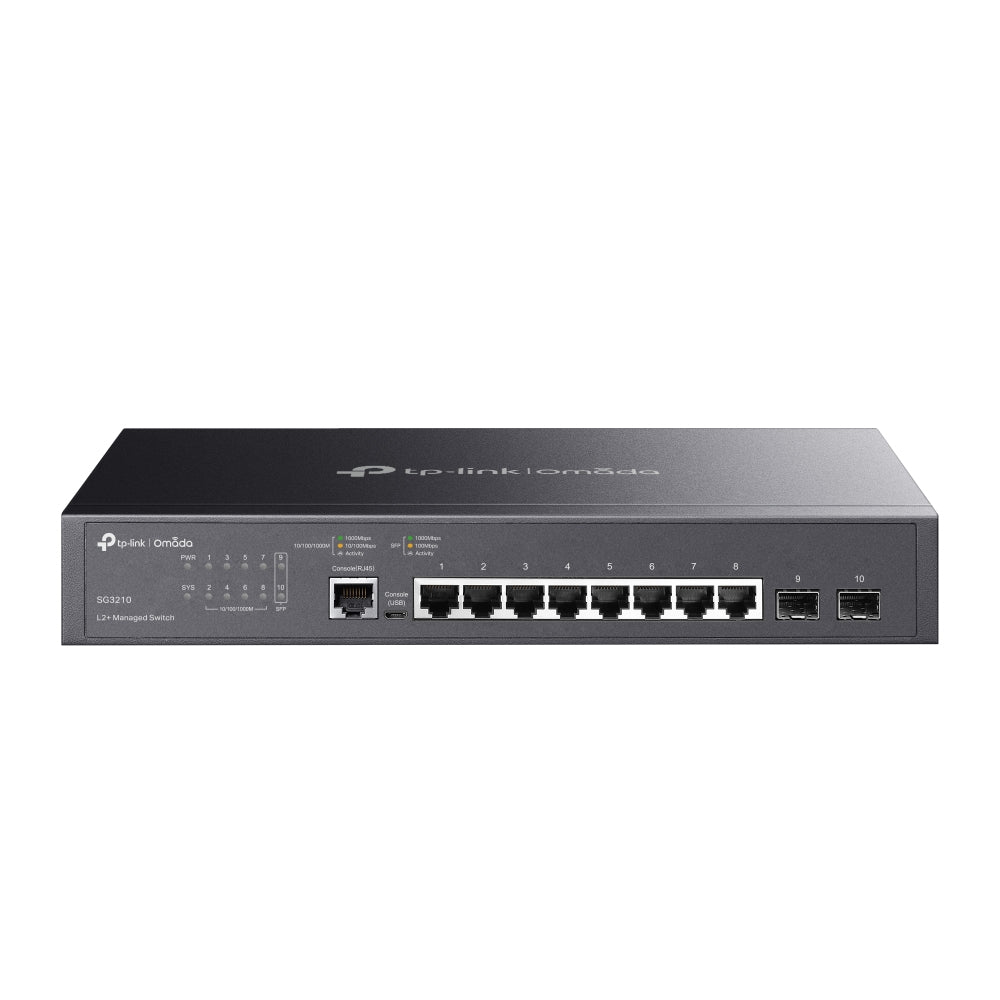

TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots - SG3210

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.

• 8× Gigabit RJ45 ports and 2× Gigabit SFP slots
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Fanless design for silent operation
• Durable metal casing and desktop/rack mounting design

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Y
Web-based management	Y
Cloud-managed	Y
ARP inspection	Y
Configuring Location Settings (CLI)	Y
System event log	Y
MIB support	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	2
Console port	RJ-45/micro-USB
Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	N
Port mirroring	Y
IP routing	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Rate limiting	Y
Spanning tree protocol	Y
Head-of-line (HOL) blocking	Y
IPv4 routes	48
IPv6 routes	48
VLAN support	Y
Virtual LAN features	Port-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN
Number of VLANs	4000
MAC address table	8000
Switching capacity	20
Forwarding rate	14.9
Store-and-forward	Y
Static route	Y
Number of IP interfaces	16
Jumbo frames support	Y
Jumbo frames	9000
Packet buffer memory	4.1
DHCP features	DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping
Access Control List (ACL)	Y
IGMP snooping	Y
MAC address filtering	Y
Static port security	Y
SSH/SSL support	Y
Loop protection	Y
BPDU filtering/protection	Y
IP-MAC-Port binding	Y
Authentication	MAC-based authentication,Port-based authentication
Authentication type	RADIUS
Multicast support	Y
Multicast Listener Discovery (MLD) snooping	Y
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Y
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL),IPv6 Telnet,IPv6 ping,IPv6 tracert
Rack mounting	Y
Form factor	1U
Product colour	Black
LED indicators	Y
Firmware upgradeable	Y
Fanless	Y
Minimum system requirements	Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
Power source	AC
Power supply included	Y
AC input voltage	100 - 240
AC input frequency	50/60
Power consumption (max)	6.84
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Heat dissipation	23.33
Width	294
Depth	180
Height	44
Quick start guide	Y
User guide	Y
Manual	Y
Rack mount kit	Y
