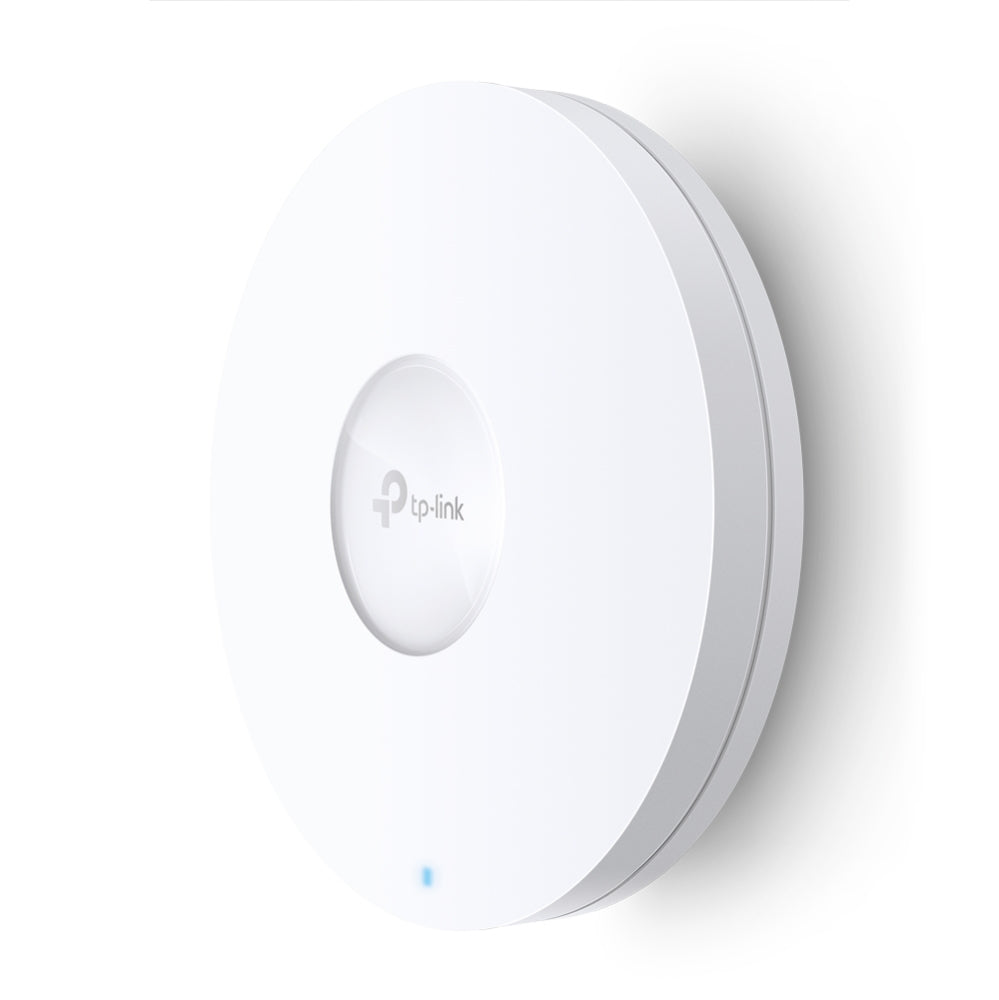

TP-Link Omada AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point - EAP660 HD

Ultra-High Performing
AX3600 Enterprise Wireless for
High-Density Environments

High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO** increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before.

Blazing Fast Speed with 8 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band)†. With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

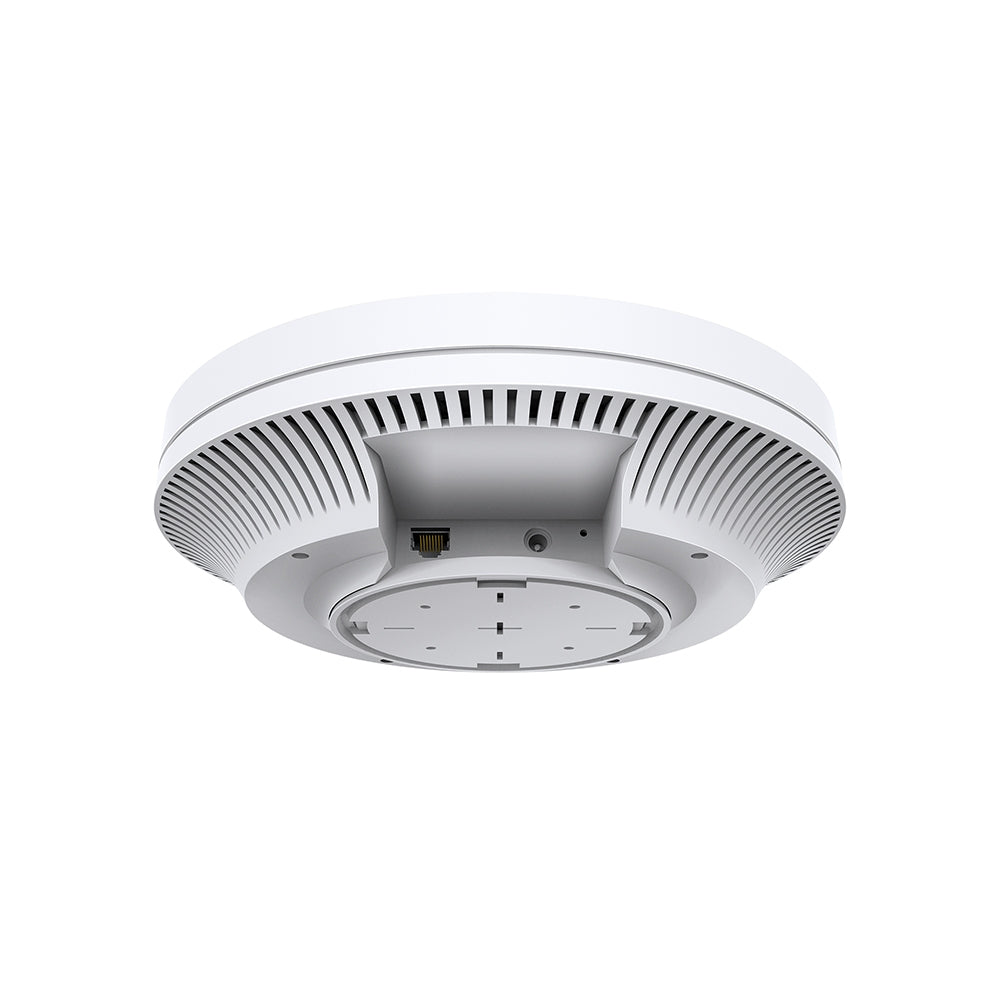

Optimized Wired Performance with 2.5 GE PoE+ Port
Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.

Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.△ This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Boost Network Efficiency in All Aspects
With Rich Advanced Features

Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance
ensures large numbers of users have smooth network experiences in high-density business networks

Airtime Fairness
Increases average network throughput in heavily congested environments

• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.†
• High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management
• 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△
• PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

2.4 GHz	Y
5 GHz	Y
6 GHz	N
Maximum data transfer rate	2402
Maximum data transfer rate (2.4 GHz)	1148
Maximum data transfer rate (5 GHz)	2402
Ethernet LAN data rates	25000
Frequency band	2.4 - 5
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Automatic channel selection	Y
Automatic channel scanning	Y
MIMO	Y
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Y
Wi-Fi roaming	Y
VLAN support	Y
Rate limiting	Y
Wireless isolation	Y
Airtime Fairness (ATF)	Y
Quality of Service (QoS) support	Y
Security algorithms	WPA-Enterprise,WPA-PSK,WPA2-Enterprise,WPA2-PSK,WPA3-Enterprise,WPA3-PSK
MAC address filtering	Y
Service Set Identifier (SSID) features	Multiple SSIDs
Remote Authentication Dial-In User Service (RADIUS)	Y
Web-based management	Y
Syslog	Y
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
DC-in jack	Y
Power over Ethernet (PoE)	Y
Output voltage	12
Output current	2
Placement	Ceiling
Product colour	White
Antenna type	Internal
Width	243
Depth	243
Height	64
Mounting kit	Y
Operating relative humidity (H-H)	10 - 90
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90
Harmonized System (HS) code	85176990
