TP-LINK | SKU:
DS111P

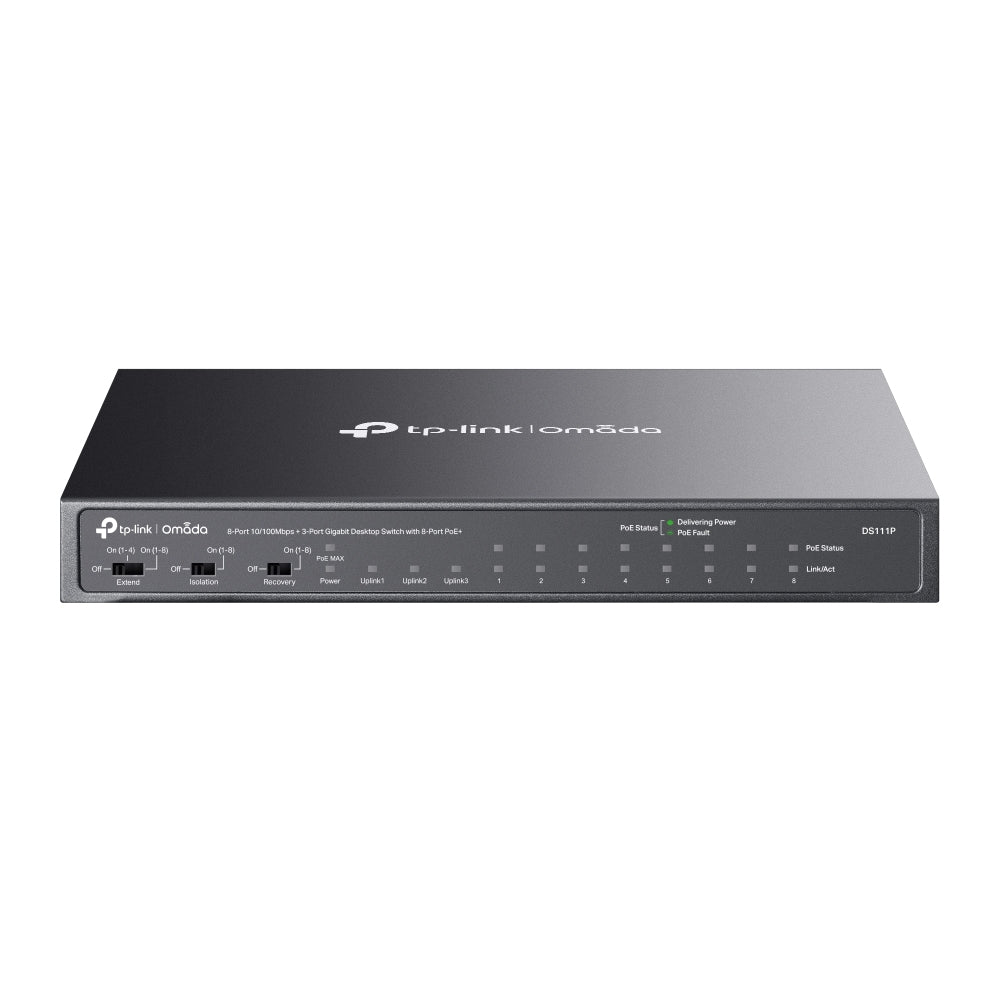

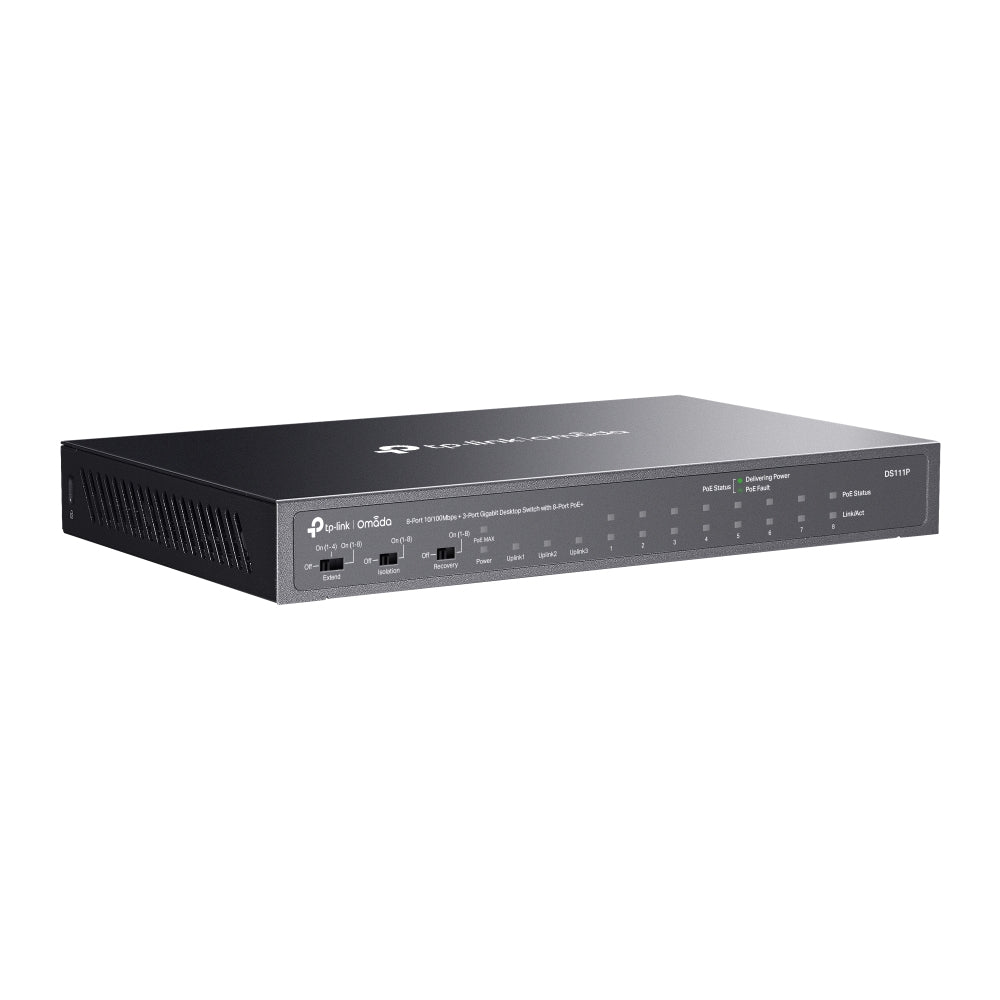

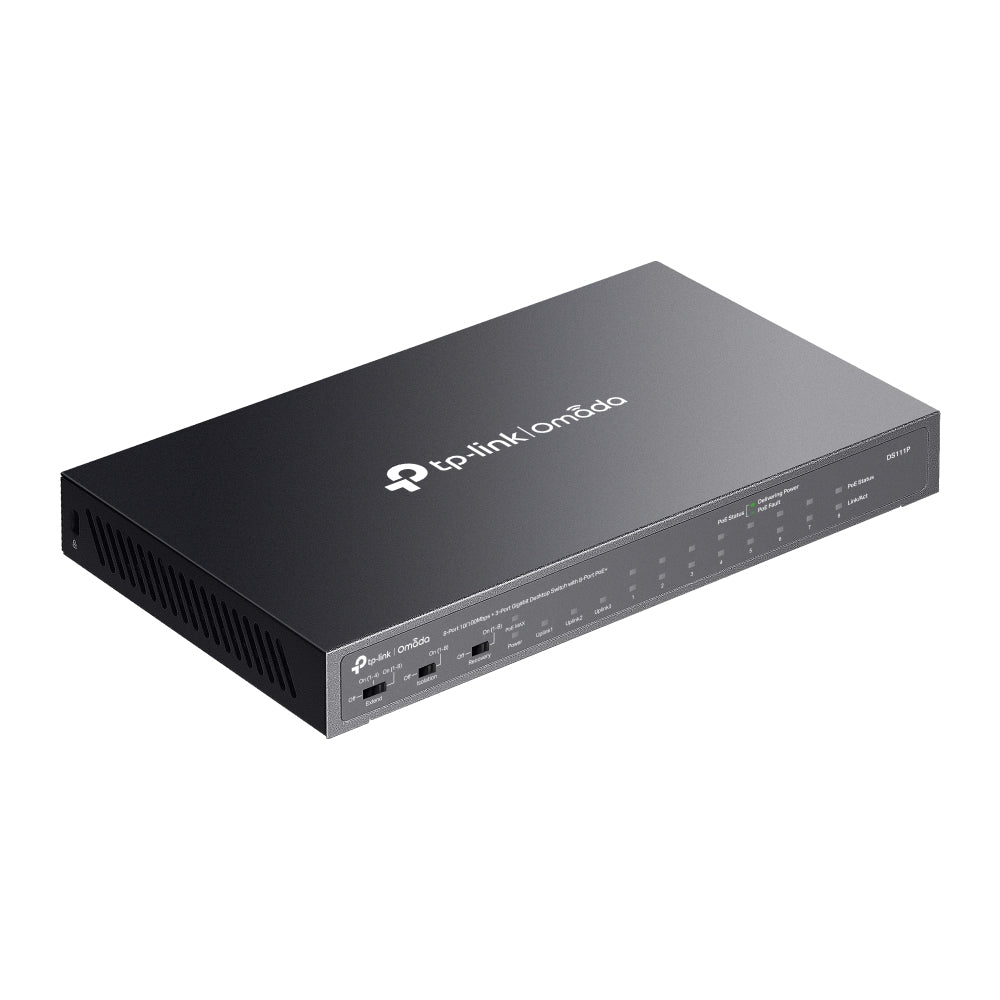

TP-Link Omada DS111P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black - DS111P
$72.56
Unit price
/
Unavailable
Shipping calculated at checkout.
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
TP-Link Omada DS111P network switch Unmanaged Fast Ethernet (10/100...
$72.56
Unit price
/
Unavailable
Description
Description
- 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports
- Up to 250 m (802 ft) data and power transmitting range under Extend Mode
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and Play. No configuration or central management required
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Y |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 1 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3x |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Ethernet LAN data rates | 10,100 |
| Auto-negotiation | Y |
| MAC address auto-learning supported | Y |
| MAC address auto-aging supported | Y |
| MAC address table | 2000 |
| Switching capacity | 7.6 |
| Forwarding rate | 5.6544 |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 16 |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity,Link,PoE,Power |

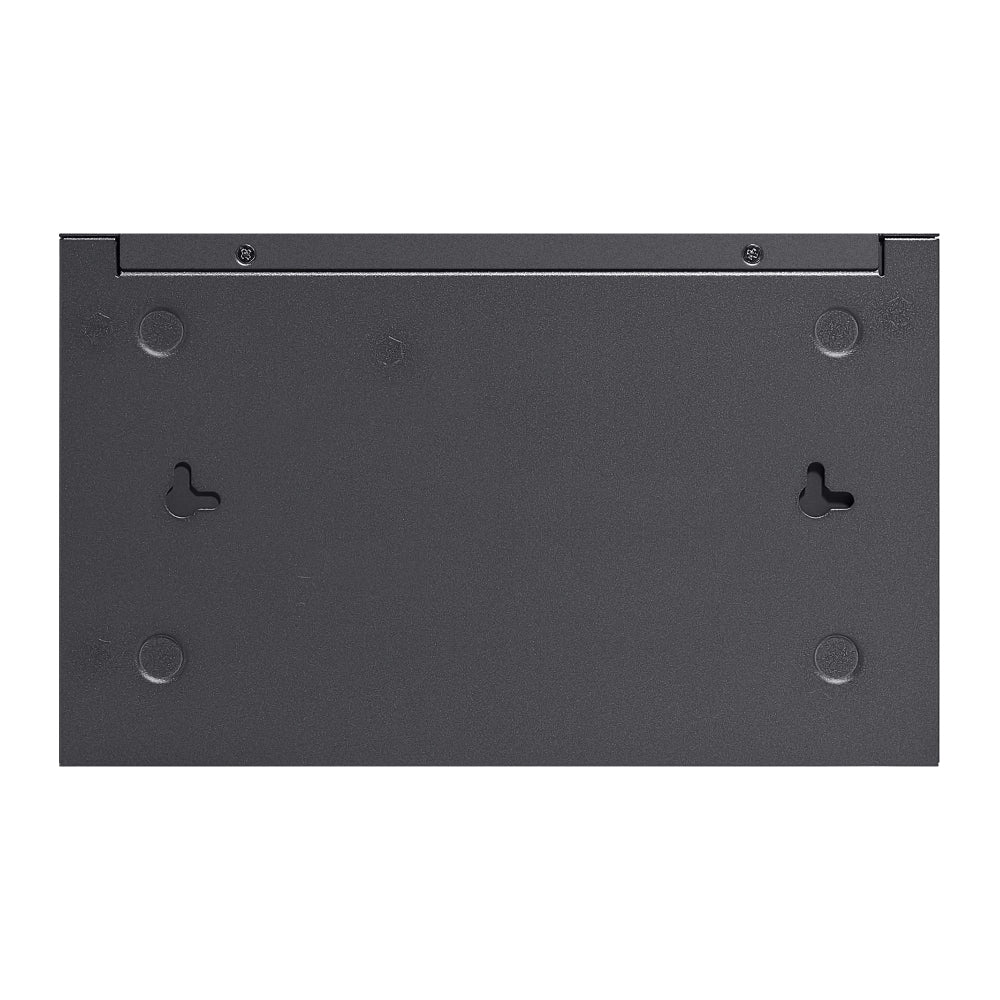

| Wall mountable | Y |
| Fanless | Y |
| Power source | DC |
| Power supply included | Y |
| DC input voltage | 53.5 |
| Input current | 1.31 |
| Power consumption (max) | 77.32 |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 65 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 263.7 |
| Width | 209 |
| Depth | 126 |
| Height | 26 |
| Cables included | Power |
| User guide | Y |
| Rubber feet | Y |
| Compliance certificates | CE,EAC,Federal Communications Commission (FCC),Industry Canada (IC),RoHS,UKCA |
