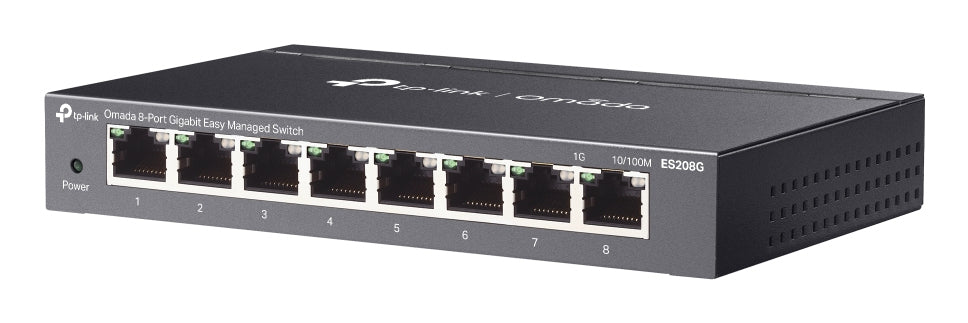

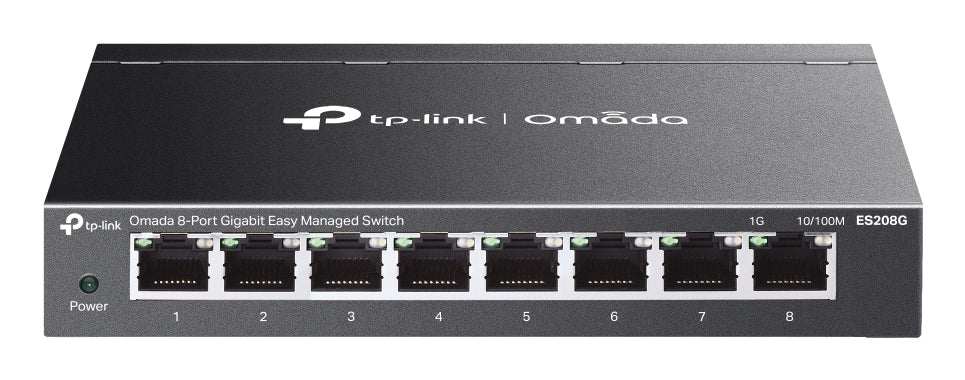

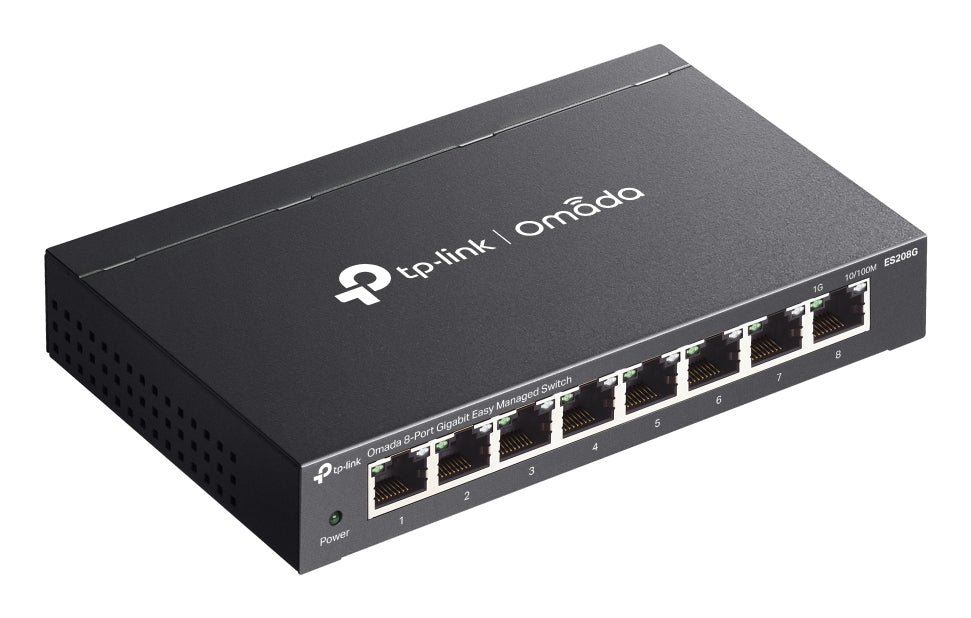

TP-Link Omada ES208G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black - ES208G

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

• 8× 10/100/1000Mbps RJ45 ports
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app†
• VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
• Automatic Loop Prevention and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
Cloud-managed	Y
Unified static configuration	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Networking standards	IEEE 802.3ab,IEEE 802.1ab,IEEE 802.3i,IEEE 802.1p,IEEE 802.3x,IEEE 802.3at,IEEE 802.1Q
10G support	N
Zero Touch Provisioning (ZTP)	Y
Port mirroring	Y
Flow control support	Y
Link aggregation	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
Fast leave	Y
VLAN support	Y
Virtual LAN features	MTU VLAN,Port-based VLAN,Tagged VLAN
Number of VLANs	32
MAC address table	8000
Switching capacity	16
Forwarding rate	11.9
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	15000
Packet buffer memory	4
DHCP features	DHCP client
IGMP snooping	Y
Loop protection	Y
Queue scheduling algorithms	Weighted Round Robin (WRR)
Rack mounting	N
Stackable	N
Product colour	Black
LED indicators	Y

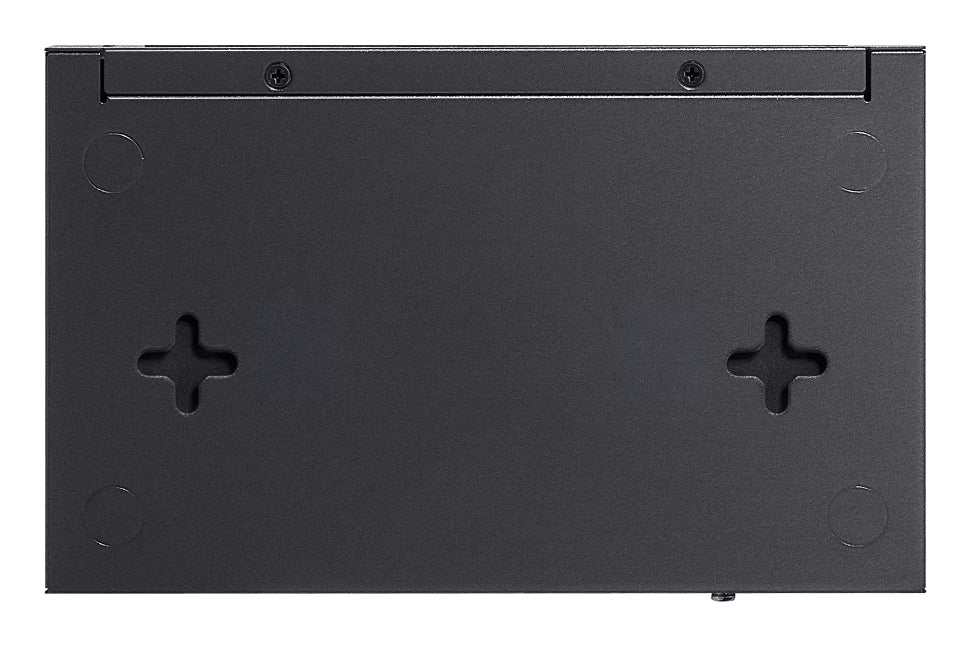

Wall mountable	Y
Flash memory	64
Firmware upgradeable	Y
Fanless	Y
Mean time between failures (MTBF)	1141726
Power source	DC
Power supply included	Y

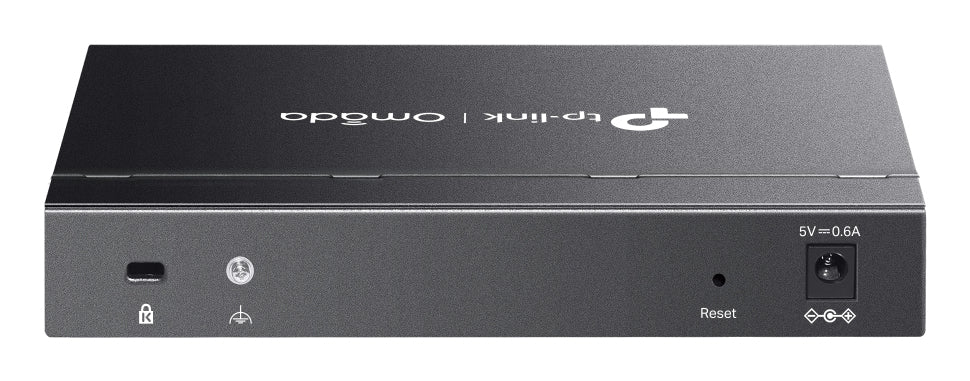

DC input voltage	5
Input current	0.6
Power consumption (max)	2.7
Surge protection	Y
Surge protection voltage	6
Power over Ethernet (PoE)	N
Operating temperature (T-T)	-5 - 45
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Heat dissipation	9.09
Width	158
Depth	100.7
Height	25.4
User guide	Y
AC adapter included	Y
Package type	Box
Compliance certificates	CE,Federal Communications Commission (FCC),RoHS
