TP-LINK | SKU:
ES208GP
TP-Link Omada ES208GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Black - ES208GP
$72.56
Unit price
/
Unavailable
Shipping calculated at checkout.
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
TP-Link Omada ES208GP network switch Managed L2 Gigabit Ethernet (1...
$72.56
Unit price
/
Unavailable
Description
Description

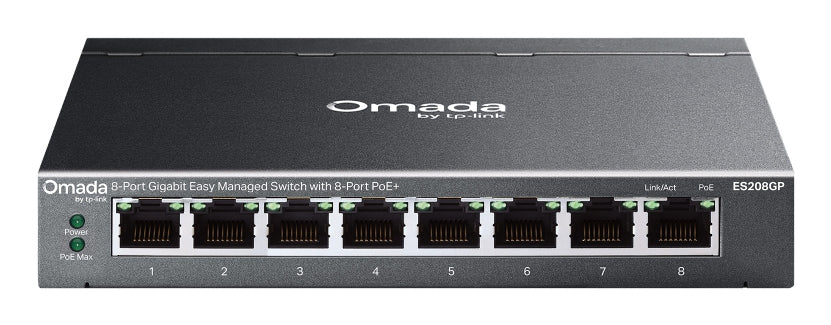

- 8× 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+)
- 64W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

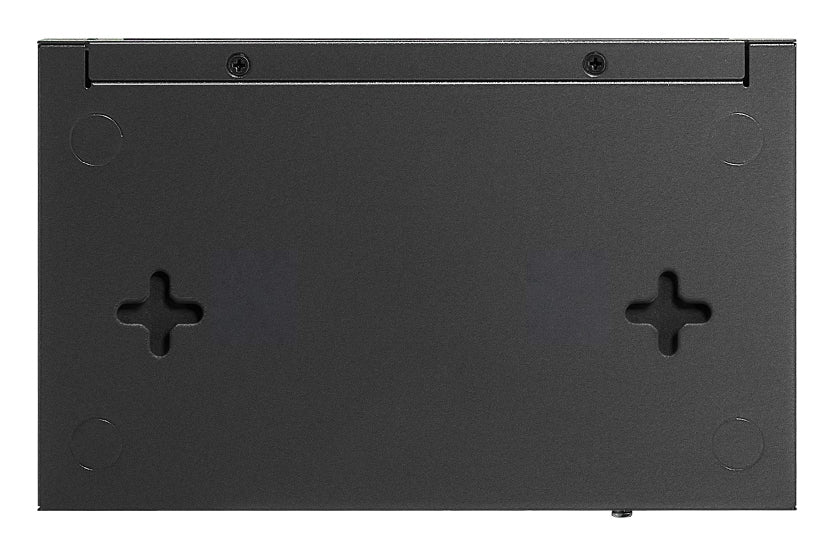

- Durable metal casing and desktop/wall mounting design
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Cloud-managed | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt |
| 10G support | N |
| Port mirroring | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Auto MDI/MDI-X | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Auto-negotiation | Y |
| VLAN support | Y |
| Virtual LAN features | MTU VLAN,Port-based VLAN,Tagged VLAN |
| Number of VLANs | 4000 |
| Transmission distance (max) | 0.25 |
| MAC address table | 8000 |
| Switching capacity | 16 |
| Forwarding rate | 11.904 |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 15000 |
| Packet buffer memory | 0.5 |
| DHCP features | DHCP client |
| IGMP snooping | Y |
| Loop protection | Y |
| Multicast support | Y |
| Rack mounting | Y |
| Form factor | DIN rail |
| Product colour | Black |
| LED indicators | Y |

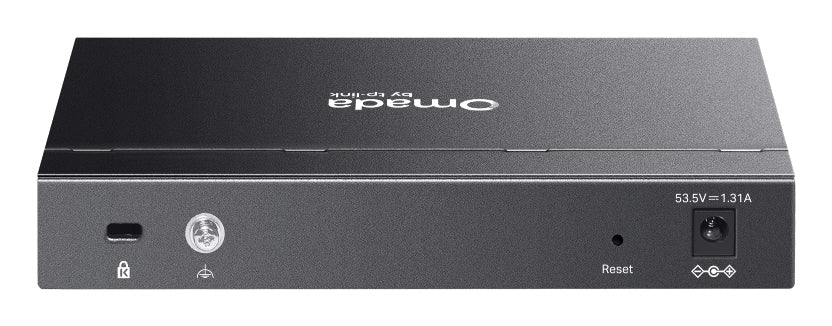

| Power source | DC |
| DC input voltage | 53 |
| Input current | 1.31 |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 64 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Width | 158 |
| Depth | 100.7 |
| Height | 25.4 |
| Cables included | Power |
| Quick start guide | Y |
| Compliance certificates | CE,Federal Communications Commission (FCC),RoHS |
