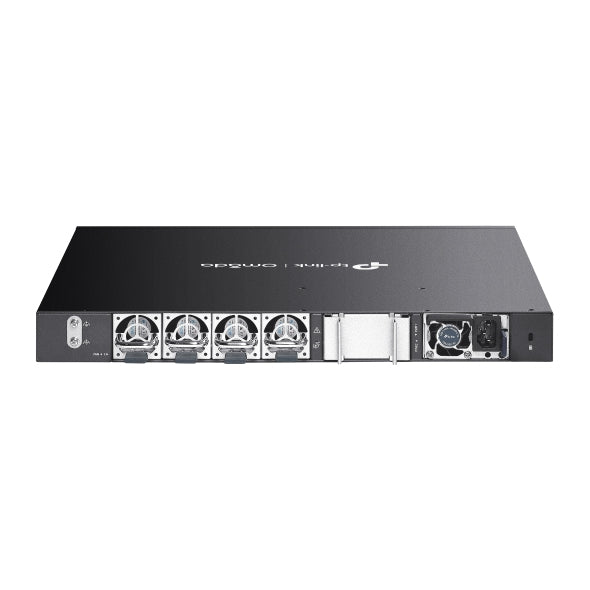

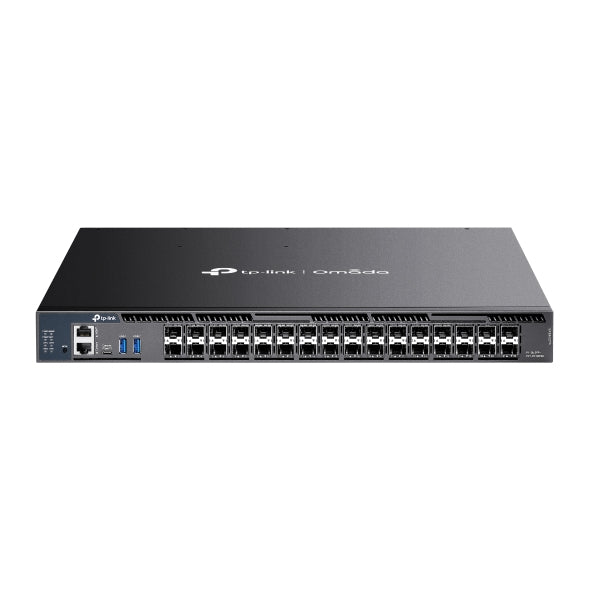

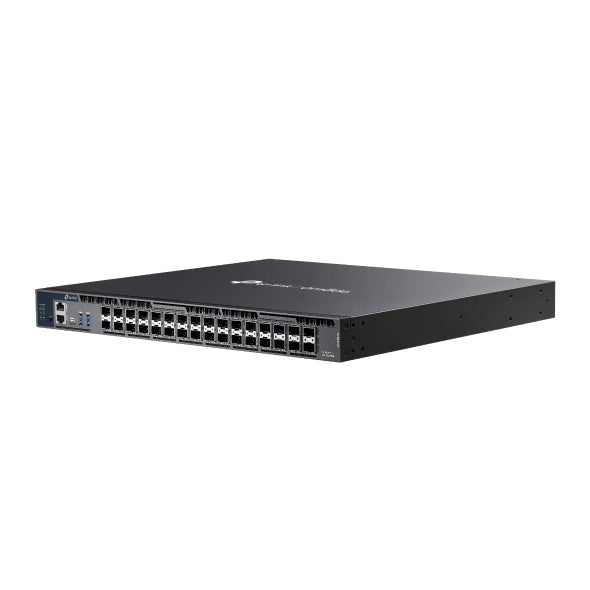

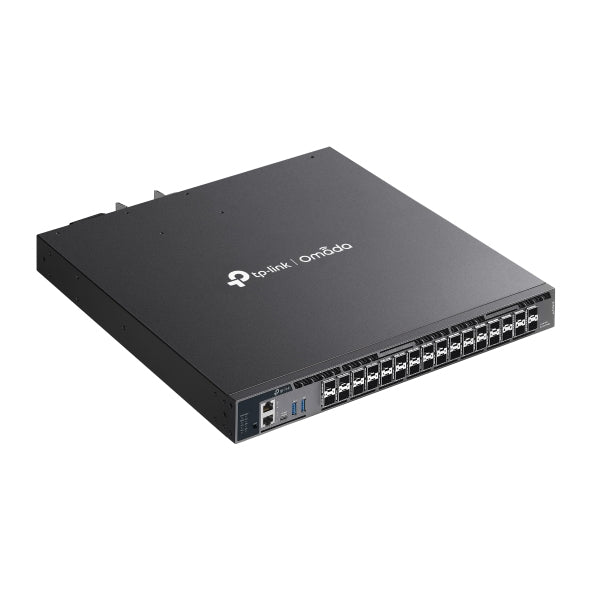

TP-Link Omada SX6632YF network switch Managed L2+/L3 Black - SX6632YF

What This Product Does
The Omada SX6632YF is a true L3 managed switch with full fiber ports that offers L3 routing, swift 25 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 6× 25 Gbps SFP28 slots, 26× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.

High-speed Connectivity and Powerful Stacking
6× 25 Gbps SFP28 slots and 26× 10 Gbps SFP+ slots provide up to 820 Gbps switching capacity per unit. Up to 8 units of physical stacking with up to 6560 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.

Highly Available
Internal fixed redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.

Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SX6632YF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

• 26× 10G SFP+ slots and 6× 25G SFP28 slots
• 820 Gbps switching capacity
• Physical Stacking for built-in redundancy and performance
• L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
• Security Strategies: ACL, Port Security, DoS Defend, 802.1X
• Highly Available with two field-replaceable power supplies*, VRRP, and ERPS
• Centralized cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON

Switch type	Managed
Switch layer	L2+/L3
Quality of Service (QoS) support	Y
Web-based management	Y
Cloud-managed	Y
ARP inspection	Y
Basic switching RJ-45 Ethernet ports type	N
SFP module slots quantity	6
SFP+ module slots quantity	26
USB Type-A ports quantity	2
USB Type-C ports quantity	1
Number of management ports	1
Console port	RJ-45
Networking standards	IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3ah
10G support	Y
Port mirroring	Y
IP routing	Y
VLAN support	Y
Virtual LAN features	MAC address-based VLAN,Multicast VLAN,Private VLAN,Protocol-based VLAN,Voice VLAN
MAC address table	128000
Switching capacity	820
Forwarding rate	610.1
Jumbo frames support	Y
Jumbo frames	9000
Packet buffer memory	8
DHCP features	DHCP Option 82
Access Control List (ACL)	Y
IGMP snooping	Y
MAC address filtering	Y
Static port security	Y
SSH/SSL support	Y
Multicast support	Y
Management protocols	SNMPv1/v2c/v3
Rack mounting	Y
Stackable	Y
Product colour	Black
Number of fans	4
Minimum system requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Power source	AC
Redundant power supply (RPS) support	Y
Number of power supply units	2
AC input voltage	100 - 240
AC input frequency	50/60
Power over Ethernet (PoE)	N
Operating temperature (T-T)	-5 - 40
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Width	440
Depth	380
Height	44
Cables included	Power
Quick start guide	Y
Rack mount kit	Y
