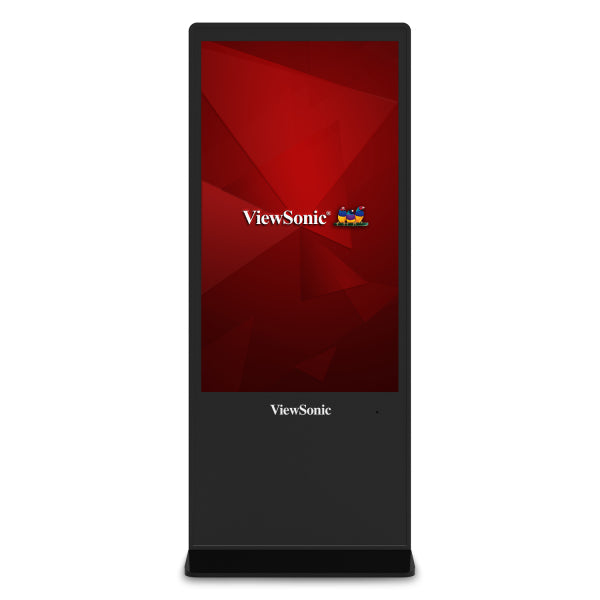

Viewsonic EP5542 Signage Display 139.7 cm (55") 400 cd/m² 4K Ultra HD Android 8.0 16/7 - EP5542

ULTRA HD RESOLUTION
With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

POWERFUL EMBEDDED SOC PLATFORM
The ViewSonic® EMBEDDED Signage Platform (VESP) is a Linux-based Kernel OS, all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.

FREE-STANDING DESIGN
This all-in-one digital ePoster kiosk features a sleek and slim premium design, coupled with a free-standing form factor to deliver dynamic messaging in high-traffic areas.

OPTIONAL CONTENT MANAGEMENT SOFTWARE
Great for all venues and scenarios, the optional cloud-based Revel Digital CMS software lets users transfer multimedia content onto the display from PCs and laptops. This partner-certified content management tool also lets you format, schedule, and save playback settings.

ANTI-SCRATCH, ANTI-GLARE GLASS FACEPLATE
This display features a scratch-resistant surface that ensures a durable, consistent, high-quality viewing experience. In addition, an anti-glare film improves screen visibility in bright environments.

MEDIA PLAYER CRADLE WITH LOCKABLE SECURITY DOOR
A convenient media player cradle can accommodate a PC or an additional mounted media player, while a lockable door keeps things secure and out of sight. The ePoster stand also features an integrated power supply, eliminating the need to find alternative outlets for add-on devices.

VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom and flexibility to connect to your dedicated graphics card and gaming console.

DUAL INTEGRATED SPEAKERS
Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.

EASY LAN CONTROL
This display has an integrated RJ45 connection that allows you to remotely set up and manage display content from a PC or laptop. You can also remotely turn the display on or off, or adjust the volume and other settings, via a user-friendly on-screen interface.

• Anti-Glare 3H, Haze = 2%, 7H / 4mm Tempered glass
• Operation Rating: 16/7
• CPU: Multi-CPU (ARM Cortex A73 x 2 + Cortex A53 x 2)
• RAM: 2GB
• Memory Type: DDR4

Display diagonal	55
Display resolution	3840 x 2160
Display brightness	400
HD type	4K Ultra HD
Panel type	MVA
LED backlighting type	Direct-LED
Native aspect ratio	16:9
Response time	9
Contrast ratio (typical)	1300:1
Viewing angle, horizontal	178
Viewing angle, vertical	178
Display number of colours	1.07 billion colours
Rated lifetime	30000
Haze rate	2
HDMI ports quantity	3
DisplayPorts quantity	1
USB port	Y
HDMI version	2.0
VGA (D-Sub) input ports	1
USB ports quantity	3
Ethernet LAN (RJ-45) ports	1
Audio (L/R) in	1
Audio (L/R) out	1
RS-232 interface	Y
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	10
Orientation	Vertical
Anti-glare screen	Y
Operating hours (hours/days)	16/7
HDCP	Y
HDCP version	2.2
Power consumption (typical)	126
Power consumption (standby)	0.5
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	73
AC input voltage	100 - 240
AC input frequency	50 - 60
Energy efficiency scale	A to G
Internal memory	2
Operating system installed	Android 8.0
Display width	768.5
Display depth	400
Display height	1870
Display weight	62700
Weight	58000
Package width	920
Package depth	550
Package height	2000
Package weight	66700
Remote control included	Y
Batteries included	Y
Cables included	AC
Operating temperature (T-T)	0 - 40
Operating relative humidity (H-H)	10 - 85
Products per master (outer) case	1
Pallet gross length	920
Pallet gross width	550
Pallet gross height	2135
Harmonized System (HS) code	8528529100
Ethernet LAN	Y
