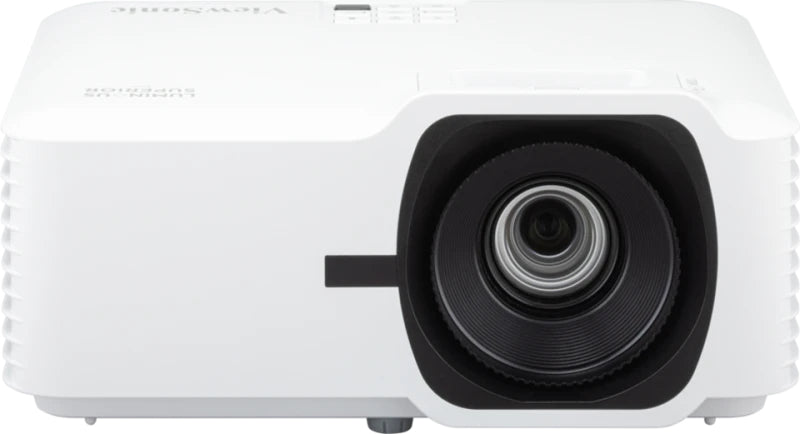

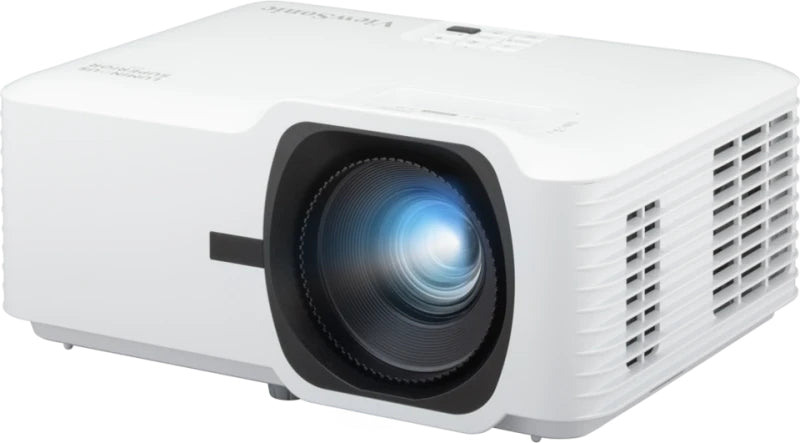

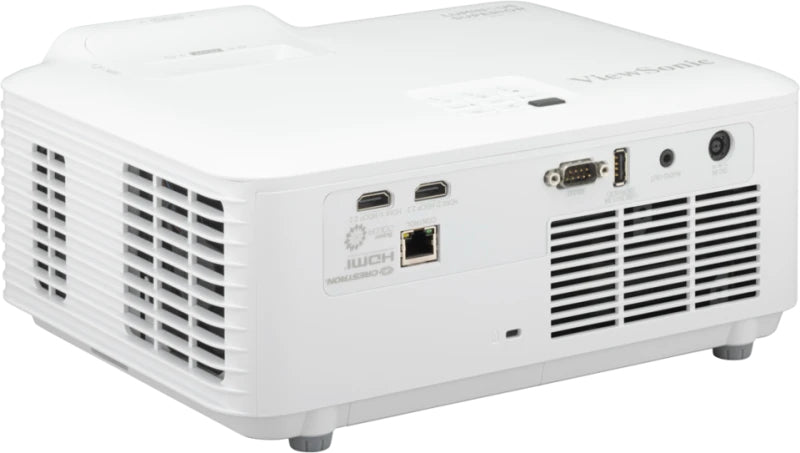

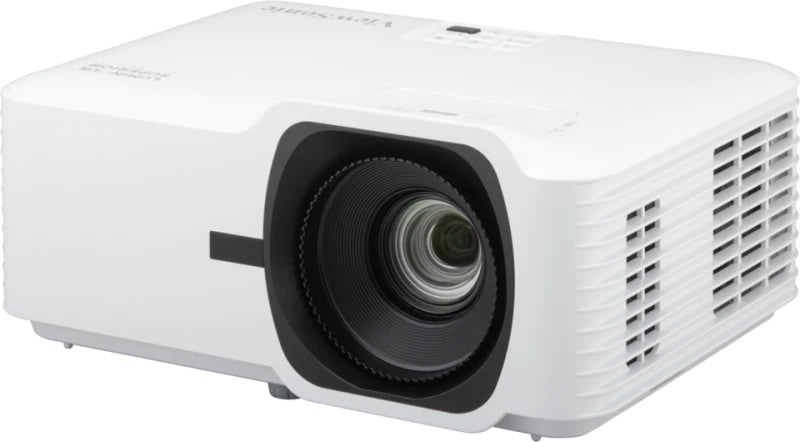

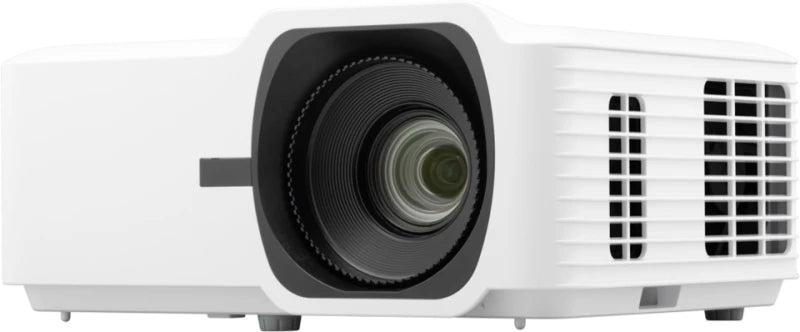

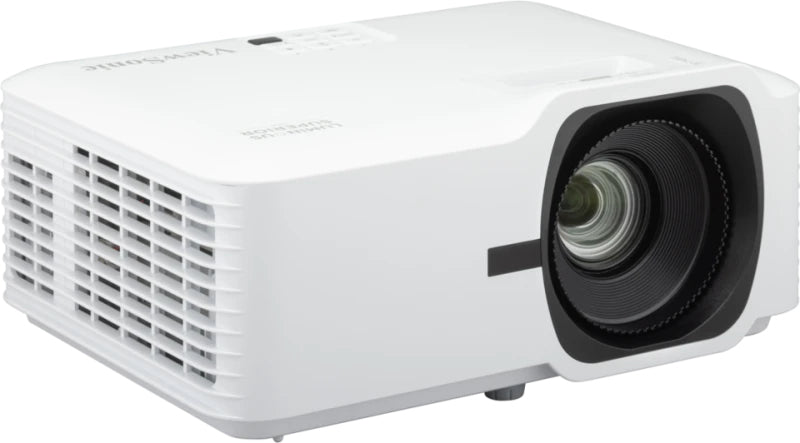

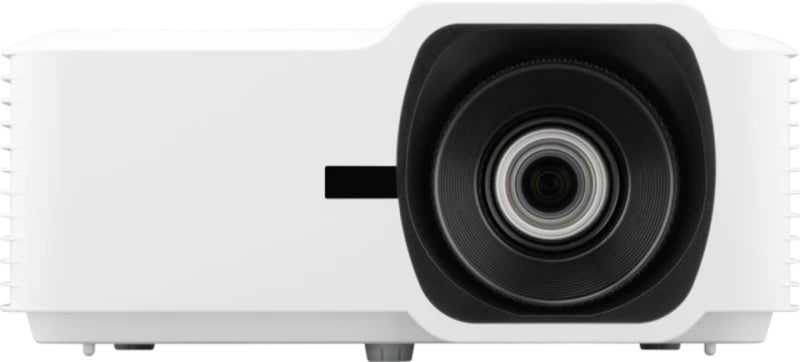

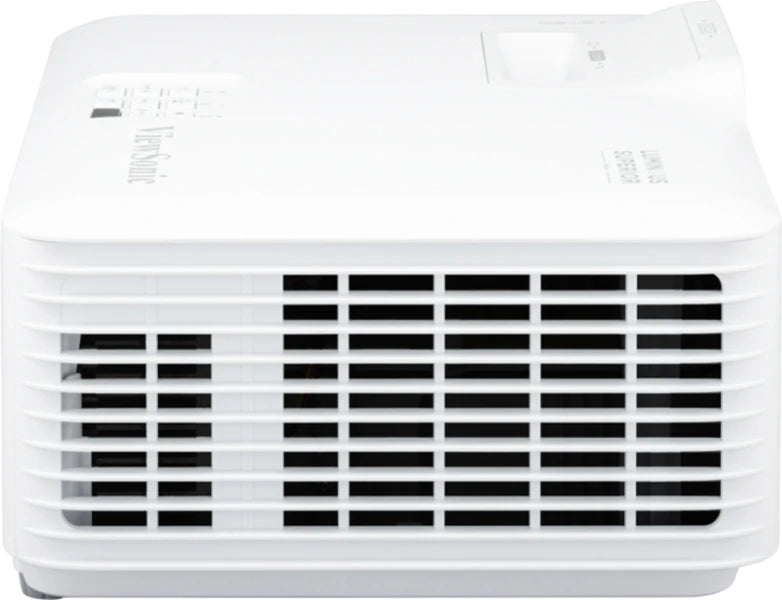

Viewsonic LSD500HD data projector Standard throw projector 5500 ANSI lumens 1080p (1920x1080) White - LSD500HD

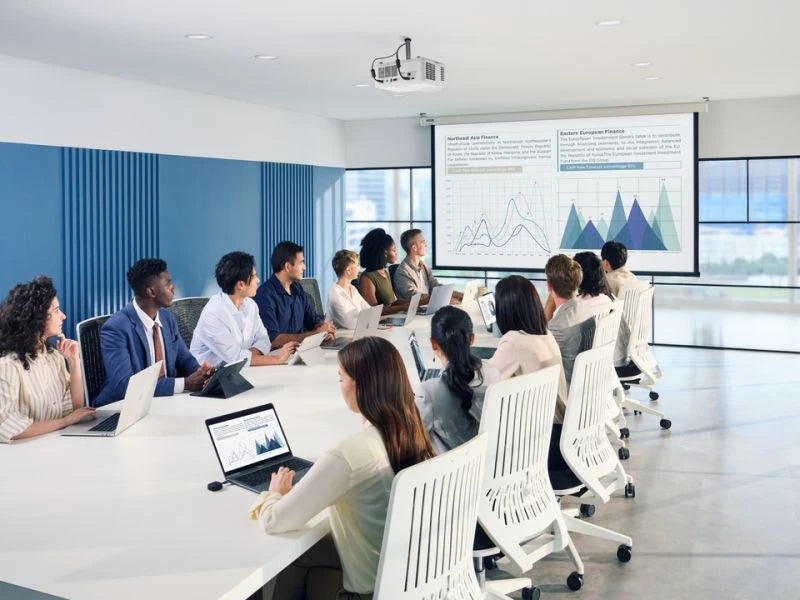

The LSD500HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for corporate and commercial environments. This DLP projector uses 3rd generation laser phosphor technology, delivering a brightness of 5,500 ANSI Lumens for up to 30,000 hours. It can project up to a 300” ultra-large screen in 1080p Full HD resolution with high native contrast. Its comprehensive LAN control enables centralized management, making it ideal for boardrooms, public, and sports simulation spaces. Its lamp-free design offers an eco-friendly and cost-effective solution with less power consumption, while its lightweight and compact build reduces transportation costs. This projector offers flexible setup, equipped with features like a 1.3x optical zoom, H/V keystone, and 360° projection capabilities, possibilities.

Bright, Compact, Durable
The LSD500HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

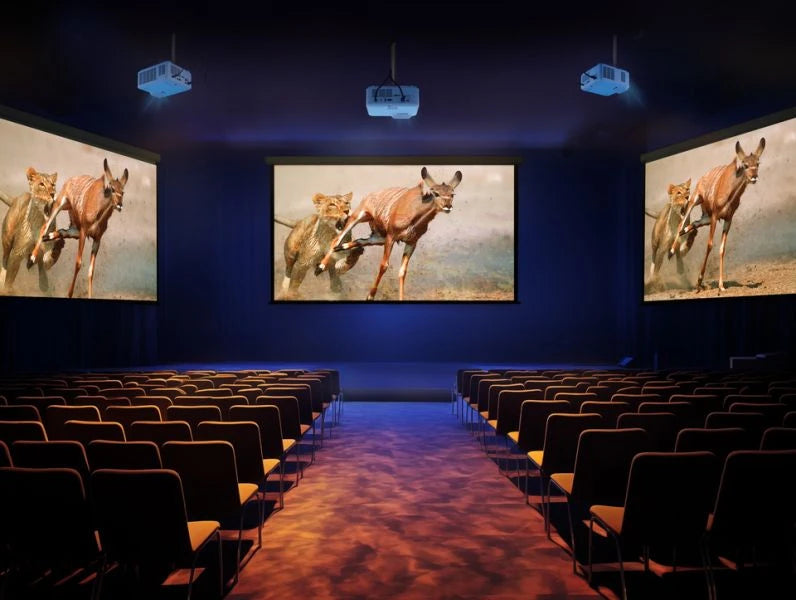

Bright Images for Large Venues
Delivering 5,500 ANSI Lumens, the LSD500HD provides vibrant and sharp projection in 1080p FHD in all lighting conditions for auditoriums, boardrooms, public venues, and other expansive spaces.

Unmatched Contrasts, Enhanced Visibility
The projector's high native contrast ratio, achieved through its Texas Instruments 0.65"DMD chip, enables deeper blacks and brighter whites. As a result, it delivers more visual depth, clearer images, and enhanced legibility.

Ultra-Large Screen with Lower Cost-per-Inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays

Save on Costs and Energy
With its advanced lamp-free light source, the LSD500HD offers a highly energy-efficient and cost-saving display solution by consuming up to 62% less power than competing projectors

Enhanced Installation Flexibility

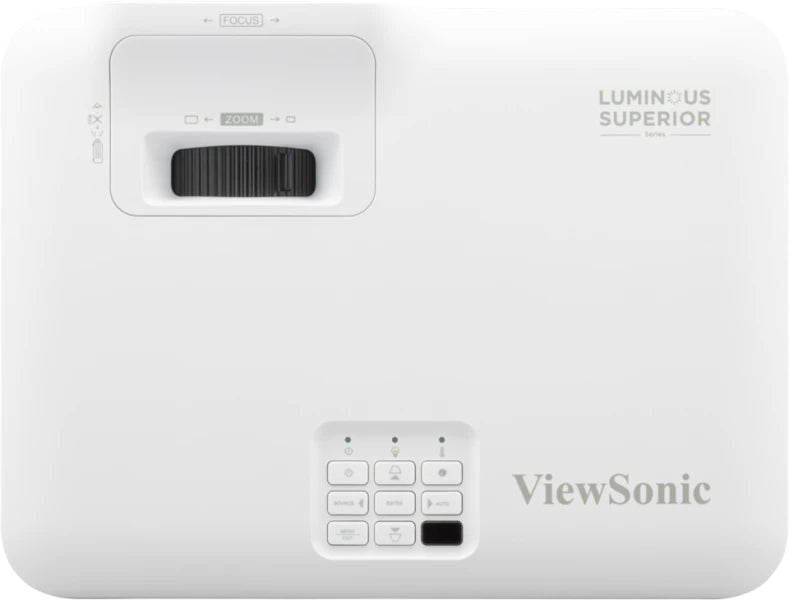

Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design.

Get ​​Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.

Versatile Creative Application​s
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.

Non-stop 24/7 Operation​​

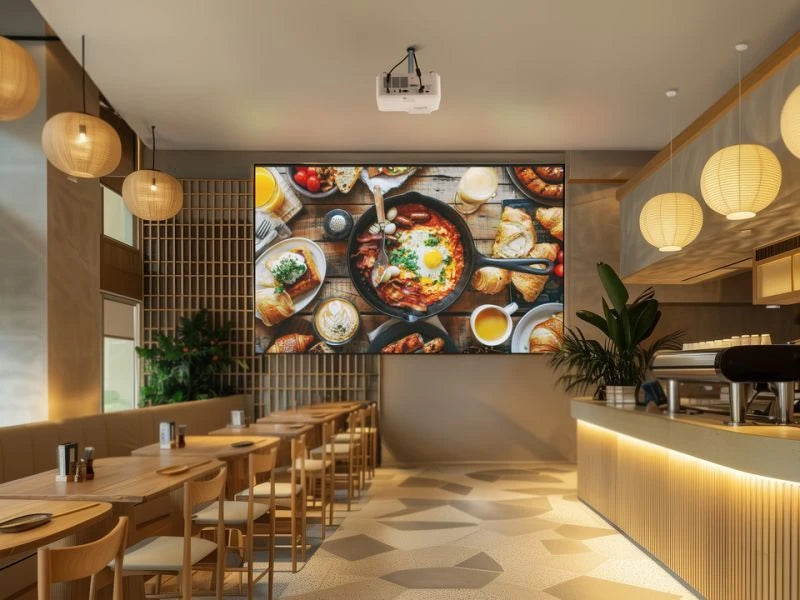

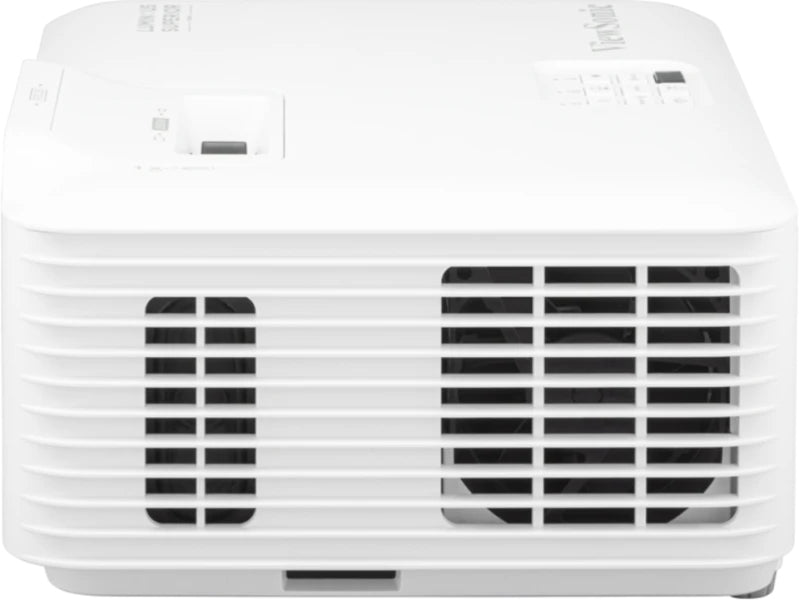

The projector's advanced cooling design enables 24/7 operation without any degradation in image quality or performance. This makes it the go-to solution for applications that require continuous projection in retail stores, malls, museums, airports, and other public spaces.

Centralized Control for Management Efficiency
The LSD500HD is certified for Crestron and Q-SYS, and compatible with AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.

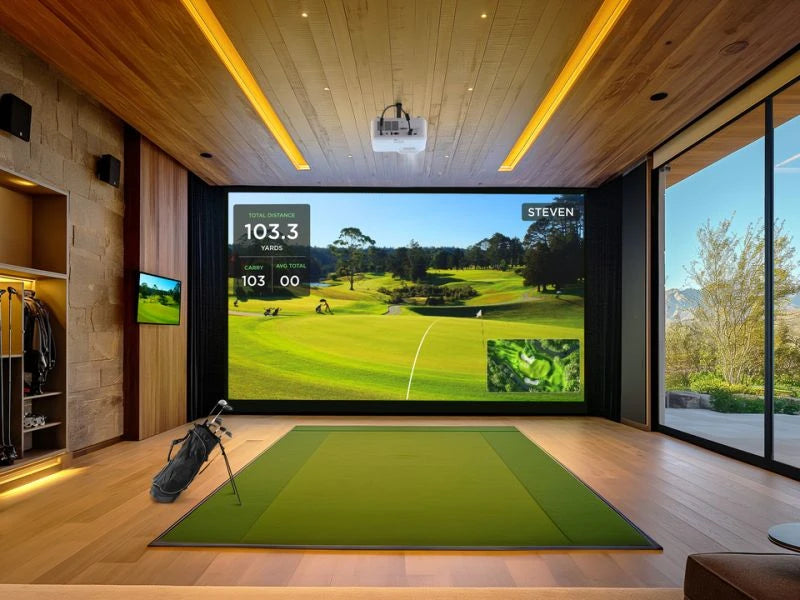

Brilliant Colors for an Authentic Golf Experience
Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible

HDR / HLG / 4K UHD supported by HDMI 2.0b
The LSD500HD is equipped with HDMI 2.0b and HDCP 2.2 ports, delivering full 4K resolution with HDR10 and HLG support at a smooth 60Hz frame rate. Whether streaming via a Roku stick or playing from a 4K Blu-ray player, enjoy brilliant whites, rich blacks, and enhanced detail for a truly cinematic visual experience.

Upgrade Your Projector with Wireless Content Casting
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector‘s built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters. *ViewShare sold separately

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.Learn more: https://youtu.be/irlhJLpDHas*The latest projector software update can be found in the download section at the bottom of the page when available.

• 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
• 5,500 ANSI Lumens offering bright images in any environment
• Up to a 300" ultra-large screen with a lower cost-per-inch
• Centralized LAN control for efficient management
• Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode

Projector brightness	5500
Projector native resolution	1080p (1920x1080)
Contrast ratio (typical)	3000000:1
Screen size compatibility	30 - 300
Projection distance	0.75 - 9.76
Number of colours	1.07 billion colours
Horizontal scan range	15 - 135
Vertical scan range	24 - 120
Keystone correction, horizontal	-30 - 30
Keystone correction, vertical	-30 - 30
Light source type	Laser
Service life of light source	20000
Service life of light source (economic mode)	30000
Focal length range	16.9 - 21.61
Aperture range (F-F)	2.43 - 2.78
Digital zoom	2
Optical zoom	1.3
Throw ratio	1.13 - 1.47
Offset	132
Full HD	Y
Supported graphics resolutions	1280 x 720 (HD 720),640 x 480 (VGA),1920 x 1080 (HD 1080),3840 x 2160
Supported video modes	480i,480p,576i,576p,720p,1080i,1080p,2160p

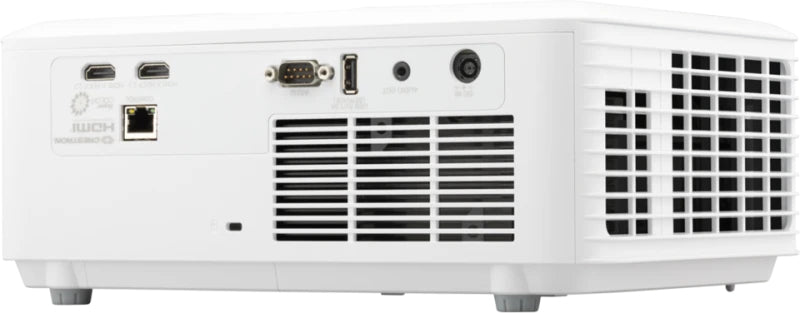

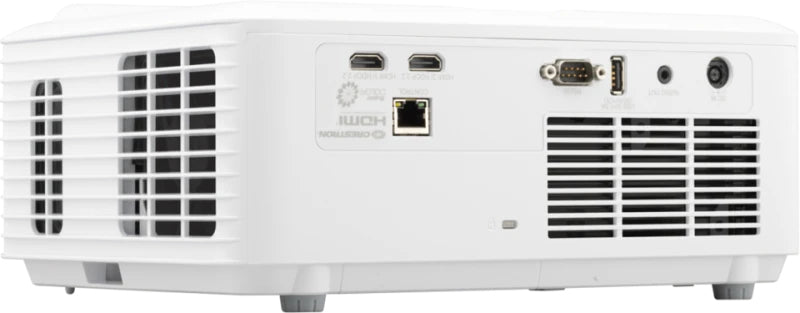

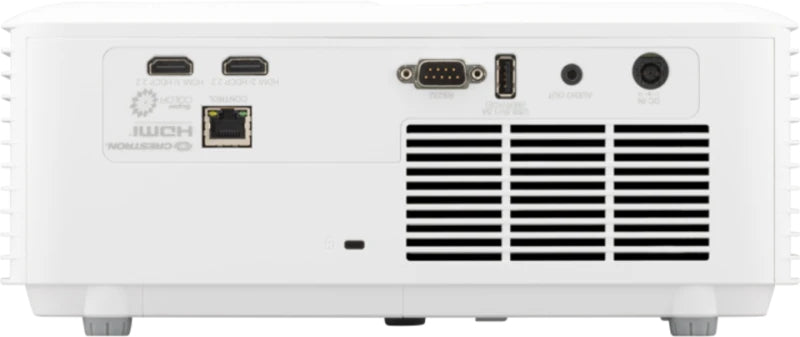

HDMI ports quantity	2
Serial interface type	RJ-45,RS-232
HDMI connector type	Full-size
HDMI version	2.0
Headphone outputs	1
USB connector type	USB Type-A
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Noise level	32
Noise level (economic mode)	27
HDCP	Y
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	ENG,CHI (SIMPL),CHI (TR),IND,FIN,FRE,DEU,ITA,JPN,KOR,POL,POR,RUS,ESP,SWE,TUR,ARA,CZE,THA,VIE
Built-in speaker(s)	Y
RMS rated power	15
Product type	Standard throw projector
Market positioning	Home cinema
Product colour	White
Power source	DC
Power consumption (typical)	165
Power consumption (standby)	0.5
AC input voltage	100 - 240
AC adapter output voltage	19.5
Operating temperature (T-T)	0 - 40
Weight	2900
Width	286
Depth	216
Height	129
Package width	400
Package depth	280
Package height	155
Package weight	4600

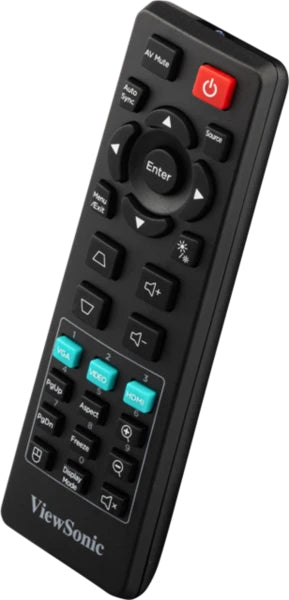

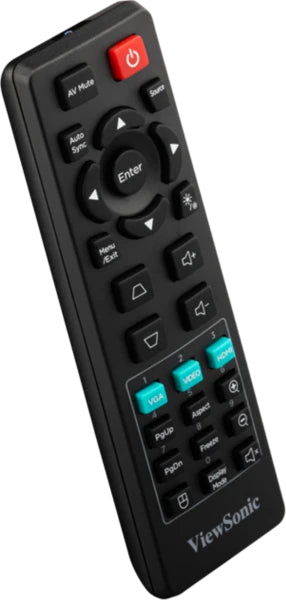

Remote control included	Y
Cables included	AC
Manual	Y
Warranty card	Y
Packaging content	Power Cord: 1 Remote Control: 1 QSG: Yes Warranty Card: Yes (CN Only)
RS-232 ports	1
