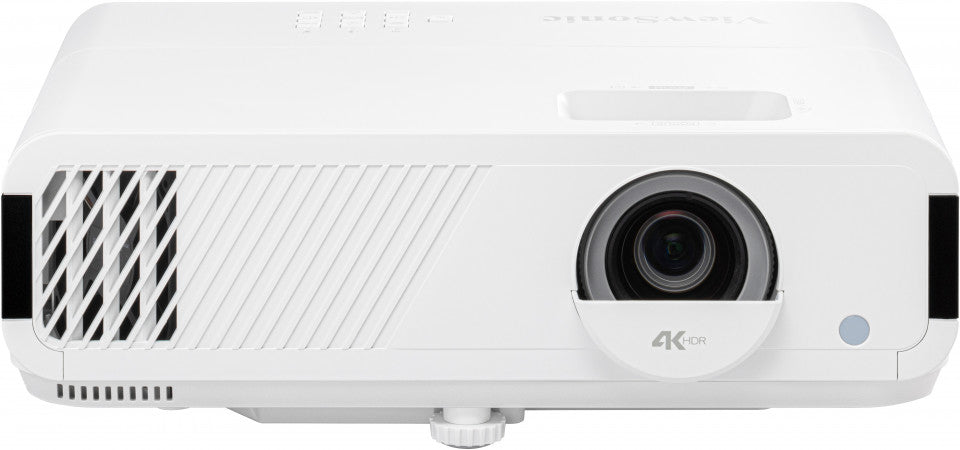

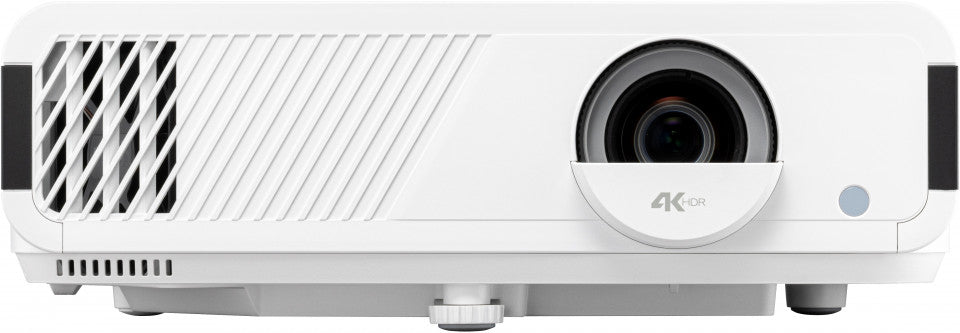

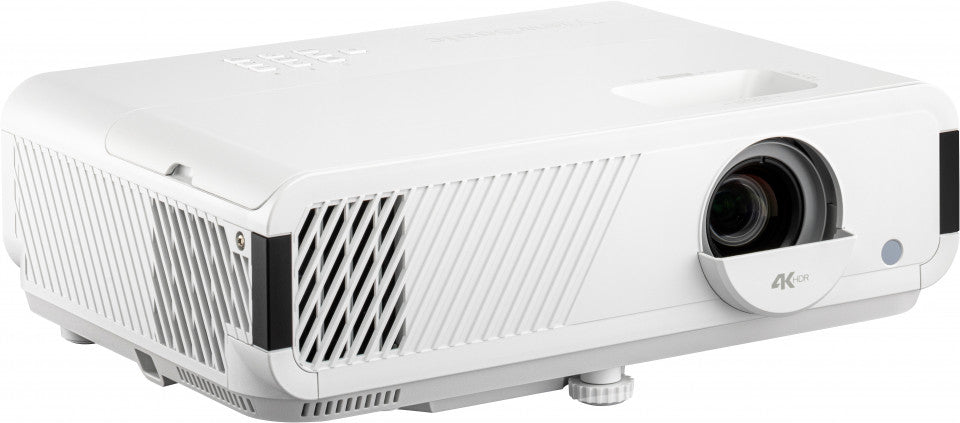

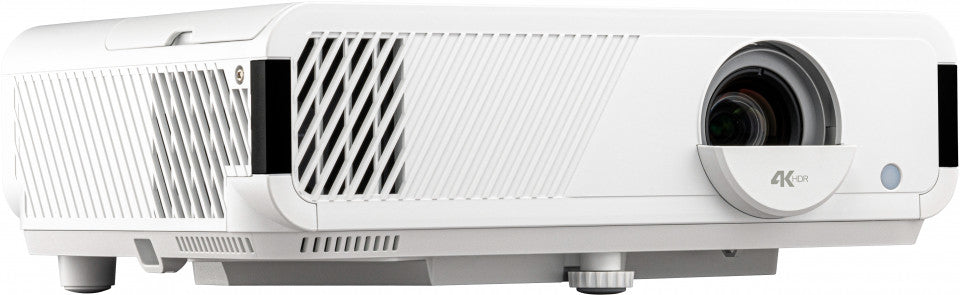

Viewsonic PX749-4K data projector Standard throw projector 4000 ANSI lumens UHD 4K (3840x2160) 3D White - PX749-4K

The PX749-4K is a 4,000 ANSI Lumens 4K home projector designed for Xbox, driving the ultimate gaming experience with Xbox-exclusive resolution and refresh rate combinations. The projector shines in value and brightness as well as delivers pixel-perfect visuals in true 4K UHD clarity with HDR/HLG support. Boasting a Harman-tuned speaker, the PX749-4K elevates audiovisual enjoyment, so you can fully lose yourself in the game. Experience a whole new level of playing with 4.2ms Ultra-Fast Input, a 240Hz refresh rate, and USB-C connectivity for direct streaming from Nintendo® Switch. Set up faster and easier than ever with 1.3x optical zoom, warping, H/V keystone and auto V keystone, capable of creating a screen of up to 300” on any surface. PX749-4K is also a perfect addition to your smart home, with LAN control capability that's compatible with home automation systems and 12V trigger output.

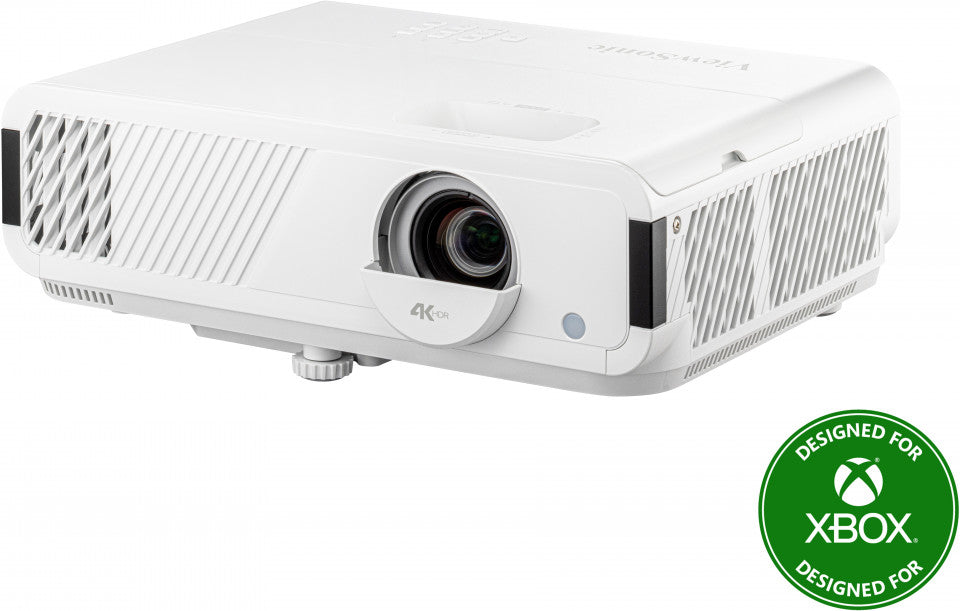

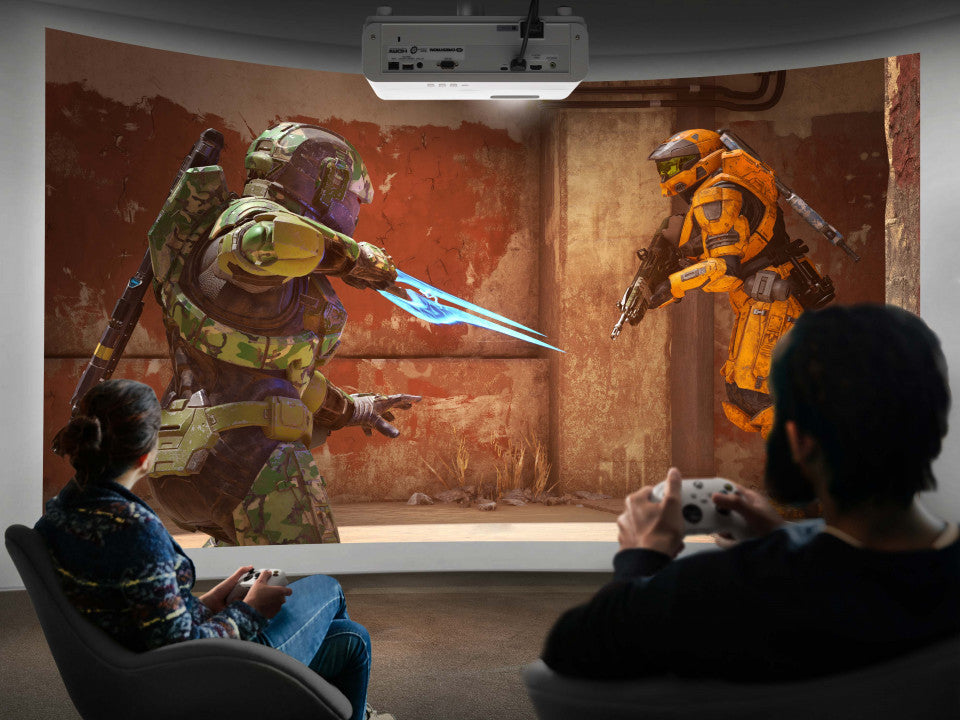

Game On with “Designed for Xbox”
The PX749-4K supports Xbox-exclusive resolution and refresh rate combinations, and automatically adjusts to the most ideal settings. Rest assured, you'll get the most out of your gaming experience. ​

*When connecting to Xbox console via HDMI 2, the projector will switch to gaming mode by default.​

Ultimate Viewing Experience with 4K HDR
Enjoy the crystal-clear detail of true Ultra HD and savor dynamic visuals thanks to HDR/HLG and 3D support. With an HDMI 2.0b/ HDCP 2.2 port, the PX749-4K ensures original 4K quality content, so games, sports, movies, and all your favorite streaming content are brought to life.

Harman-Tuned Speaker Brings Powerful Audio
The projector boasts a Harman-tuned speaker to deliver powerful audio. When combined with the 4K UHD images, this ensures an all-around audiovisual feast.​

Bright Images Anytime
Boasting 4,000 ANSI Lumens, the PX749-4K is guaranteed to produce clear and bright visuals. Immerse yourself in cinematic experiences even in bright spaces.

Up-to-300” Screen Size for a True Cinematic Experience
The PX749-4K allows for an up-to-300” image, surpassing what all traditional screens can offer, to deliver a true cinematic experience from the coziness of your home.

Ultra-Fast Input for a Flawless Gaming Experience
Boasting 4.2ms Ultra-Fast Input*, a hyper-responsive 240Hz refresh rate, and a microsecond-level response time**, the PX749-4K delivers seamless viewing in high intensity situations.

​* The general refresh rate of the projector is 60Hz. To enable 4.2ms Ultra-Fast Input, turn it on in Advanced Settings and make sure the input content is set to 240Hz refresh rate. When enabled, the highest resolution supported is 1080p. ​​
**The response time stated refers to the reaction time of DMD chip.​​

Direct Content Streaming via USB-C
Project content directly from your phone or any other mobile device while simultaneously charging it via a USB-C cable. Stream videos, FaceTime with friends, or play Nintendo® Switch on the big screen without a docking station, all via a single cable.​

*Devices must support USB-C video streaming.​
*Apple-authorized Lightning to HDMI adaptor required for iPhone and iPad users.​

Shape Your Gaming Experience
With warping adjustment, adapt your screen to any projection surface and take advantage of curves for an always more immersive gaming experience.

A Perfect Fit for Any Environment

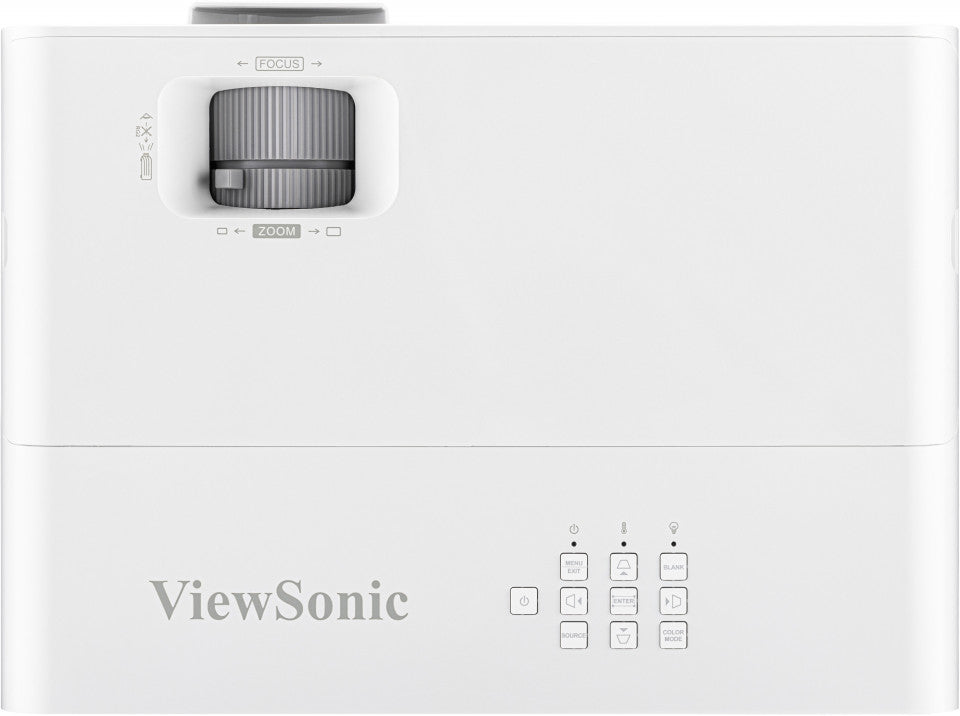

Equipped with a 1.3x optical zoom lens, you can choose any location within a range for set-up to get the desired image size, all without needing to change any existing interior design.

Effortlessly Project from All Angles
Central positioning is no longer necessary with comprehensive H/V keystone, 4 corner adjustment, and auto V keystone capabilities. The PX749-4K delivers perfectly-shaped images from above, below, front, or side, making setup a breeze.

Enjoy the Simplicity of Unified Smart Systems
Compatible with AV solutions like Creston, AMX, PJ Link, ATEN, Extron and ViewSonic vController, the PX749-4K is the perfect addition to your smart home setting.

Set Up Your Home Cinema with Ease
Equipped with 12V trigger output, as soon as you power up, your curtains will close and your projector screen will automatically lower, so you can sit back and enjoy the comfort of your home cinema.

Jazz it Up with Cinematic Colors
ViewSonic’s SuperColor™ Technology offers a wide color gamut for a cinematic, true-to-life color performance without sacrificing image quality.

Customize Your Own Color Profiles​
With a cloud-based color profile exchange, you can easily create your own color profile to fit your preferences and share with others. Or choose to download other profiles and fine-tune them as your own.

• Designed for Xbox for the ultimate gaming experience​
• Immersive audiovisual enjoyment with 4K HDR and Harman-tuned speaker
• Up-to-300" screen size with 4,000 ANSI Lumens to maximize fun at home​
• 4.2ms Ultra-Fast Input & 240Hz high refresh rate​
• Direct big-screen streaming via USB-C​
• Flexible installation: 1.3x optical zoom, warping adjustment and side projection capabilities

Projector brightness	4000
Projector native resolution	UHD 4K (3840x2160)
Contrast ratio (typical)	12000:1
Native aspect ratio	16:9
Smart projector	Y
Screen size compatibility	30 - 300
Projection distance	0.75 - 9.76
Number of colours	1.07 billion colours
Horizontal scan range	15 - 135
Vertical scan range	23 - 240
Keystone correction, horizontal	-40 - 40
Keystone correction, vertical	-40 - 40
Light source type	Lamp
Service life of light source	4000
Service life of light source (economic mode)	20000
Lamp type	UHP
Lamp power	240
Lamps quantity	1
Focus	Manual
Focal length range	12 - 15.6
Aperture range (F-F)	1.94 - 2.12
Zoom capability	Y
Zoom type	Manual
Digital zoom	2
Optical zoom	1.3
Throw ratio	1.13 - 1.47
Offset	120
Analog signal format system	NTSC,PAL
Full HD	Y
3D	Y
Supported video modes	480i,480p,720p,1080i,1080p,2160p

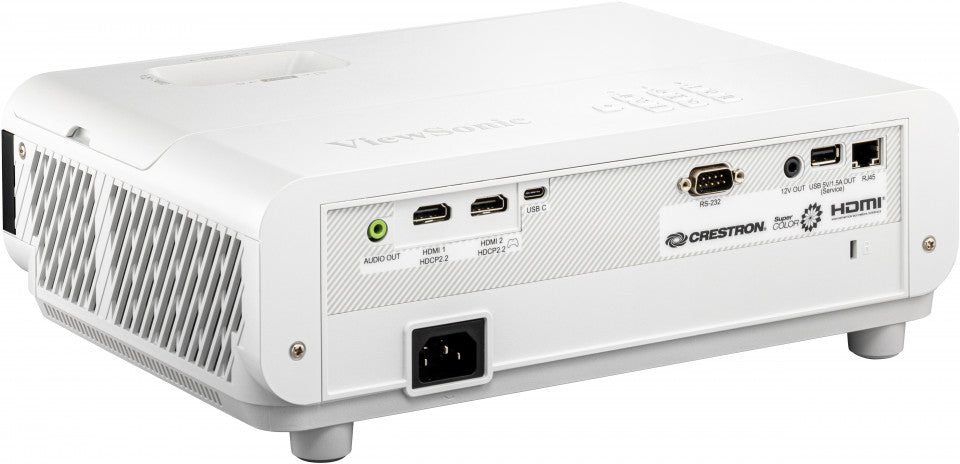

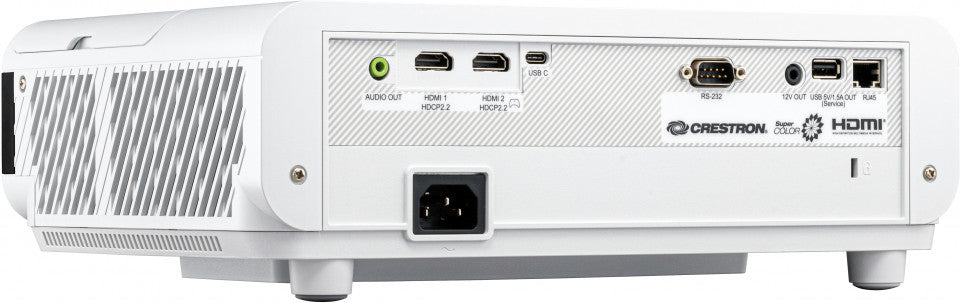

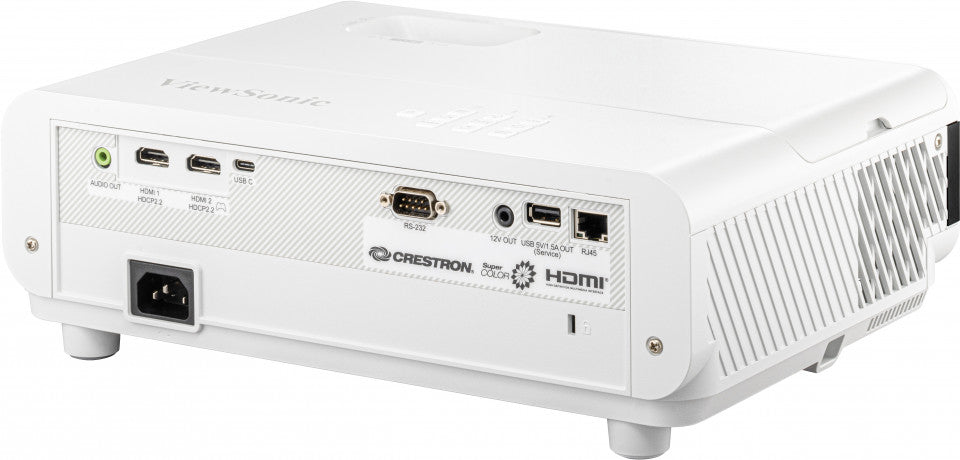

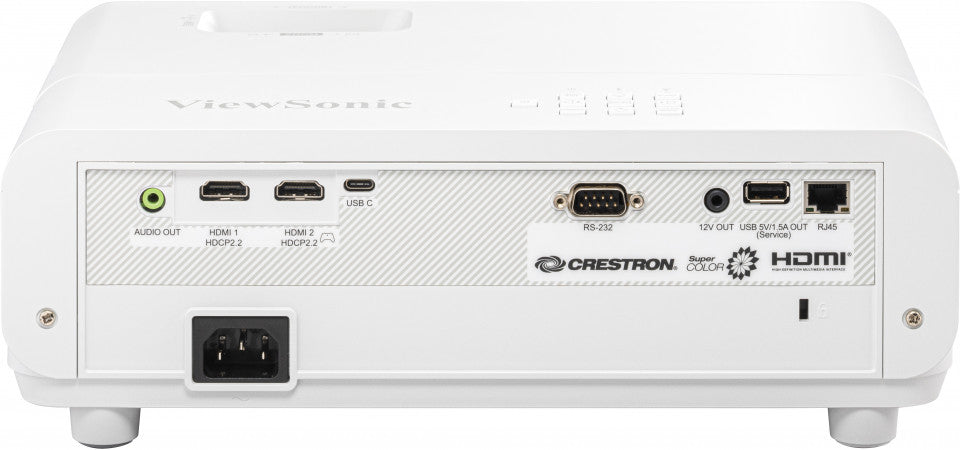

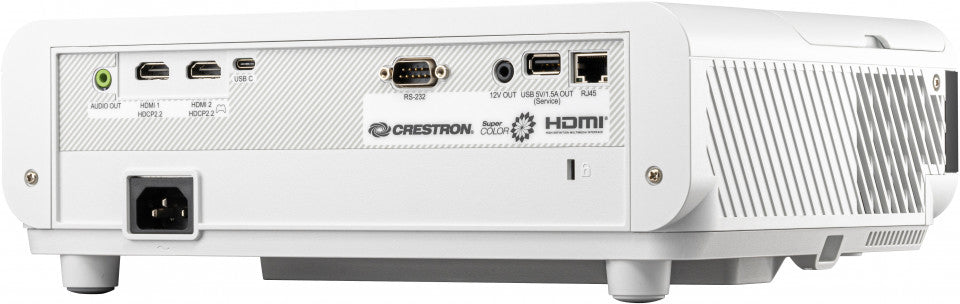

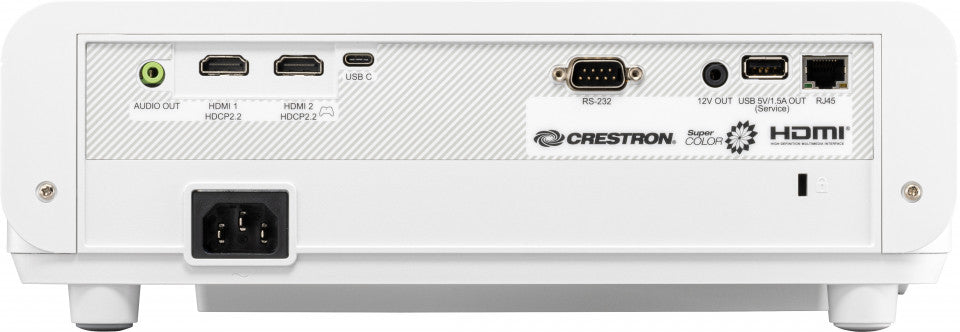

VGA (D-Sub) ports quantity	0
HDMI ports quantity	2
Composite video in	0
Component video (YPbPr/YCbCr) in	0
DVI port	N
Audio (L/R) in	0
Serial interface type	RS-232
HDMI connector type	Full-size
HDMI version	2.0
Service port type	USB Type-A
USB 2.0 ports quantity	2
USB 2.0 Type-A ports quantity	1
USB 2.0 Type-C ports quantity	1
PC Audio out	Y
12V trigger	Y
12V trigger ports quantity	1
AC (power) in	Y
Smart TV	N
Ethernet LAN	Y
Wi-Fi	N
Ethernet LAN (RJ-45) ports	1
Card reader integrated	N
Noise level	33
Noise level (economic mode)	28
HDCP	Y
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	ARA,CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,GRE,INC,IND,ITA,JPN,KOR,POL,POR,RUS,SWE,THA,TUR,VIE
Number of OSD languages	24
HDCP version	1.4/2.2
Built-in speaker(s)	Y
RMS rated power	10
Product type	Standard throw projector
Market positioning	Home cinema
Product colour	White
Built-in display	N
Power source	AC
Power consumption (typical)	310
Power consumption (standby)	0.5
AC input voltage	100 - 240
AC input frequency	50 - 60
Operating temperature (T-T)	0 - 40
Weight	3000
Width	312
Depth	222
Height	108
Package width	415
Package depth	168
Package height	297
Package weight	3900

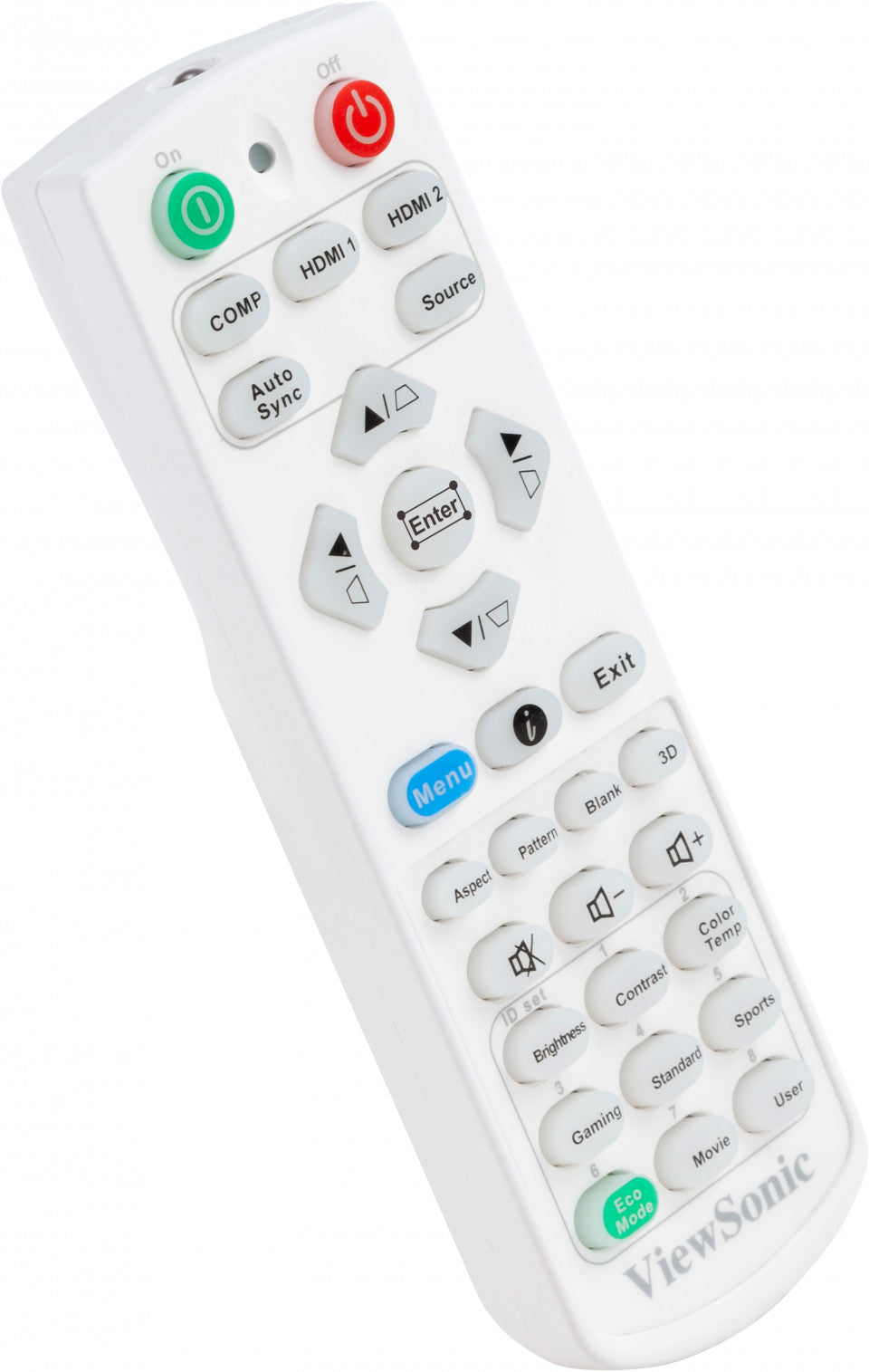

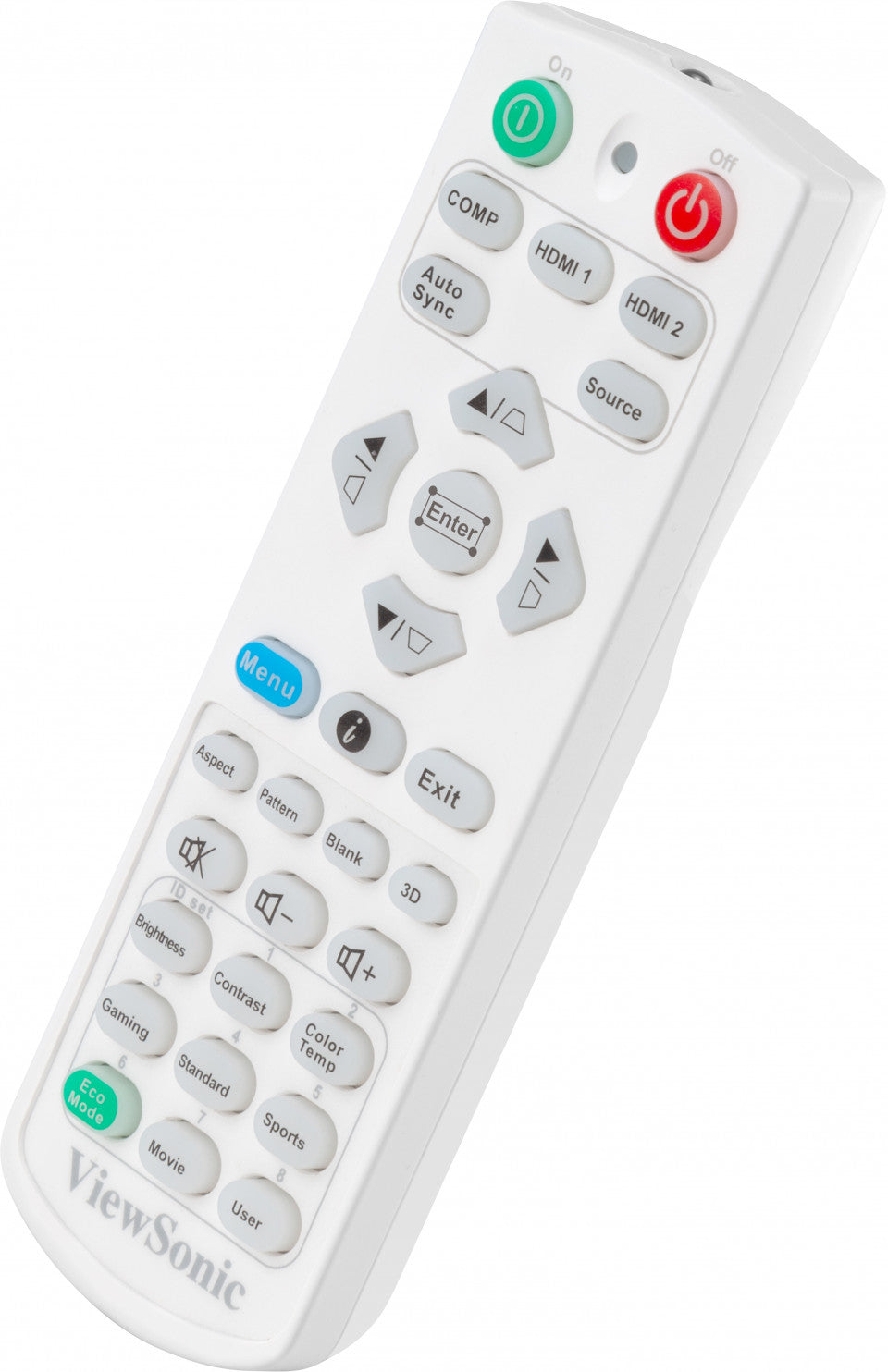

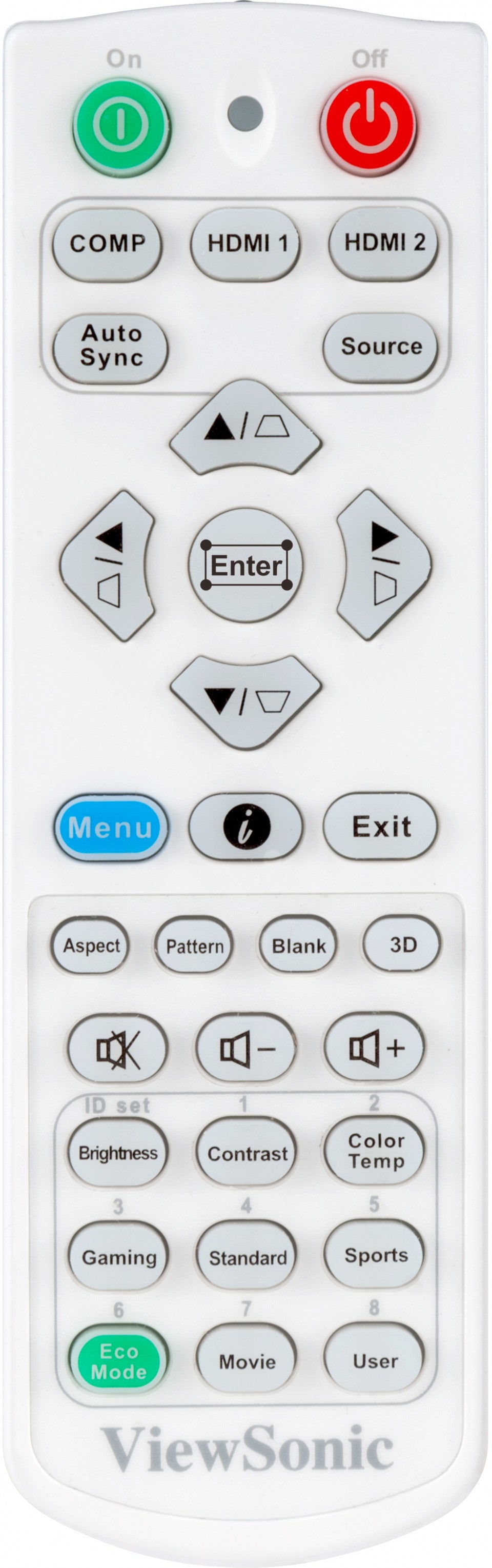

Remote control included	Y
Cables included	AC,USB Type-C
Quick start guide	Y
Warranty card	Y
Pallet gross length	834
Pallet gross width	1008
Pallet gross height	1905
Products per master (outer) case	1
Harmonized System (HS) code	8528620000
Image lag time	4.2
