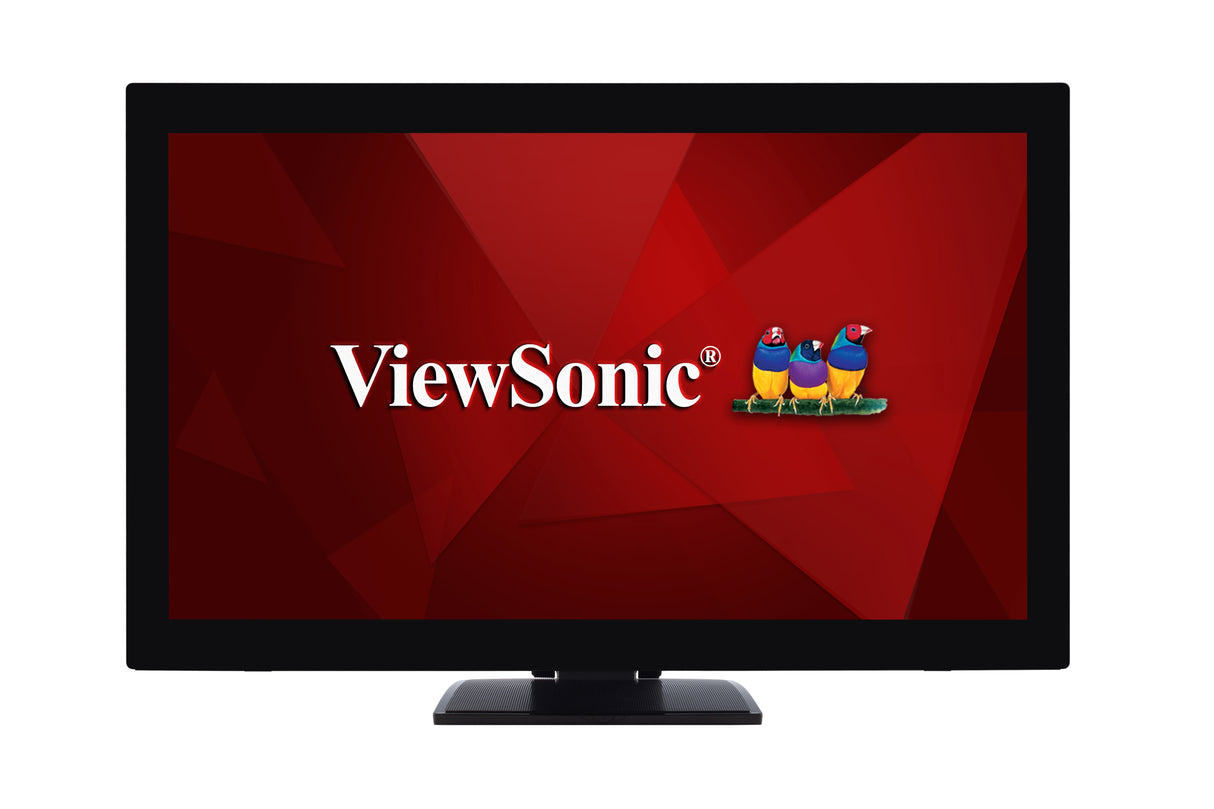

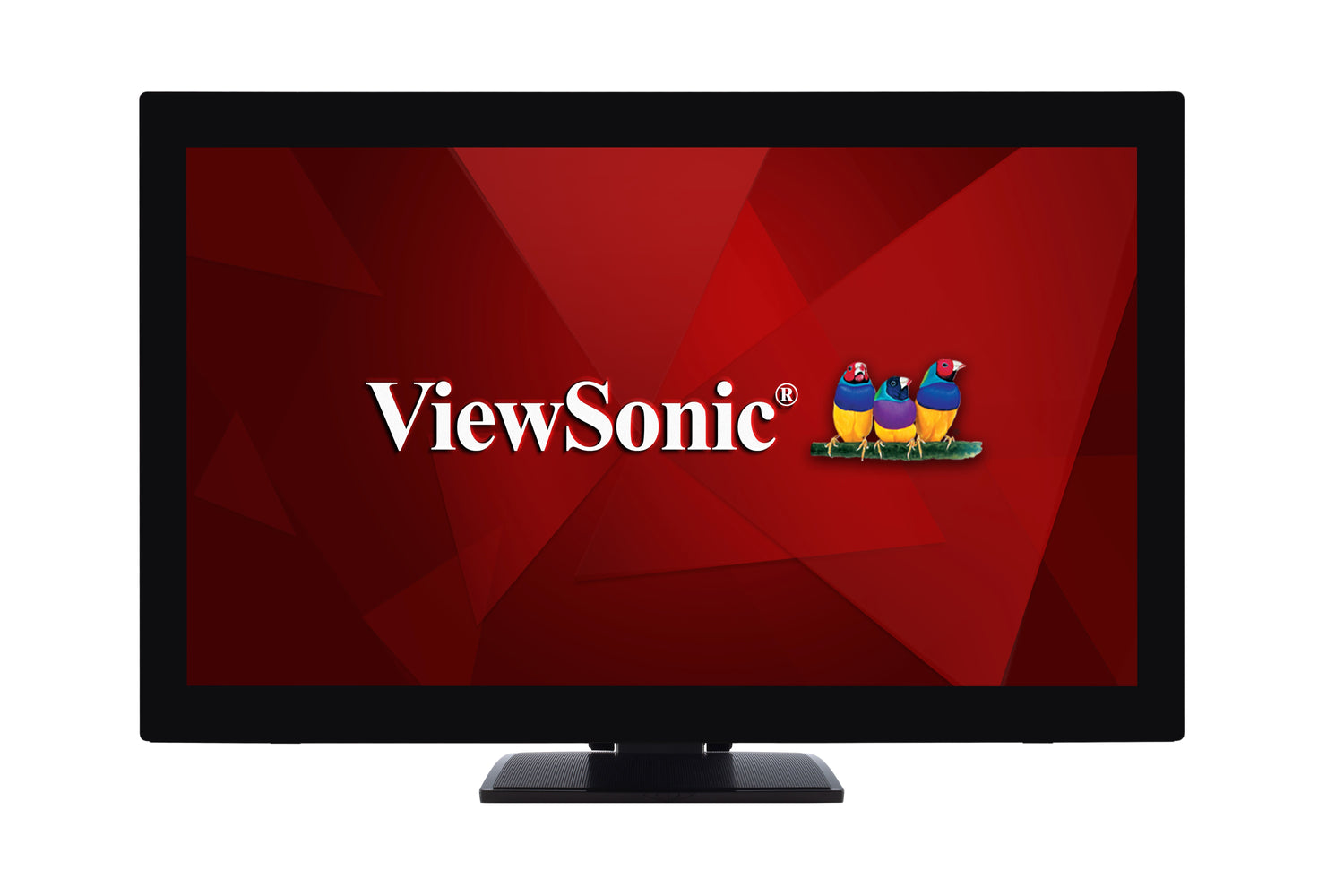

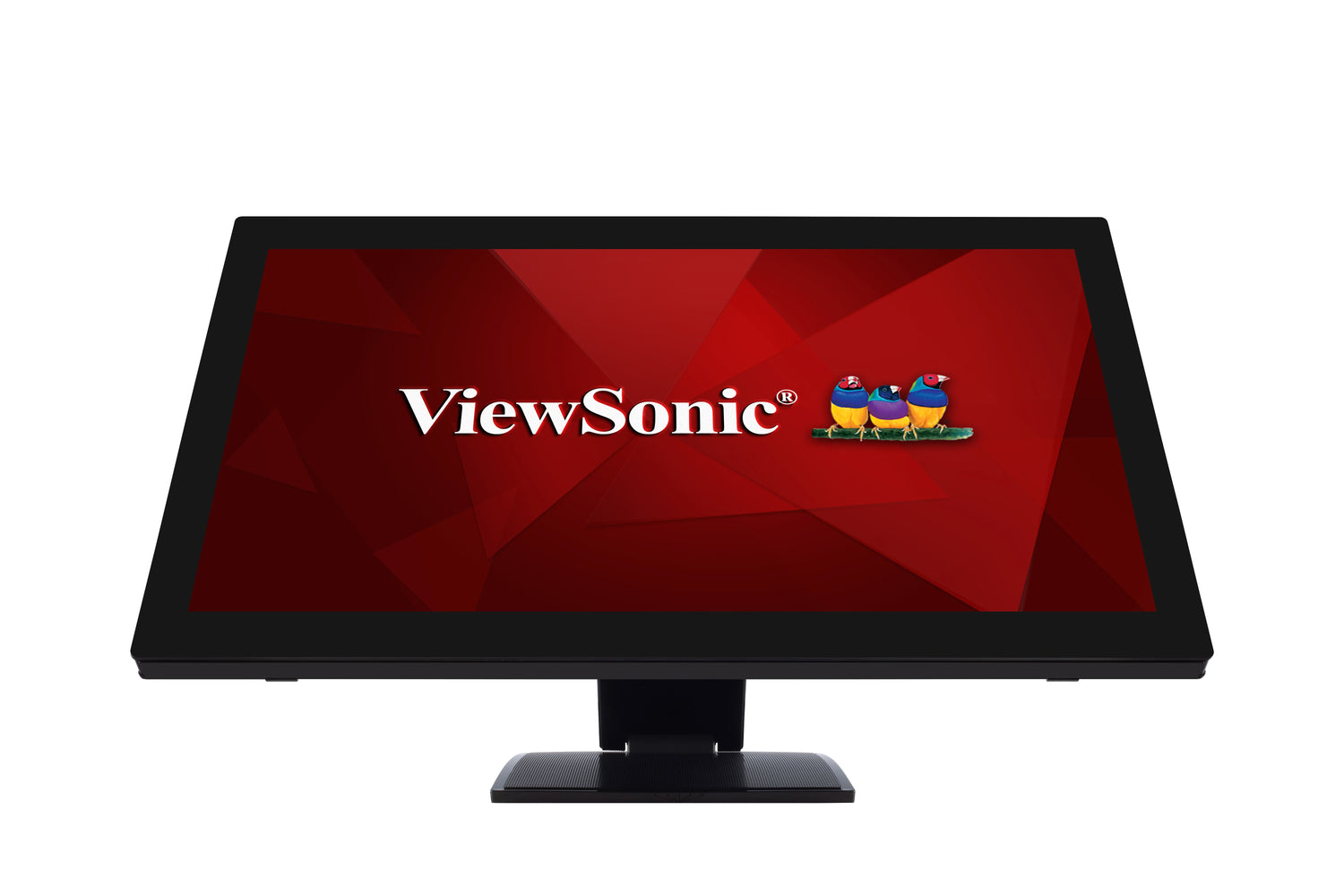

Viewsonic TD2760 computer monitor 68.6 cm (27") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black - TD2760

The ViewSonic® TD2760 is an ideal solution for both commercial and consumer touch-screen applications. With an intuitive 10-point multi-touch display and a Full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® IPS Panel technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android. Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA compatible mount design, offering additional convenience for use as a wall-mount display. With serial port RS232 and HDMI CEC, the TD2760 can directly control connected devices. Even more, the ergonomic stand makes it easy for the user to tilt, raise, and lay the monitor flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with ENERGY STAR certification saves energy costs while reducing carbon emissions.

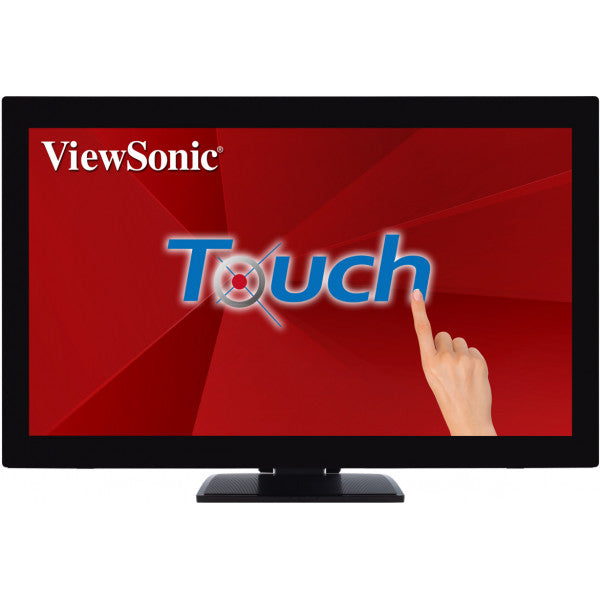

10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.

SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

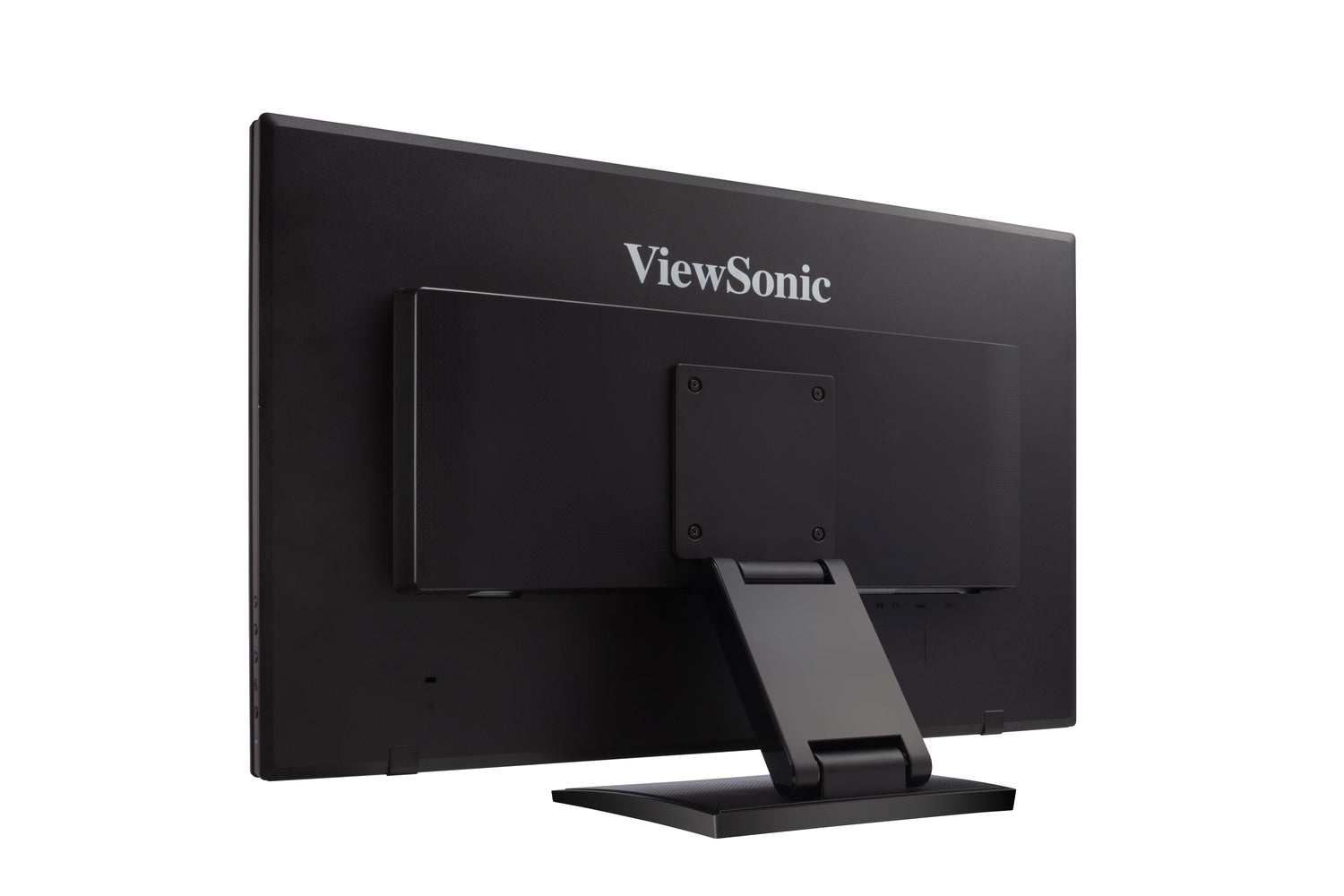

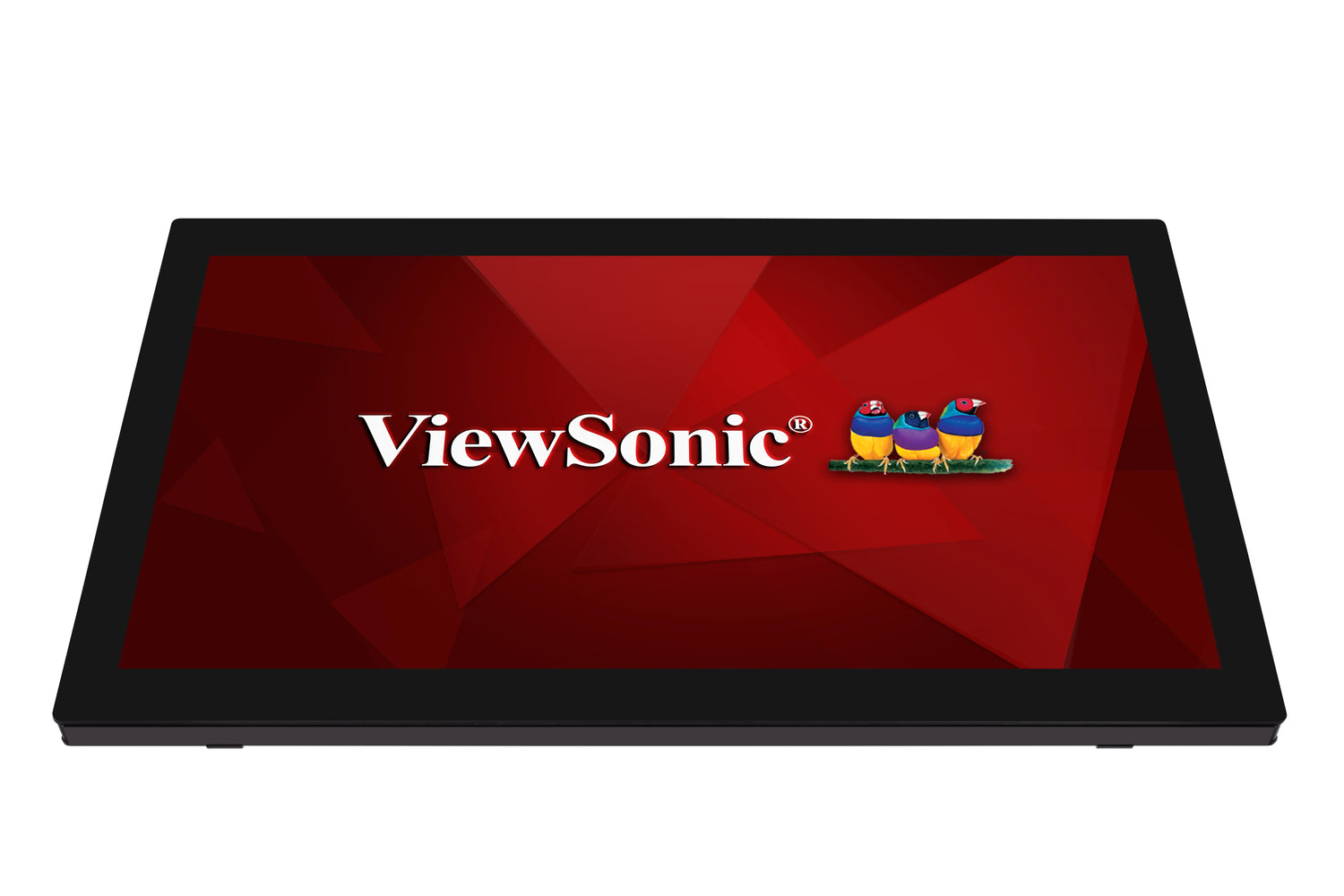

ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.

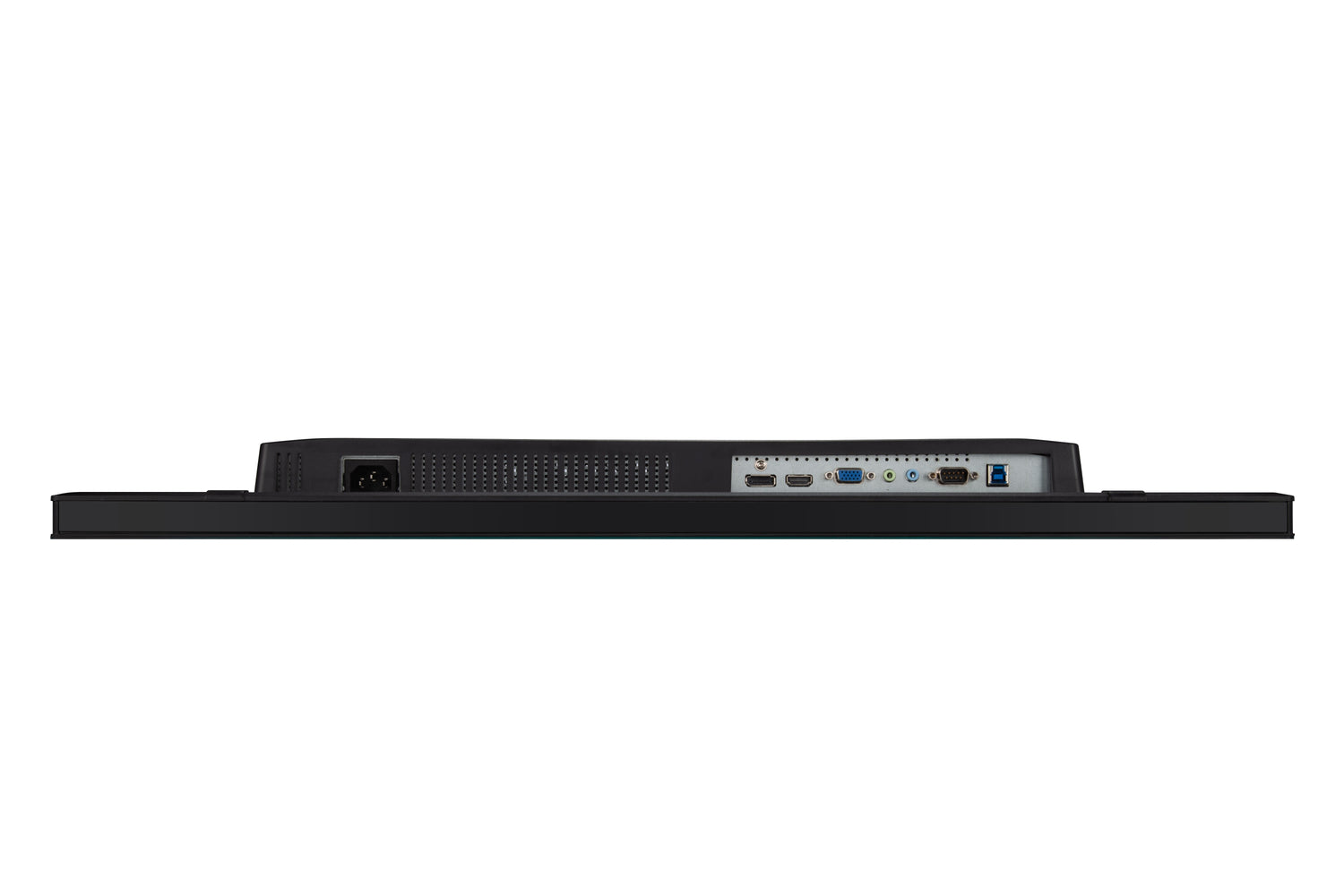

VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.

CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.

• 68.6 cm (27") Black
• Built-in speaker(s)
• USB upstream port type: USB Type-B HDMI HDMI version: 1.4 DisplayPorts quantity: 1 DisplayPort version: 1.2
• Screen shape: Flat
• Response time: 6 ms
• 1920 x 1080 pixels Full HD Panel type: VA
• Energy efficiency class (SDR): F

Display diagonal	27
Display resolution	1920 x 1080
Native aspect ratio	16:9
Display technology	LED
Touchscreen	Y
HD type	Full HD
Panel type	VA
Response time	6
Screen shape	Flat screen
Contrast ratio (typical)	3000:1
Display number of colours	16.78 million colours
LED backlight	Y
Backlight type	LED
Touchscreen type	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Display brightness	300
Anti-glare screen	Y
Aspect ratio	16:9
Contrast ratio (dynamic)	50000000:1
Viewing angle, horizontal	178
Viewing angle, vertical	178
Pixel pitch	0.311 x 0.311
Horizontal scan range	15 - 90
Vertical scan range	50 - 76
Viewable size, horizontal	598
Viewable size, vertical	336
Display diagonal (metric)	68.58
Surface hardness	6H
Separate H/V sync	Y
NVIDIA G-SYNC	N
AMD FreeSync	N
Built-in speaker(s)	Y
Built-in camera	N
Number of speakers	2
RMS rated power	4
Built-in microphone	N
Product colour	Black
Glass thickness	1.88
Built-in USB hub	Y
HDMI	Y
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
Number of USB Type-B upstream ports quantity	1
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
Audio input	1
Audio output	1
HDCP	Y
RS-232 ports	1

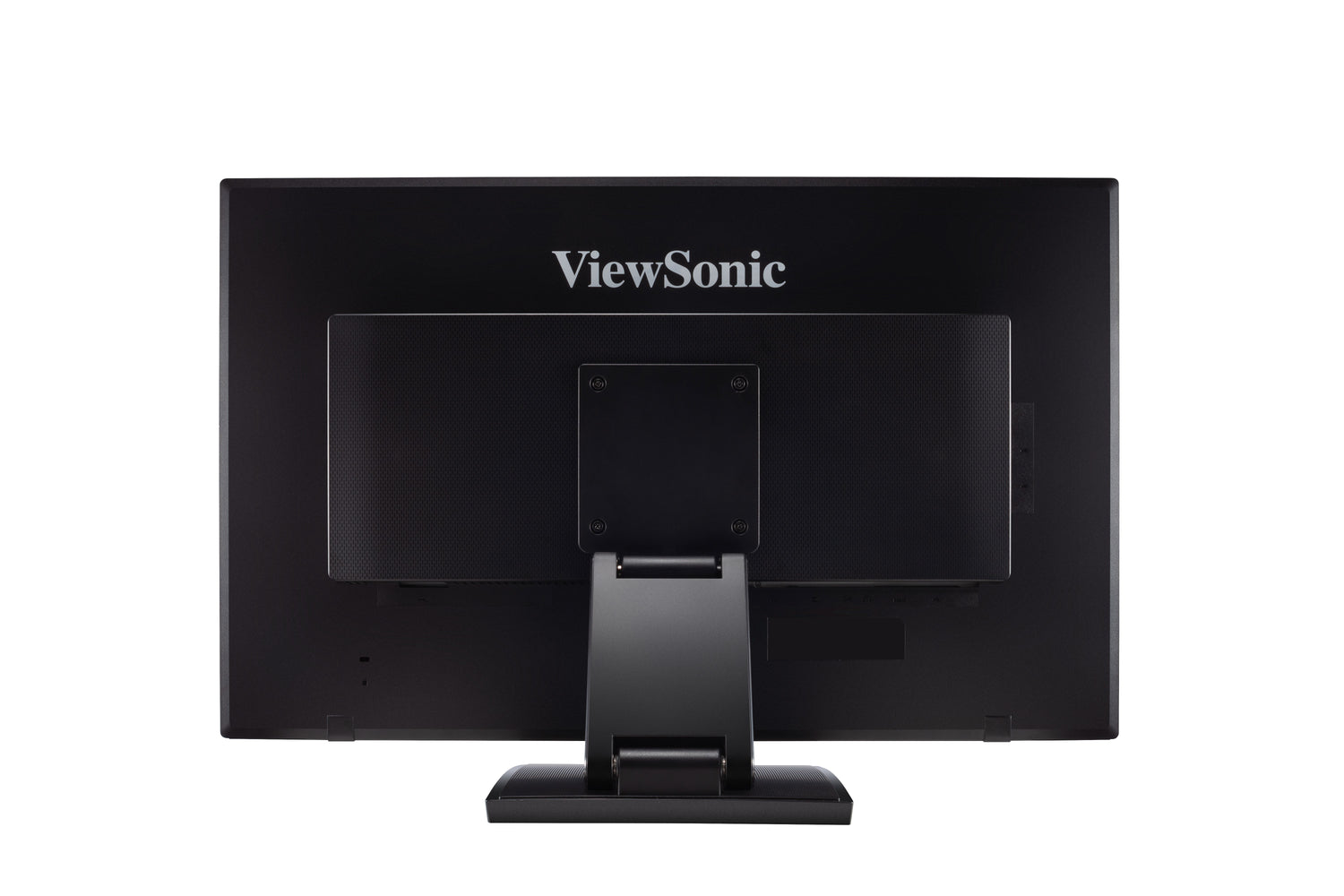

VESA mounting	Y
Cable lock slot	Y
Panel mounting interface	100 x 100
Wall mountable	Y
Cable lock slot type	Kensington
Tilt adjustment	Y
Tilt angle range	-4 - 90
On Screen Display (OSD)	Y
Number of OSD languages	14
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	19
Power consumption (typical)	26
Power consumption (standby)	0.3
Power consumption (off)	0.3
AC input voltage	100 - 240
AC input frequency	50 - 60
Power supply type	AC
Operating temperature (T-T)	0 - 40
Operating relative humidity (H-H)	20 - 90
Width (with stand)	660
Depth (with stand)	239
Height (with stand)	443
Weight (with stand)	7900
Width (without stand)	660
Depth (without stand)	58
Height (without stand)	410
Weight (without stand)	5500
Package width	753
Package depth	204
Package height	525
Package weight	10200
Cables included	Power,VGA,HDMI,USB,Audio
Quick start guide	Y
Weight	7900
Mean time between failures (MTBF)	30000
Certification	MX-CoC, Mexico Energy, CE, CE EMC, CB
Products per master (outer) case	1
Pallet gross width	1200
Pallet gross length	1000
Pallet gross height	2240
Harmonized System (HS) code	8528521000
Supplied AC adapter type	Y
