Yealink MeetingBar A10-020 - A10-020
Description
Description

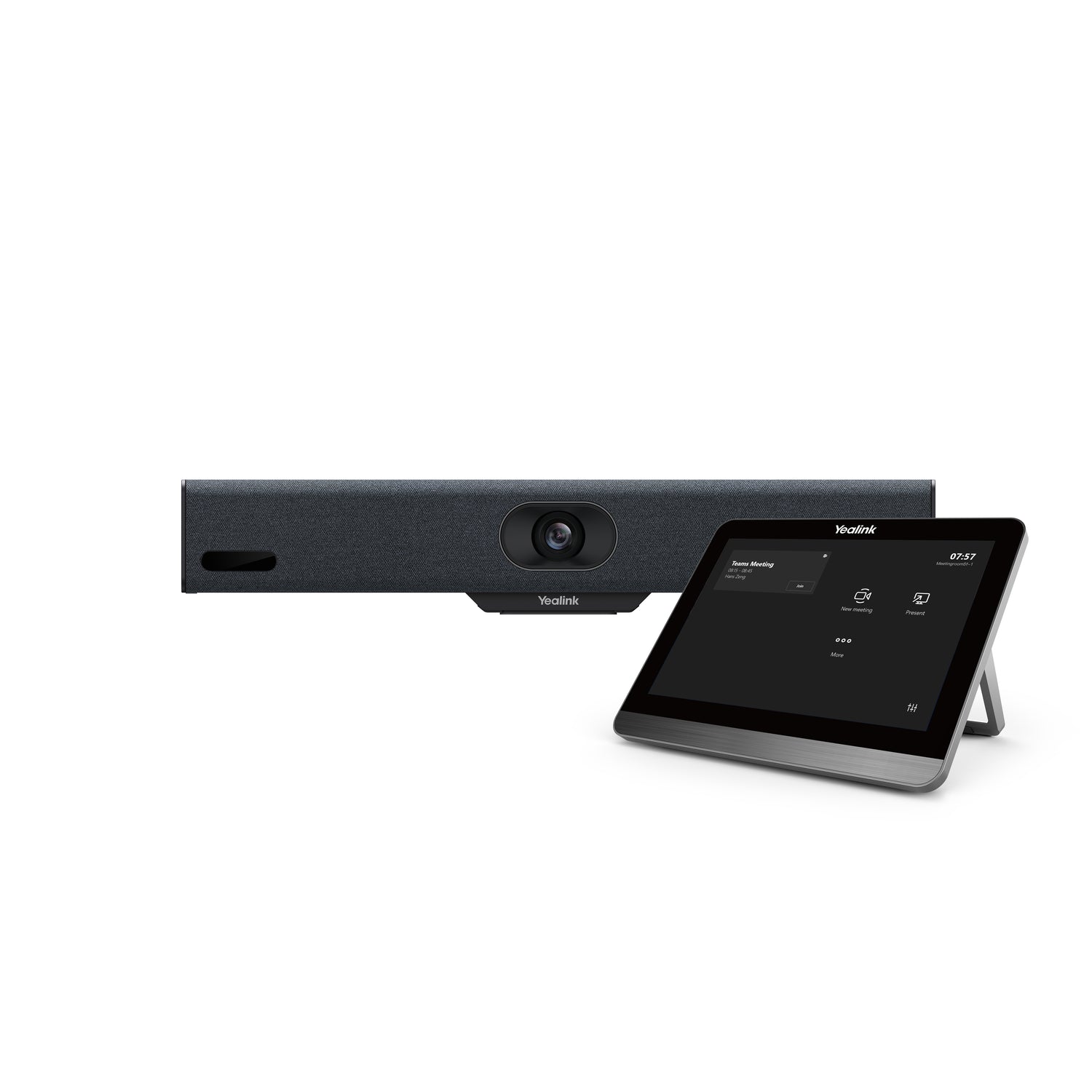

Yealink MeetingBar A10 is an all-ine-one video bar deisgned for small space (1-7 people) and home office. The built-in 4k camera with 120° field of view catches details precisely, with great color. AI-powered features including Auto Framing, Speaker Tracking and Smart Gallary deliver a focused view without distraction. The built-in 8-MEMS beamforming microphones pick up voice from all directions, and a full-duplex audio algorithm with AI-enhanced noise cancellation delivers clear sound for both sides clearly even if you are talking at the same time.
- Built-in 4k camera with 120° field of view
- AI-powered video features: Auto Framing, Speaker Tracking and Smart Gallary (Zoom supported)
- Built-in 8-MEMS beamforming microphones, full-duplex audio
- AI-enhanced noise cancellation and reverberation suppression
- Intuitive meeting control on the touch panel
| Product type | Video collaboration bar |
| Product colour | Black,Grey |
| Number of cameras | 1 |
| Bluetooth | Y |
| Bluetooth version | 4.2 |
| Auto framing | Y |
| Auto-tracking | Y |
| Tracking modes | Presenter mode |
| Meeting features | Add participates,Calendar,Content sharing,Hold/Resume,One-click join |
| Wall mountable | Y |
| PTZ control | Y |
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 |
| Maximum frame rate | 30 |
| Video codecs | H.264 High profile, H.264 SVC, H.264 |
| Built-in speaker(s) | Y |
| Audio system full duplex | Y |
| Echo cancellation | Y |
| Speaker power | 5 |
| HDMI output ports quantity | 1 |
| USB connector type | USB Type-A,USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Y |
| Line-in | Y |
| Line-out | Y |
| Microphone in | Y |
| Reset slot | Y |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,1000,100 |
| Wi-Fi | Y |
| Security algorithms | 256-bit AES,EAP-TLS,MSCHAPv2,PEAP,TLS |
| Camera type | Single camera |
| Horizontal field of view | 105 |
| Diagonal field of view | 120 |
| Auto Focus (AF) object detection | People |
| Remote control interface | Ethernet |
| Camera privacy shutter | Y |
| Display diagonal | 8 |
| Display resolution | 1280 x 800 |
| Touchscreen | Y |
| Microphone sensitivity | 88 |
| Microphone mute | Y |
| Number of microphone arrays | 8 |
| Motion sensor | Y |
| Cable lock slot | Y |
| Country of origin | China |
| Operating system installed | Android 10 |
| Mobile operating systems supported | Android 11.0 |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 95 |
| Storage temperature (T-T) | -30 - 70 |
| Power source type | AC |
| AC input voltage | 100 - 240 |
| DC output voltage | 48 |
| DC output current | 0.7 |
| Power consumption (typical) | 10.5 |
| Power consumption (max) | 14 |
| Power consumption (idle) | 10 |
| Certification | CE, FCC, RoHS, REACH, ISO 9001, CCC, NOM |
| Width | 380 |
| Depth | 68 |
| Height | 82 |
| Weight | 3590 |
| Package width | 165 |
| Package depth | 150 |
| Package height | 447 |
| Package weight | 4270 |
| Cables included | HDMI,LAN (RJ-45) |
| Networking cable length | 3 |
| HDMI cable length | 1.8 |
| AC adapter included | Y |
| Quick start guide | Y |
