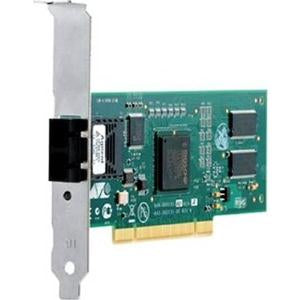

Allied Telesis AT-2911SX/LC-901 network card Internal Fiber 1000 Mbit/s - AT-2911SX/LC-901

Allied Telesis AT-2911 Series Network Interface Cards feature a PCI Express (PCIe x1) design, providing the maximum possible bandwidth and bus efficiency while providing the benefits of low power consumption.

High Reliability
The AT-2911 Series Gigabit interface comes with a comprehensive Microsoft Windows utility which performs detailed tests, diagnostics and analysis.

Advanced Manageability
The priority queuing offered by the AT-2911 Series can help users set up the network based on their own needs. The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a profound tool to analyze the interface card and check specific data.

• Wired
• PCI Express Fiber
• 1000 Mbit/s
• Internal

Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Fiber ports quantity	1
Fiber optic connector	LC
Maximum data transfer rate	1000
Networking standards	IEEE 802.1p,IEEE 802.1Q,IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Fiber ethernet cabling technology	1000BASE‑SX
Jumbo frames support	Y
Internal	Y
LED indicators	Y
Certification	UL FCC/EN55022 A TUV EN55024 CE C-TICK VCCI
Output voltage	3.3
Power consumption (typical)	9.2
Windows operating systems supported	Y
Linux operating systems supported	Y
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-25 - 70
Operating relative humidity (H-H)	5 - 90
Width	87
Height	56
Weight	700
Compliance certificates	RoHS
Harmonized System (HS) code	85176990
Flow control support	Y
Management protocols	SNMP
Link/Act LED	Y
