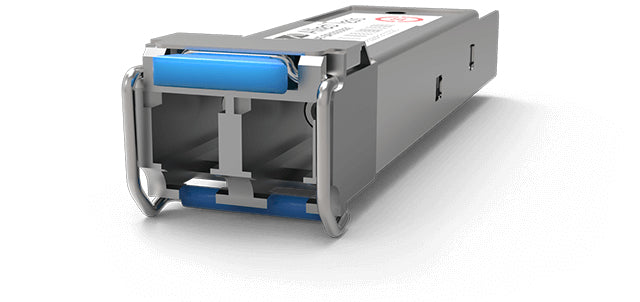

Allied Telesis AT-SPSX-90 network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm - AT-SPSX-90

Gigabit Small Form-Factor Pluggable Modules
The Allied Telesis SP Series delivers flexible, full-duplex Ethernet connectivity. These hot-swappable fiber and copper interfaces simply plug into the SFP slot on all SFP-compatible devices. Configuration can be optimized to meet a wide variety of distance and service requirements.

Compatibility
Allied Telesis SP Series Gigabit Small Form-Factor Pluggables (SFPs) are supported on all Allied Telesis devices with SFP uplink connections.

SP Series SFPs are Multi-Sourcing Agreement (MSA)-compliant, and fully adhere to industry standard networking regulations. This allows the SP Series to be used with other MSA-compliant platforms that support SFP uplink connections.

For Cisco compatibility please refer to the “SFP Compatibility Flyer”.

Options
SP Series SFPs offer short-haul,
long-haul and Bi-Directional (BiDi) solutions. This flexibility allows network managers to easily extend network distance and bandwidth.

Using an SFP BiDi transceiver can upgrade transmission capacity on a typical network—without installing new fibers—by utilizing a single fiber for both the send and receive signals.

Multiple temperature ranges
Different network environments call for a variety of temperature ranges. The SP Series is available in standard (0-70°C), industrial (-40 to 85°C), and extended (-40 to 105°C) temperature variants.

• Fiber and copper solutions
• Compact size
• Flexible architecture
• Plug and Play for ease of use
• Self-locking mechanism
• MSA-compliant

SFP transceiver type	Fiber optic
Maximum data transfer rate	1000
Interface type	SFP
Multi-mode fiber (MMF) supported	Y
Fiber optic connector	LC
Maximum transfer distance	550
Wavelength	850
Tx power (min)	-8
Tx power (max)	-3
Link budget	11
Product colour	Silver
Housing material	Metal
Plug and Play	Y
Hot-swap	Y
Operating temperature (T-T)	-40 - 105
Quantity per pack	1
RX sensitivity	-19
