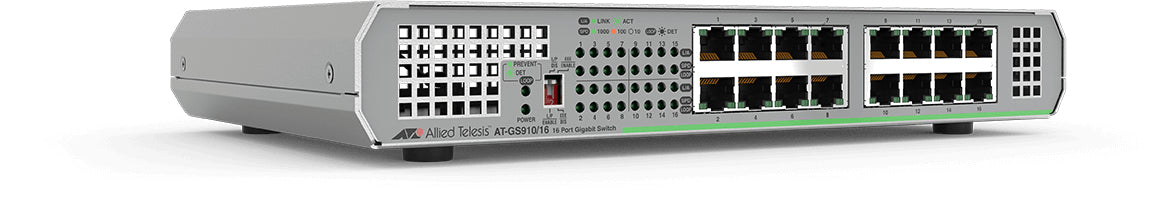

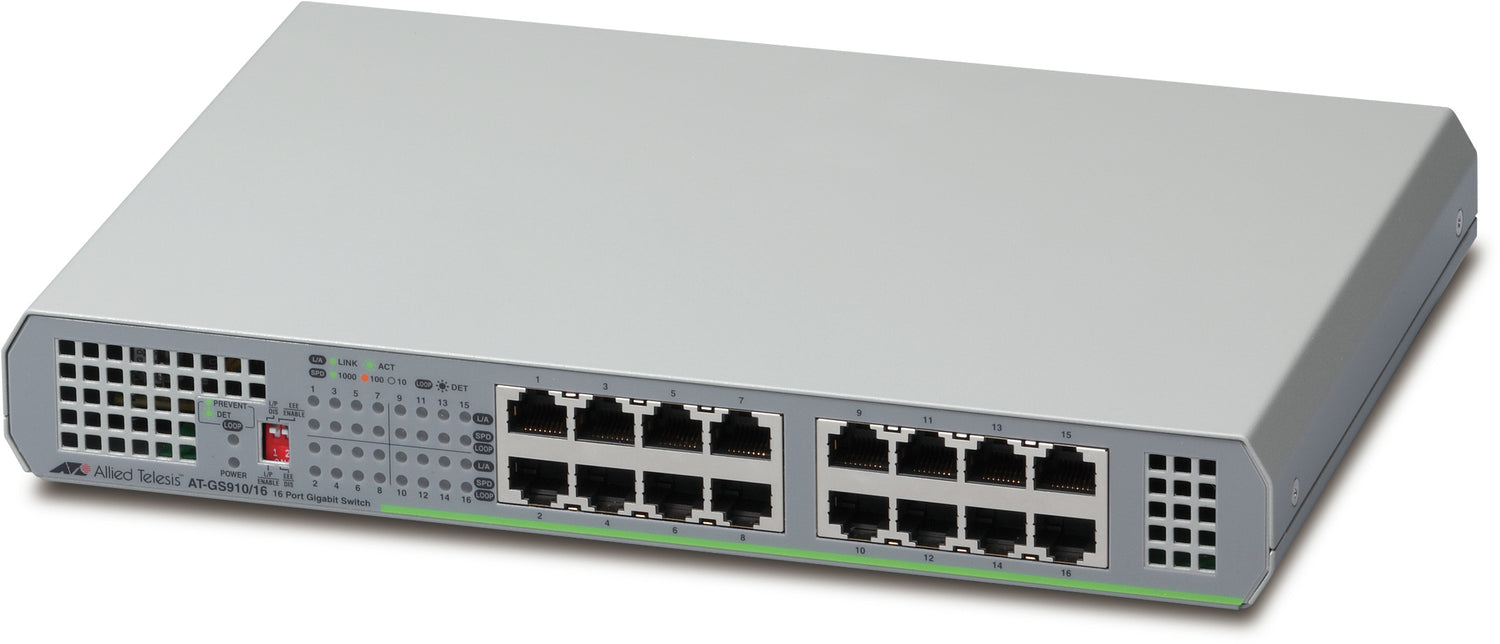

Allied Telesis GS910/16 Unmanaged Gigabit Ethernet (10/100/1000) Grey - AT-GS910/16-10

Gigabit Ethernet Unmanaged Switch

The Allied Telesis GS910 Series offers unmanaged Gigabit switching solutions for the desktop, and small networks. With minimal to no set-up, GS910 Series switches provide simple and seamless connectivity to existing network infrastructure.

• Power-saving features on each port including: cable length detection and power minimization, link-down power savings
• Wirespeed performance
• Non-blocking architecture
• Auto-negotiation Gigabit ports
• Auto MDI/MDI-X on TX ports
• Full-duplex flow control
• Sturdy metal case
• Silent operation; fanless
• Operating temperature 0-50°C
• EAP/BPDU passthrough

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Full duplex	Y
Flow control support	Y
Broadcast storm control	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
Cable length detection	Y
MAC address table	8000
Switching capacity	32
Throughput	23.8
Jumbo frames support	Y
Jumbo frames	10000
Packet forwarding rate (1 Gbps)	1488000
Packet forwarding rate (100 Mbps)	148800
Packet forwarding rate (10 Mbps)	14880
Packet buffer memory	0.524
Security algorithms	EAP
Loop protection	Y
BPDU tunneling	Y
Rack mounting	N
Product colour	Grey
LED indicators	Y
Safety	UL60950-1, 2nd Edition, CSA C22.2 No.60950-1-07, 2nd Edition, IEC60950-1(UL-EU, UL-CB)
AC input voltage	100 - 240
AC input frequency	50 - 60
Input current	0.3
Power consumption (max)	12
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 50
Width	263
Depth	179
Height	38
Weight	1500
Certification	EAC, EN55024, ICES Class A, VCCI Class A, FCC Class A, RCM, CE, EN55022, CISPR 55022
