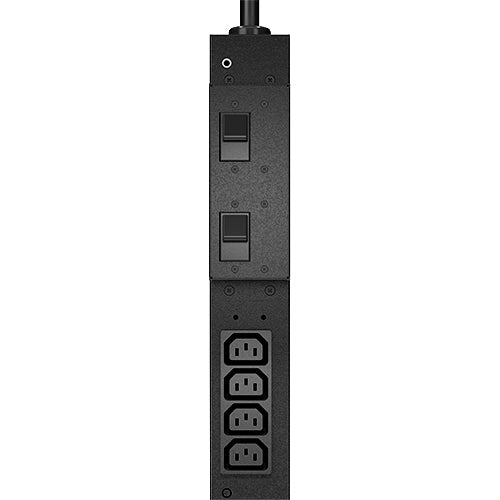

APC AP6002A power distribution unit (PDU) 16 AC outlet(s) Black - AP6002A

Agility

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Total Cost of Ownership

Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.

Marketing Features

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.

PDU types	Basic
Product colour	Black
AC outlets quantity	16
AC outlet types	C13 coupler,C19 coupler
Input connection type	NEMA L6-30P
Nominal input voltage	208
Maximum current	30
AC input frequency	50 - 60
Maximum input current per phase	30
Maximum total current draw per phase	30
Power protection features	Overload
Compliance certificates	RoHS
Certification	cUL, UL
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-15 - 65
Operating relative humidity (H-H)	5 - 95
Storage relative humidity (H-H)	5 - 95
Operating altitude	0 - 3000
Non-operating altitude	0 - 15000
Width	56
Depth	47
Height	833
Weight	2780
Packaging content	Installation guide, Safety guide
Package weight	3240
Package width	156
Package depth	137
Package height	966
