APC | SKU:
AP6020A

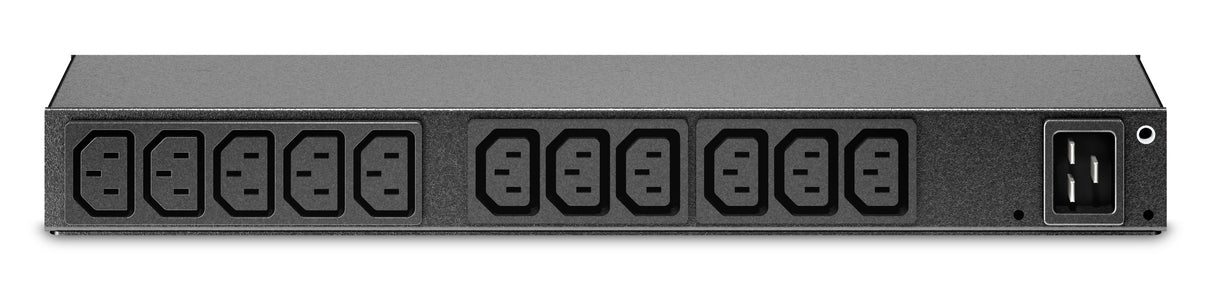

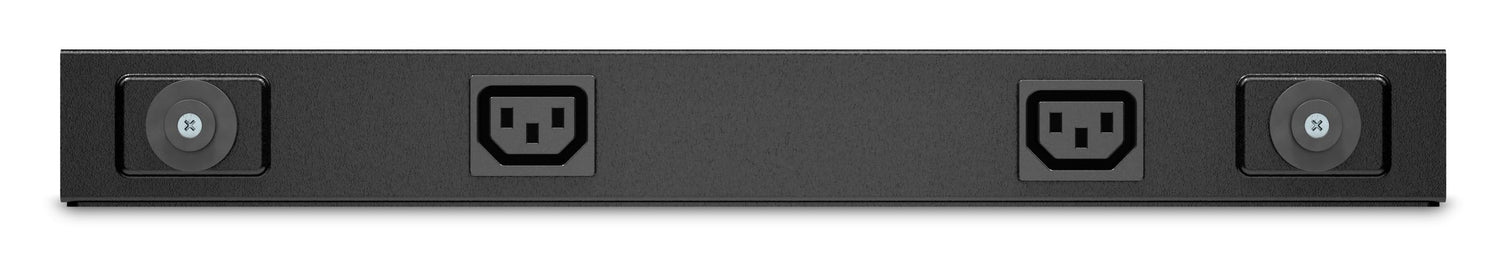

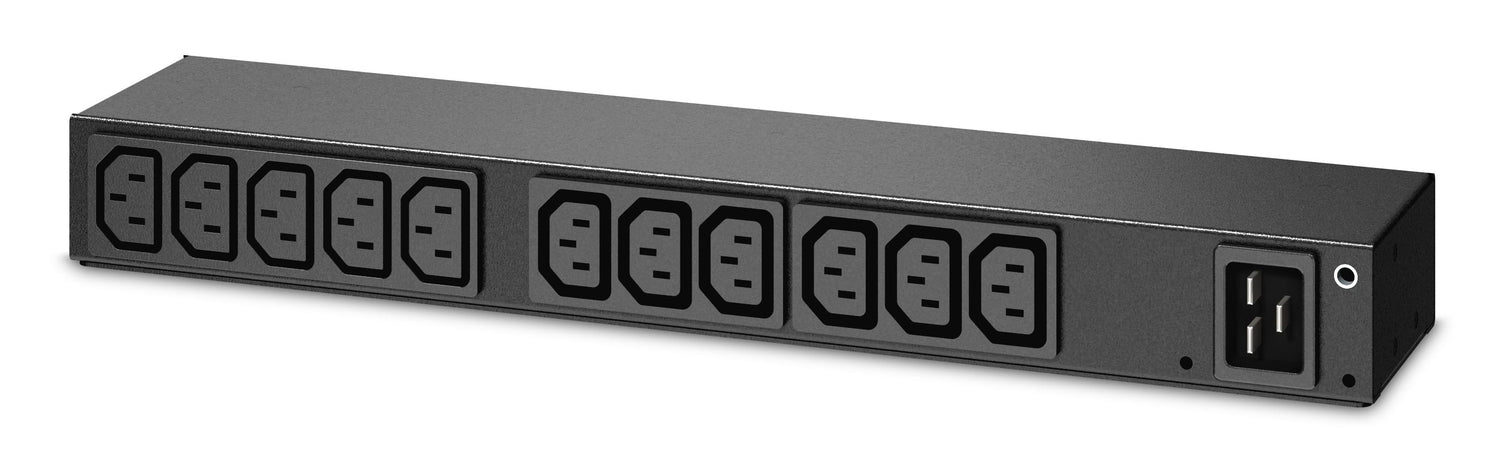

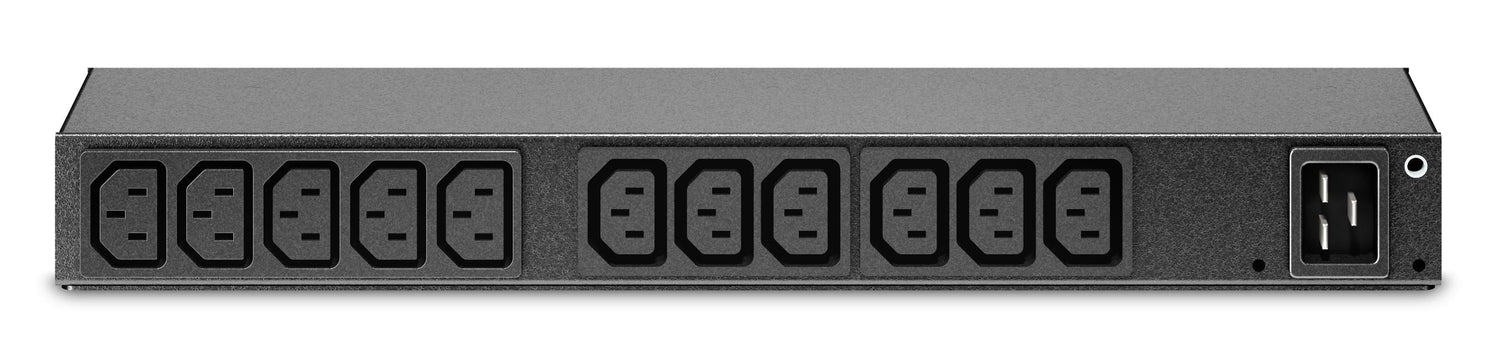

APC AP6020A power distribution unit (PDU) 13 AC outlet(s) 0U/1U Black - AP6020A
$131.02
Unit price
/
Unavailable
Shipping calculated at checkout.
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
APC AP6020A power distribution unit (PDU) 13 AC outlet(s) 0U/1U Bla...
$131.02
Unit price
/
Unavailable
Description
Description
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
- Single-phase Basic 0U/1U Black
- 13 AC outlet(s) C13 coupler
- 3680 W
| PDU types | Basic |
| Rack capacity | 0U/1U |
| Type | Single-phase |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| AC outlets quantity | 13 |
| AC outlet types | C13 coupler |
| Power plug | C20 coupler |
| Output connections | IEC 320 C13 |
| Nominal input voltage | 100-240 |
| Maximum current | 20 |
| AC input frequency | 50 - 60 |
| Load capacity | 3680 |
| Maximum input current per phase | 16 |
| Maximum total current draw per phase | 16 |
| Maximum power | 3680 |
| Compliance certificates | RoHS |
| Certification | cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -15 - 60 |
| Operating relative humidity (H-H) | 5 - 95 |
| Storage relative humidity (H-H) | 5 - 95 |
| Operating altitude | 0 - 3048 |
| Width | 44 |
| Depth | 93 |
| Height | 388 |
| Weight | 1500 |
| Package weight | 2020 |
| Package width | 210 |
| Package depth | 76 |
| Package height | 436 |
| Total carbon footprint (kg of CO2e) | 38.04 |
