APC | SKU:
AP7530
Sold out
26% off
APC Basic Rack 1.92kVA power distribution unit (PDU) Black - AP7530
$483.12
$649.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
Description
Description
-Cord Retention Bracket Compatible.

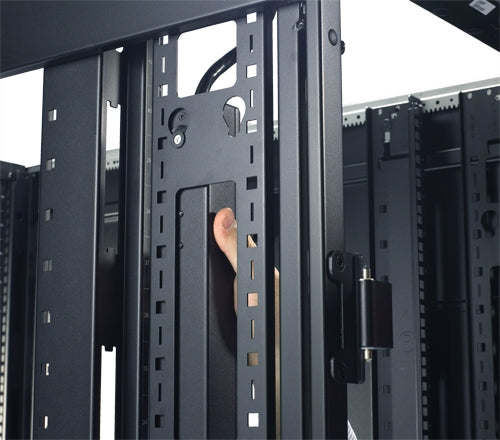

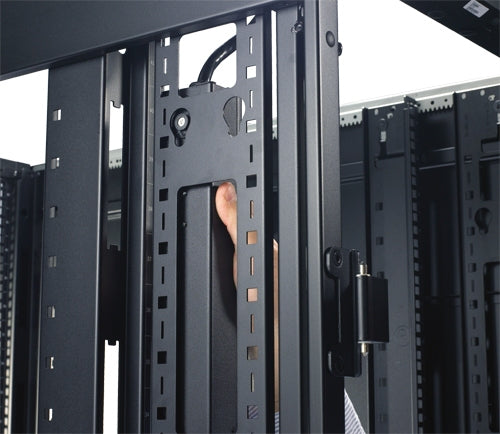

-Toolless mounting capability.

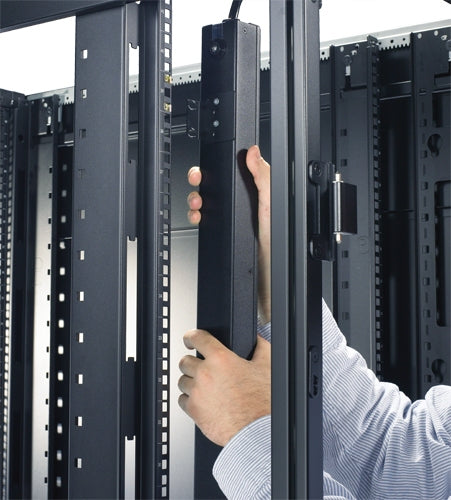

-Vertical mounting capability.

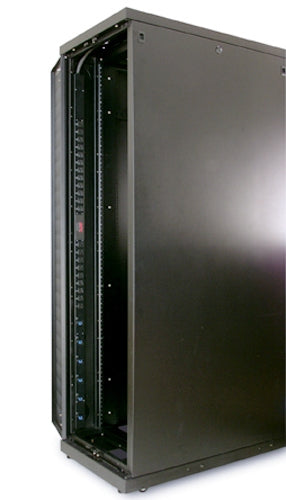

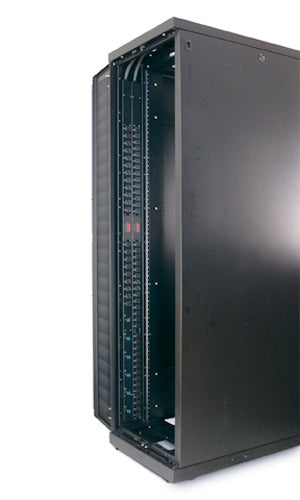

-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
-Toolless mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
| Product colour | Black |
| Input connection type | NEMA L5-20P |
| Output connections | (24) NEMA 5-20R |
| Cable length | 3.05 |
| Nominal input voltage | 120 |
| AC input frequency | 50 - 60 |
| Nominal output voltage | 120 |
| Load capacity | 1920 |
| Maximum input current per phase | 20 |
| Maximum total current draw per phase | 16 |
| Certification | cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL |
| Operating temperature (T-T) | -5 - 45 |
| Storage temperature (T-T) | -25 - 65 |
| Operating relative humidity (H-H) | 5 - 95 |
| Storage relative humidity (H-H) | 5 - 95 |
| Width | 56 |
| Depth | 44 |
| Height | 1619 |
| Weight | 4860 |
