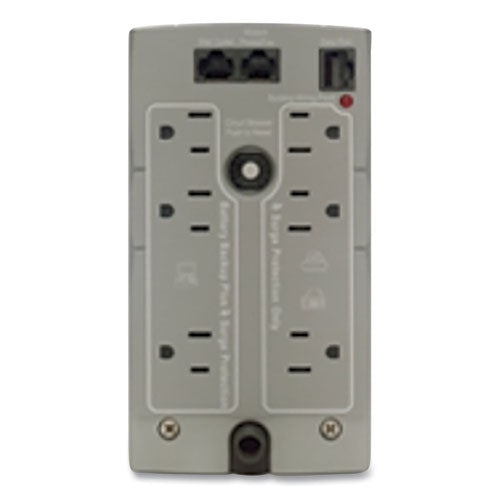

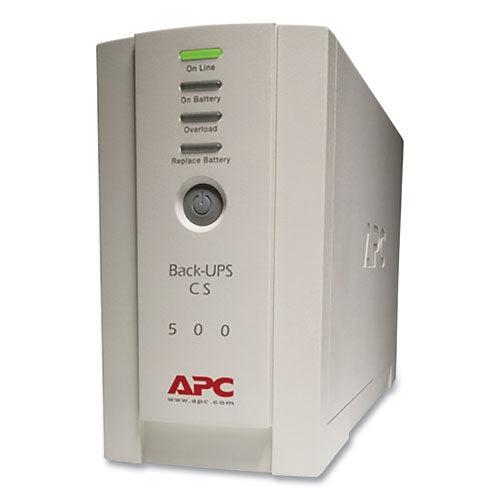

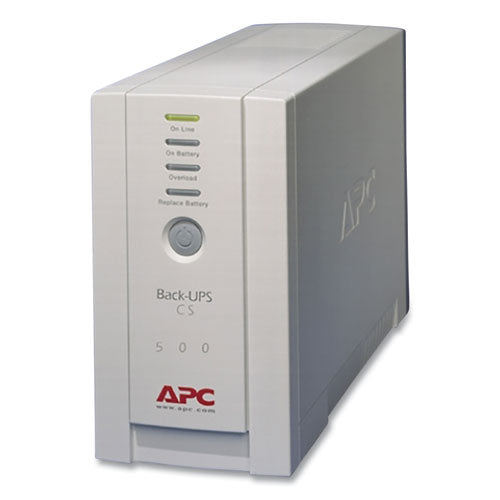

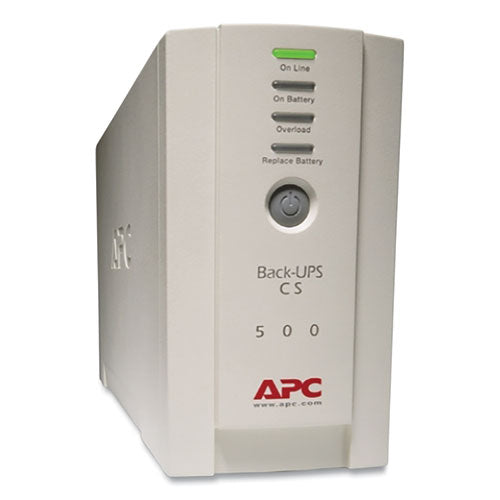

APC Back-UPS CS Battery Backup System, 6 Outlets, 500 VA, 480 J - BK500

Features

• Battery-protected and surge-only outlets.

• Dataline Surge Protection.

• Power conditioning.

• Audible alarms.

• Automatic restart of loads after UPS shutdown.

• Automatic battery self-test.

• LED status indicators.

• Battery replacement without tools.

• Transformer-block spaced outlets.

• Resettable circuit breakers.

• Dataline Surge Protection provides protection of connected equipment on the data lines. Automatic restart of loads after UPS shutdown upon the return of utility power for exceptional convenience.

• Combination of battery-protected and surge-only outlets reserves power capacity for connected equipment that requires battery back-up. Dataline Surge Protection provides protection of connected equipment on the data lines. Power conditioning protects connected loads from surges, spikes, lightning, and other disturbances. Audible alarms delivers notification of changing utility power and UPS conditions. Automatic restart of loads after UPS shutdown upon the return of utility power for exceptional convenience. Automatic battery self-test ensures early detection of a battery that needs to be replaced.

• Combination of battery-protected and surge-only outlets reserves power capacity for connected equipment that requires battery back-up. Dataline Surge Protection provides protection of connected equipment on the data lines. Power conditioning protects connected loads from surges, spikes, lightning, and other disturbances. Audible alarms delivers notification of changing utility power and UPS conditions. Automatic restart of loads after UPS shutdown upon the return of utility power for exceptional convenience. Automatic battery self-test ensures early detection of a battery that needs to be replaced. LED status indicators helps you to quickly and easily understand UPS status. Battery replacement without tools for reduced risk of load disruption. Transformer-block spaced outlets keeps equipment secure without blocking access to other receptacles. Resettable circuit breakers enables quick recovery from UPS overload events.

• Reliable backup power.

• Protection from surges and spikes.

• Automatic battery self-test.

• Hot-swappable batteries.

• Audible alarms.

• Protect computers and other sensitive electronics with reliable backup power. Power conditioning protects connected loads from surges, spikes, lightning, and other disturbances. Automatic battery self-test ensures early detection of a battery that needs to be replaced. Hot-swappable batteries deliver clean, uninterrupted power to protected equipment while batteries are being replaced. Audible alarms provide notification of changing utility power and UPS conditions. Combination of battery-protected and surge-only outlets reserves power capacity for connected equipment that requires battery back-up.

•

---

Specification

Global Product Type	Backup Systems
System VA	500 VA
Backup Time at Half Load	13.9 min @ 150 W
Automatic Voltage Regulation (AVR)	No
Battery Recharge Time	8 h
Connected Equipment Guarantee/Warranty	$100,000 Equipment Protection Policy
Backup Time at Full Load	2.4 min @ 300 W
Connector/Port/Interface	DB9
Connector/Port/Interface	RS232
Connector/Port/Interface	USB
Joules Of Surge Protection	480 J
Number of Outlets	6
React Time	Instantaneous
Cord Length	6 ft
Telephone/Internet Protection	Fax
Telephone/Internet Protection	Modem
Telephone/Internet Protection	Phone
Color(s)	Beige
Width	3.6
Height	6.5
Depth	11.2
Backup Systems Alarm(s)	Audible
Emergency Power Off (EPO)	No
Input Frequency	50-60 Hz
Number of Outlets/Type	3 UPS/Surge
Number of Outlets/Type	3 Surge Only
Backup Run Time	15 min
Compliance Standards	cUL Listed
Compliance Standards	FCC Class B Certified
Compliance Standards	UL Listed
Pre-Consumer Recycled Content Percent	0%
Post-Consumer Recycled Content Percent	0%
Total Recycled Content Percent	0%
Disclaimer Statement	Run Time based on a load of 150 W.

---
