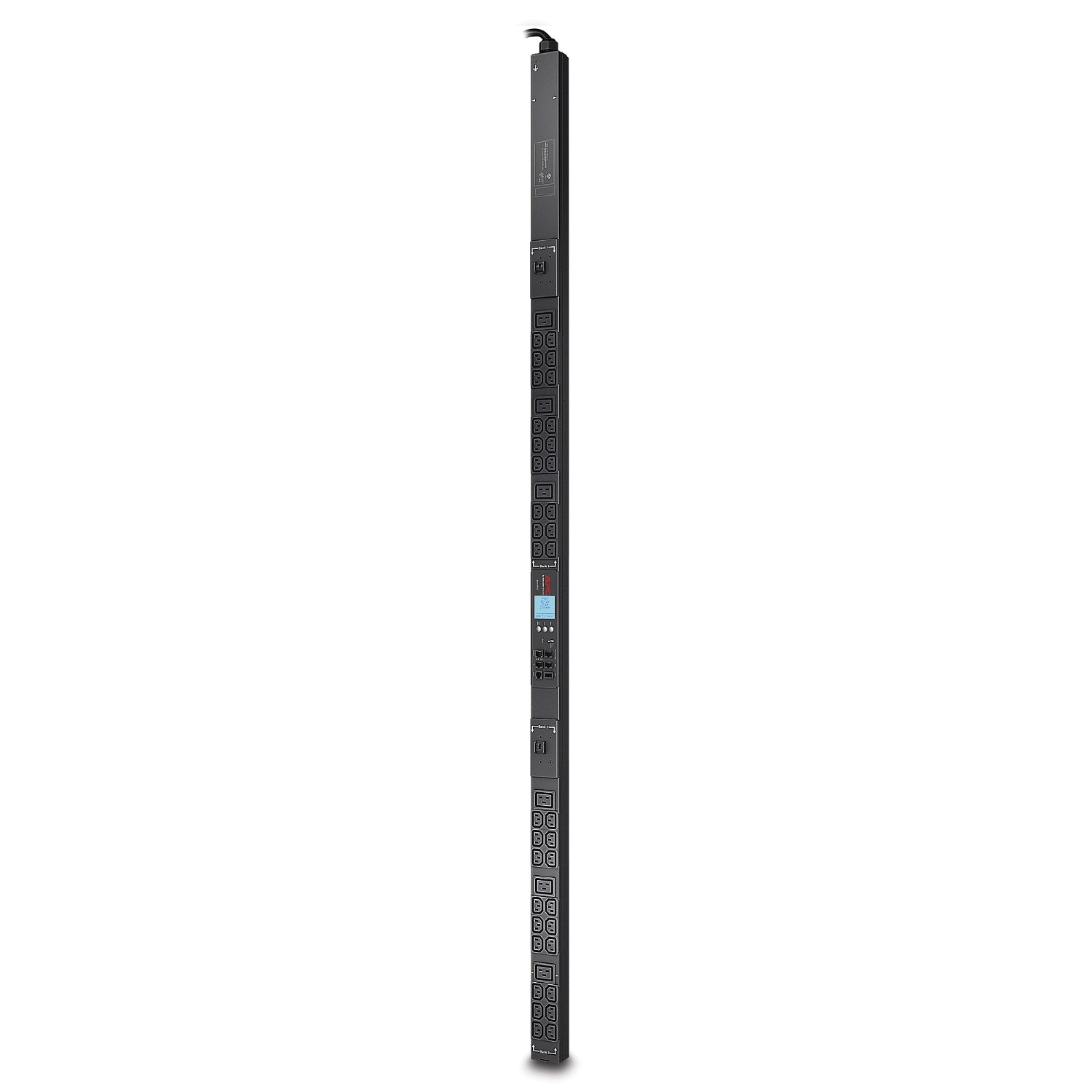

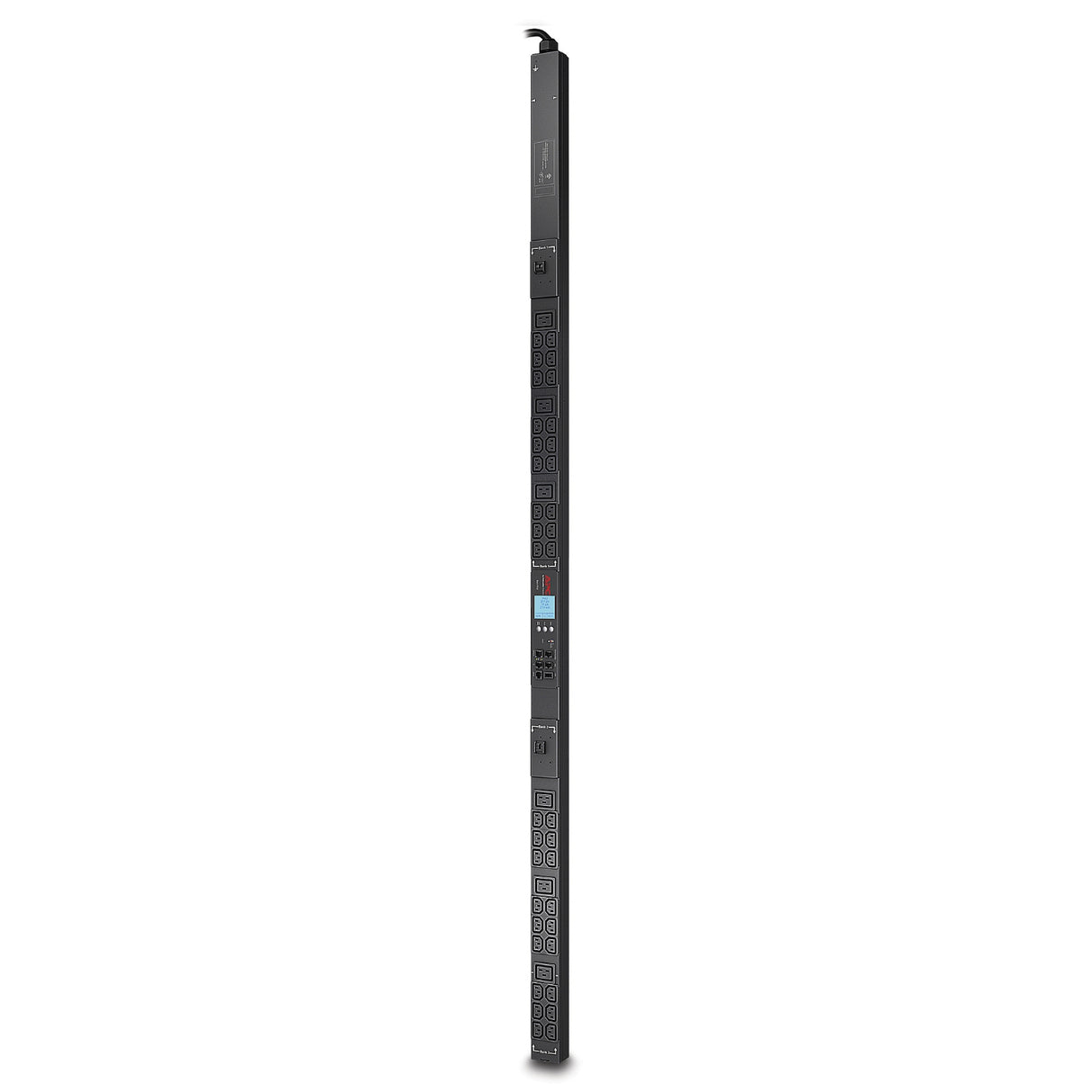

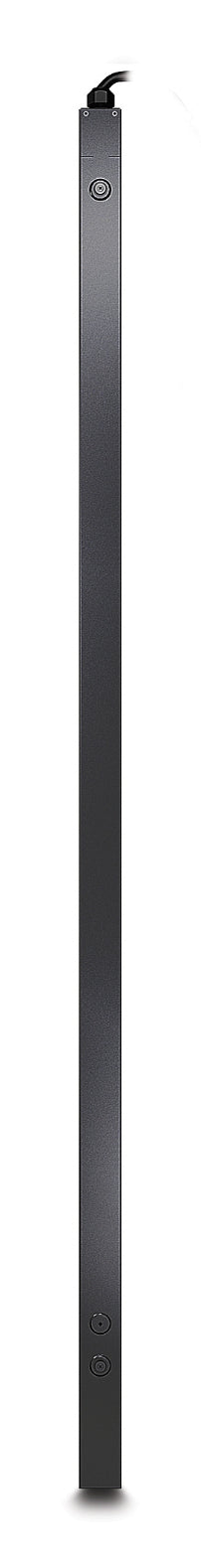

APC NetShelter Rack PDU, Metered, 0U, 5.0kW 200V and 208V 30A, (36) C13 and (6) C19 outlets - AP8841
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
Description
Description
The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8841 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
- Ideal for colocation, large data centers or distributed IT sites
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
- 1-Year Secure Network Management Card subscription included
- Interactive LCD display
- Active power measurements (volts, amps, kW, kWh)
- Embedded log memory
- 9.84’ power cord, 2-year APC warranty
- Zero U toolless installation
| PDU types | Basic |
| Rack capacity | 0U |
| Type | Single-phase |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 42 |
| AC outlet types | NEMA L6-30P |

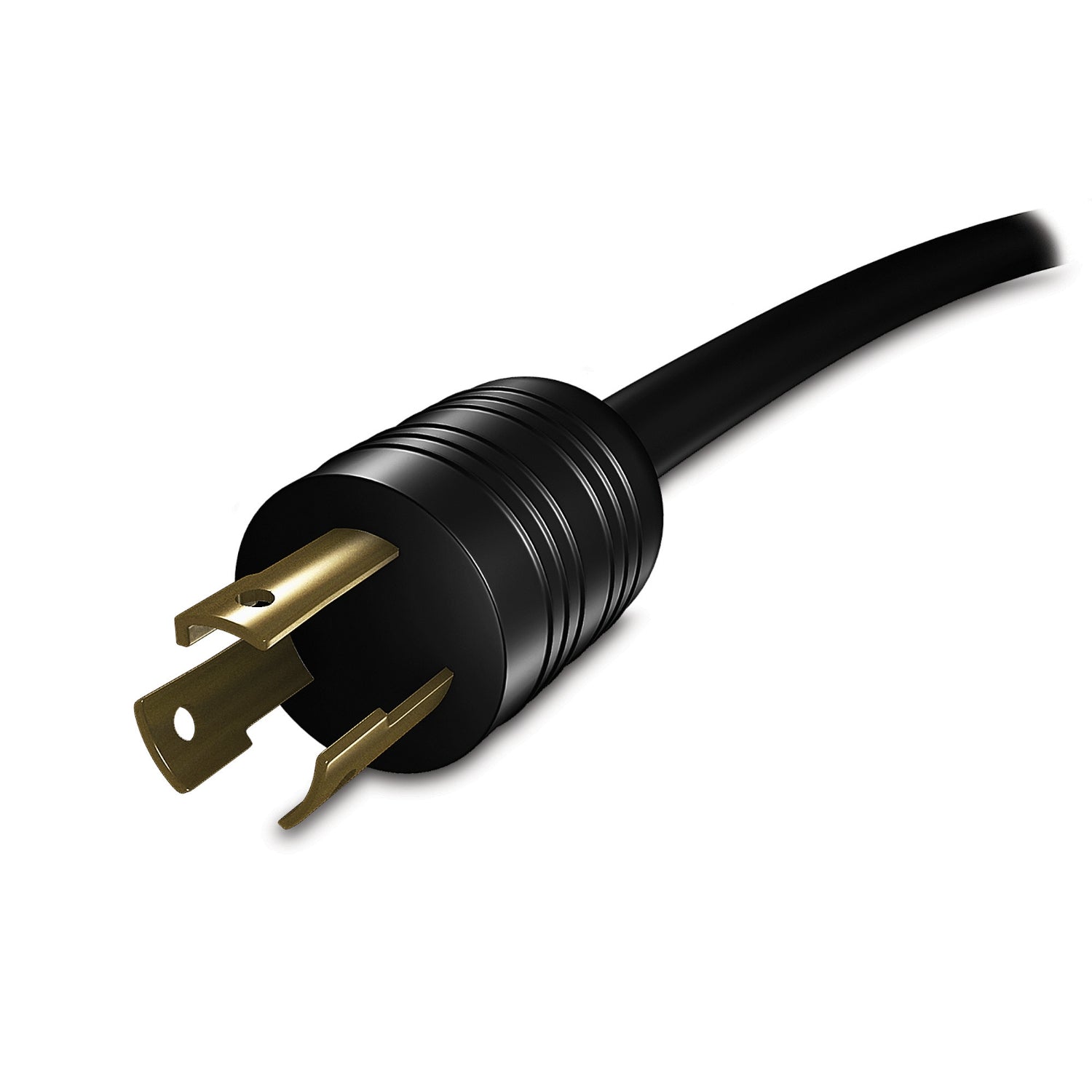

| Power plug | NEMA L6-30P |
| Input connection type | NEMA L6-30P |
| Output connections | 36x IEC 320 C13 6x IEC 320 C19 |
| Cable length | 2.9 |
| Nominal input voltage | 200; 208 |
| Maximum current | 30 |
| AC input frequency | 50-60 |
| Output voltage | 200 V; 208 V |
| Load capacity | 4992 |
| Maximum input current per phase | 30 |
| Maximum total current draw per phase | 30 |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Y |
| Compliance certificates | RoHS,REACH,WEEE |
| Certification | METI Denan; PSE; VDE |
| Operating temperature (T-T) | -5 - 60 |
| Storage temperature (T-T) | -25 - 65 |
| Operating relative humidity (H-H) | 5 - 95 |
| Storage relative humidity (H-H) | 5 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15240 |
| Width | 56 |
| Depth | 44 |
| Height | 1791 |
| Weight | 6840 |
| Cables included | Serial |
| Manual | Y |
| Package weight | 6470 |
| Package width | 107 |
| Package depth | 162 |
| Package height | 2000 |
| Packaging recycled materials | Recycled cardboard |
| Removable battery | Y |
| Halogen free | N |
| Country of origin | India |
| Customs product code (TARIC) | 8537109899 |
| Total carbon footprint (kg of CO2e) | 2676.8173692539 |
| Sustainable packaging | N |
