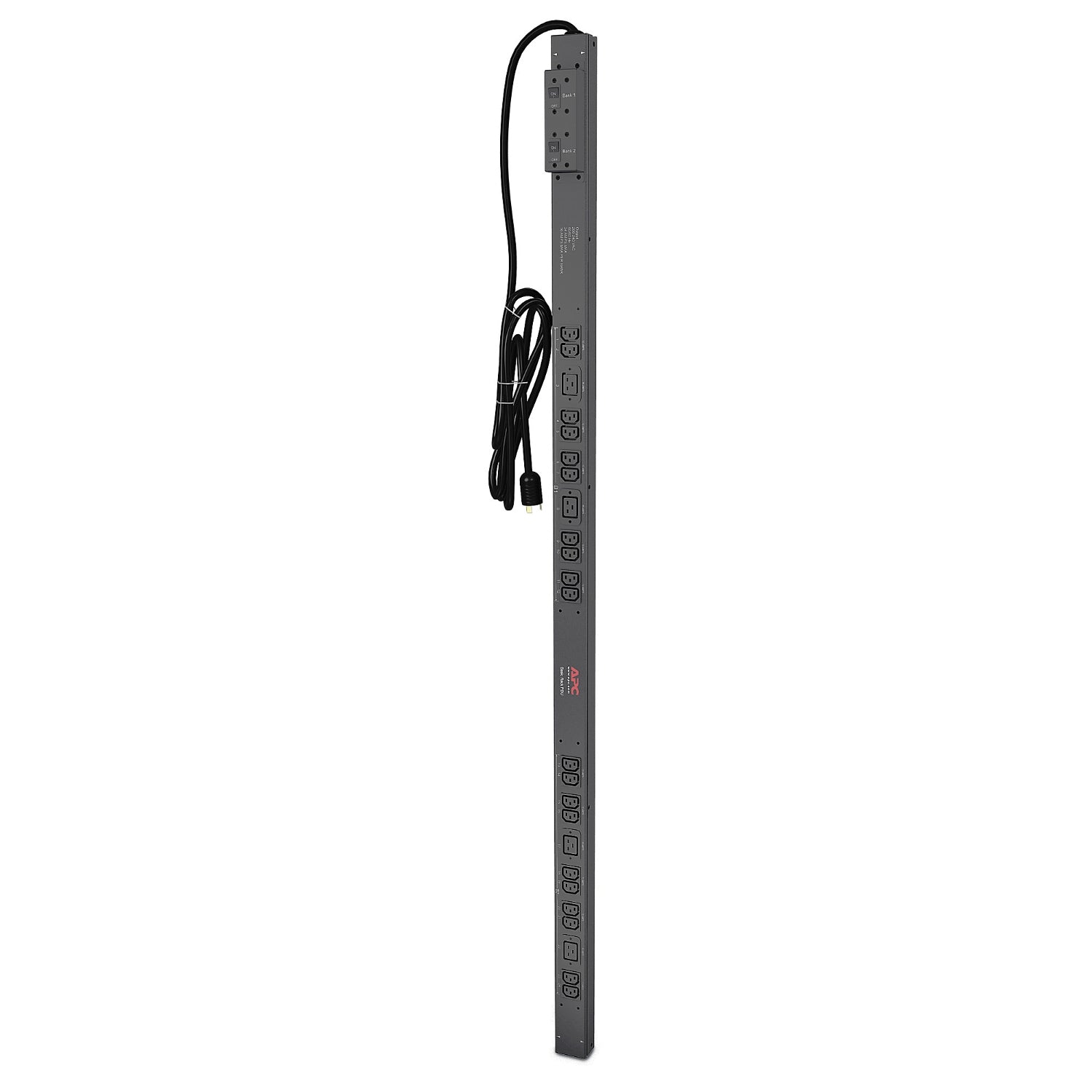

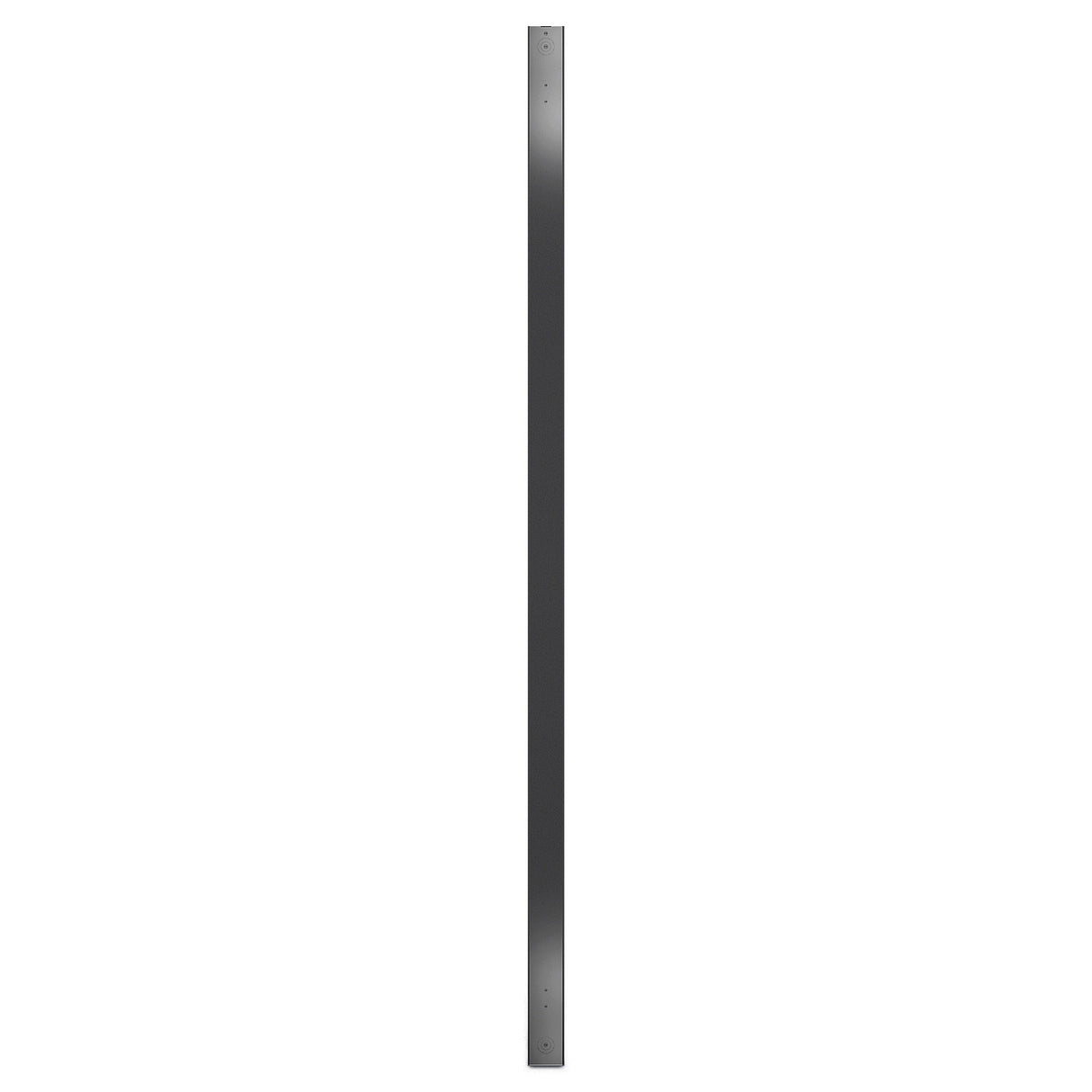

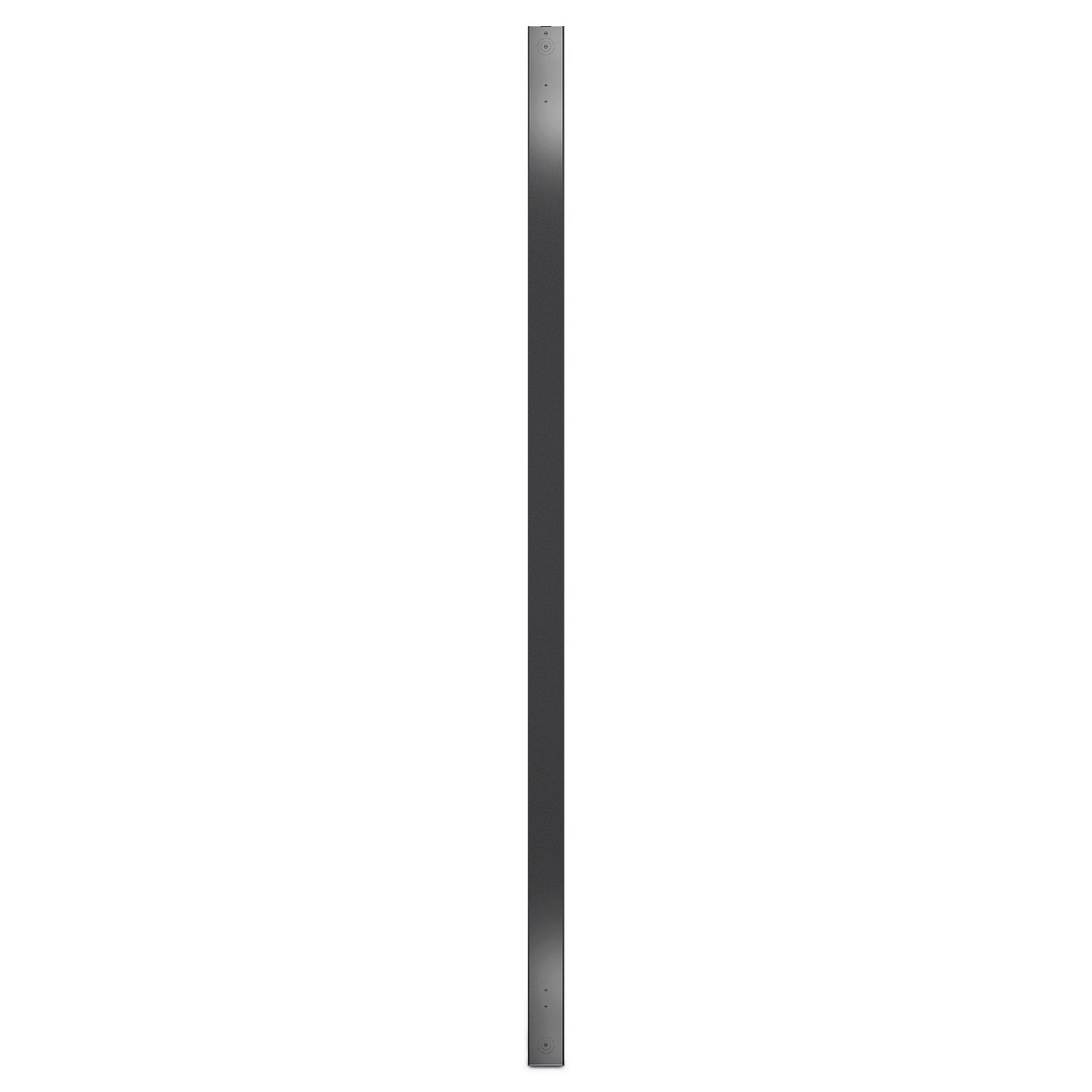

APC Rack PDU, Basic, Zero U, 30A, 200/208V, (20)C13 & (4)C19 - AP7541
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
Description
Description
APC Basic Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Toolless Mounting Kit
- Reliable rack power distribution to power servers, switches, and network devices
- Vertical Basic PDU is rack mountable
- Outlets: (20) C13, (4) C19
- Ultralow-profile, space-saving design
- Hydraulic-magnetic circuit breakers
- 0U
- 10’ power cord with 30A input
- 2-year APC warranty
| PDU types | Basic |
| Rack capacity | 0U |
| Type | Single-phase |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 24 |
| AC outlet types | NEMA L6-30P |
| Power plug | NEMA L6-30P |
| Input connection type | NEMA L6-30P |
| Output connections | (20) IEC 320 C13 (4) IEC 320 C19 |
| Cable length | 3 |
| Nominal input voltage | 200; 208; 230 |
| Maximum current | 30 |
| AC input frequency | 50-60 |
| Output voltage | 200 V; 208 V |
| Load capacity | 4992 |
| Maximum input current per phase | 30 |
| Maximum total current draw per phase | 24 |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Y |
| Compliance certificates | RoHS,REACH,WEEE |
| Certification | cUL listed; METI Denan; PSE; UL listed |
| Operating temperature (T-T) | 0 - 45 |
| Storage temperature (T-T) | -25 - 65 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15240 |
| Width | 56 |
| Depth | 44 |
| Height | 1619 |
| Weight | 5570 |
| Cables included | Power |
| Package weight | 6480 |
| Package width | 127 |
| Package depth | 152 |
| Package height | 2121 |
| Packaging recycled materials | Recycled cardboard |
| Halogen free | N |
| Country of origin | India |
| Customs product code (TARIC) | 8544429090 |
| Total carbon footprint (kg of CO2e) | 3936.6696350091 |
| Sustainable packaging | N |
