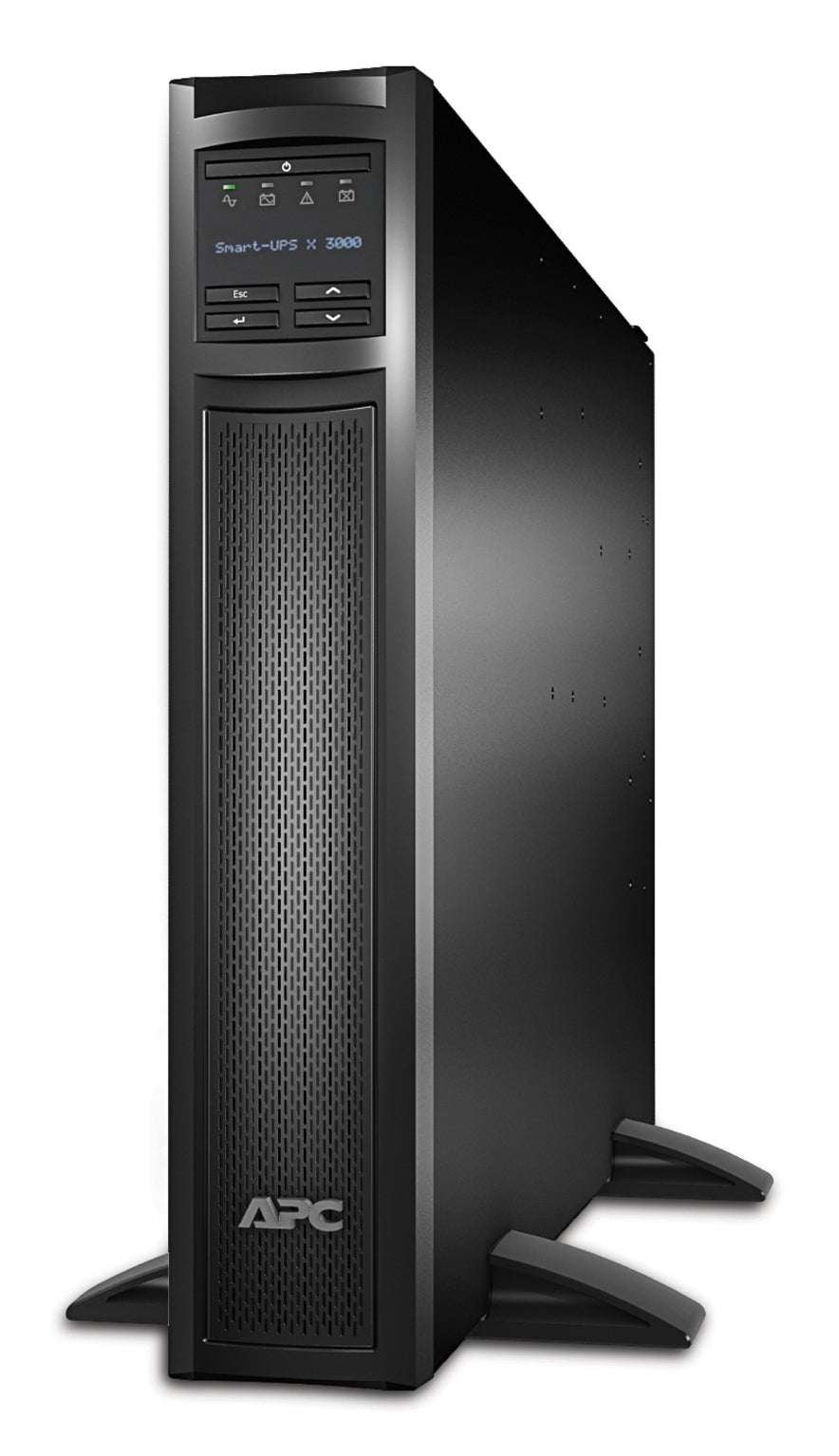

APC Smart-UPS X 3000VA uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 7 AC outlet(s) - SMX3000RMLV2U

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

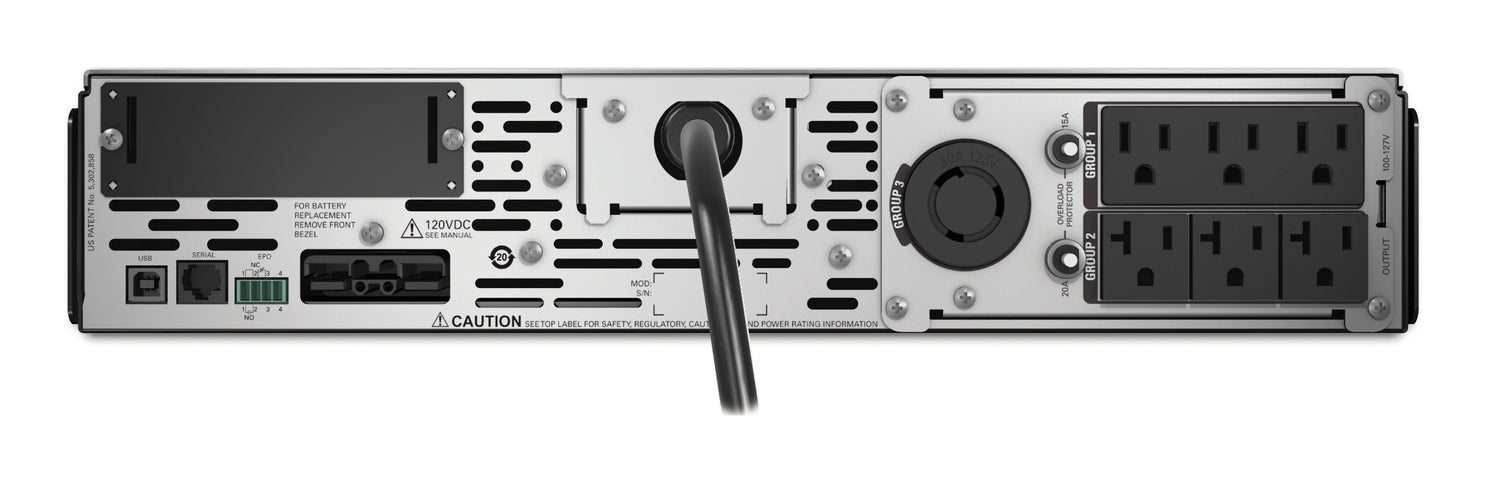

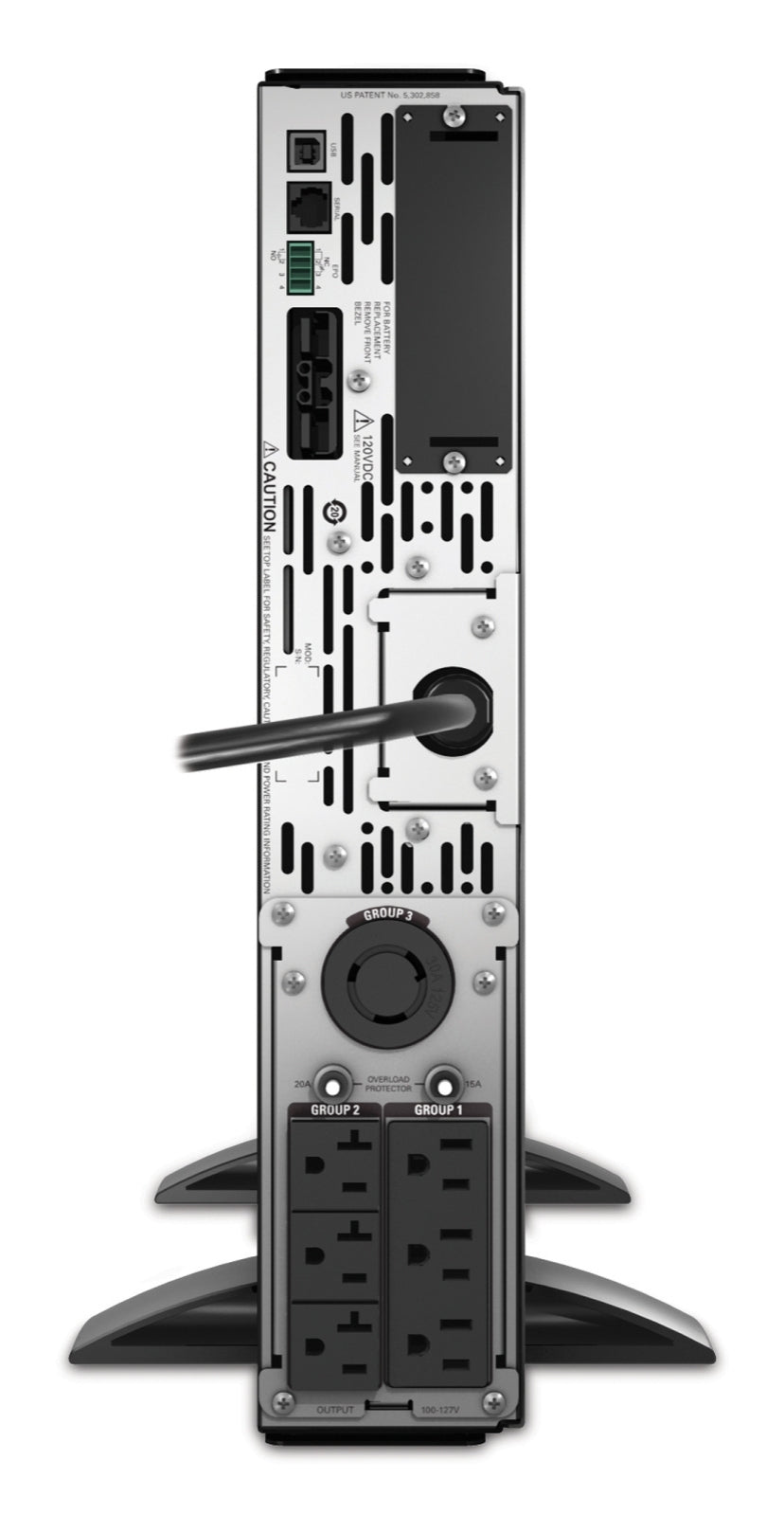

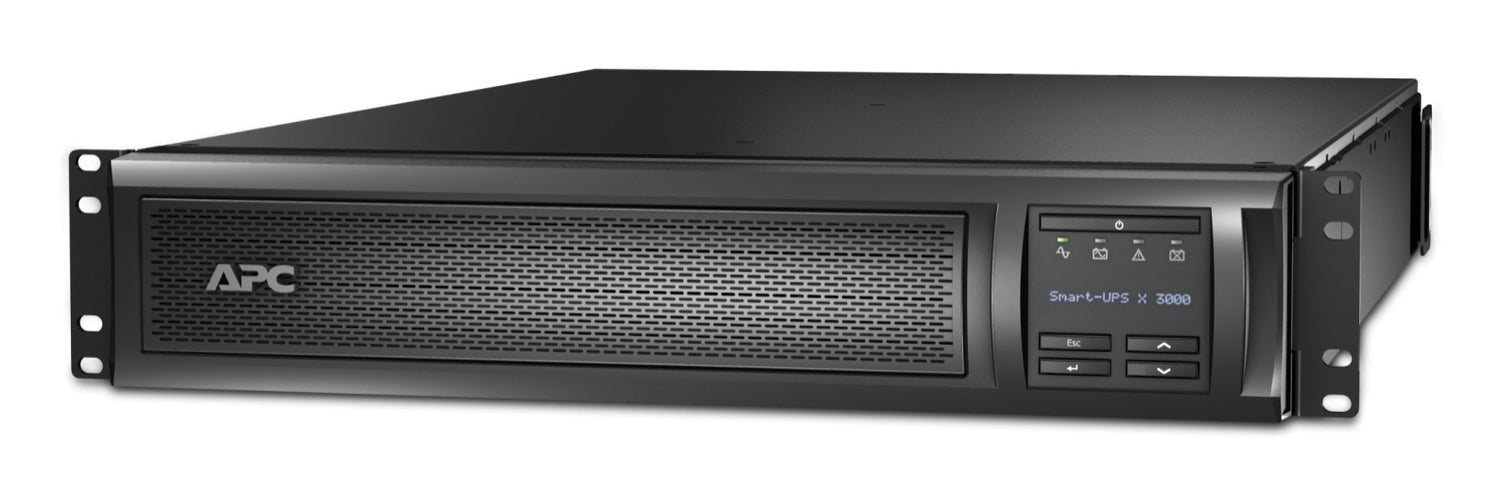

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

• User-selectable low voltage setting of 100V-127V

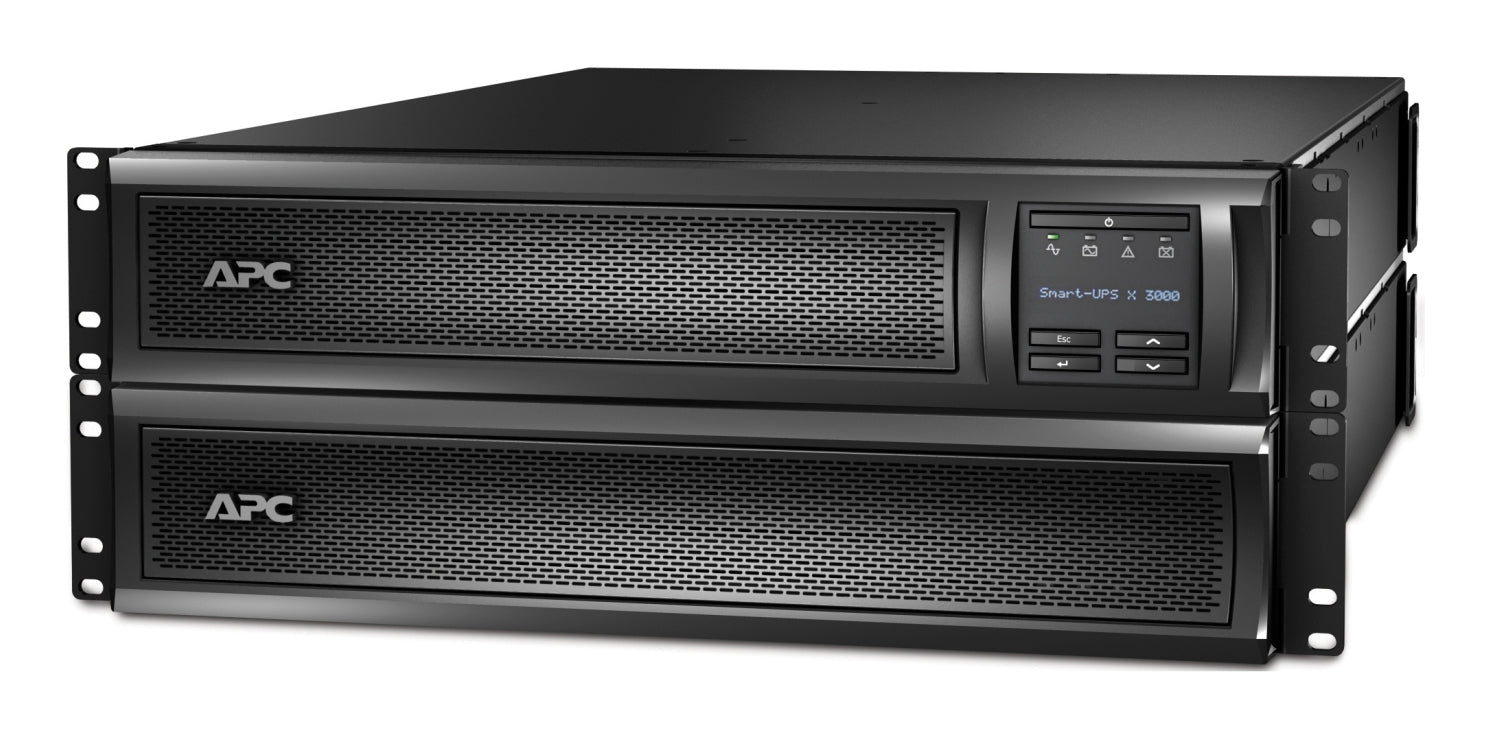

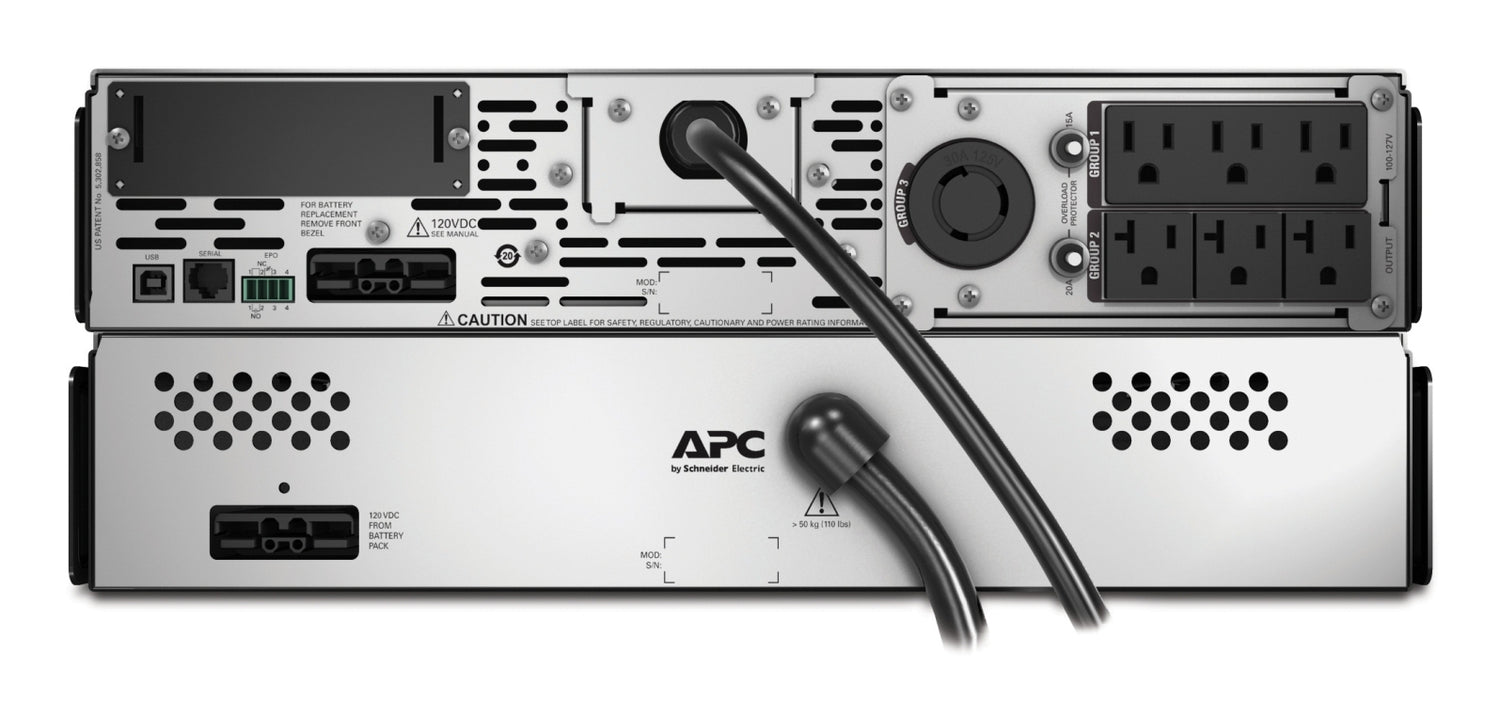

• Add up to 10 external battery packs (SMX120RMBP2U)
• Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
• Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels

UPS topology	Line-Interactive
Output power capacity	3
Output power	2700
Waveform	Sine
Input operation voltage (min)	100
Input operation voltage (max)	127
Input frequency	50/60
Output operation voltage (min)	100
Output operation voltage (max)	127
Output frequency	50/60
Surge energy rating	540
Heat dissipation	276
Number of output phases	1
Efficiency	98
Output voltage Total Harmonic Distortion (THD)	5
Noise level	55
Surge protection	Y
Surge protection features	Network
Audible alarm(s)	Y
Audible alarm modes	Alarm when on battery,Low battery alarm
AC outlet types	NEMA 5–15R,NEMA 5–20R,NEMA L5-30R
AC outlets quantity	7
USB port	Y
Serial interface	Y
Ethernet LAN (RJ-45) ports	1
SmartSlot	Y
Battery technology	Lead-acid
Typical backup time at full load	6.15
Battery recharge time	3
Form factor	Rackmount/Tower
Product colour	Black
Rack capacity	2U
Cable length	2.4
Control type	Buttons
LED indicators	Y
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-15 - 45
Operating relative humidity (H-H)	0 - 95
Storage relative humidity (H-H)	0 - 95
Operating altitude	0 - 3000
Non-operating altitude	0 - 15240
Compliance certificates	RoHS
Certification	BSMI,CSA,EN 50091-2,EN 55022 A,FCC 15 A,NOM,TUV,UL 1778,VCCI A
Width	432
Depth	667
Height	85
Weight	38450
Package width	869
Package depth	596
Package height	243
Package weight	45360
Export Control Classification Number (ECCN)	EAR99
Harmonized System (HS) code	8504.40
Battery type	RBC117
