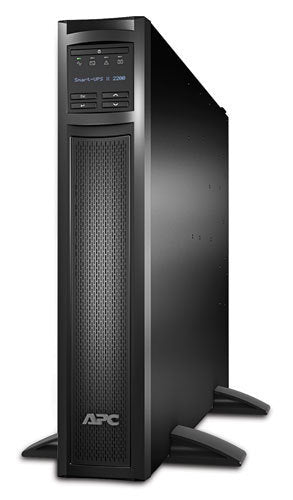

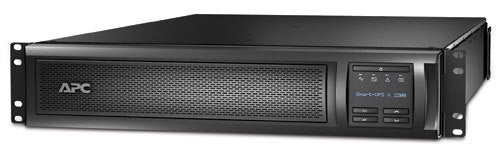

APC SMX2200RMLV2U uninterruptible power supply (UPS) 2.2 kVA 1980 W - SMX2200RMLV2U

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.

Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Energy meter
Provides actual kilowatt hours of usage for energy conscious users.

Outlet group control
Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).

Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).

Load shedding
Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups).

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

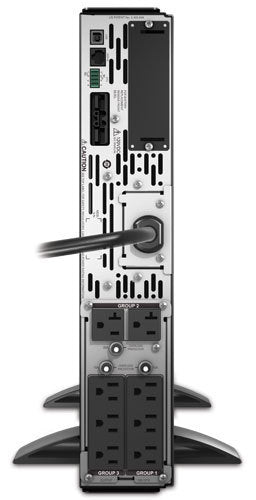

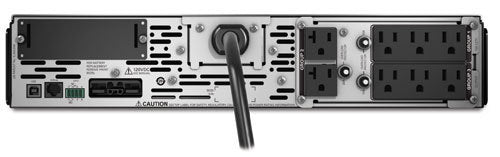

Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

Wide input voltage range
Designed for harsh electrical environments to save battery life.

StruxureWare Central compatible
Enables centralized management via StruxureWare Central.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
High online efficiency Reduces utlility costs, generates less heat.

LED Indicators
Provide easy-to-read status of the unit and utility power conditions.

Overload protection
Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.

SmartSlot
Customize UPS capabilities with management cards.

Cold-start capable
Provides temporary battery power when the utility power is out.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Audible alarms
Provides notification of changing utility power and UPS conditions

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

Serial Connectivity
Provides management of the UPS via a serial port.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.

Scalable runtime
Allows additional run time to be quickly added as needed.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Network manageable
Provides remote management of the UPS over the network.

Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.

• 2.2 kVA 1980 W
• Sealed Lead Acid (VRLA)
• Rackmount/Tower Black

Output power capacity	2.2
Output power	1980
Input operation voltage (min)	70
Input operation voltage (max)	153
Input frequency	50/60
Output operation voltage (min)	100
Output operation voltage (max)	127
Surge energy rating	540
Response time	2
Efficiency	97.6
Emergency Power Off (EPO)	Y
Noise level	55
Surge protection	Y
USB 2.0 ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at full load	7
Typical backup time at half load	26
Battery recharge time	3
Hot-swap battery	Y
Form factor	Rackmount/Tower
Product colour	Black
Rack capacity	2U
Cable length	2.44
Display type	LCD
LED indicators	Battery replacement
Compliance certificates	RoHS
Certification	NOM, TUV, UL, FCC
Width	431
Depth	667
Height	85
Weight	38450
Package weight	45360
Harmonized System (HS) code	85078000
Interface	RJ45/USB
Input connection type	NEMA L5-30P
Nominal output voltage	120
Nominal input voltage	120
Package dimensions (WxDxH)	596 x 869 x 243
