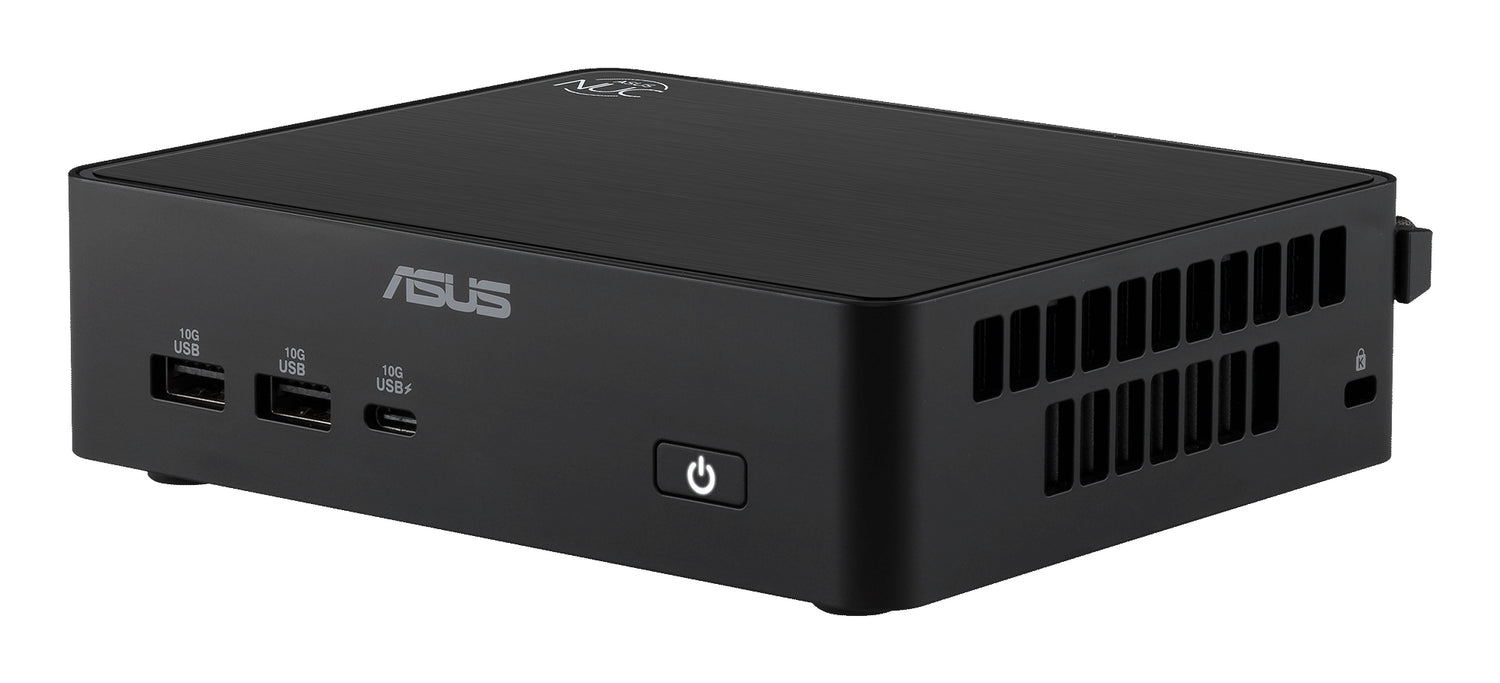

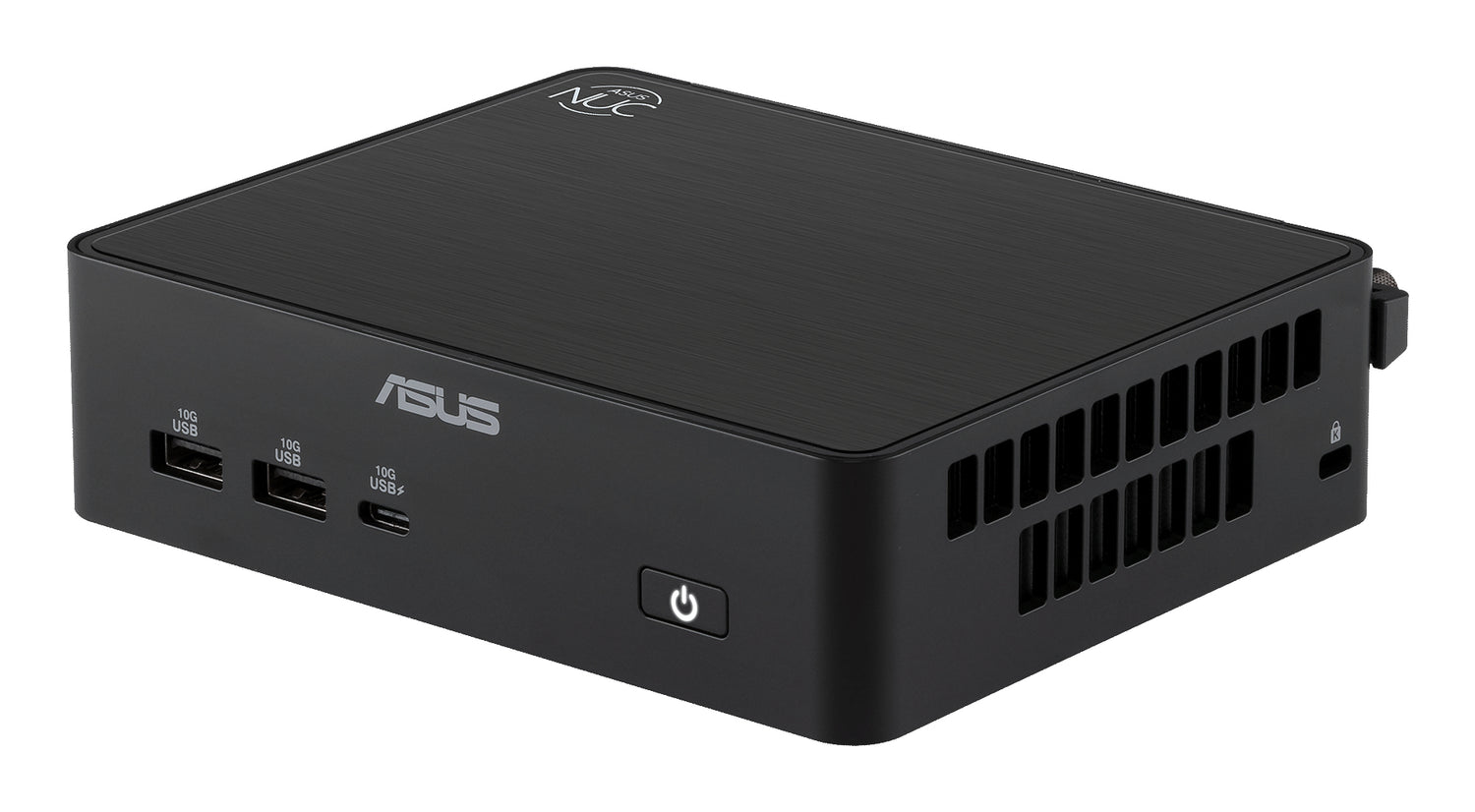

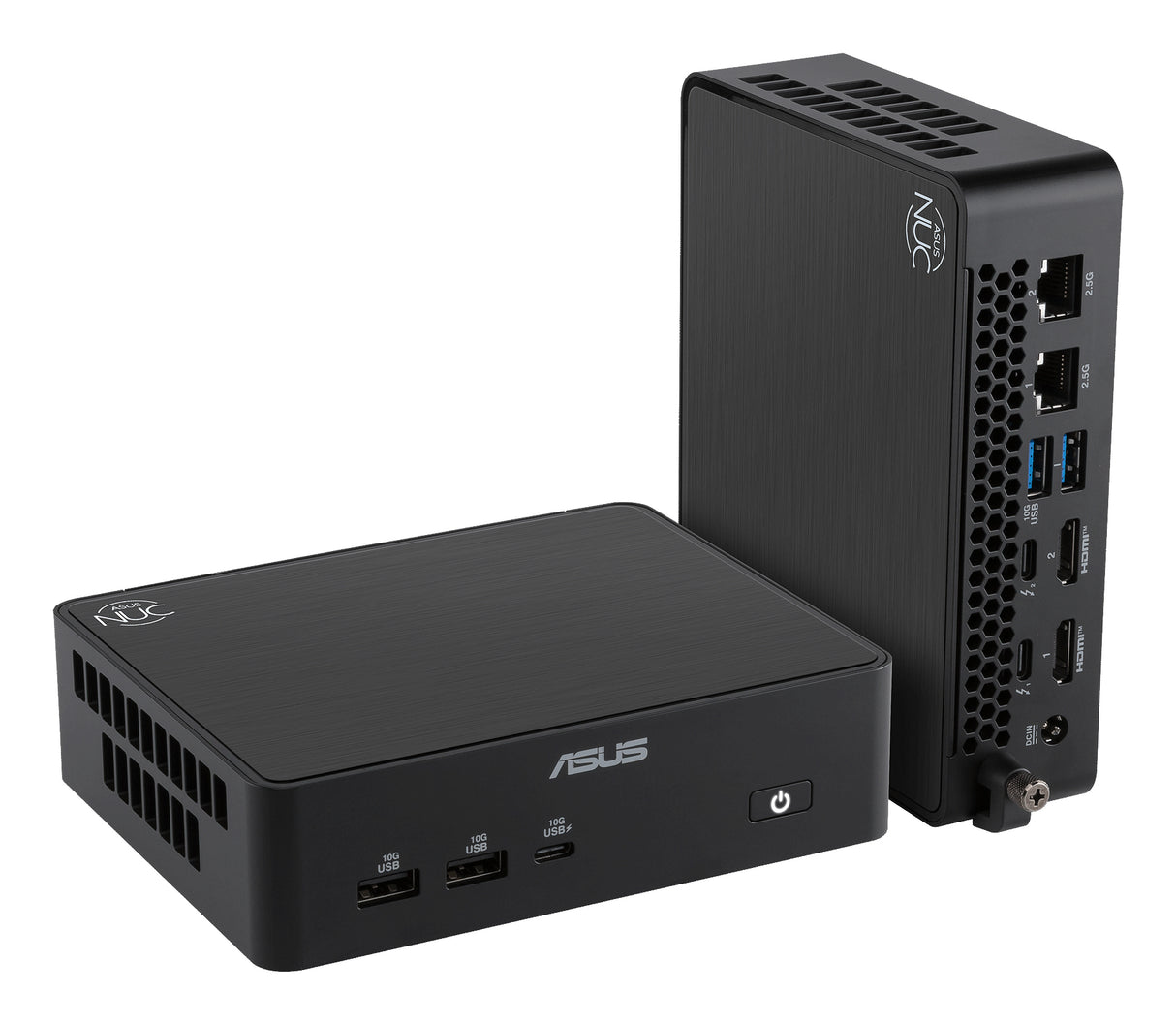

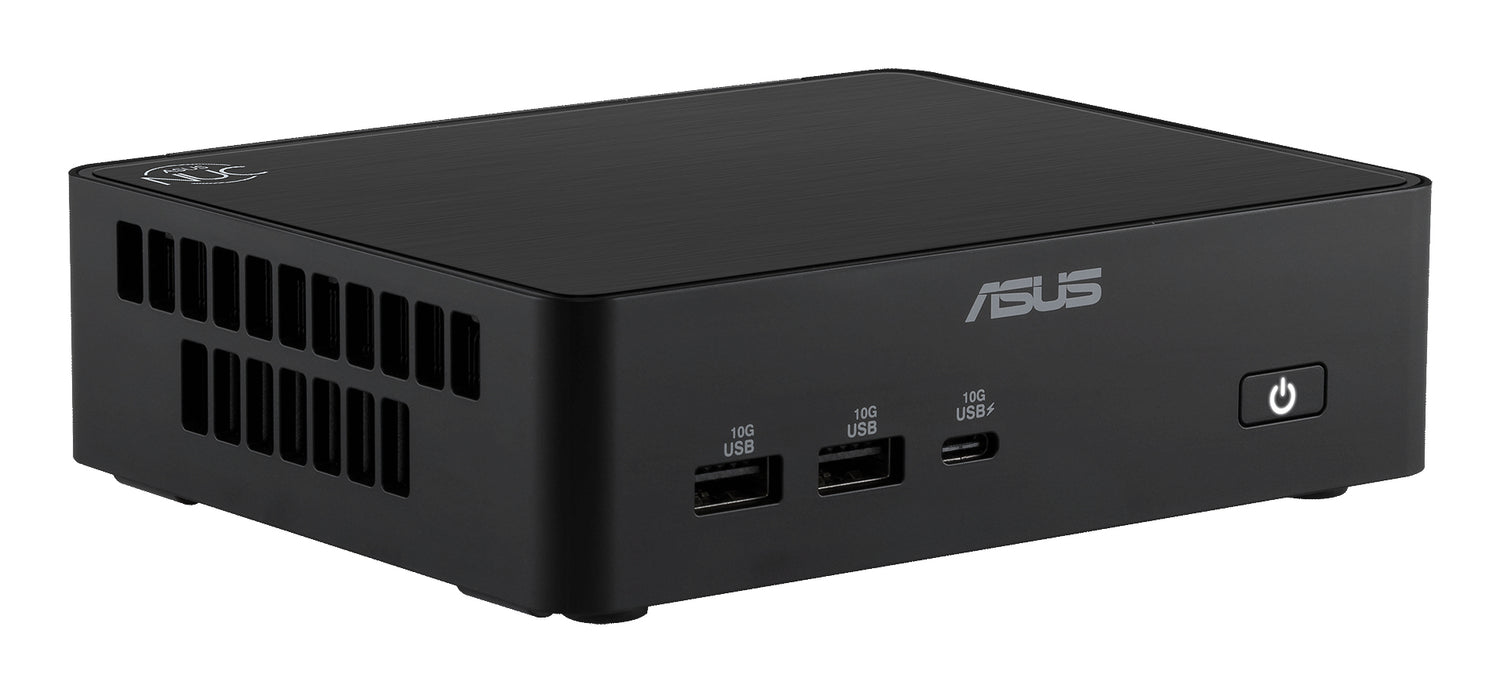

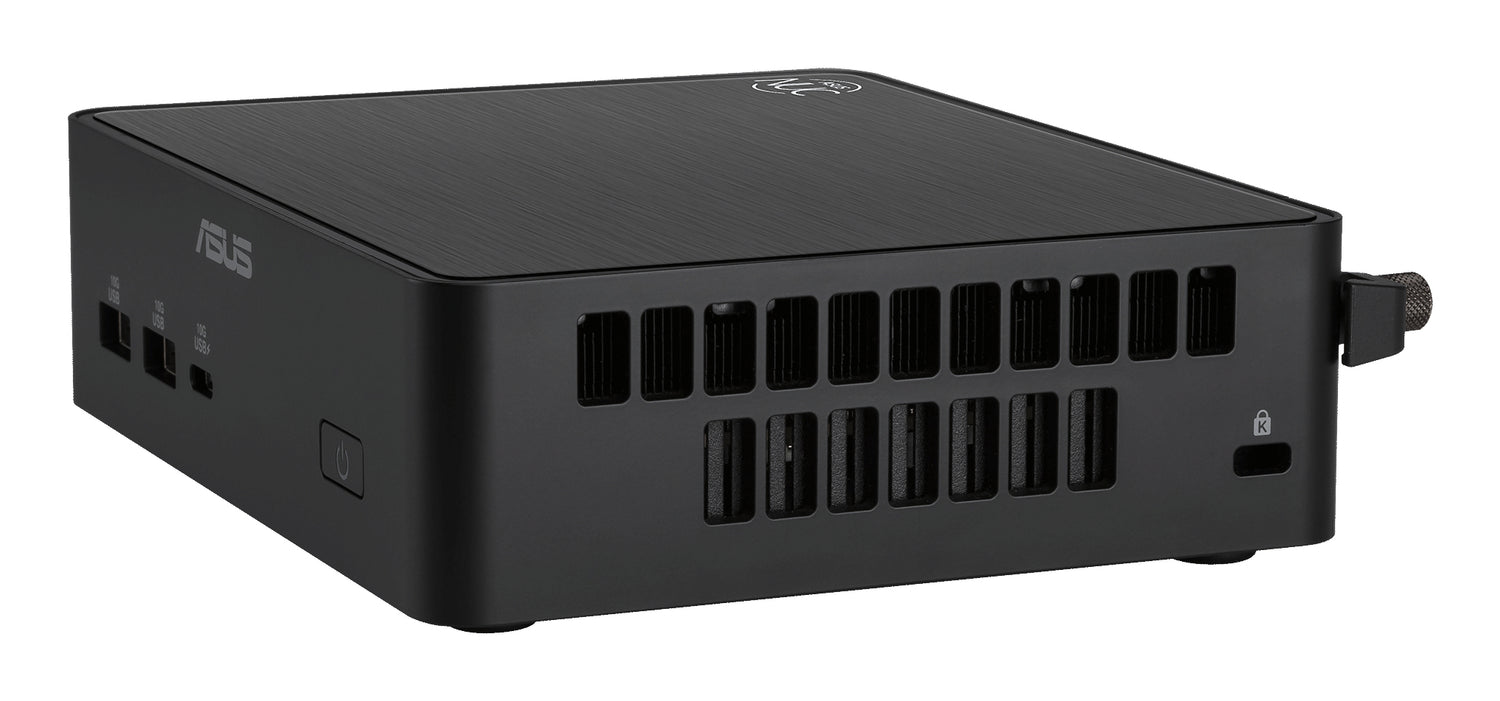

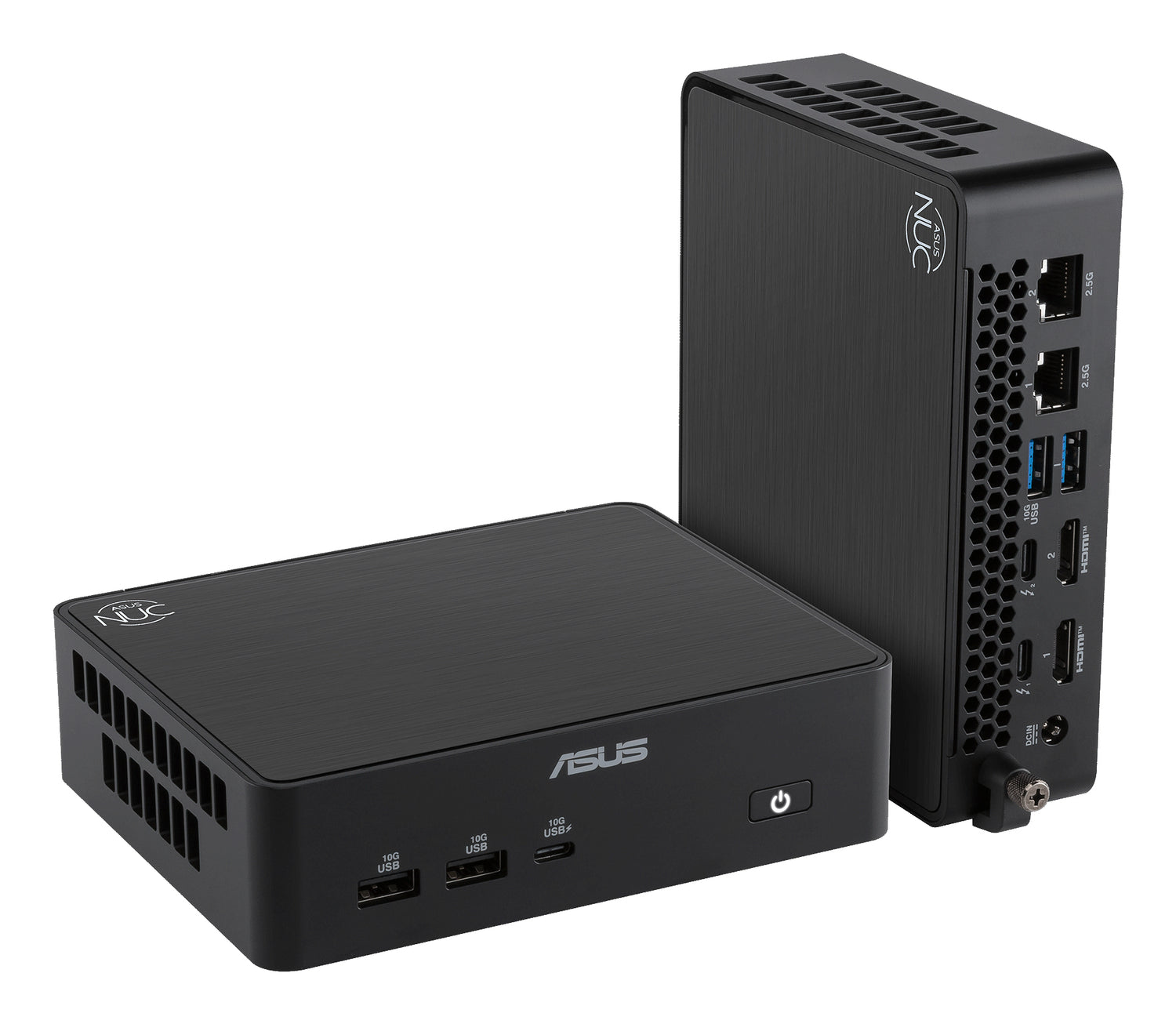

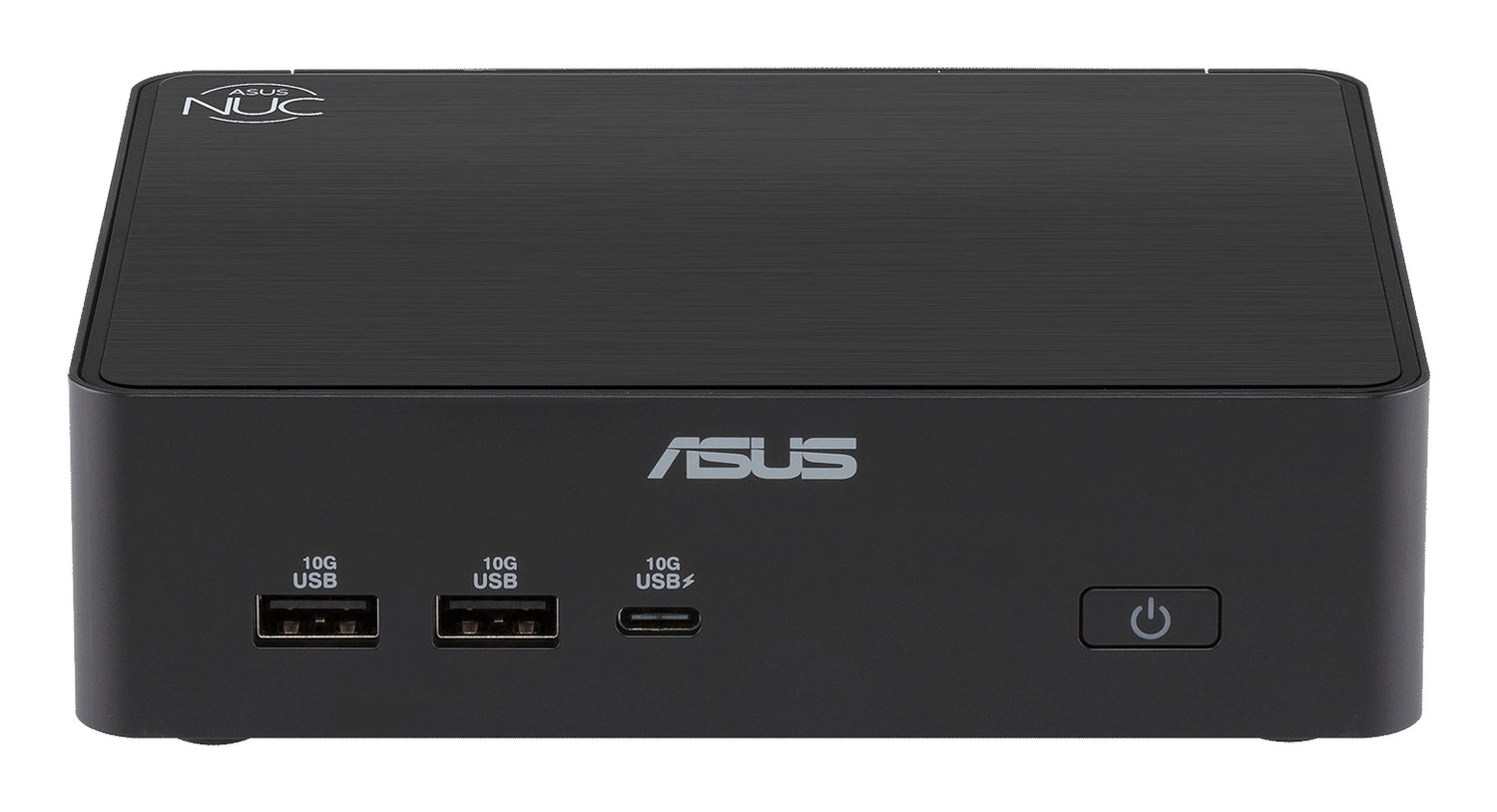

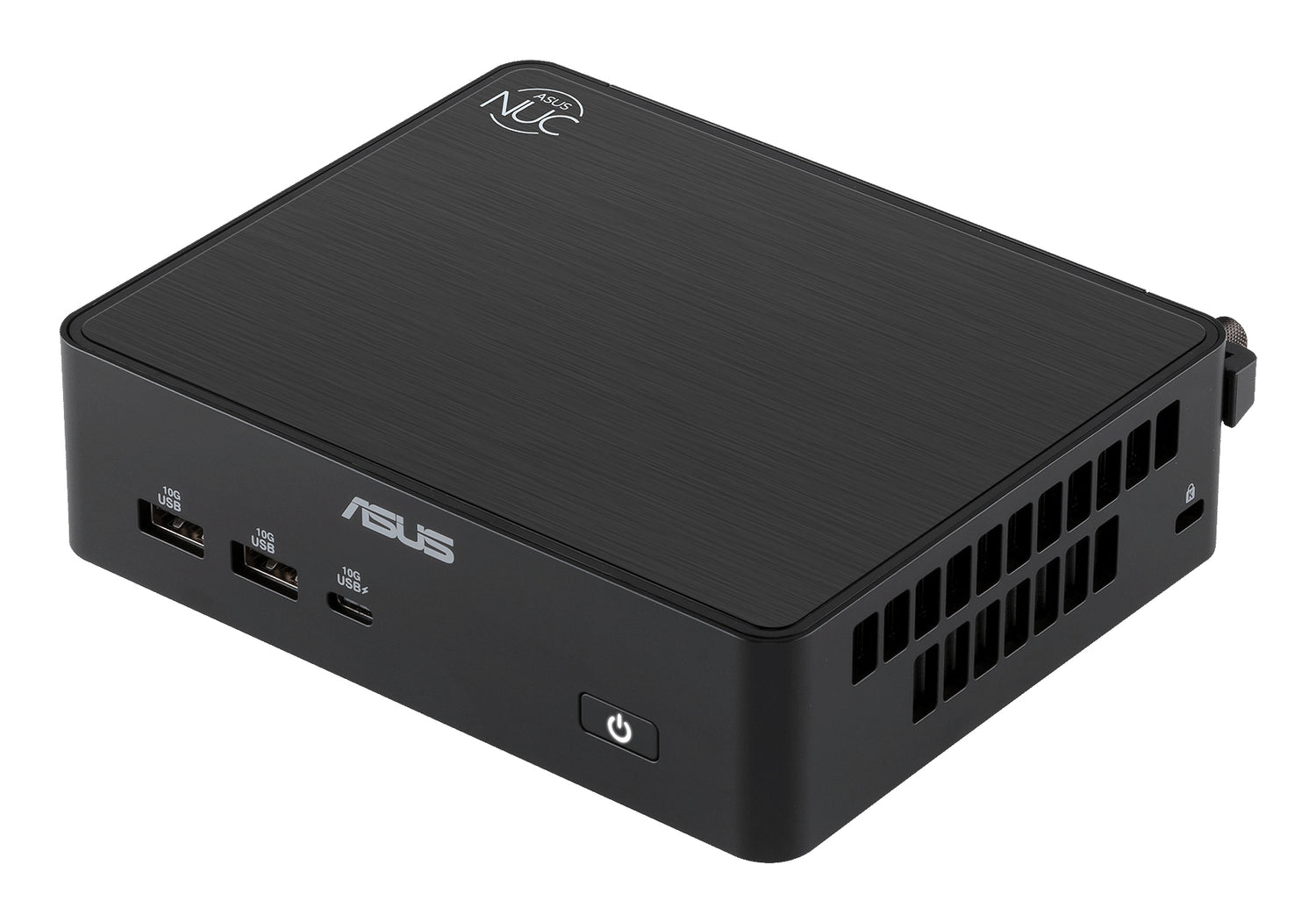

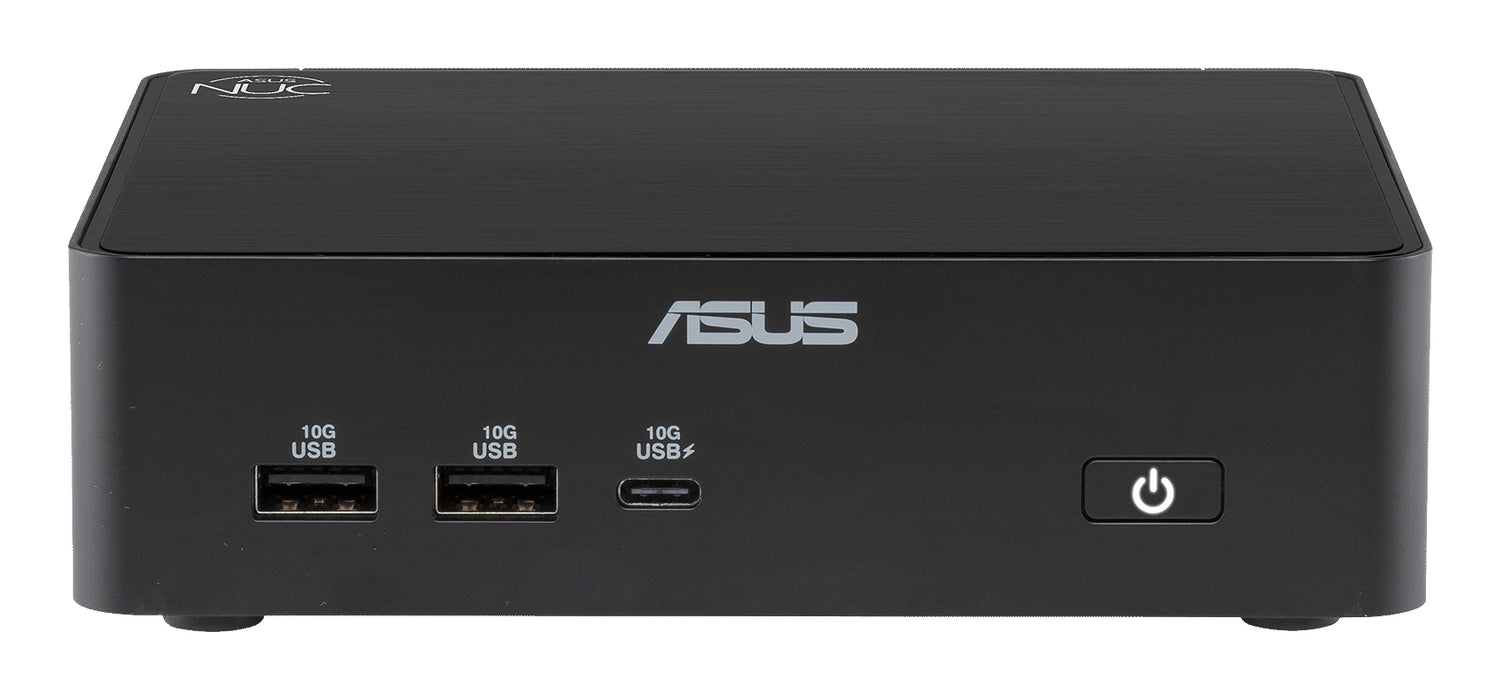

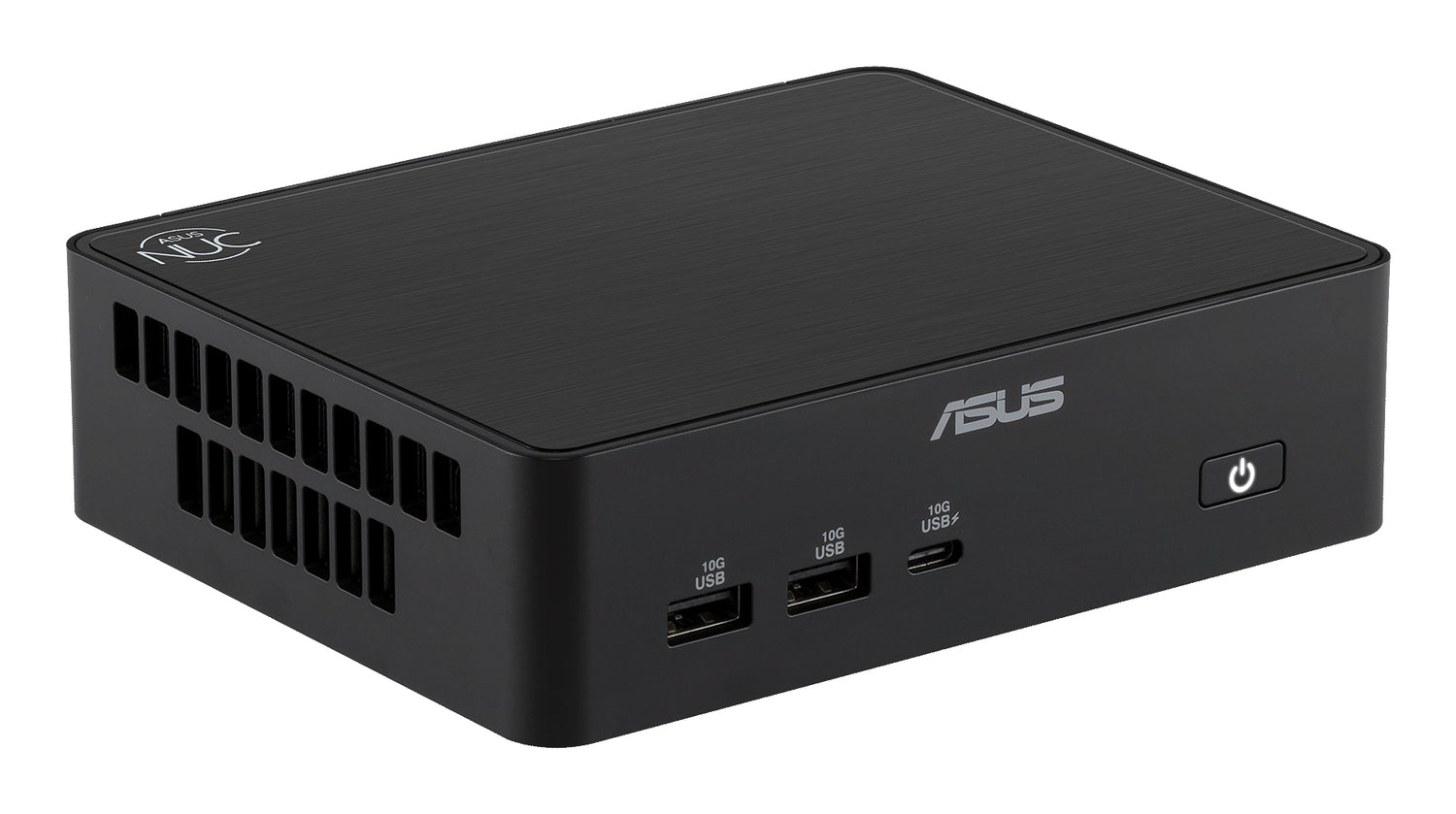

ASUS NUC 16 Pro RNUC16GDKU76000U Black 356H - RNUC16GDKU76000U

Faster, Smarter, More Secure For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.

• Powered by up to Intel Core Ultra X9 CPU, Arc B390 GPU, and NPU 5, it enables AI-accelerated hybrid computing, delivering up to 180 TOPS for real-time Edge AI
• Up to 96 GB LPDDR5x 9600 MT/s with 20% faster speed and 50% lower power, plus dual-fan cooling for sustained peak performance
• Wi-Fi 7, Bluetooth 6.0, and dual 2.5G LAN provide low-latency, redundant, and secure connectivity for enterprise and Edge AI
• Built-in firmware TPM 2.0 provides enterprise-grade data protection and compliance, enabling IT professionals to securely manage devices and scale services with ease

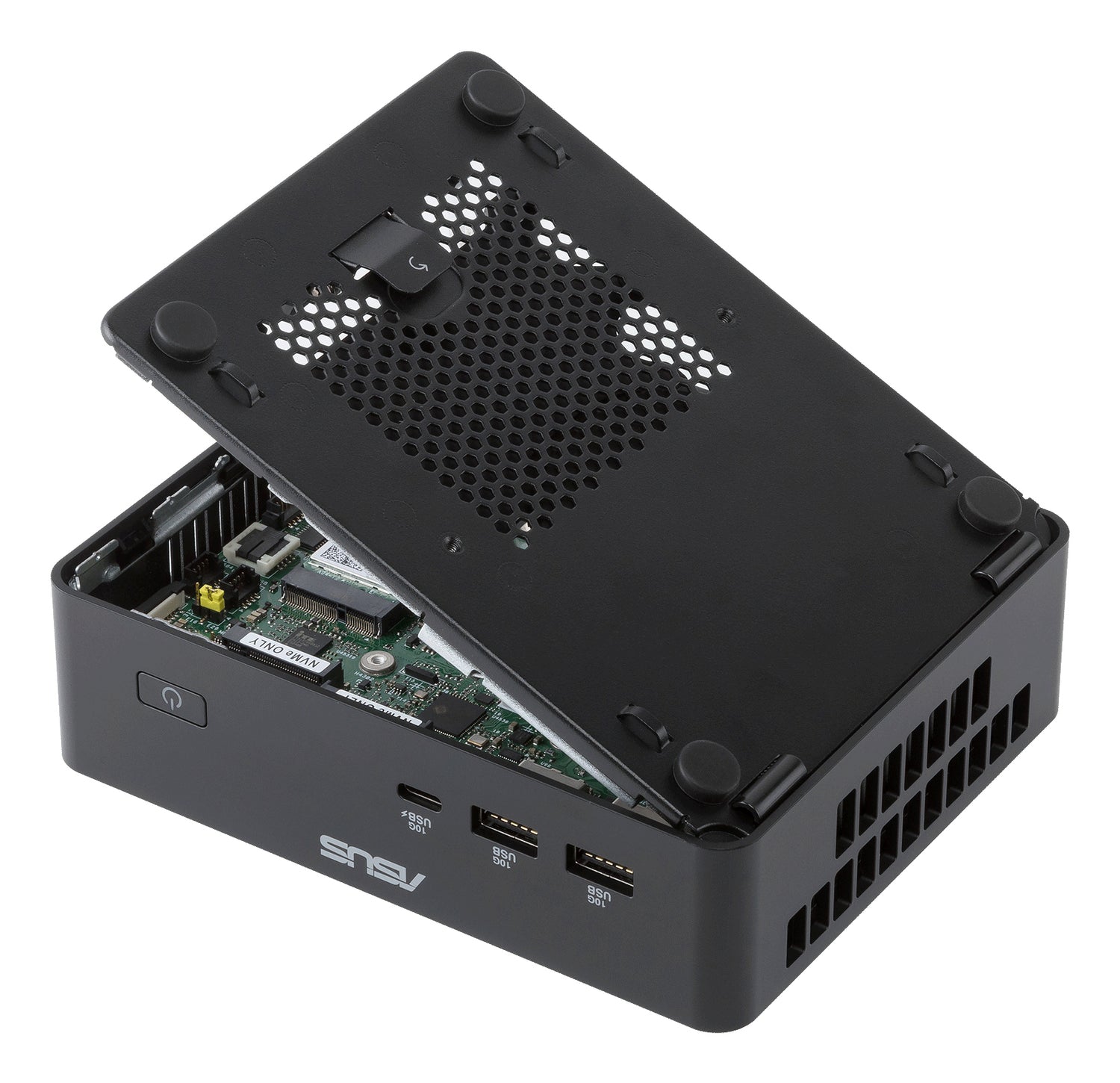

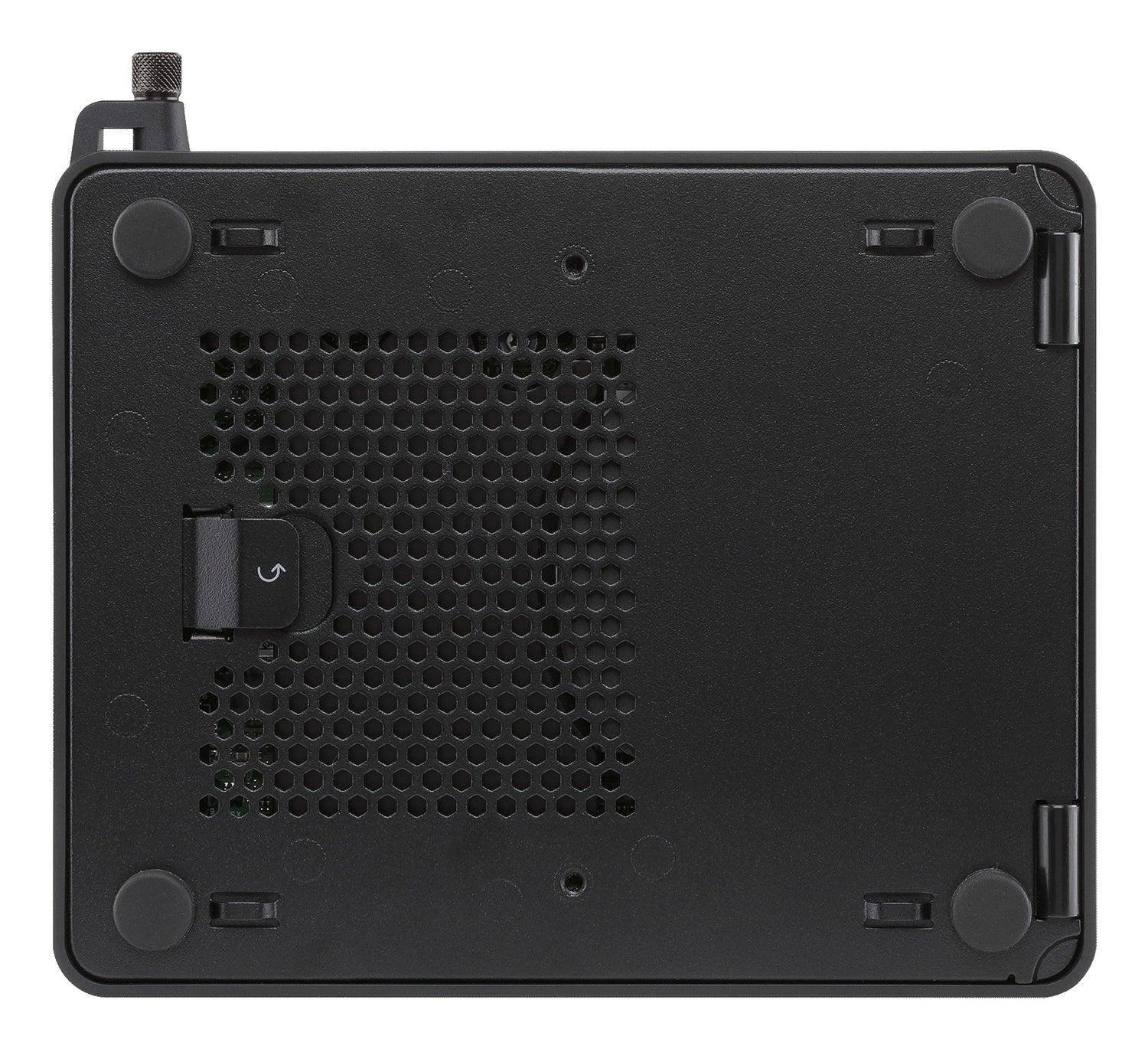

• Compact 5×4 chassis with Tool-less 2.0 design supports dual M.2 Gen5/Gen4 SSDs, maximizing airflow, flexibility, and performance
• Rugged modular build with long-life availability and rich I/O, including RS-232 and PCIe x1, for POS, IoT, and industrial deployment

Built-in processor	Y
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel Core Ultra (Series 3)
Processor model	356H
Processor cores	16
Processor threads	16
Processor boost frequency	4.7
Performance cores	4
Efficient cores	8
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.7
Efficient-core Max Turbo Frequency	3.5
Low Power Efficient-core Max Turbo Frequency	3.3
Performance-core base frequency	1.9
Efficient-core base frequency	1.5
Low Power Efficient-core Base Frequency	1500
Processor cache	18
Internal memory installed	N
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	128
Memory channels	Dual-channel
Storage drives installed	N
Supported storage drive types	SSD
Storage drive sizes supported	M.2
SSD form factor	M.2
Storage drive interface	PCI Express
Number of storage drives supported	2
Maximum storage capacity	8
On-board graphics card	Y
Graphics card family	Intel
On-board graphics card model	Intel Graphics
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Built-in speaker(s)	N
Ethernet LAN	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE211
LAN controller	Intel I226-V
Bluetooth	Y
Bluetooth version	6.0
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0

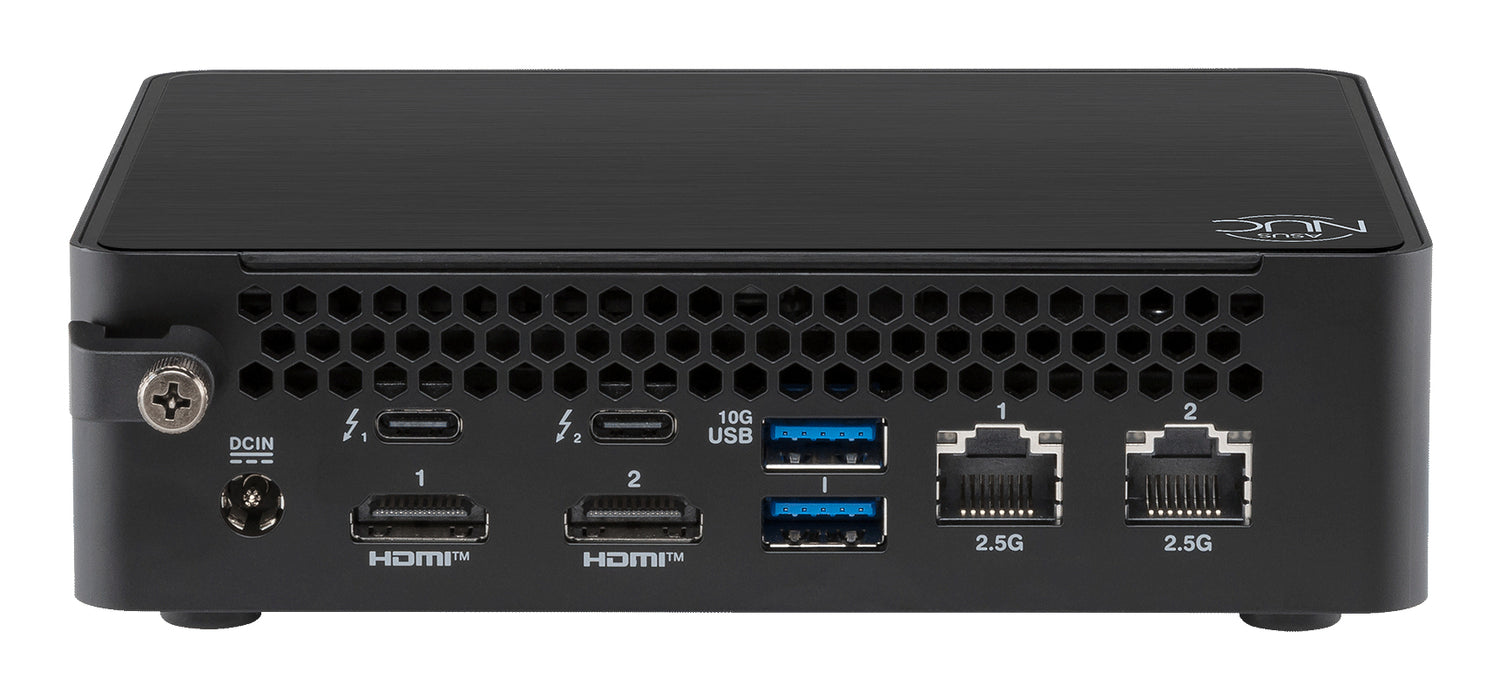

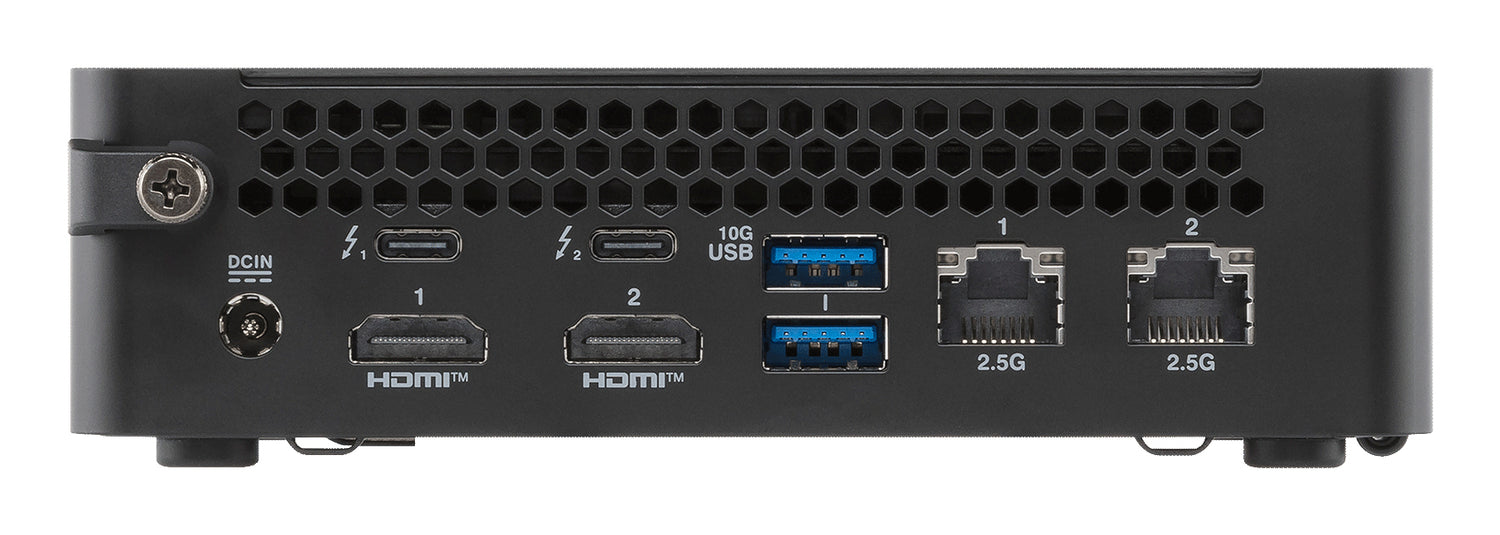

HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
Ethernet LAN (RJ-45) ports	2

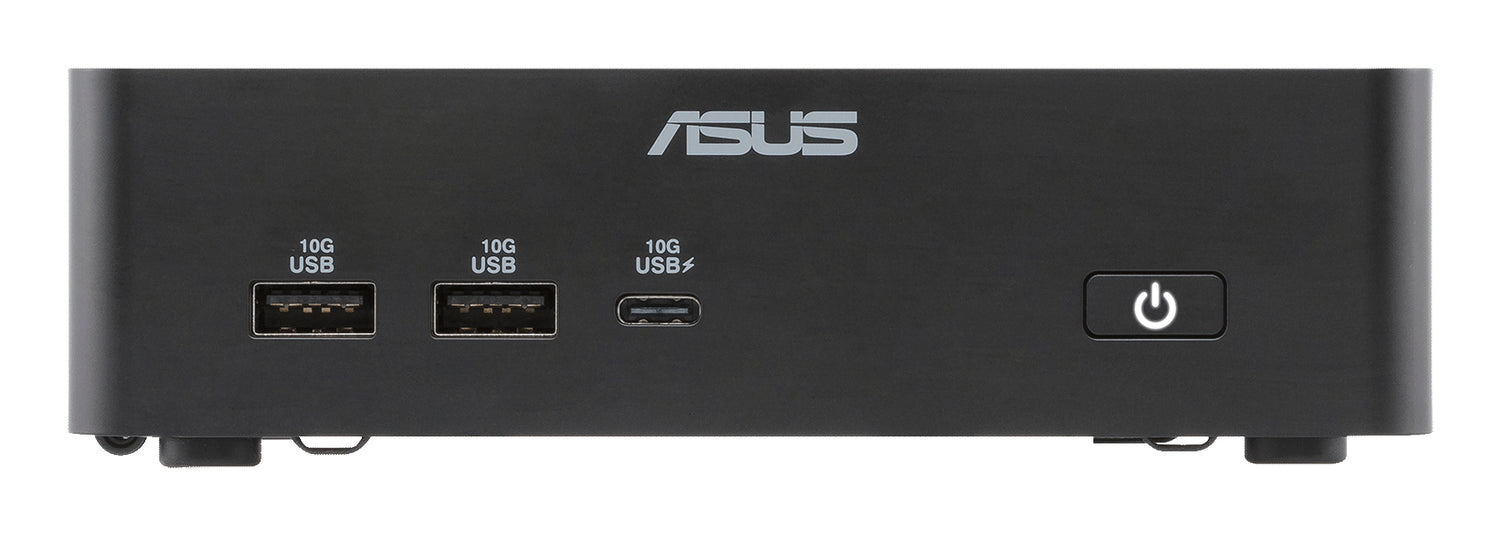

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
DC-in jack	Y
Product colour	Black

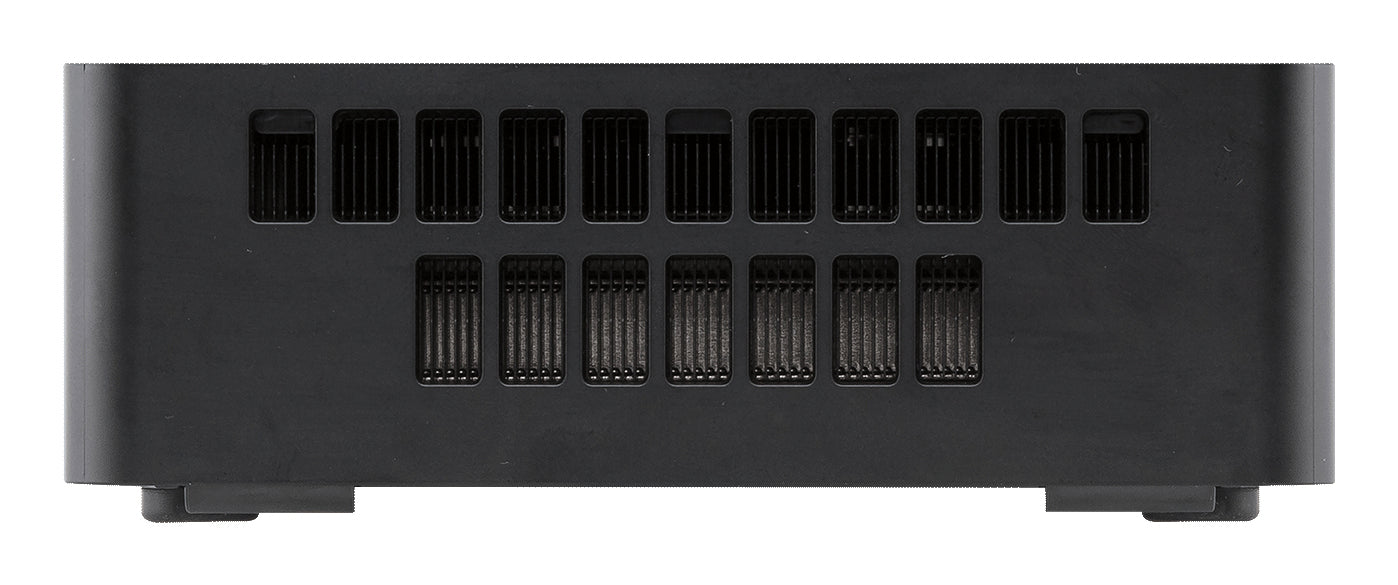

Cooling type	Active
Product type	Mini PC (<= 3L) barebone
On/off switch	Y

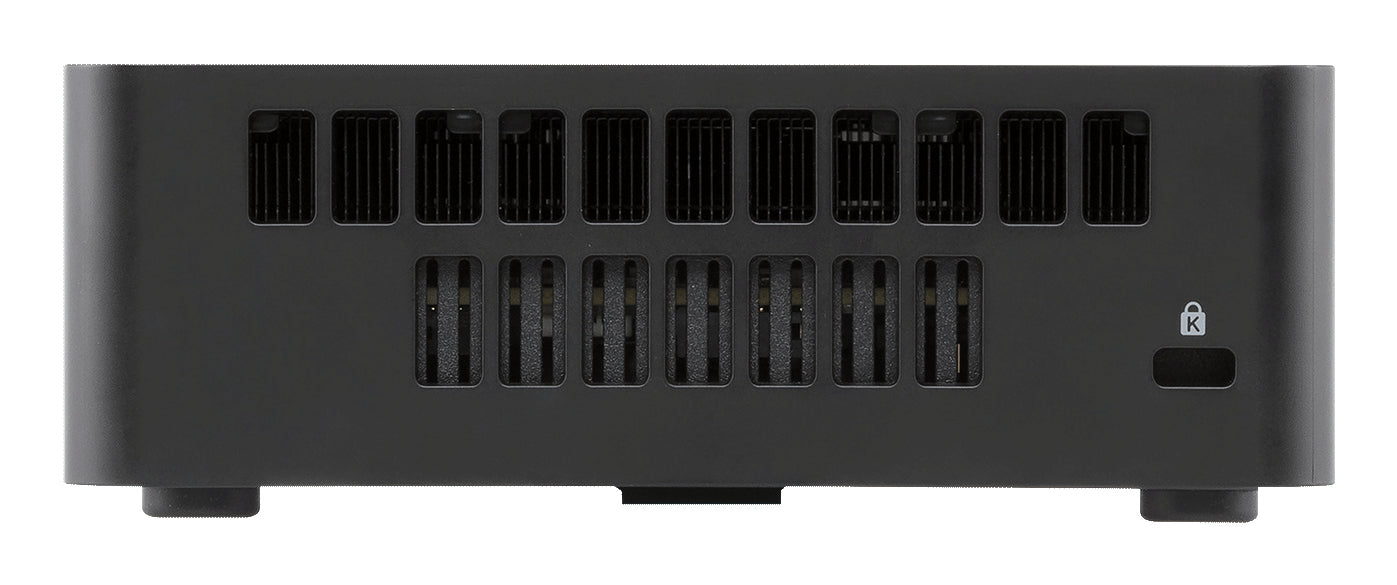

Cable lock slot	Y
Cable lock slot type	Kensington

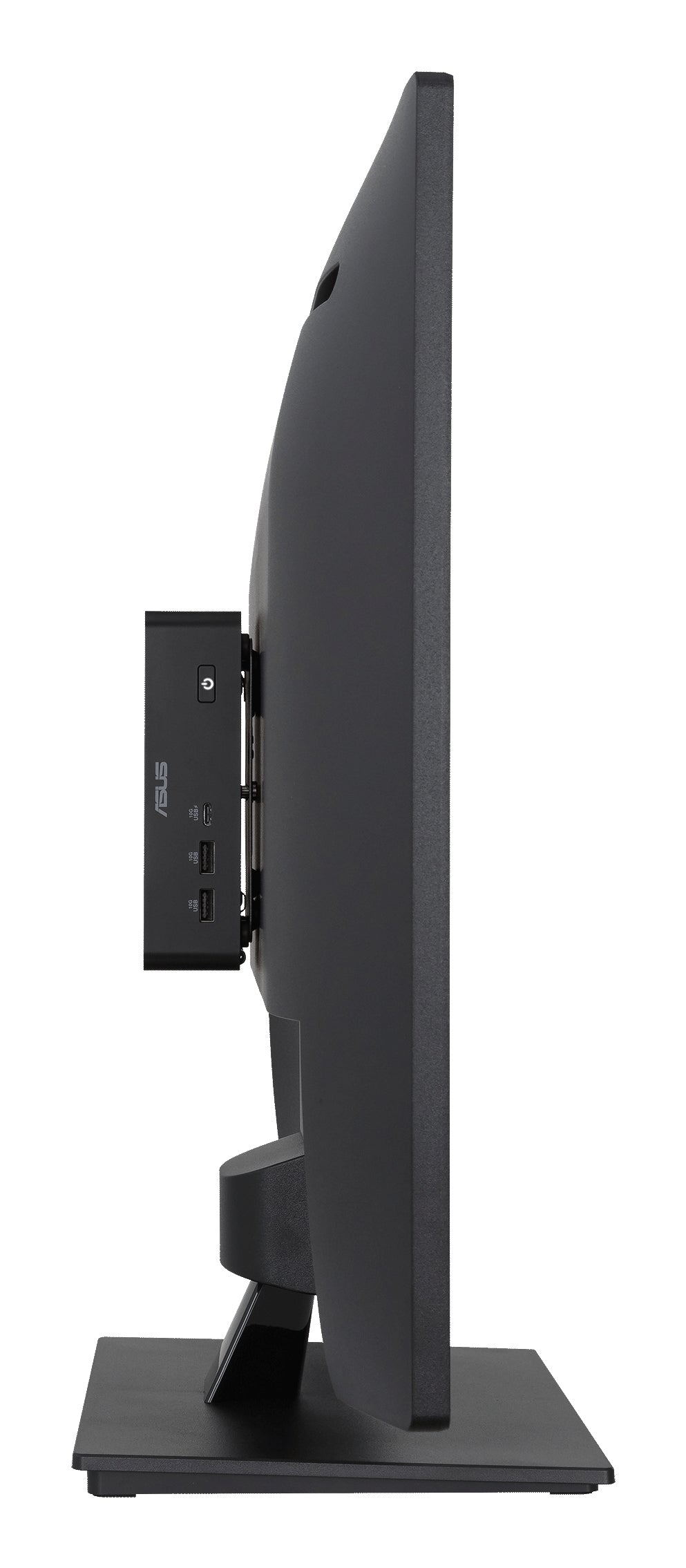

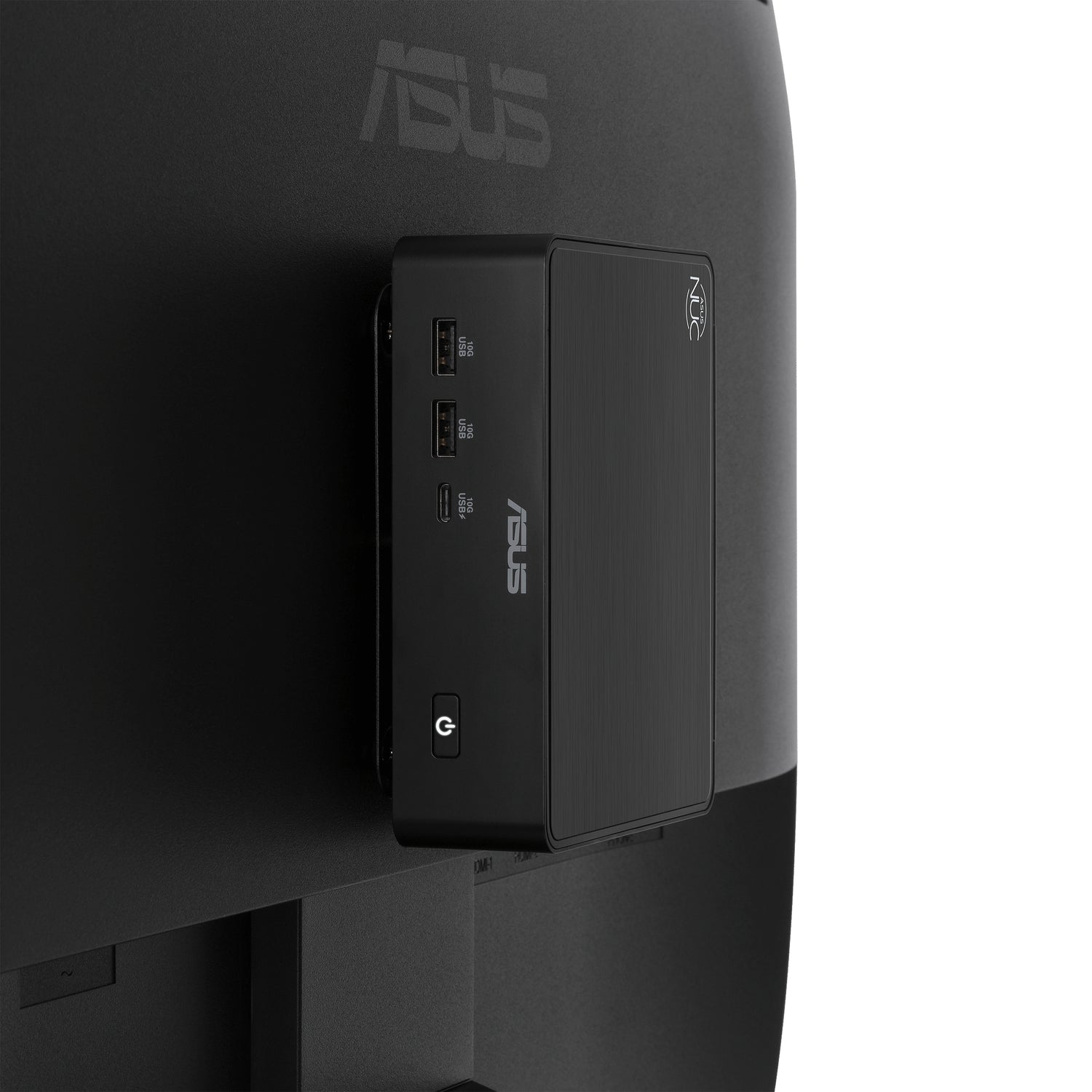

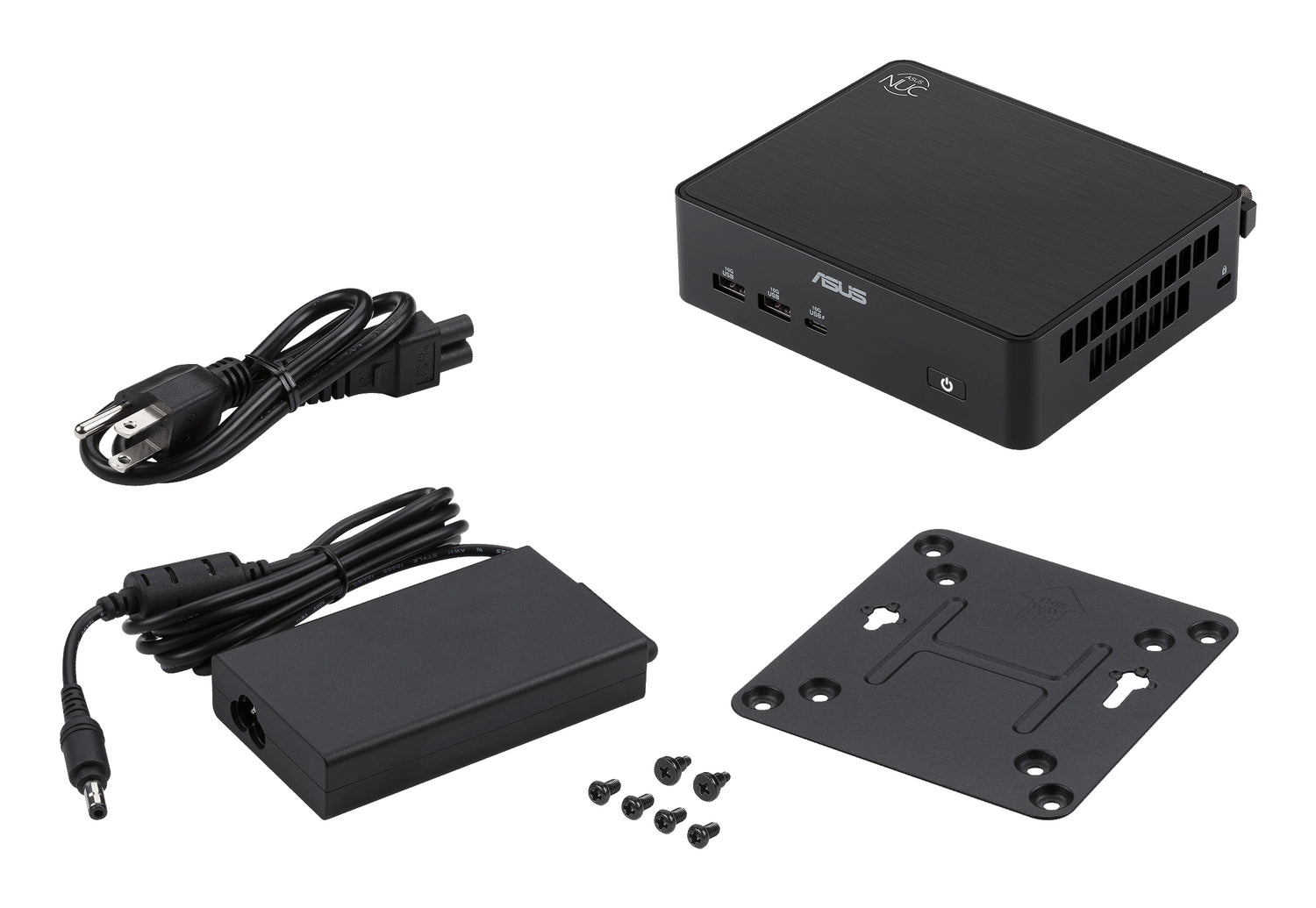

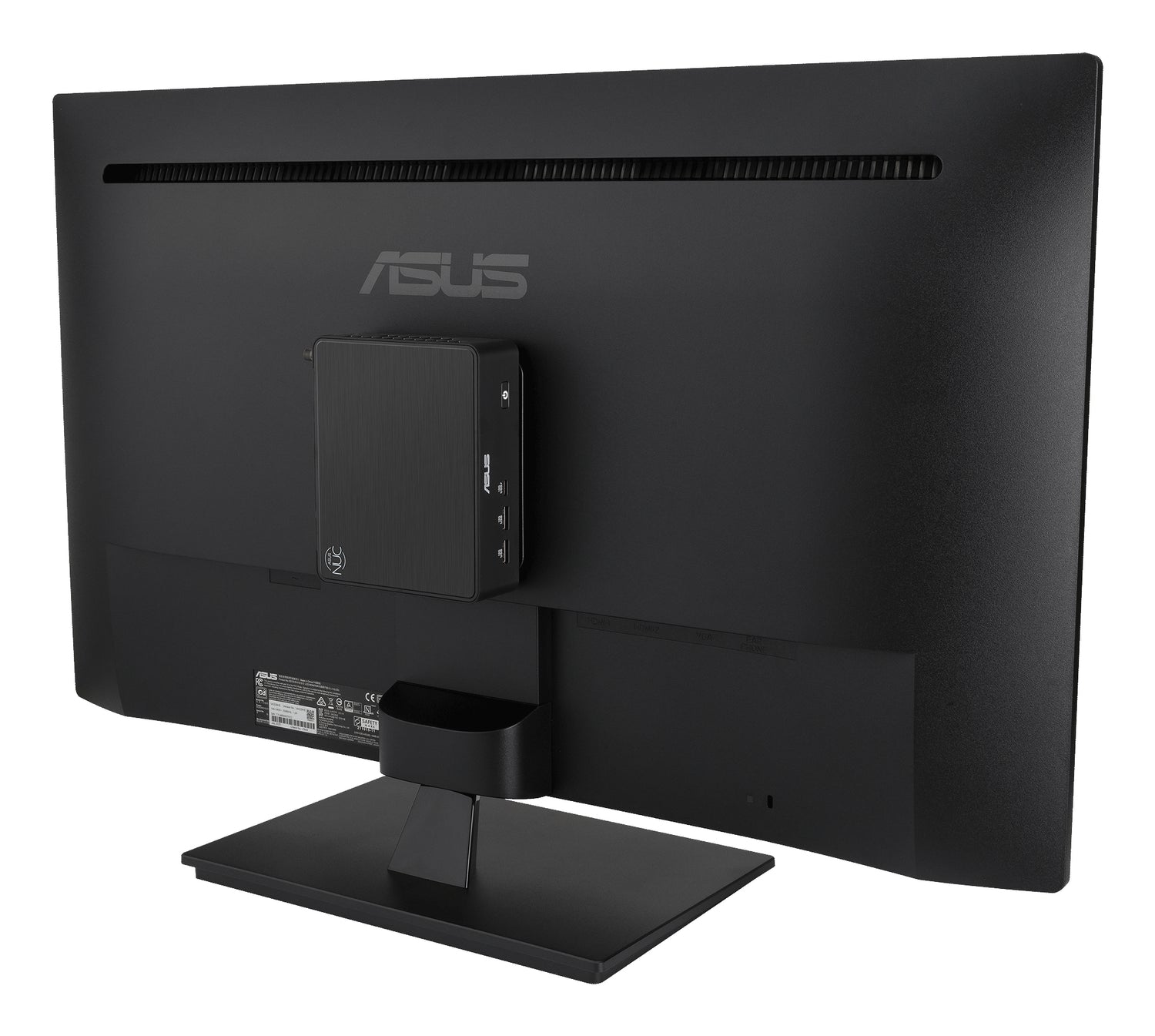

VESA mounting	Y

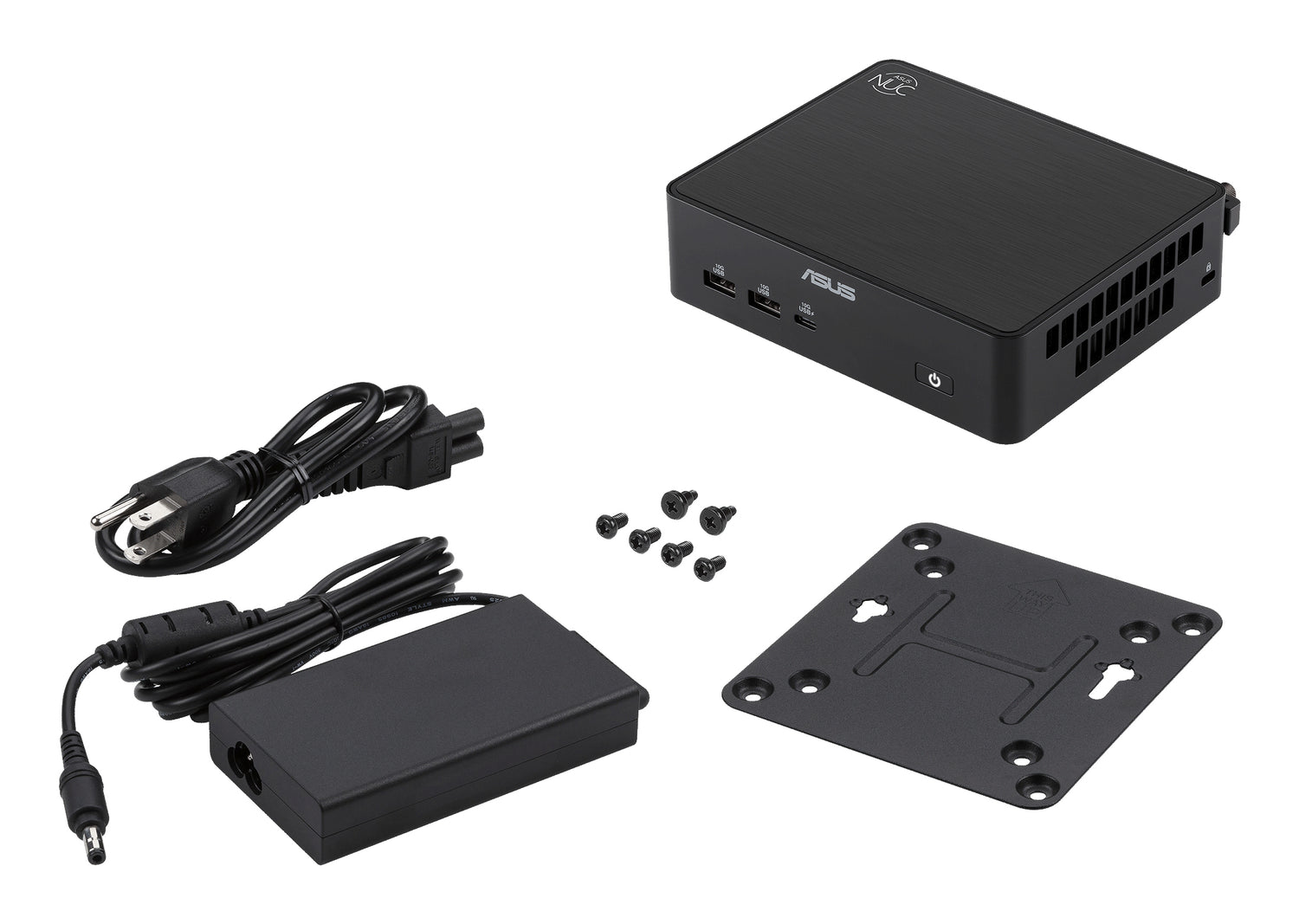

Power supply type	External AC adapter
Power supply	150
AC adapter output voltage	7.7
AC adapter output current	19.5
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-40 - 60
Operating relative humidity (H-H)	0 - 92
Width	144
Depth	117
Height	42
Weight	730
