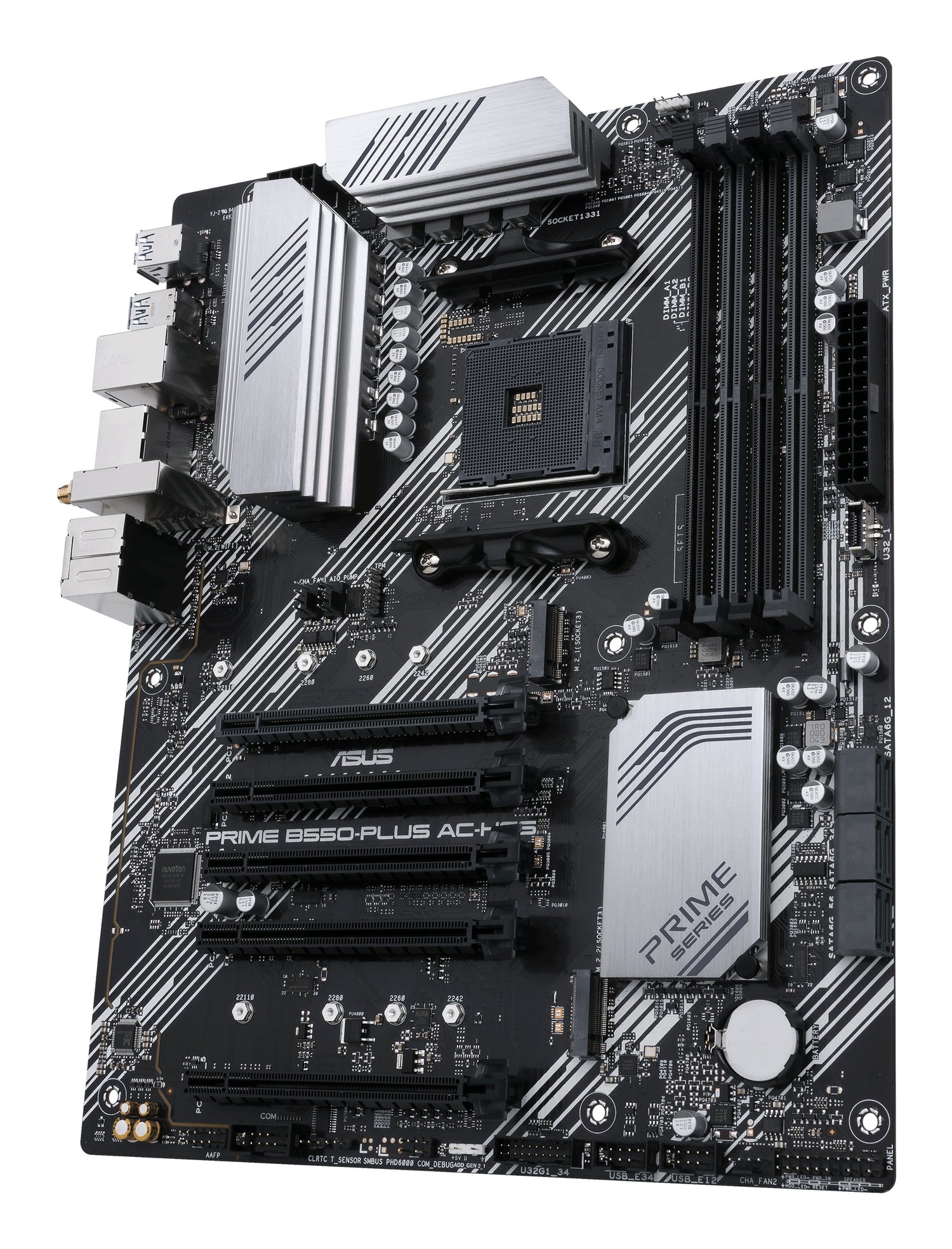

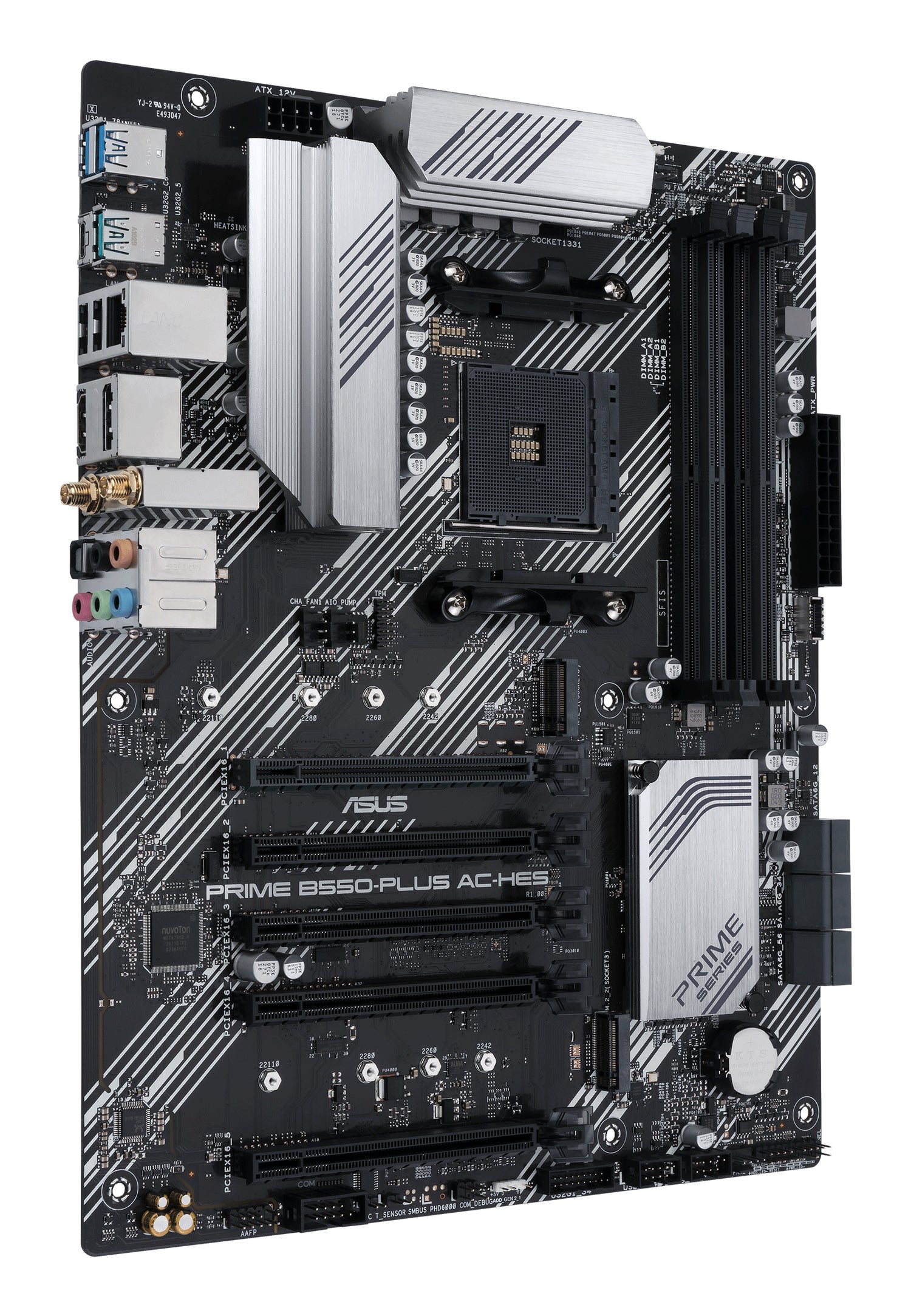

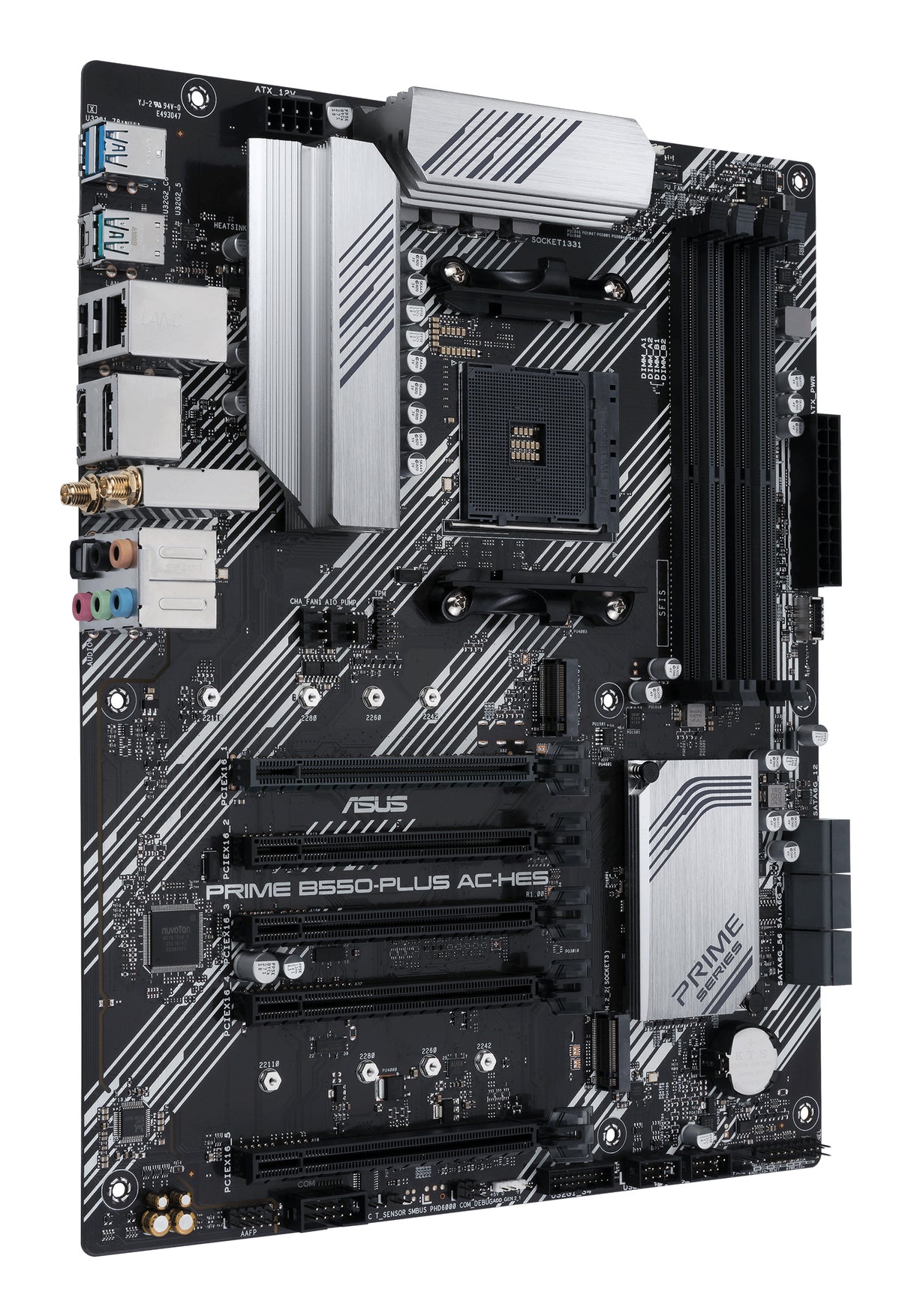

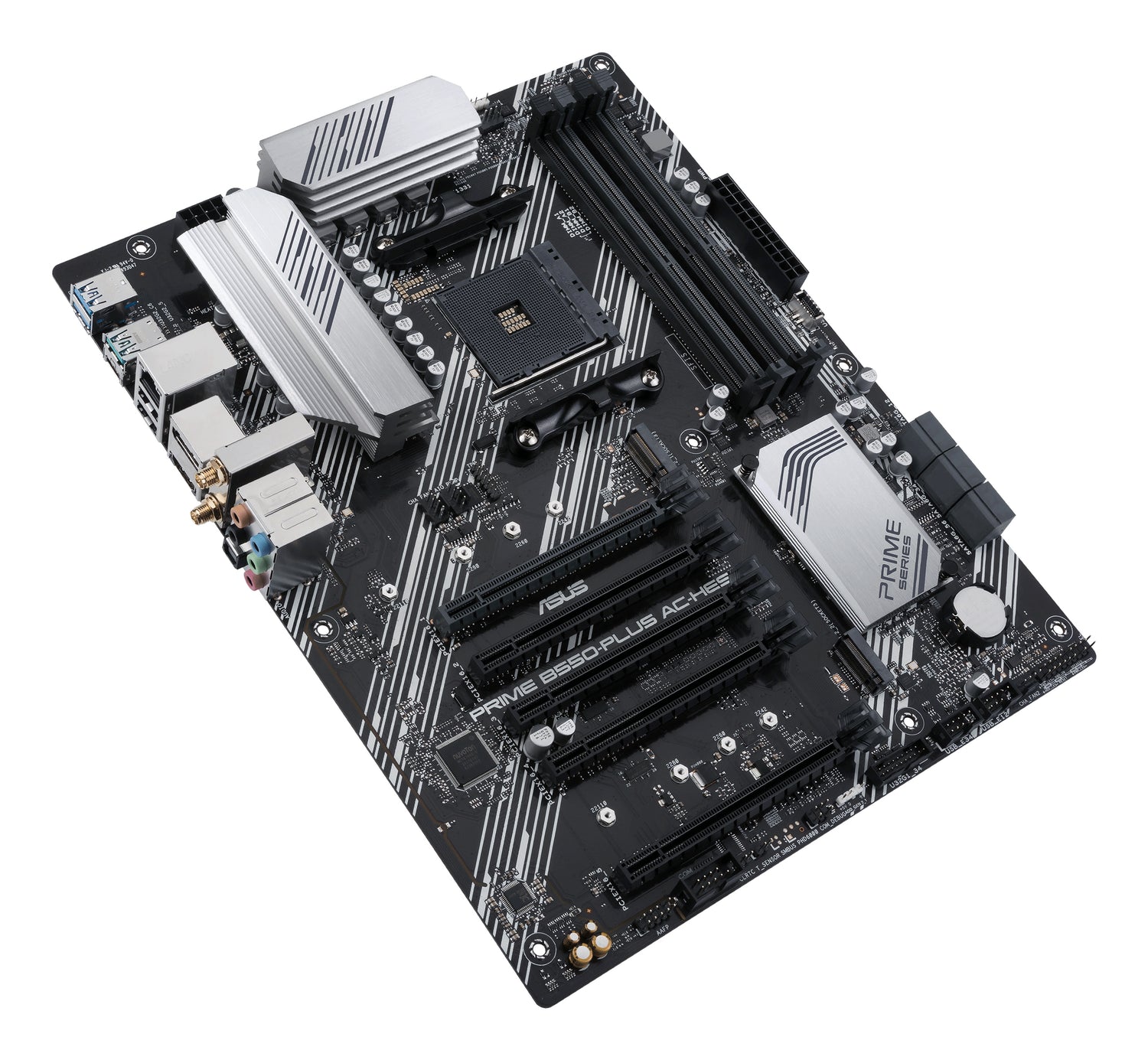

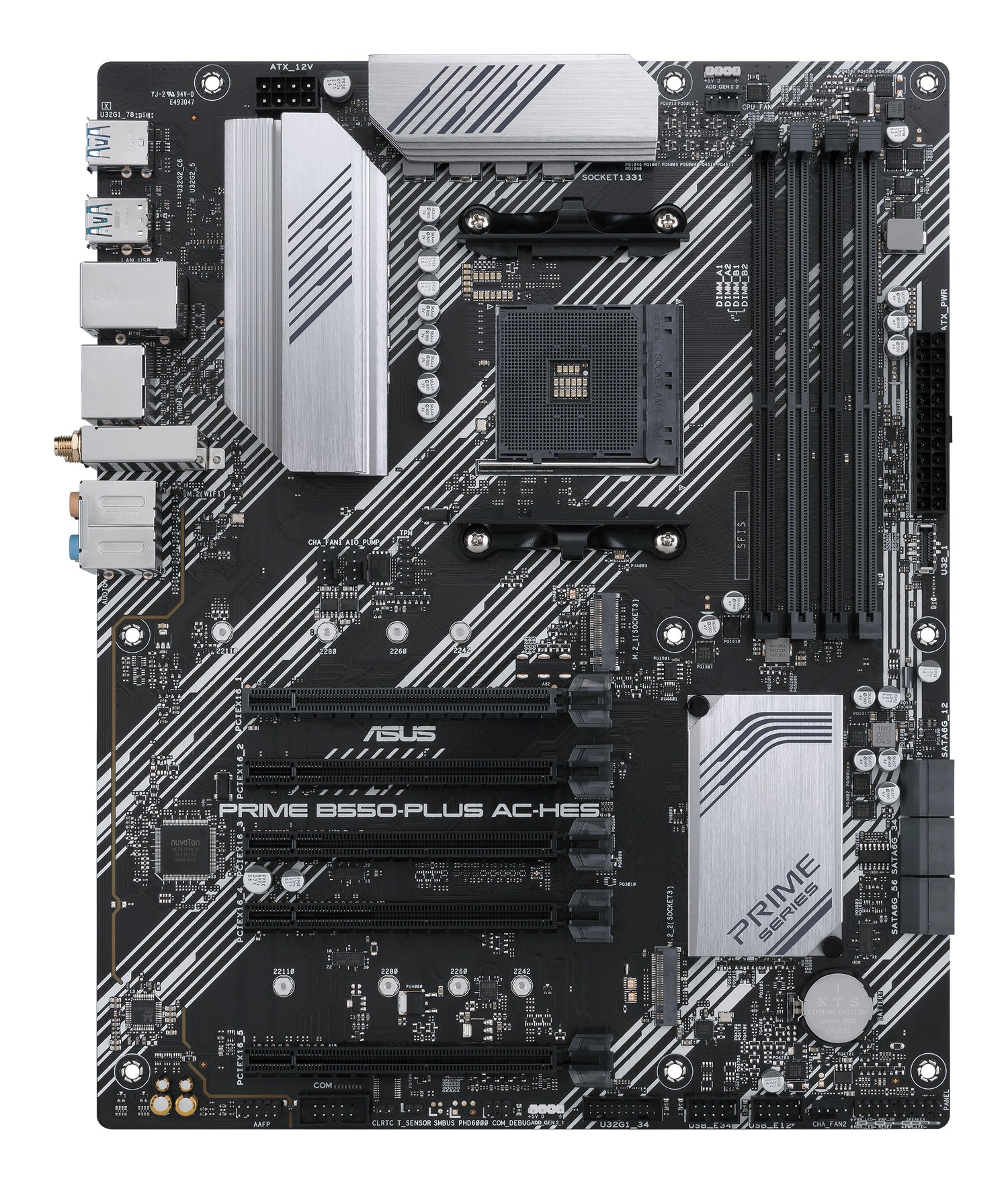

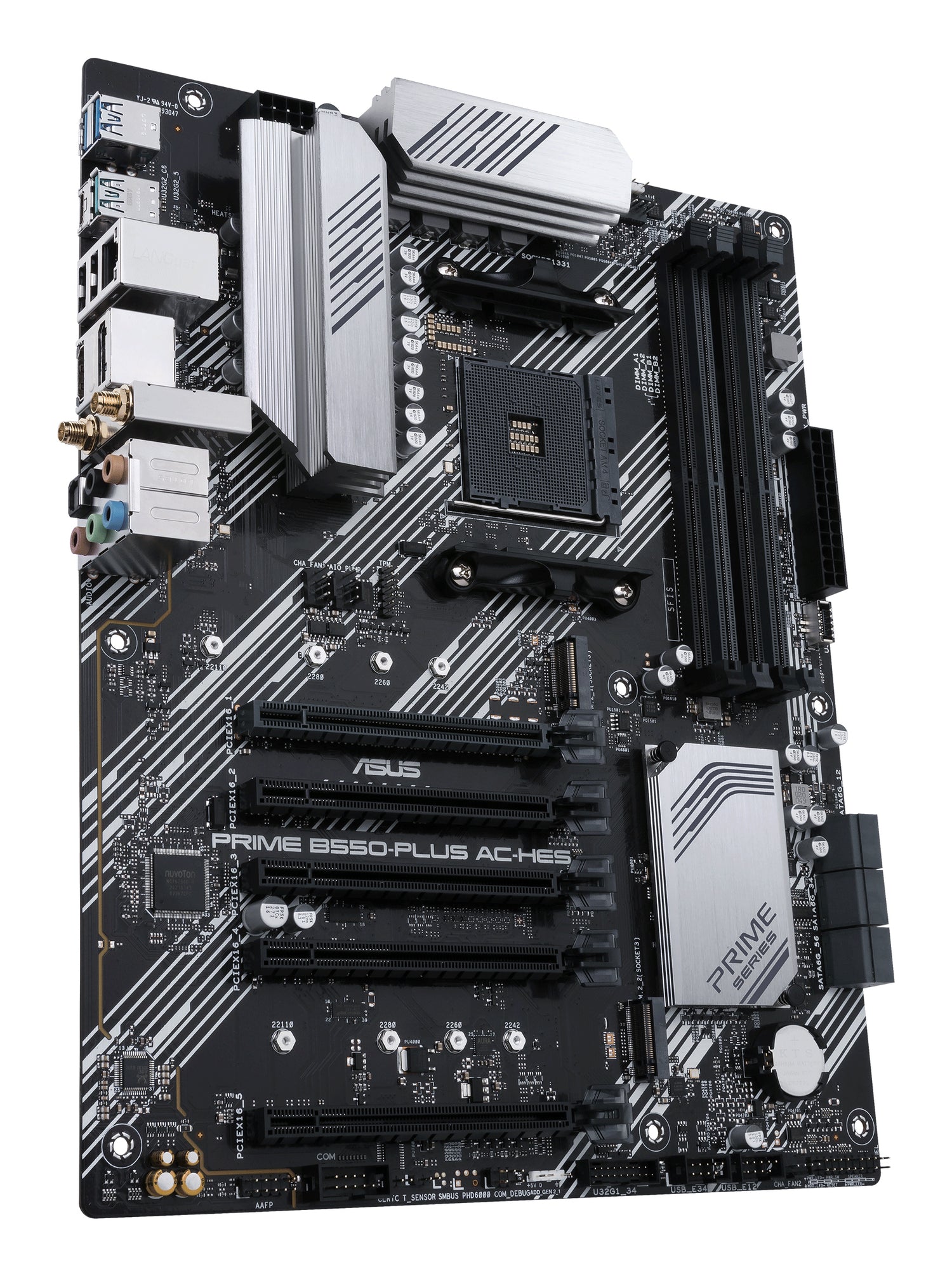

ASUS PRIME B550-PLUS AC-HES motherboard AMD B550 Socket AM4 ATX - PRIME B550-PLUS AC-HES

AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, WIFI 5, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-C®, front USB 3.2 Gen 1 Type-C® and Aura Sync ARGB headers support

Prime
ASUS Prime series is expertly engineered to unleash the full potential of 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

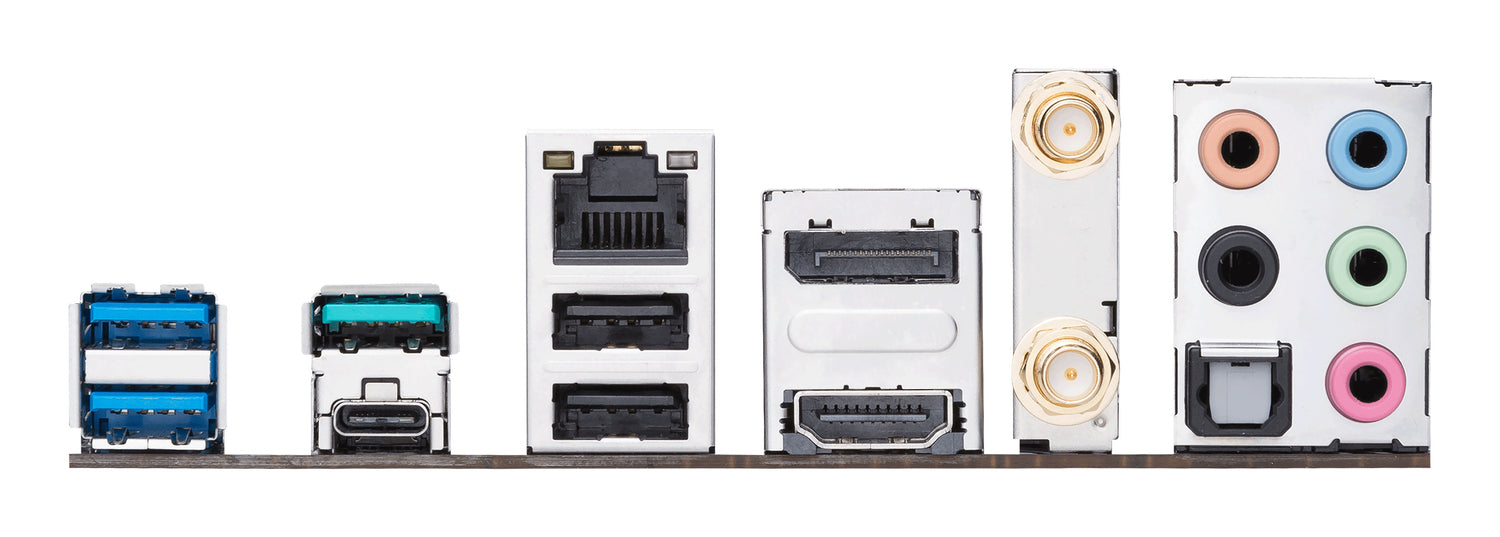

• Ultrafast connectivity: Dual M.2, PCIe 4.0, WIFI 5, 1 Gb Ethernet, rear USB 3.2 Gen 2 Type-A and Type-C®, front USB 3.2 Gen 1 Type-A and Type-C®
• Comprehensive cooling: VRM heatsinks, PCH heatsink, hybrid fan headers, and Fan Xpert 2+
• Aura Sync RGB: Onboard addressable Gen 2 headers for ARGB LED strips, easily synced with Aura Sync-capable hardware
• CEC Tier II ready

Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen 5000 Series,AMD Ryzen 3000 Series
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Maximum internal memory	128
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC
Supported memory clock speeds	4866,4800,4600,4466,4400,4333,4266,4200,4133,4000,3866,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133
Unbuffered memory	Y
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	6
Number of storage drives supported	8
RAID support	Y
RAID levels	0,1,10
Parallel processing technology support	Not supported
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	6
Front panel audio connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of CPU fan connectors	1
Number of chassis fan connectors	2
EPS power connector (8-pin)	Y
Number of COM connectors	1
TPM connector	Y
12V power connector	Y
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Headphone outputs	1
Microphone in	Y
S/PDIF out port	Y
Wi-Fi	Y
Ethernet LAN	Y
Ethernet interface type	Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Audio output channels	7.1
Audio chip	Realtek ALC887 / Realtek ALC897
Product colour	Multicolour
Windows operating systems supported	Windows 10 x64
PCI Express x16 (Gen 3.x) slots	4
Number of M.2 (M) slots	2
1st M.2 largest key size	2242
2nd M.2 largest key size	2260
3rd M.2 largest key size	2280
4th M.2 largest key size	22110
BIOS type	UEFI AMI
BIOS memory size	256
Width	305
Depth	244
