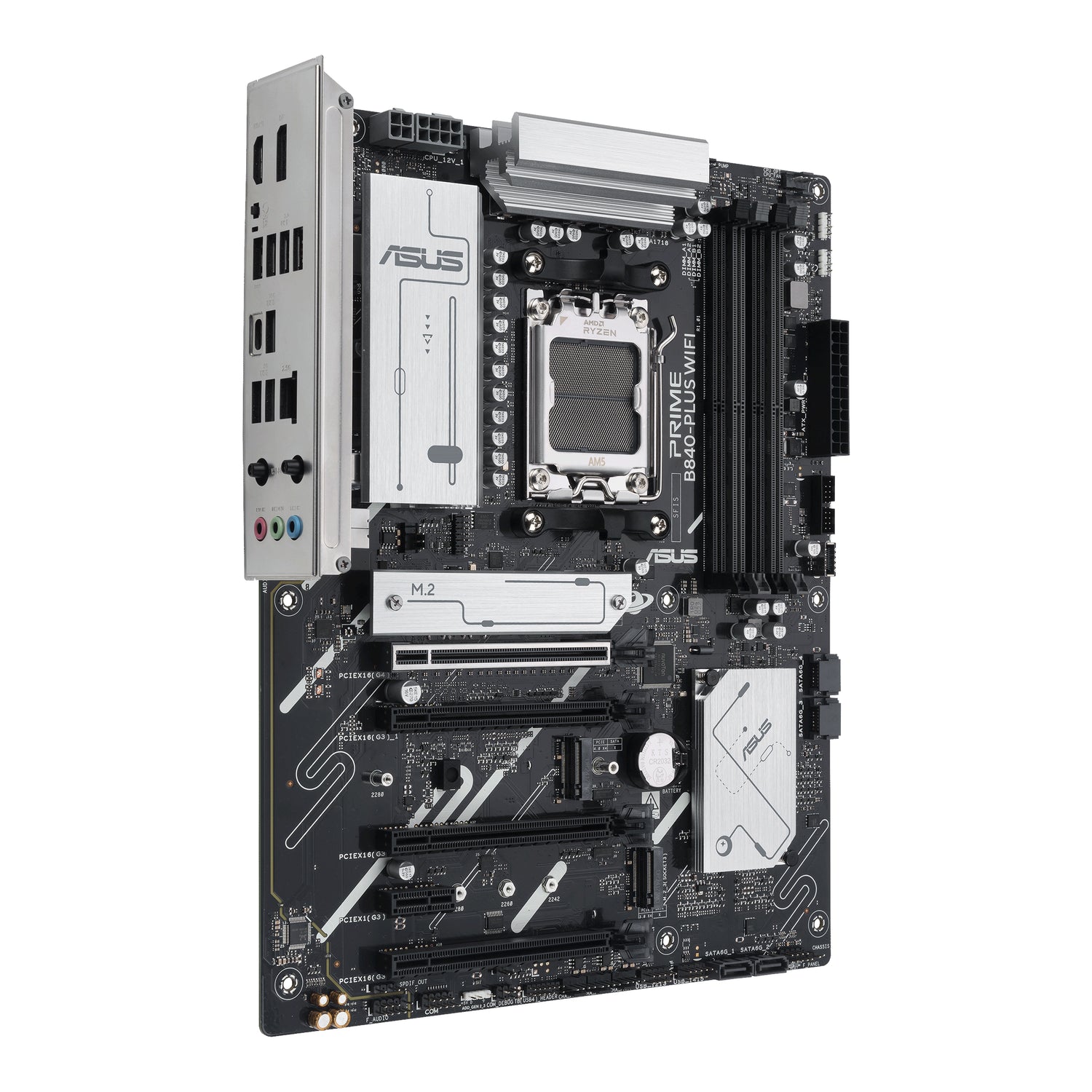

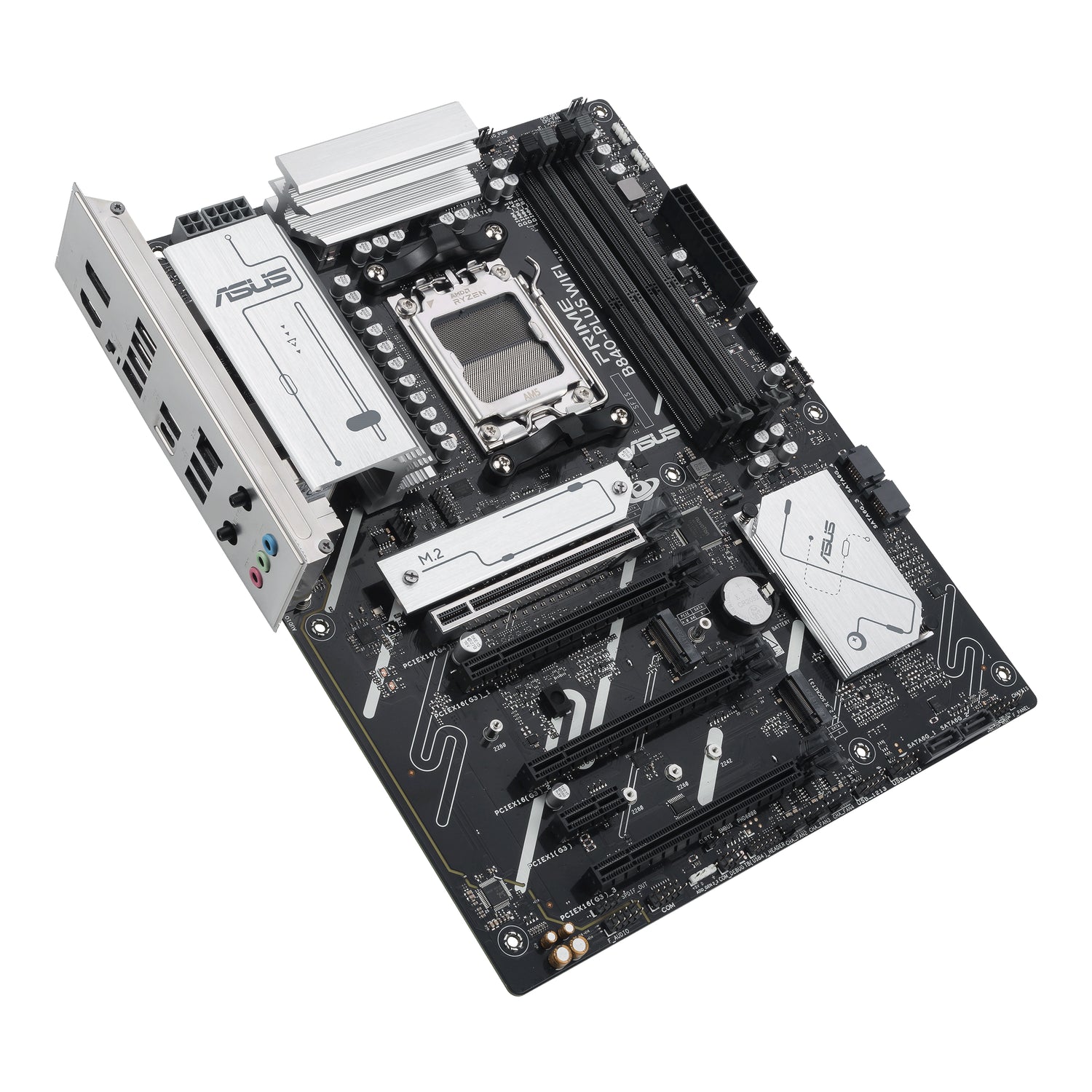

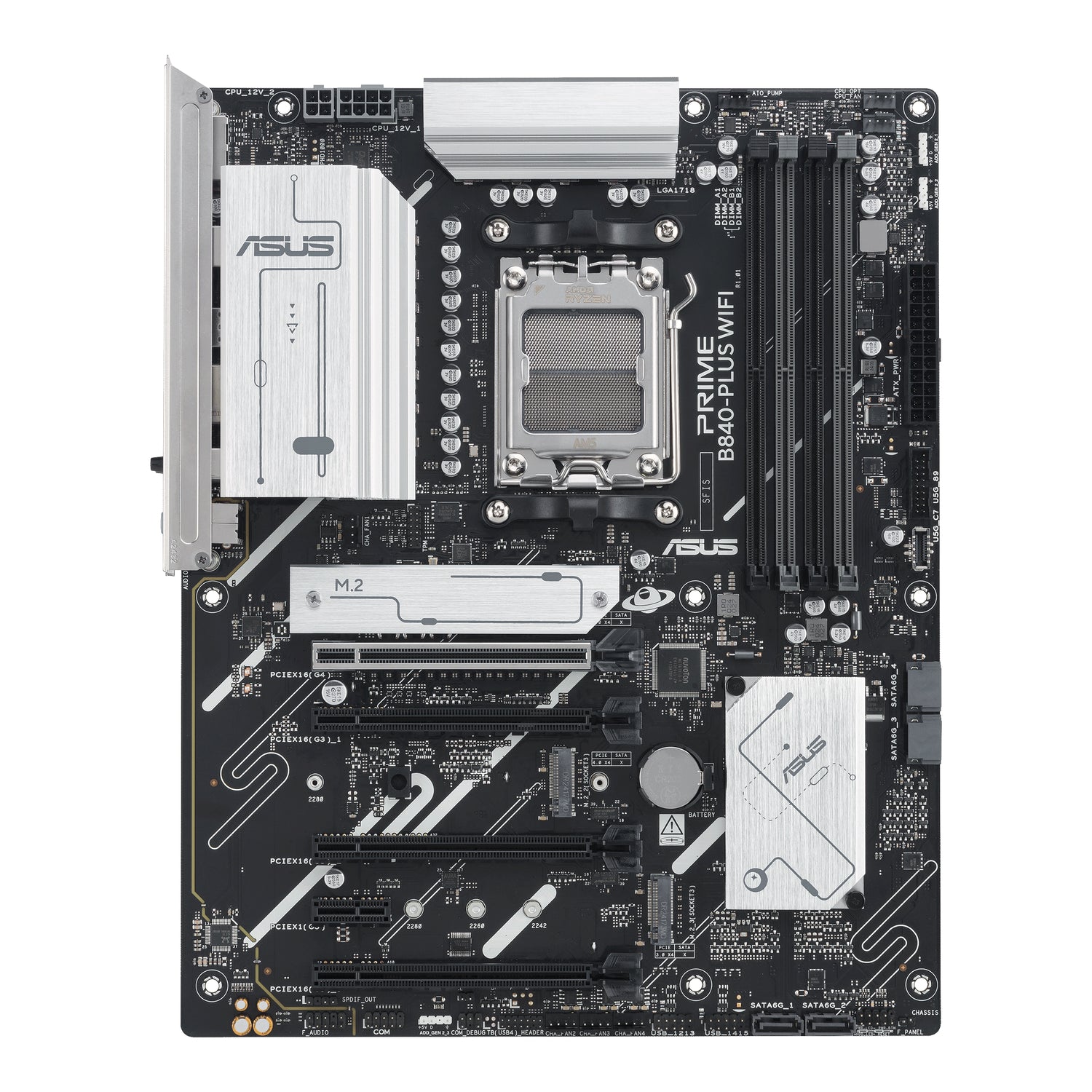

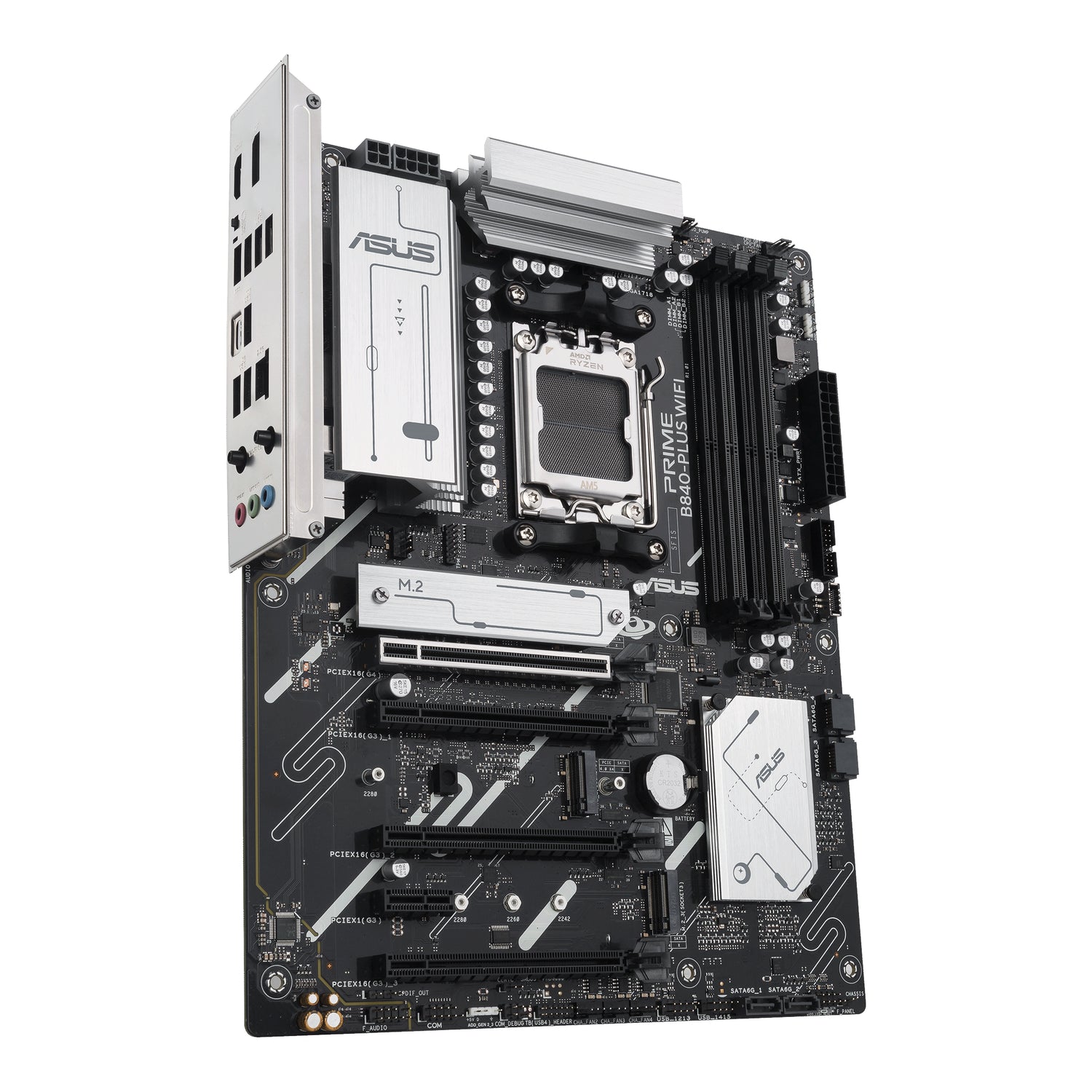

ASUS PRIME B840-PLUS WIFI-CSM AMD B840 Socket AM5 ATX - PRIME B840-PLUS WIFI-CSM

PRIME B840-PLUS WIFI-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

• AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
• PC ATX AMD B840 7.1 channels
• DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
• HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
• BIOS type: UEFI AMI 256 Mbit
• 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series,AMD Ryzen 8000 Series,AMD Ryzen 9000 Series
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	192
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & non-ECC
Supported memory clock speed (max)	7600
Unbuffered memory	Y
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	7
RAID support	Y
RAID levels	0,1,5,10
Parallel processing technology support	Not supported
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
S/PDIF out connector	Y
Front panel audio connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of CPU fan connectors	1
Number of chassis fan connectors	4
Chassis intrusion connector	Y
Peripheral (Molex) power connectors (4-pin)	1
EPS power connector (8-pin)	Y
Number of COM connectors	1
TPM connector	Y
Thunderbolt headers	1
12V power connector	Y

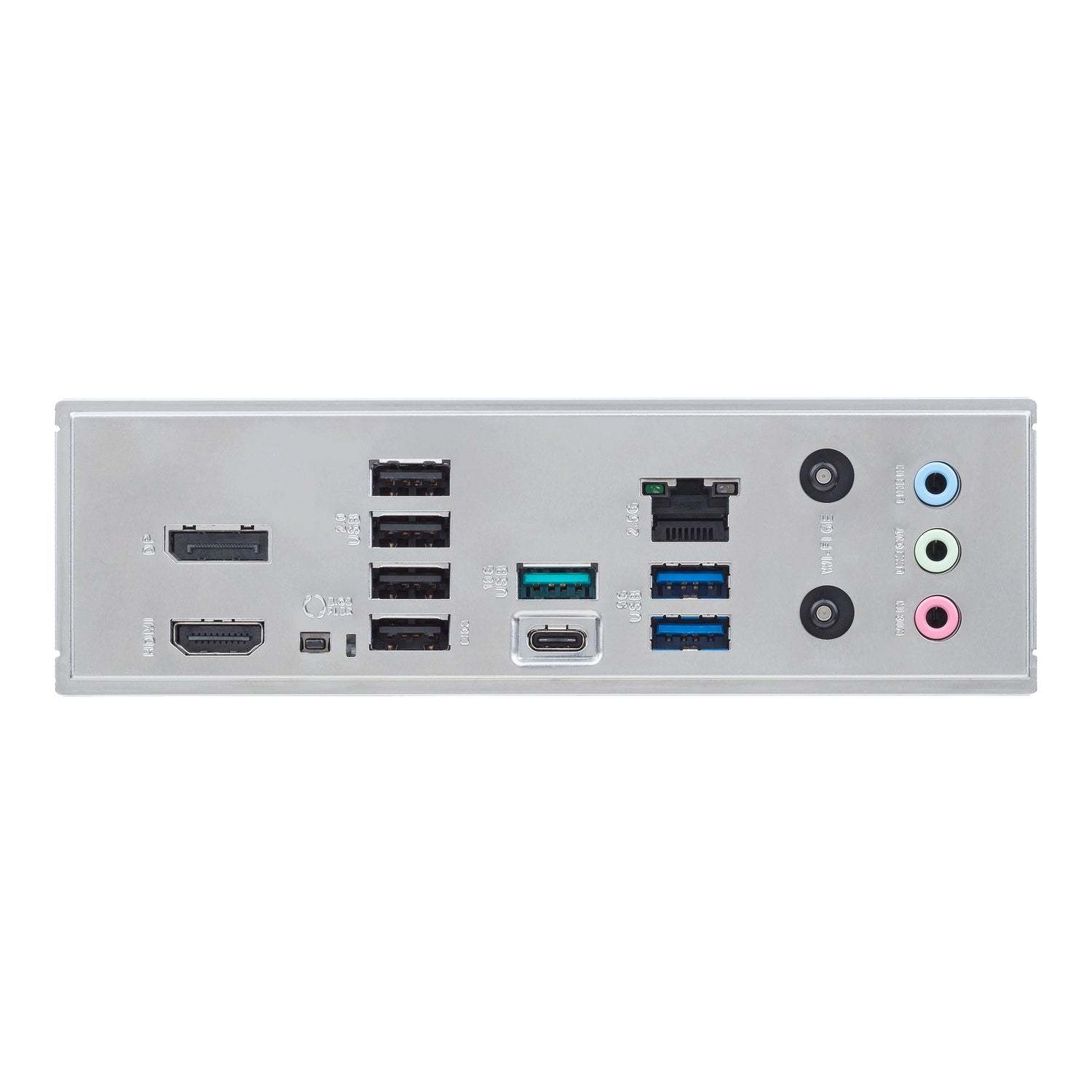

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Microphone in	Y

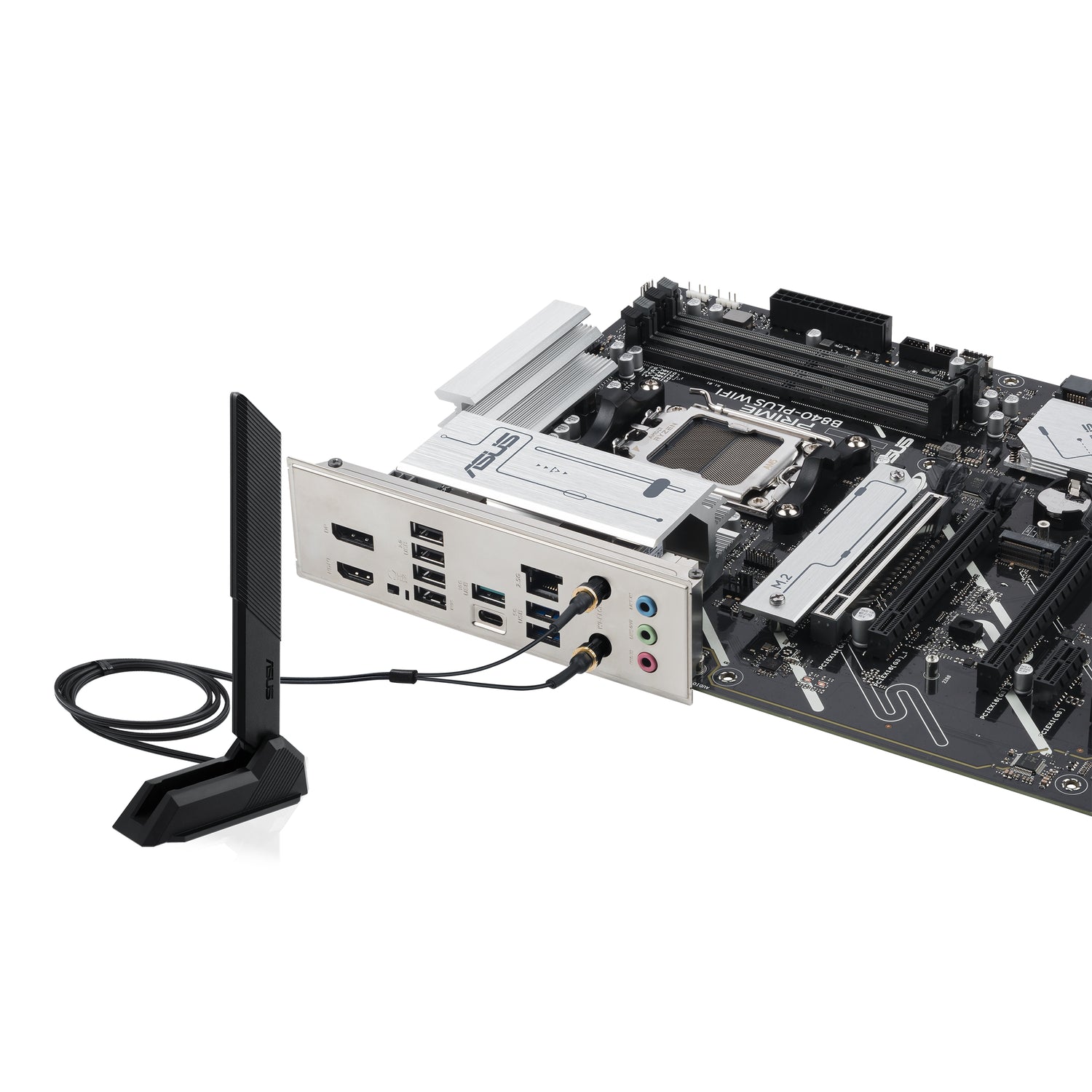

WiFi-AP antenna jack	2
Wi-Fi	Y
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Bluetooth	Y
Bluetooth version	5.3
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B840
Audio output channels	7.1
Product colour	Multicolour
Windows operating systems supported	Windows 10 x64,Windows 11
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	3
Number of M.2 (M) slots	3
BIOS type	UEFI AMI
BIOS memory size	256
Width	305
Depth	244
