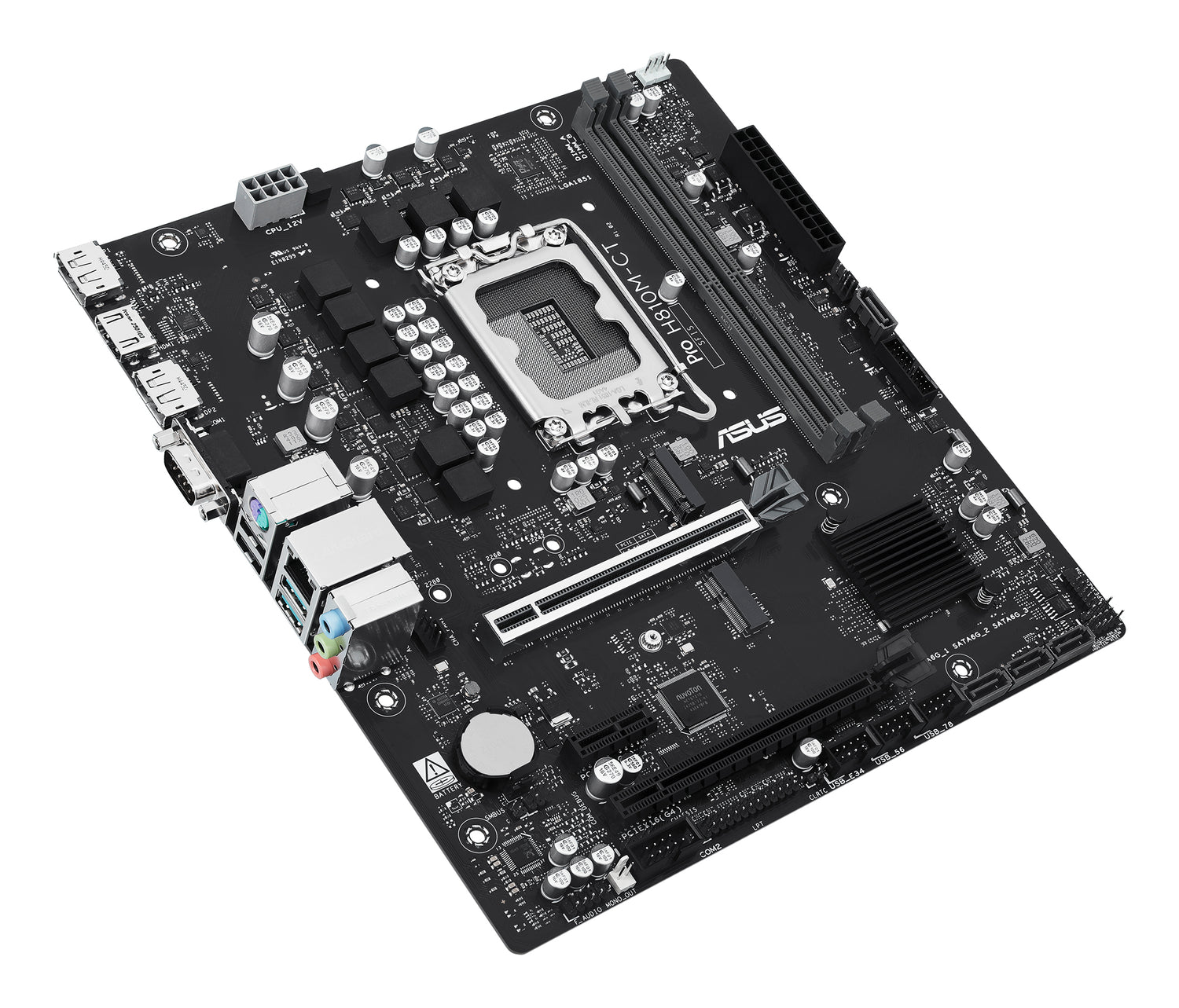

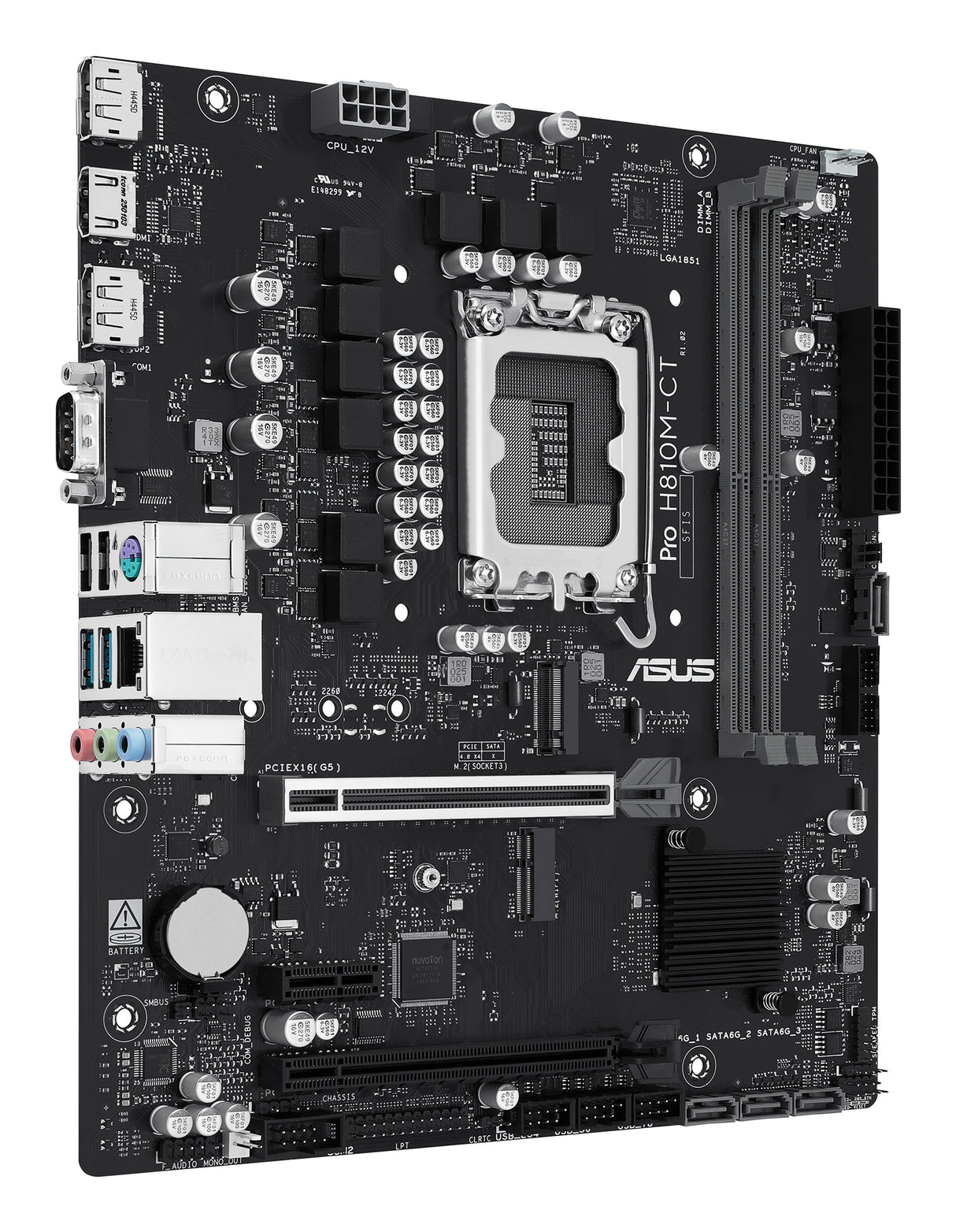

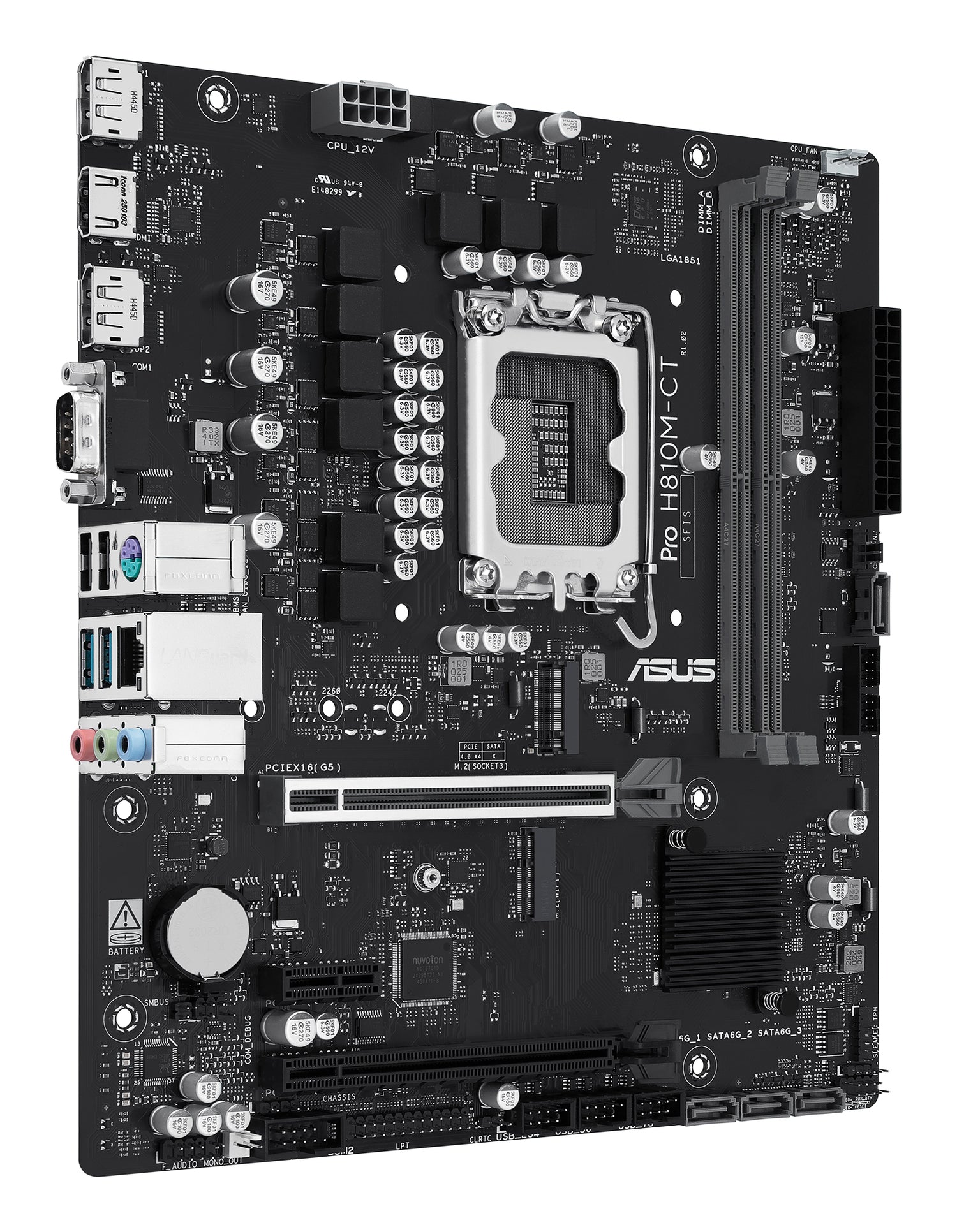

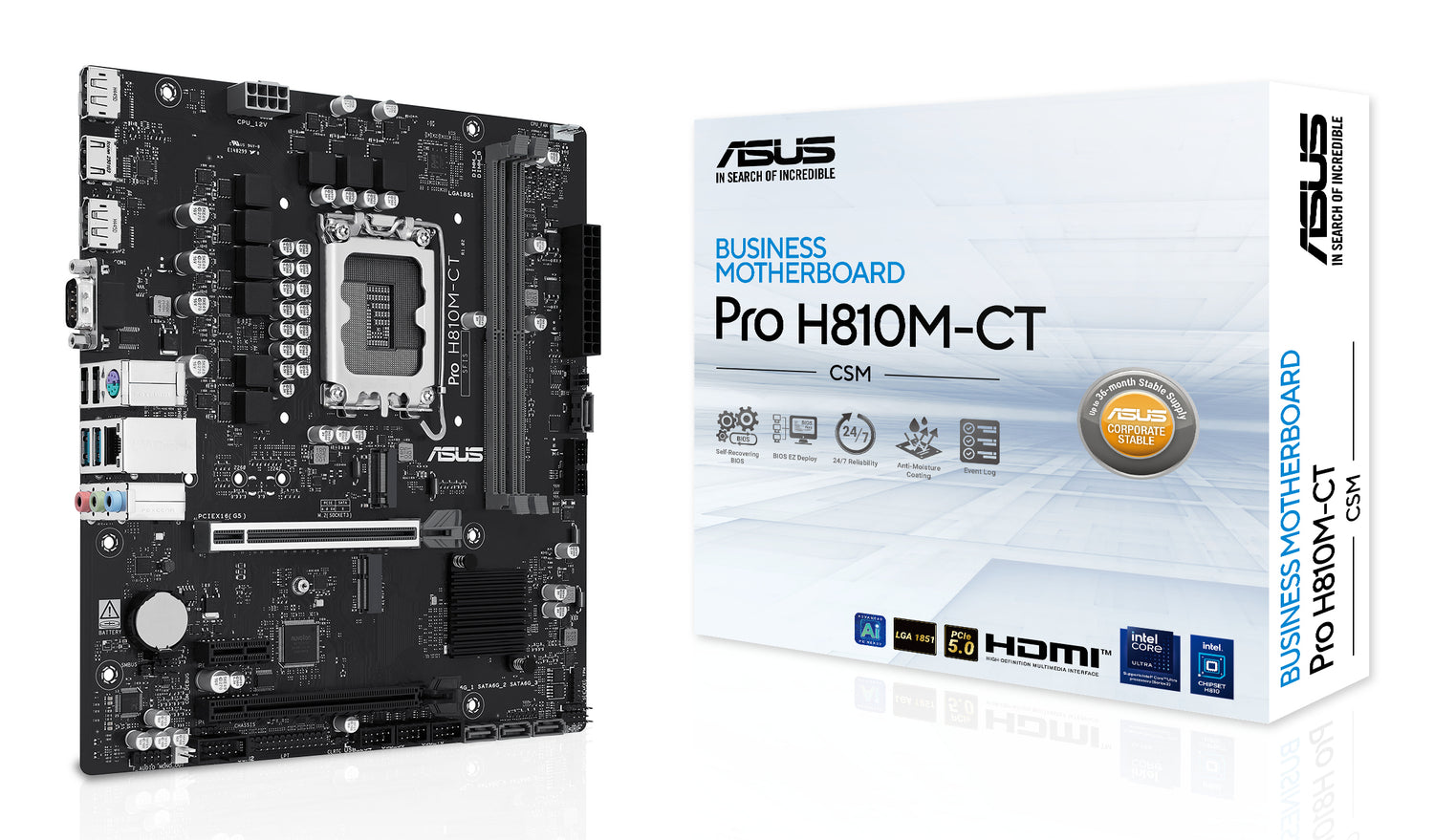

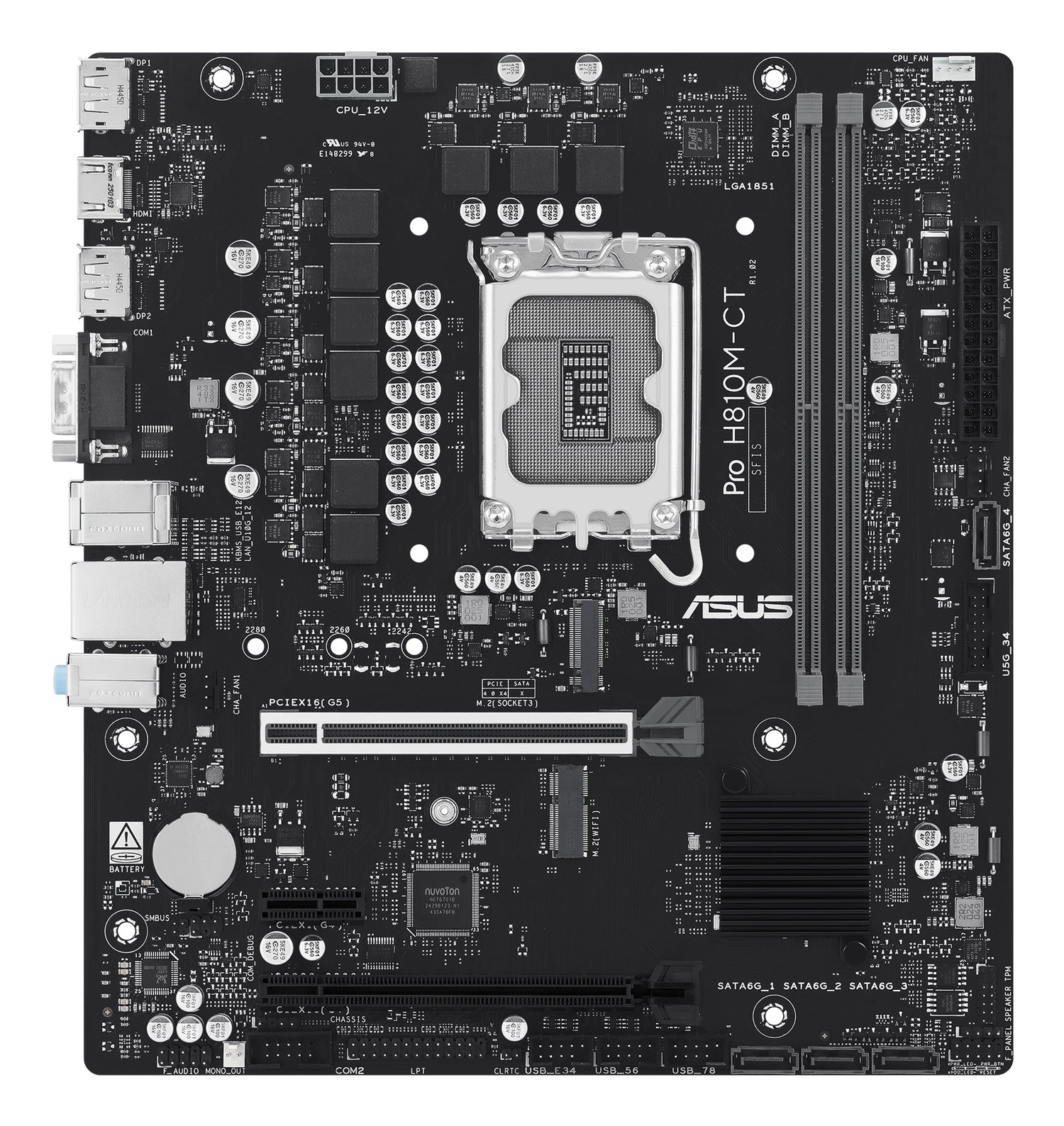

ASUS PRO H810M-CT-CSM motherboard Intel H810 LGA 1851 (Socket V1) micro ATX - PRO H810M-CT-CSM

Micro-ATX H810 business motherboard with enhanced security, reliability, manageability and serviceability

Pro
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
• ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced System Security: A self-recovering BIOS, TXT, TPM to safeguard PCs and NIST SP 800-193 compliance
• Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient Management and Customization: BIOS EZ Deploy, an event log and commercial BIOS kit to enable easy maintenance
• Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast Connectivity: PCIe 5.0, DDR5, rear USB 10Gbps Type-A
• DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers

Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported memory types	DDR5-SDRAM
Number of memory slots	2
Maximum internal memory	128
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	non-ECC
Supported memory clock speed (max)	7200
Unbuffered memory	Y
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	5
Parallel processing technology support	Not supported
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of CPU fan connectors	1
Number of chassis fan connectors	2
Chassis intrusion connector	Y
EPS power connector (8-pin)	Y
Number of COM connectors	1
12V power connector	Y
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
PS/2 ports quantity	1
DisplayPorts quantity	2
Headphone outputs	1
Microphone in	Y
COM ports quantity	1
Wi-Fi	N
Ethernet LAN	Y
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard form factor	Micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel H810
Audio output channels	7.1
Product colour	Multicolour
Windows operating systems supported	Windows 11,Windows 10 x64
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	1
1st M.2 largest key size	2242
2nd M.2 largest key size	2260
3rd M.2 largest key size	2280
BIOS type	UEFI AMI
BIOS memory size	256
Width	244
Depth	222
