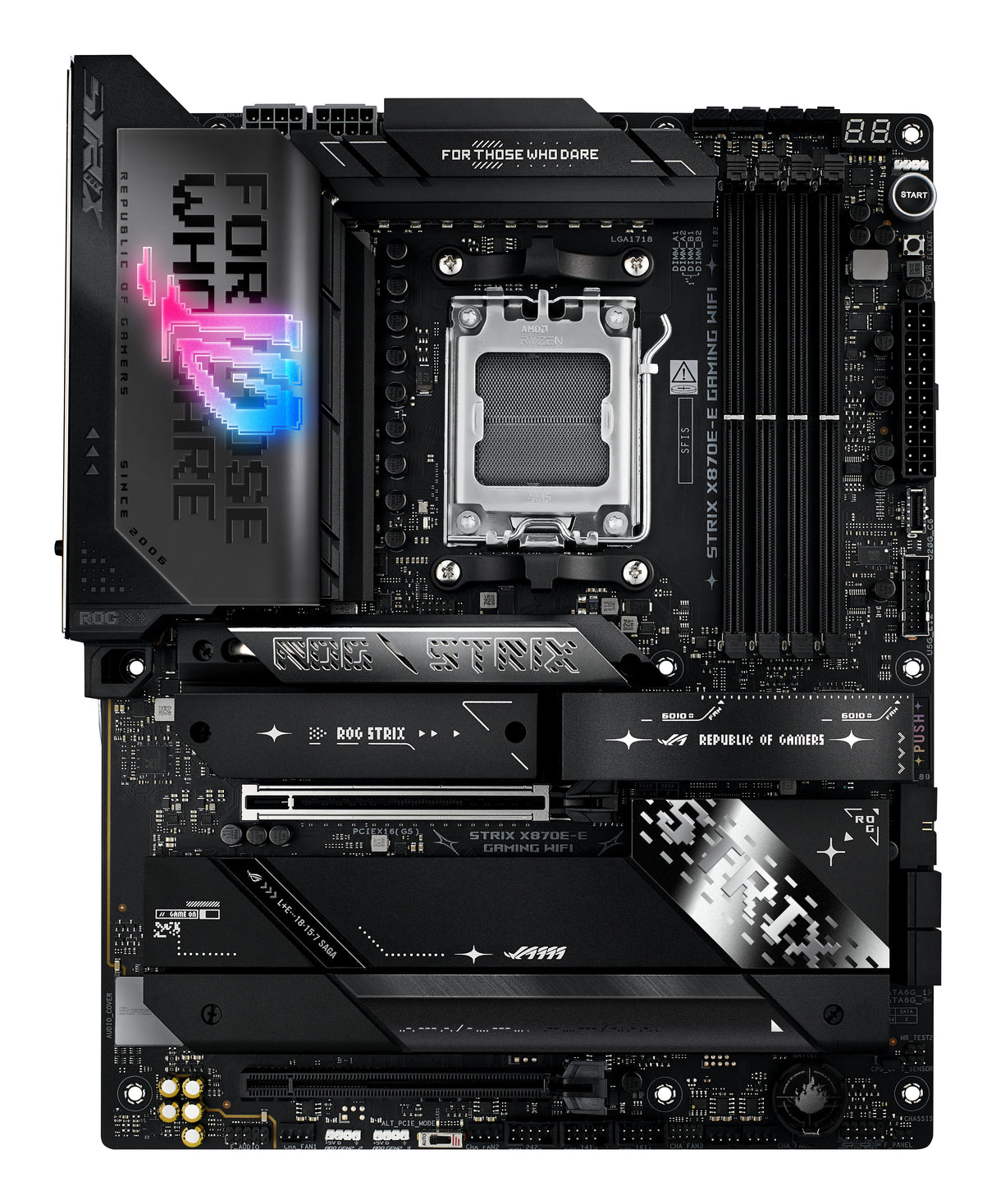

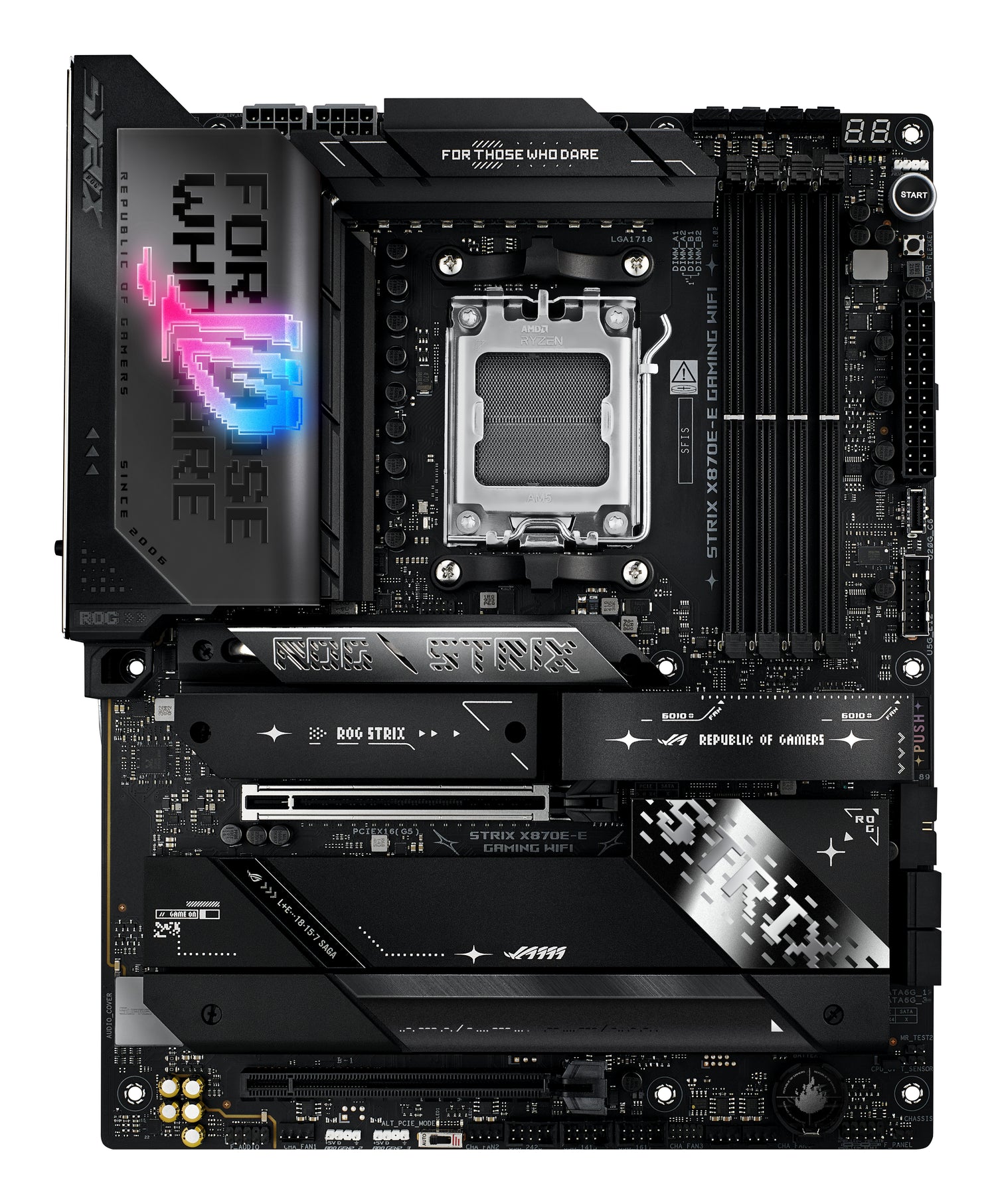

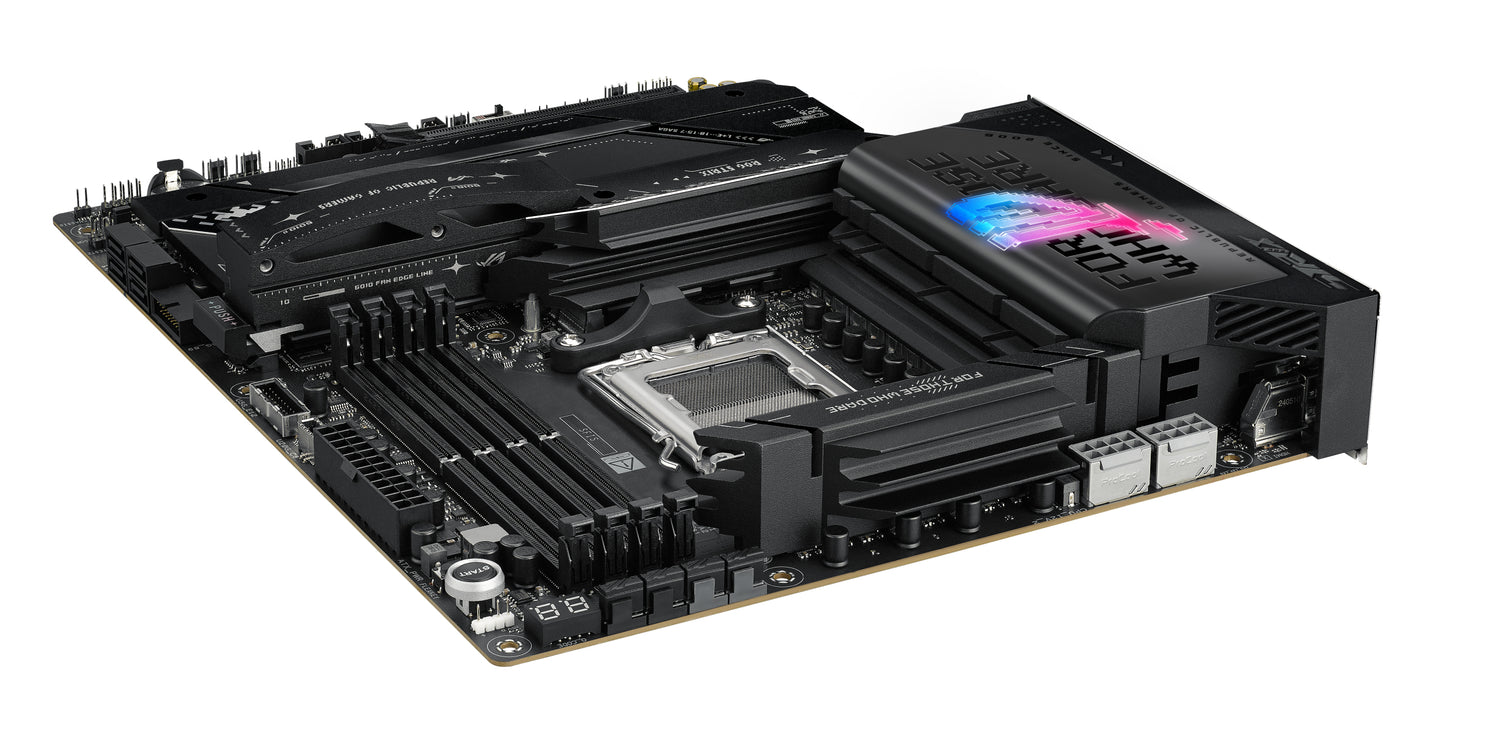

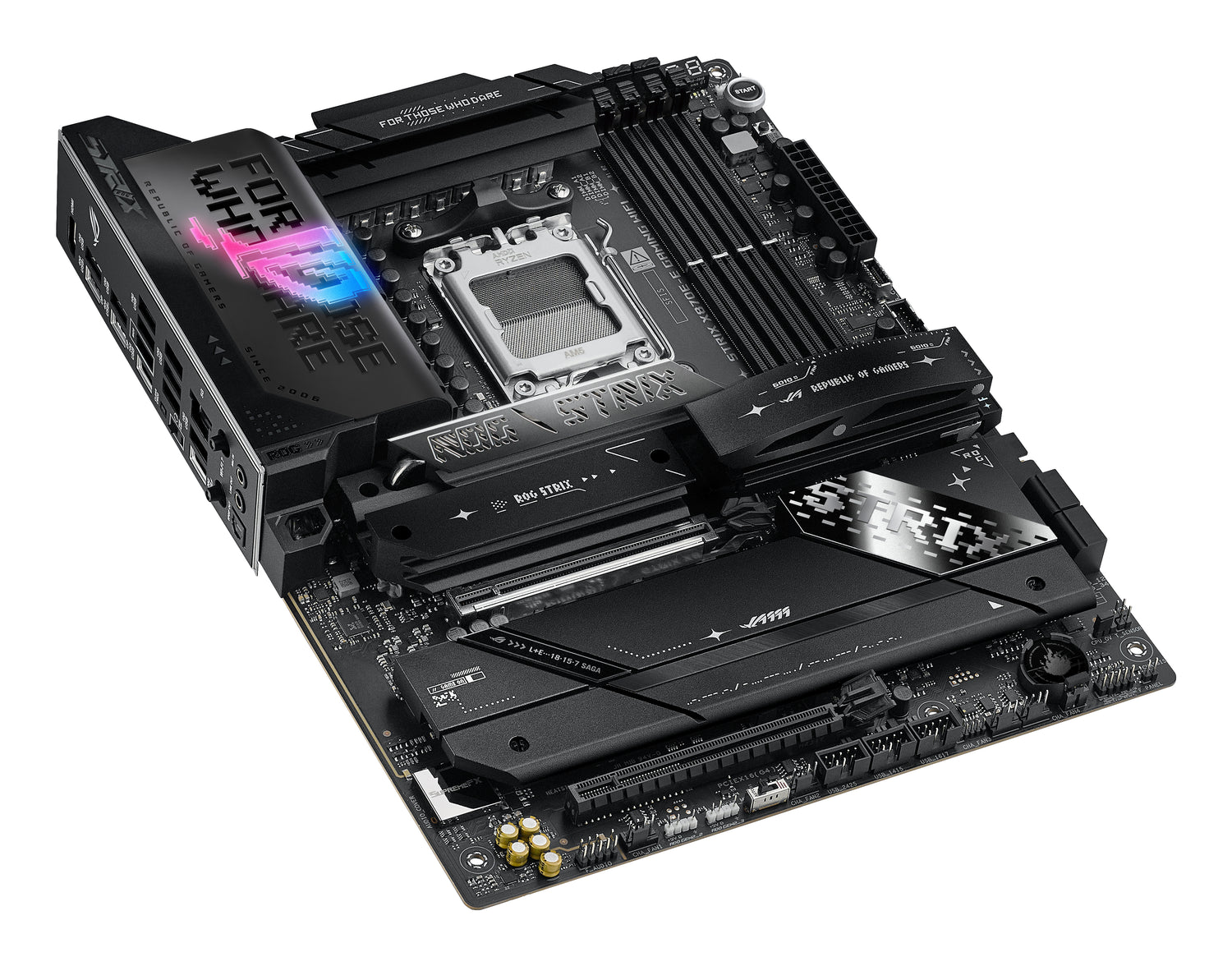

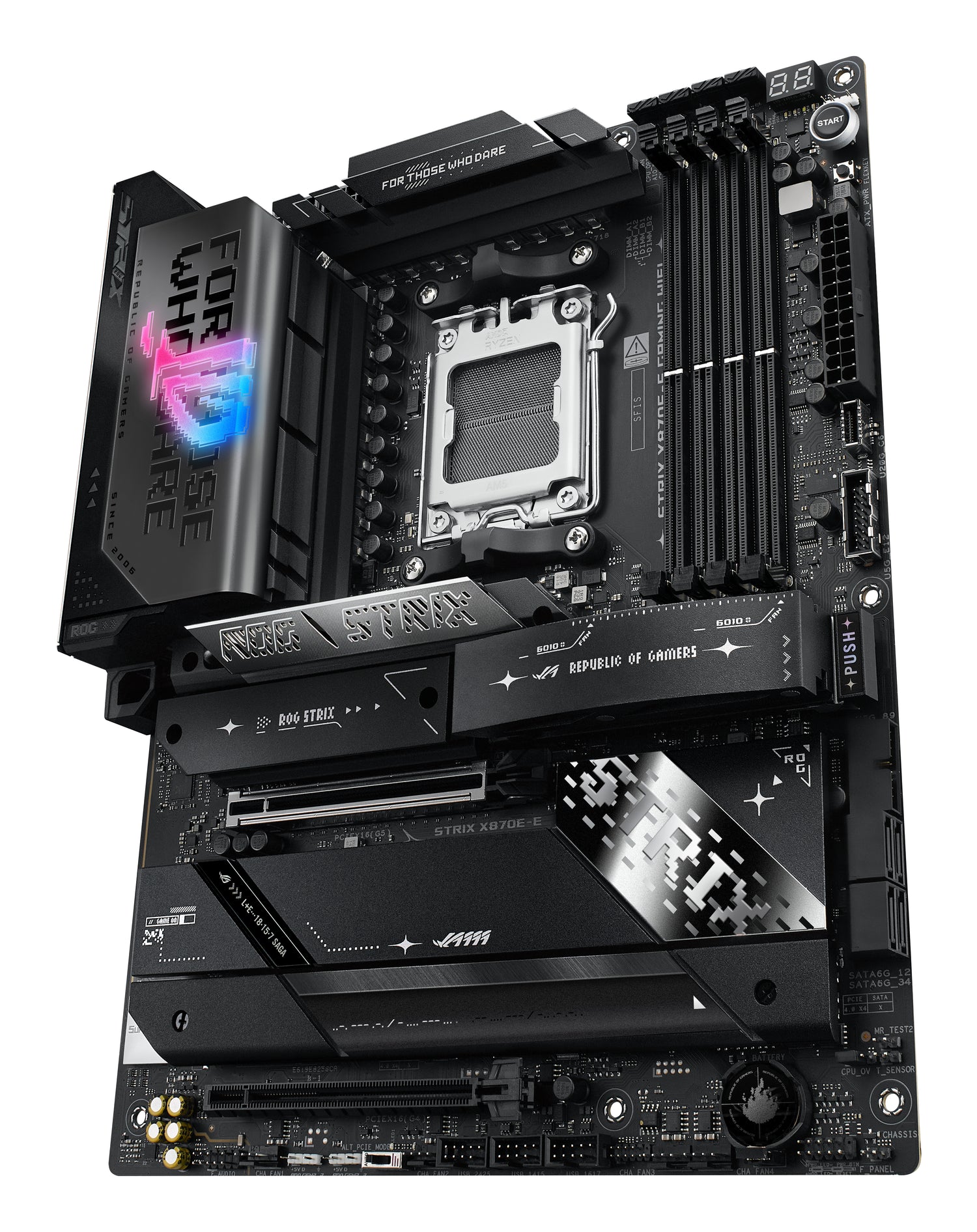

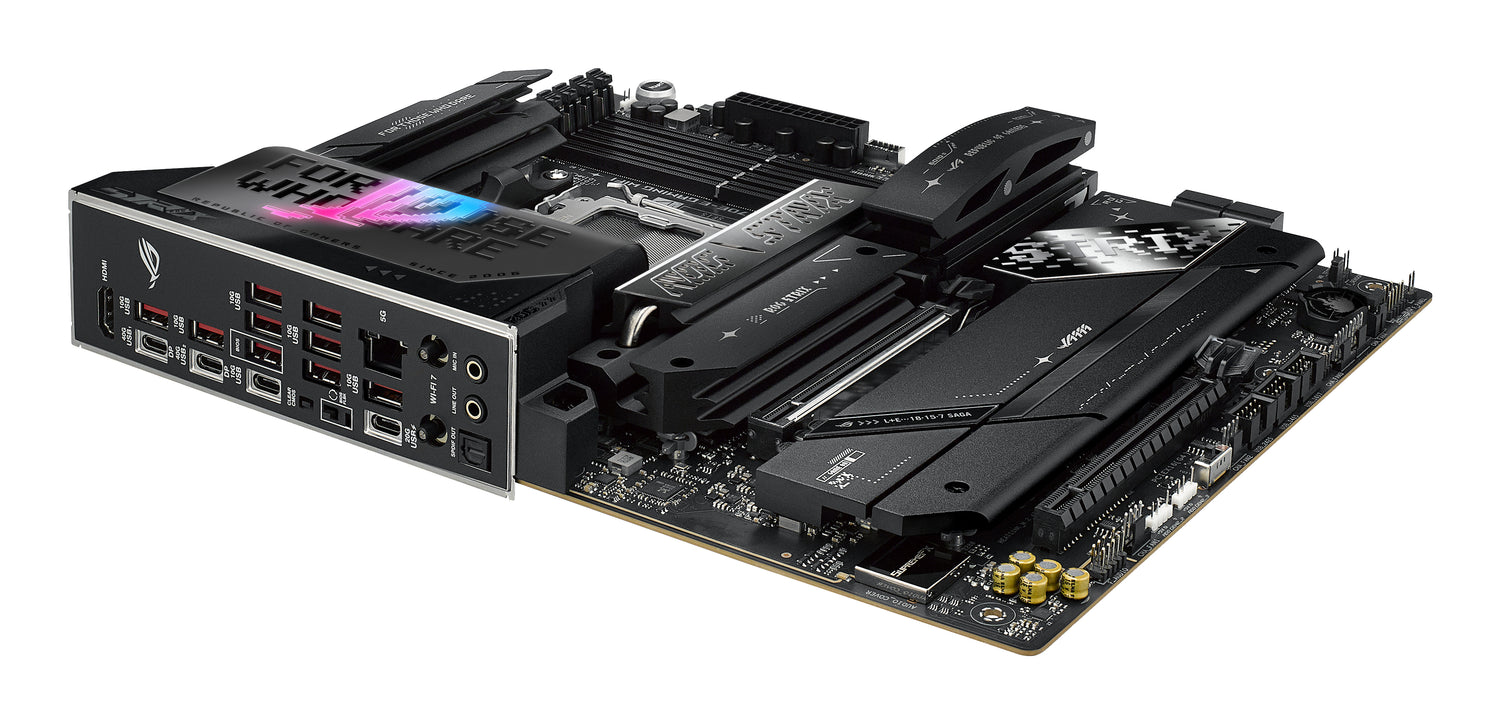

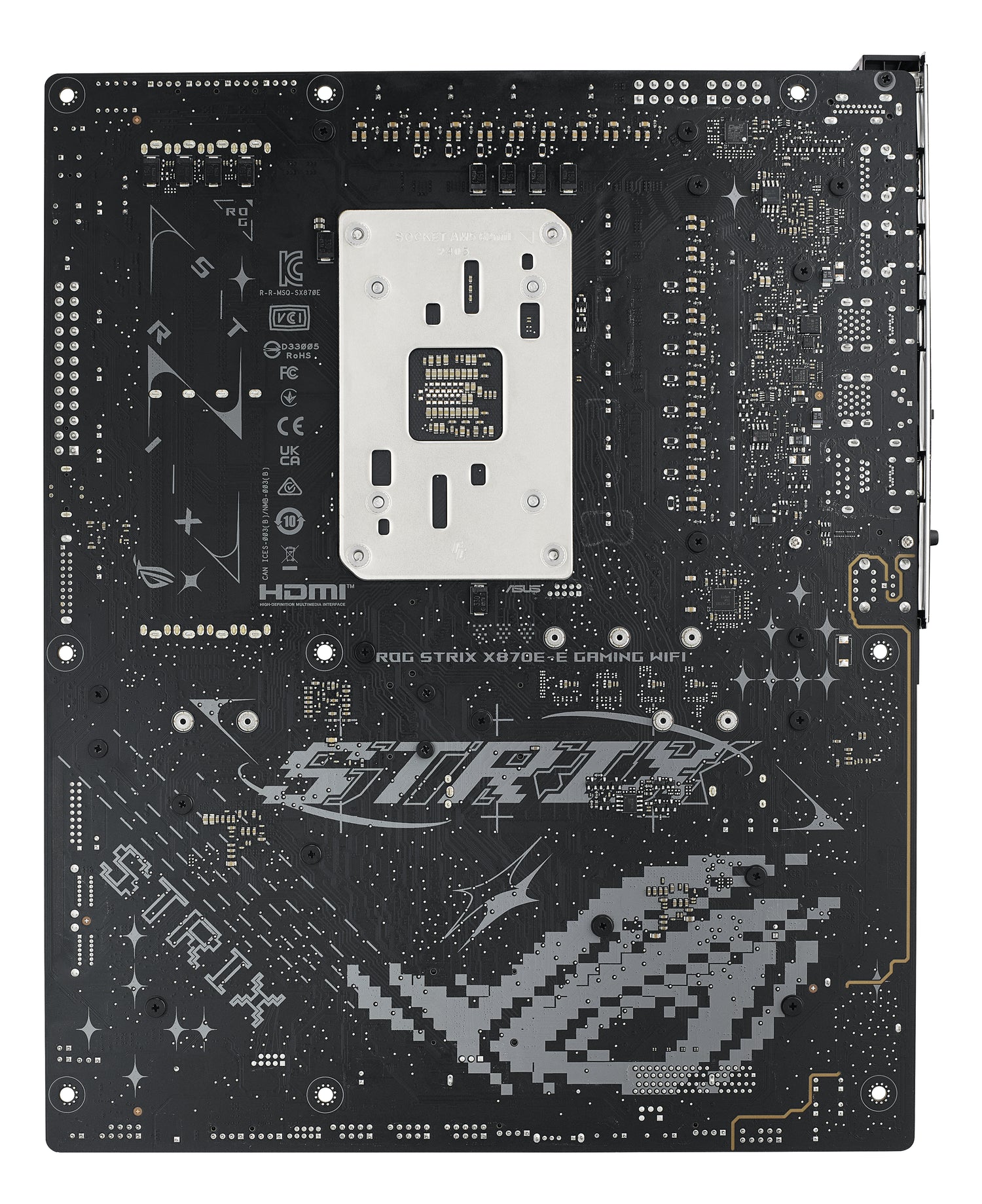

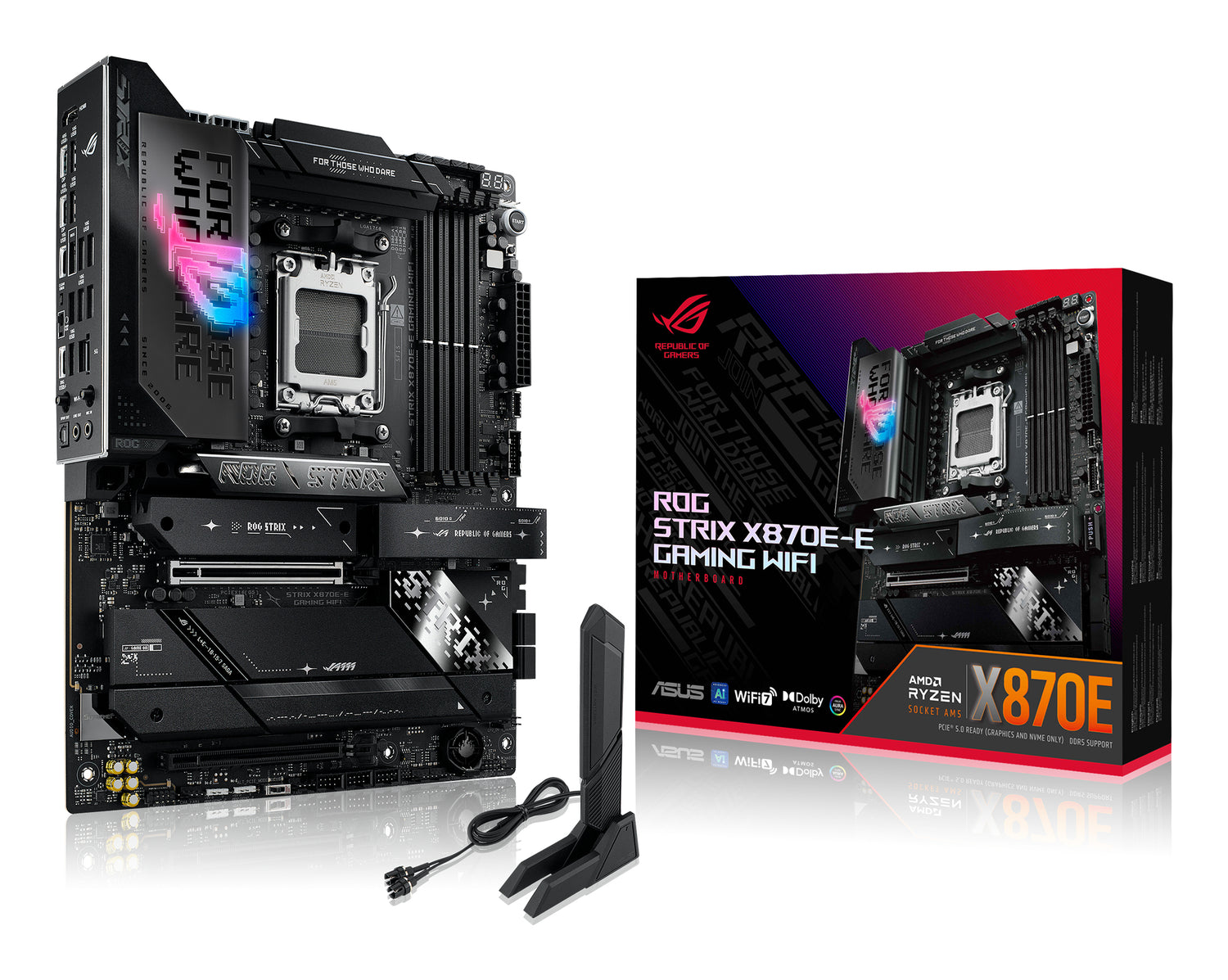

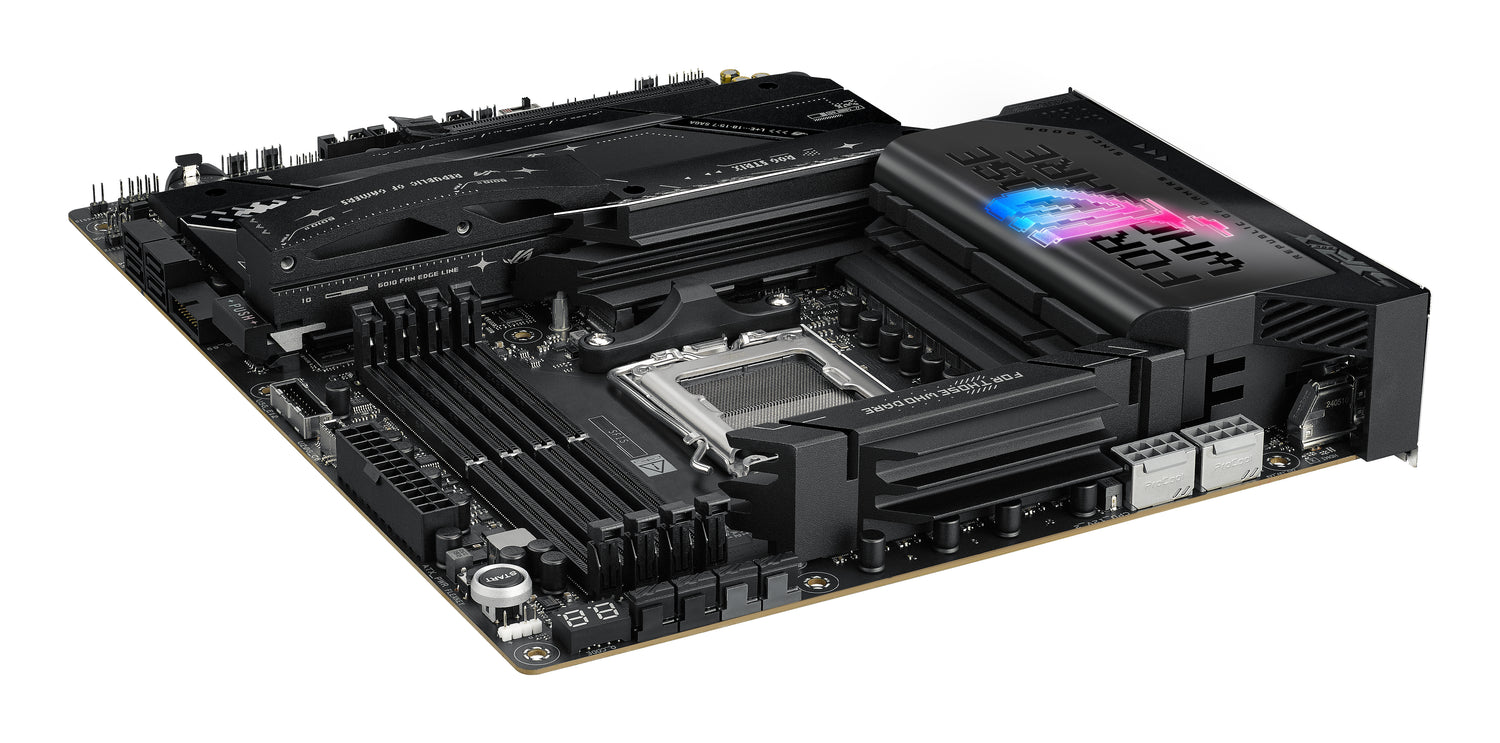

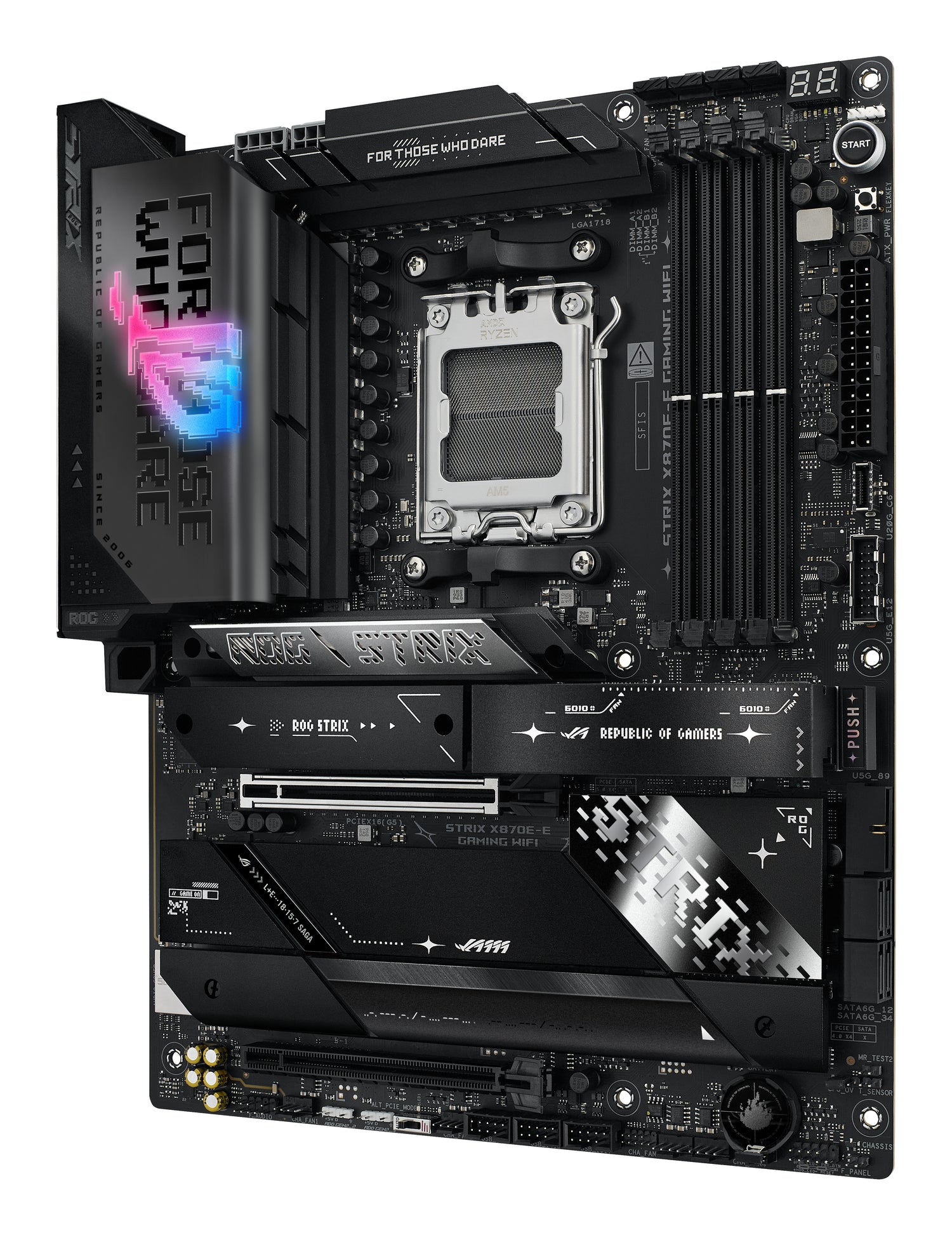

ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX - ROG STRIX X870E-E GAMING WIFI

ASUS AI INTELLIGENCE
ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

AI Overclocking
ai cOOLING II
Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

• AMD Socket AM5
• PC ATX AMD X870E Realtek ALC4080 7.1 channels
• DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
• HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
• BIOS type: UEFI AMI 256 Mbit Clear CMOS button
• 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

Processor manufacturer	AMD
Processor socket	Socket AM5
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	192
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & non-ECC
Unbuffered memory	Y
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	9
RAID support	Y
RAID levels	0,1,10,5
Parallel processing technology support	Not supported
On-board graphics card	N
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
USB 3.2 Gen 2x2 connectors	1
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	5
12V power connector	Y

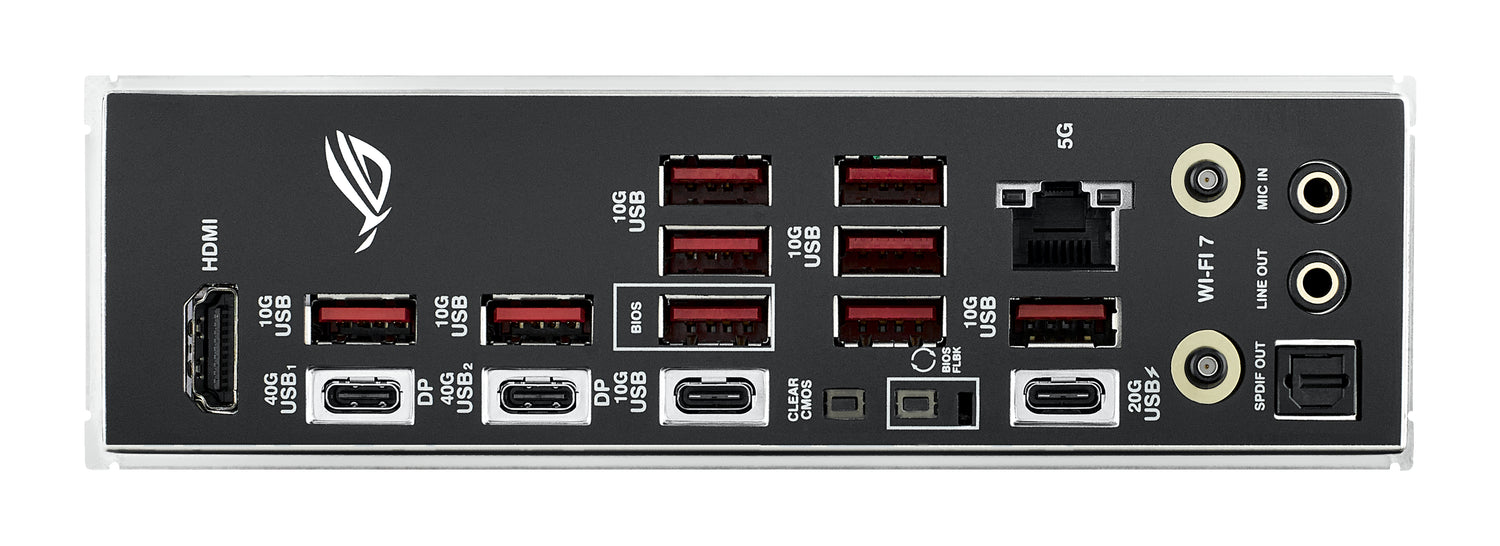

USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	9
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB4 Gen 2x2 ports quantity	2
Headphone outputs	1
Microphone in	Y
S/PDIF out port	Y
WiFi-AP antenna jack	1
Wi-Fi	Y
Ethernet LAN	Y
Ethernet interface type	5 Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Y
Bluetooth version	5.4
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Audio output channels	7.1
Audio chip	Realtek ALC4080
Product colour	Black
Windows operating systems supported	Windows 11 x64
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	5
BIOS type	UEFI AMI
BIOS memory size	256
Clear CMOS button	Y
Package width	365
Package depth	281
Package height	87
Package weight	3025
Width	305
Depth	244
Height	50
Cables included	SATA
mSATA ports quantity	0
Weight	2060
