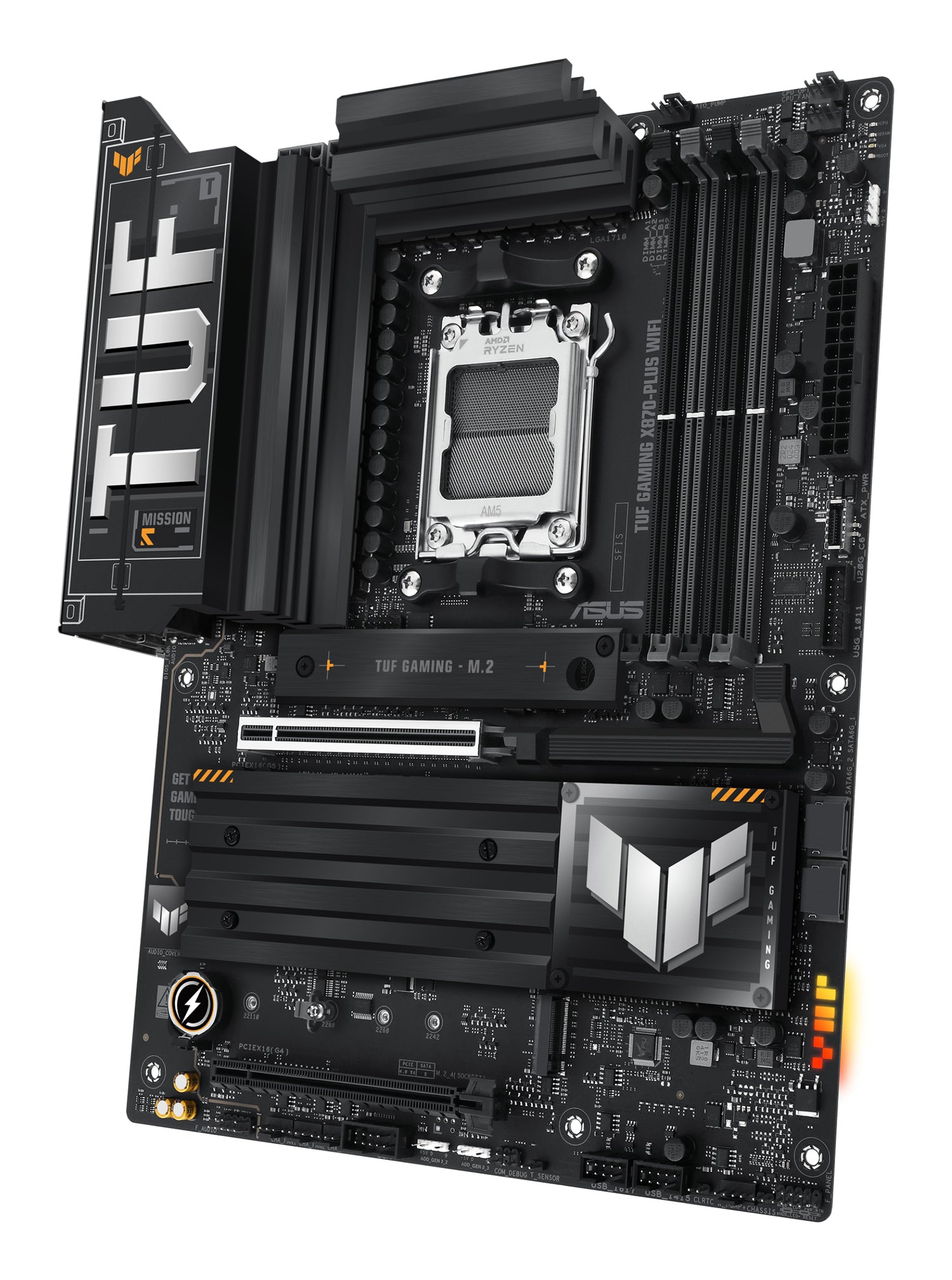

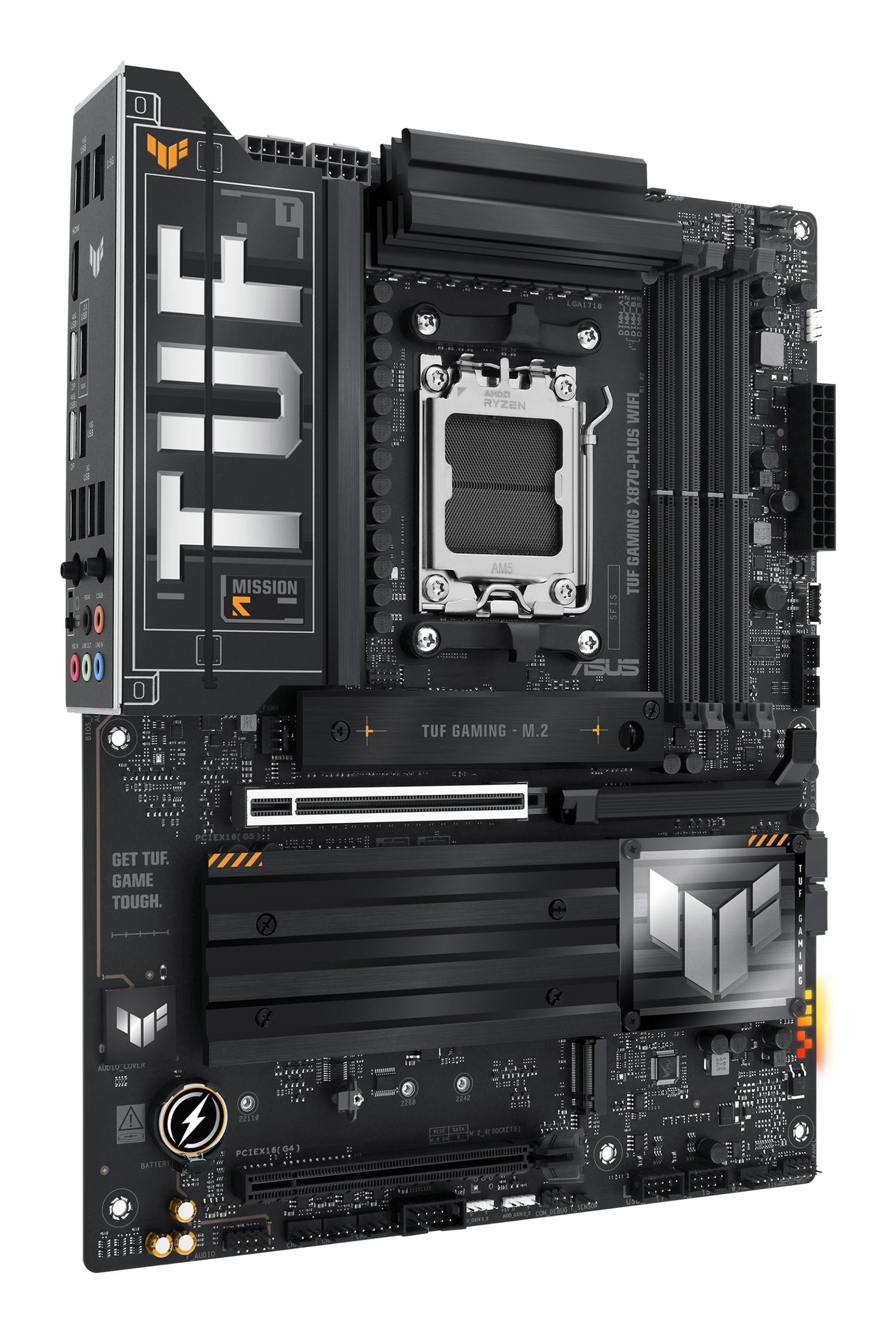

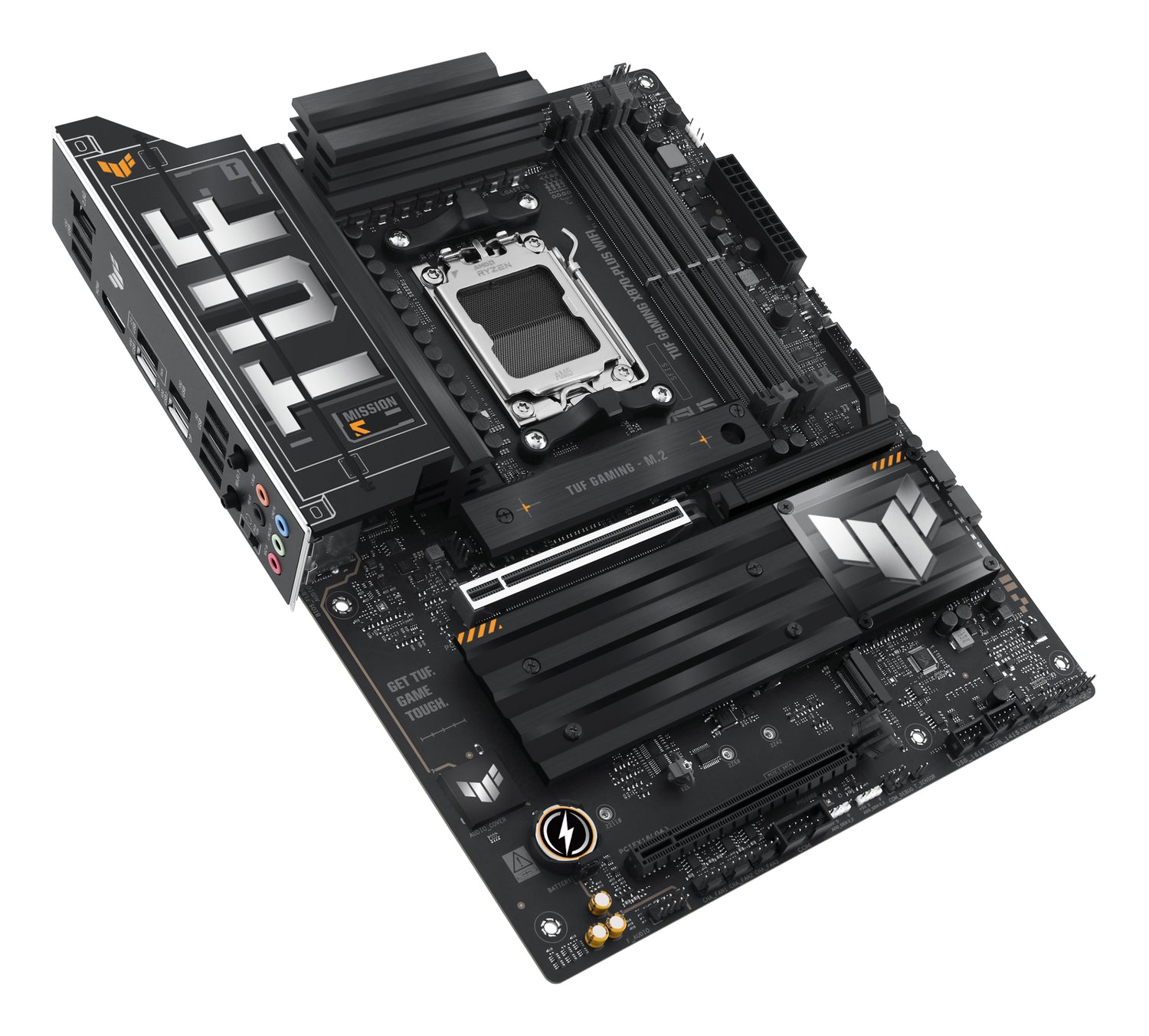

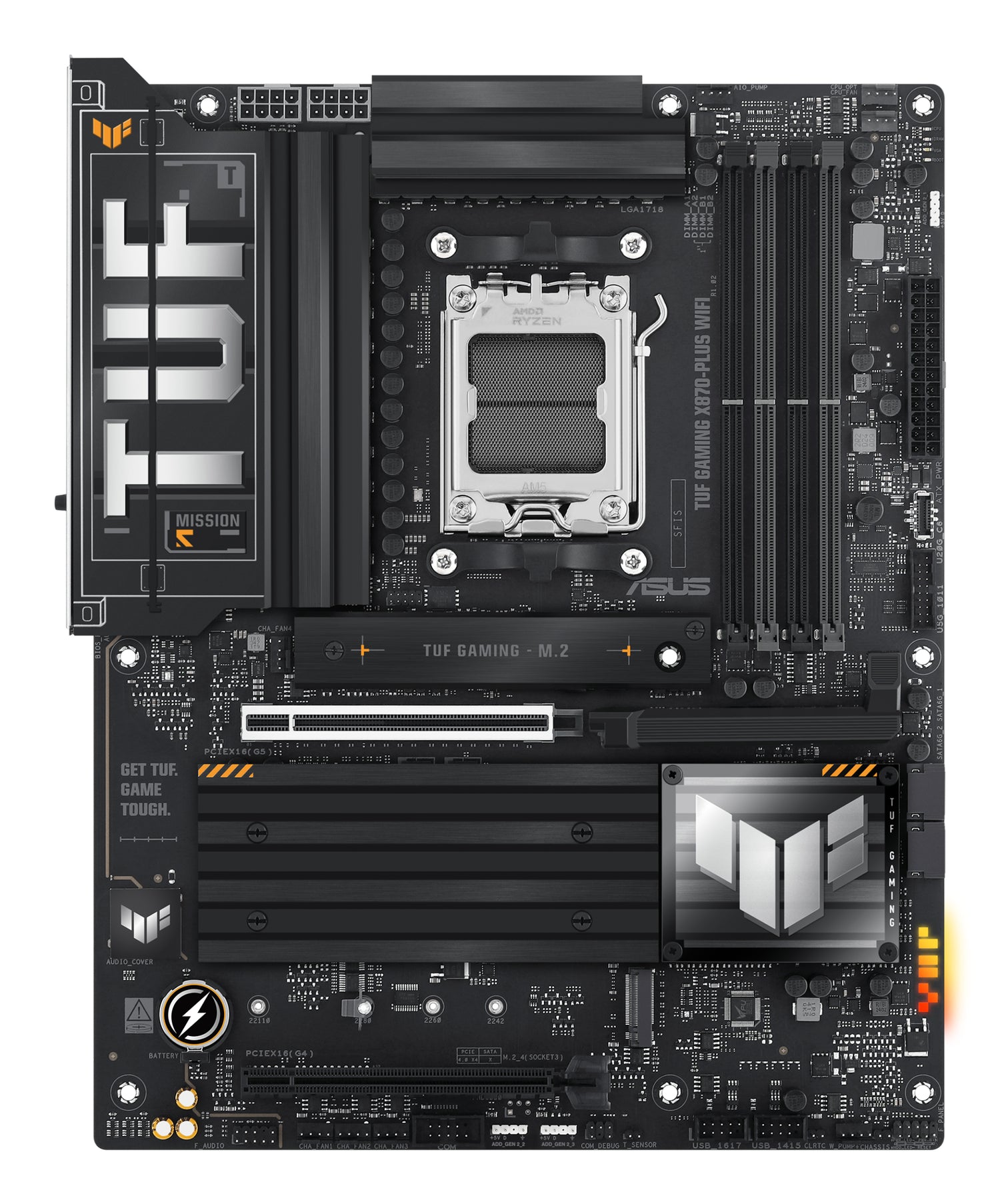

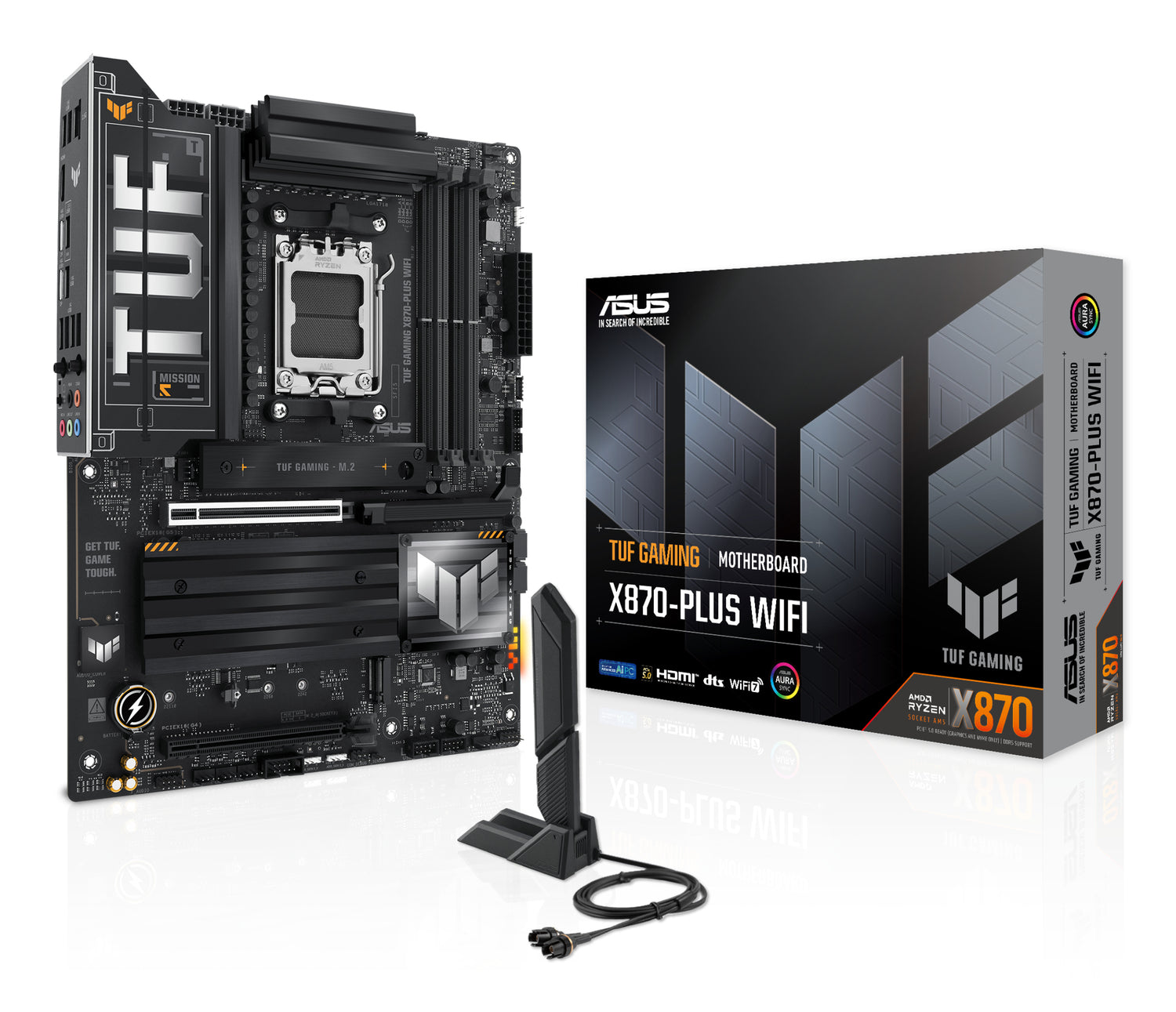

ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX - TUF GAMING X870-PLUS WIFI

TUF GAMING X870-PLUS WIFI
ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

• AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
• PC ATX AMD X870 Realtek ALC1220P 7.1 channels
• DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
• HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
• BIOS type: UEFI AMI 256 Mbit
• 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series,AMD Ryzen 8000 Series,AMD Ryzen 9000 Series
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	192
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & non-ECC
Supported memory clock speed (max)	8000
Unbuffered memory	Y
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	2
Number of storage drives supported	6
RAID support	Y
RAID levels	0,1,5,10
Parallel processing technology support	Not supported
On-board graphics card	N
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	2
USB 3.2 Gen 2x2 connectors	1
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	4
EPS power connector (8-pin)	Y
Number of COM connectors	1
12V power connector	Y

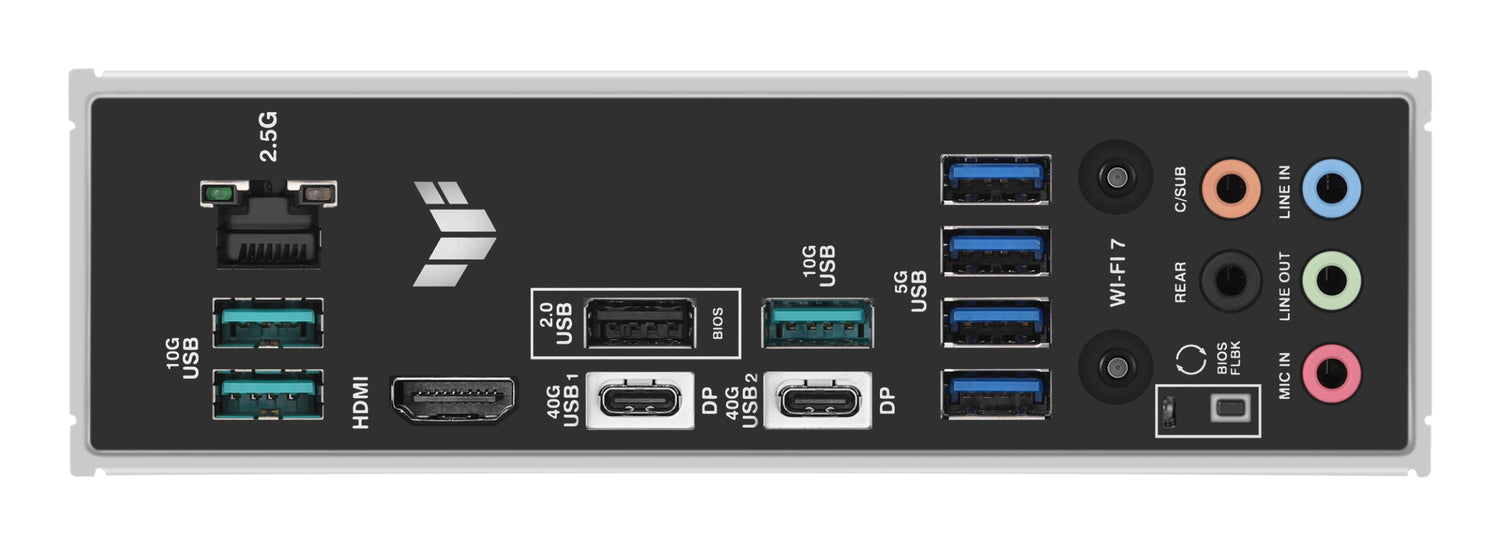

USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
USB4 Gen 3x2 ports quantity	2
Microphone in	Y
USB connector type	USB Type-A,USB Type-C

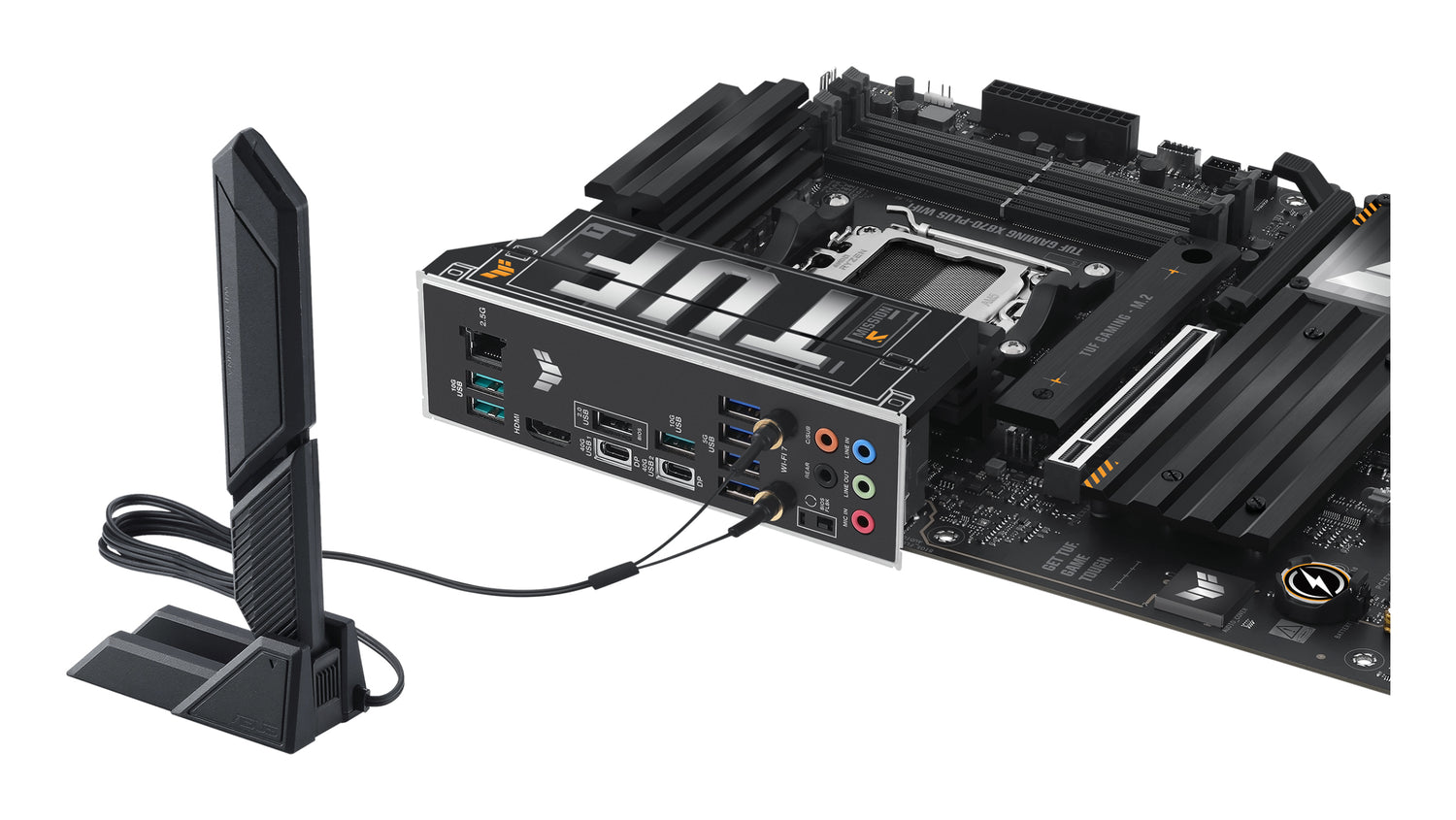

Wi-Fi	Y
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet,Fast Ethernet,Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Y
Bluetooth version	5.4
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Audio output channels	7.1
Audio chip	Realtek ALC1220P
Product colour	Black
Windows operating systems supported	Windows 11
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	4
BIOS type	UEFI AMI
BIOS memory size	256
Width	305
Depth	244
mSATA ports quantity	0
