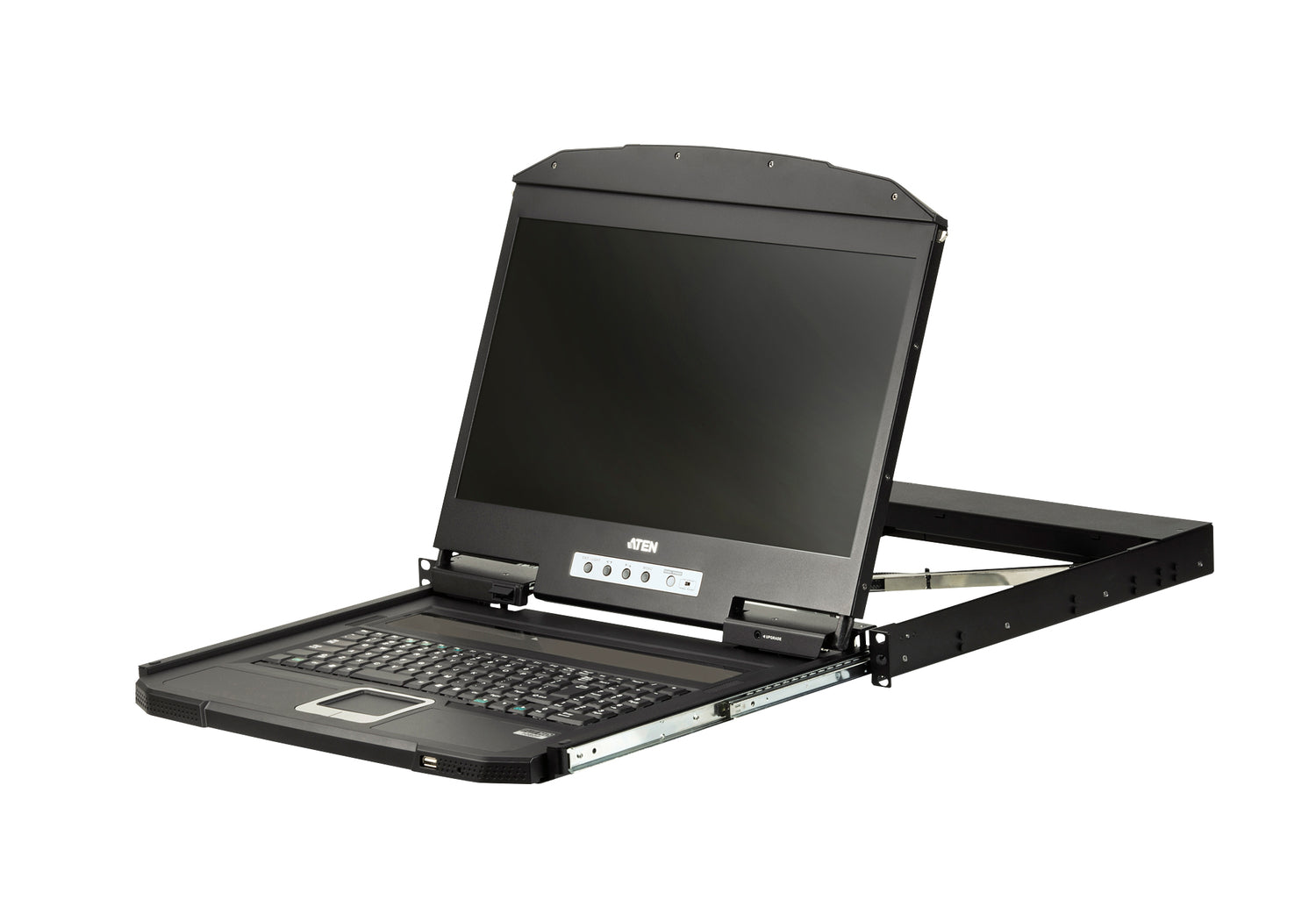

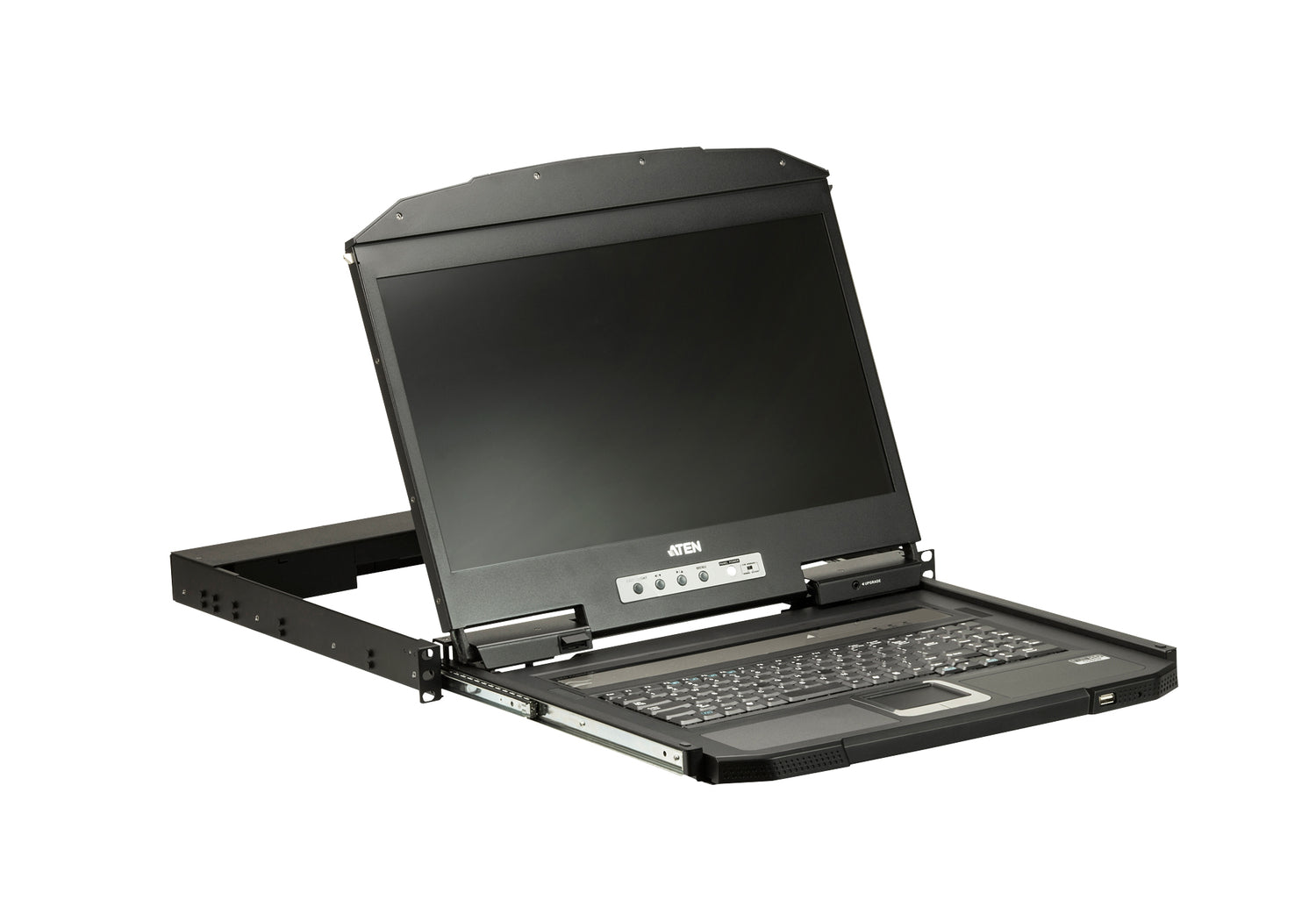

ATEN 1U Short Depth USB VGA Single Rail LCD - CL3100NX

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
1x CL3100 LCD KVM Console with Standard Rack Mount Kit
1x LIN5-23X5-X1BG USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft)
1x LIN5-04A2-J15G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM Console with short depth single rail design and a 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
• 18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
• Supports an external console with USB / VGA connectors; supports input video resolutions up to 1920 x 1200 @ 60Hz

Display diagonal	18.5
Display resolution	1366 x 768
Display	TFT-LCD
Display brightness	250
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170
Viewing angle, vertical	160
On Screen Display (OSD)	Y
Pixel pitch	0.3 x 0.3
Aspect ratio	16:9
Display type	LCD
Response time	5
Display number of colours	16.78 million colours
Rack capacity	1U
Material	Metal,Plastic
Product colour	Black
Hot-Plug support	Y
Operating relative humidity (H-H)	0 - 80
Built-in KVM switch	Y
Maximum resolution	1920 x 1200
Rack mounting	Y
Key lock	Y
Number of computers controlled	1
On/off switch	Y
LED indicators	Y
Compliance certificates	RoHS
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
USB 2.0 Type-A ports quantity	3
Keyboard number of keys	105
Built-in touchpad	Y
Keyboard language	US English
Keyboard layout	QWERTY
Hot keys	Y
Certification	UL 60950-1, CAN/CSA
Power supply type	AC
Power consumption (typical)	14.1
AC adapter input voltage	100 - 240
AC adapter frequency	50/60
Input current	1
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 60
Width	477
Height	42.8
Depth	480.6
Weight	10190
Package weight	12060
Package width	612
Package depth	658
Package height	135
Cables included	AC,KVM
Manual	Y
AC adapter included	Y
Rack mount kit	Y
Master (outer) case net weight	10190
Master (outer) case width	612
Master (outer) case length	658
Master (outer) case height	135
Master (outer) case gross weight	12060
Products per master (outer) case	1
I/O ports	3.5 mm Audio Jack, SPHD
