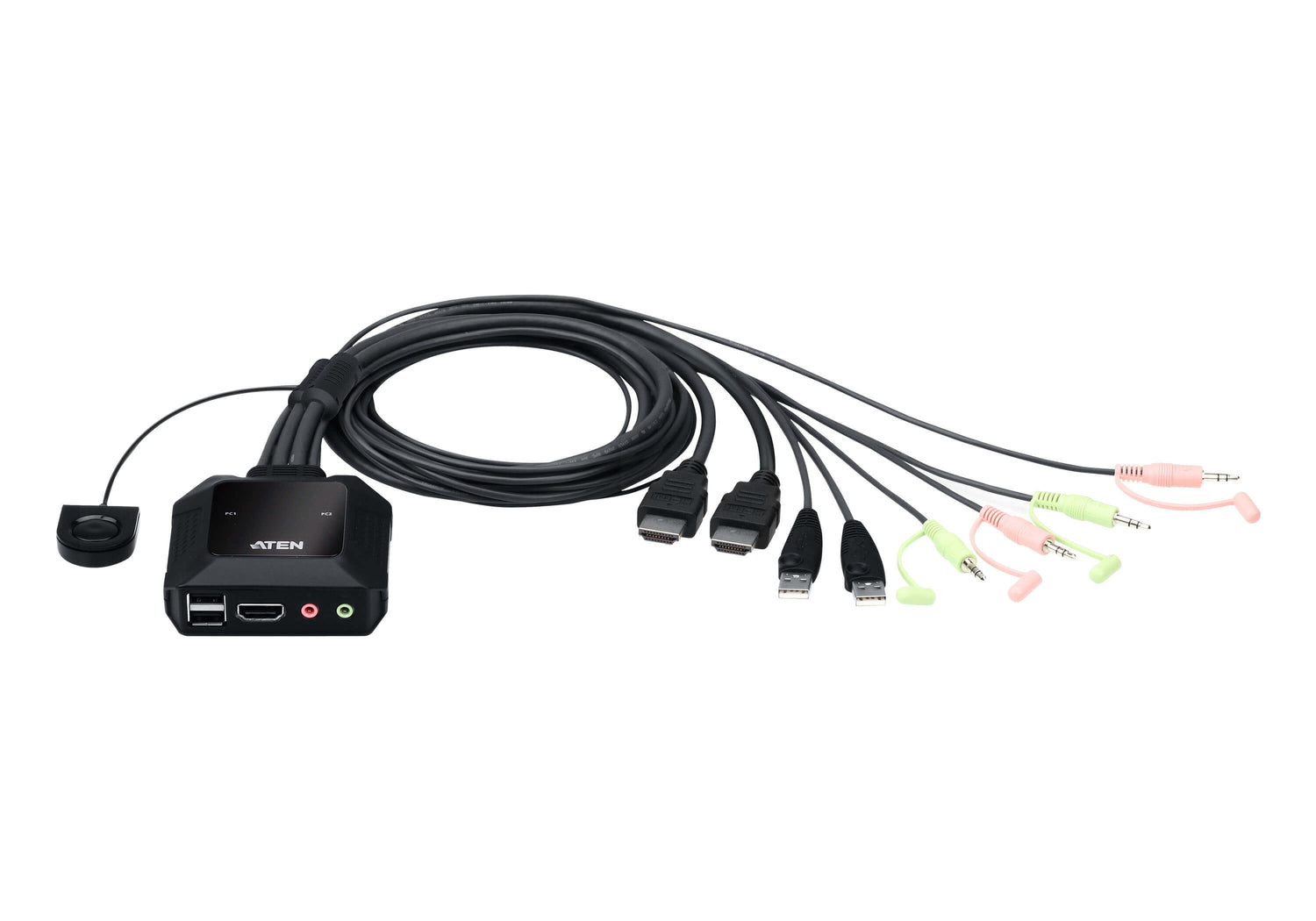

ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector - CS22H

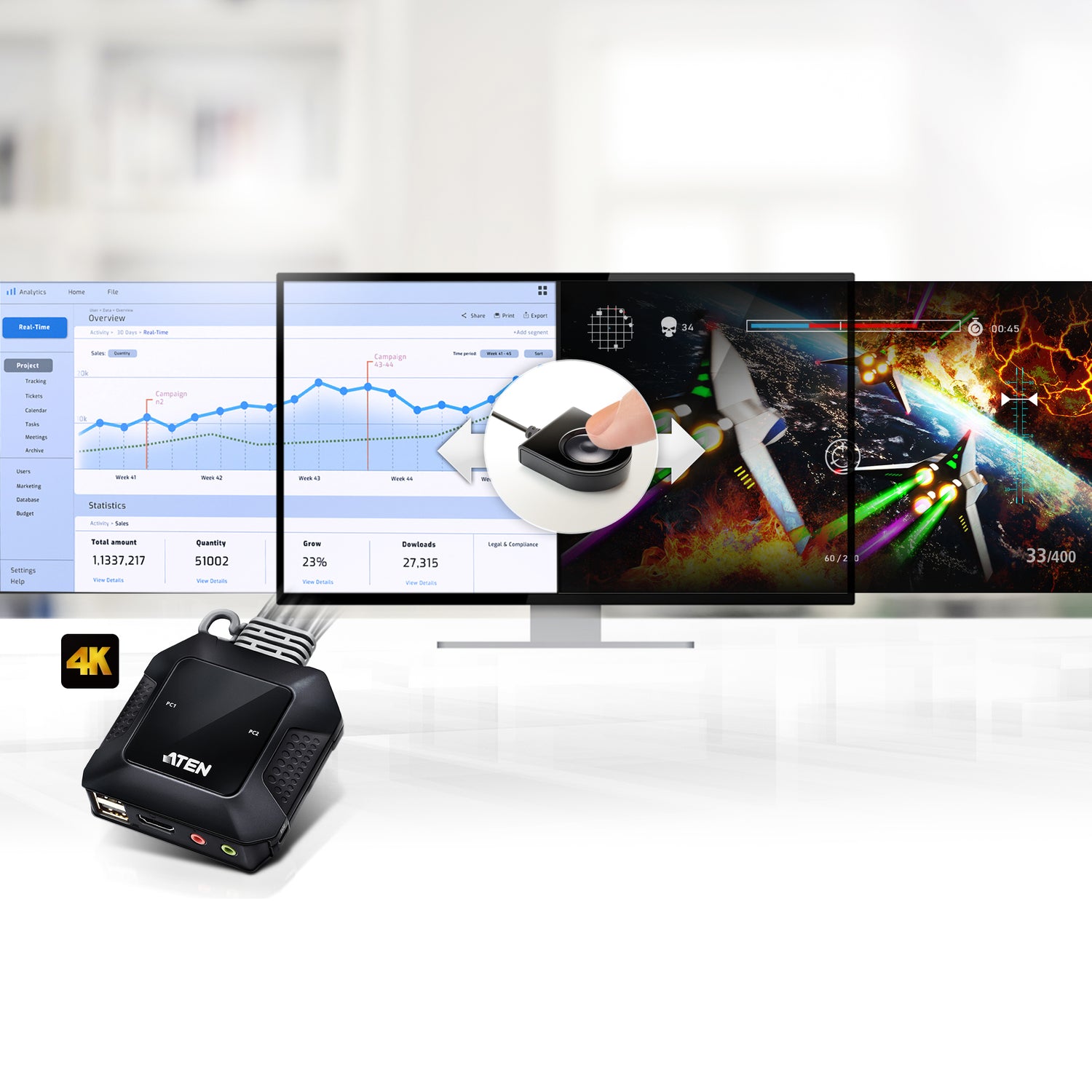

Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance.

Superior AV Performance in Vivid 4K
The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.

Space Efficient Desktop Setup
The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.

Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.

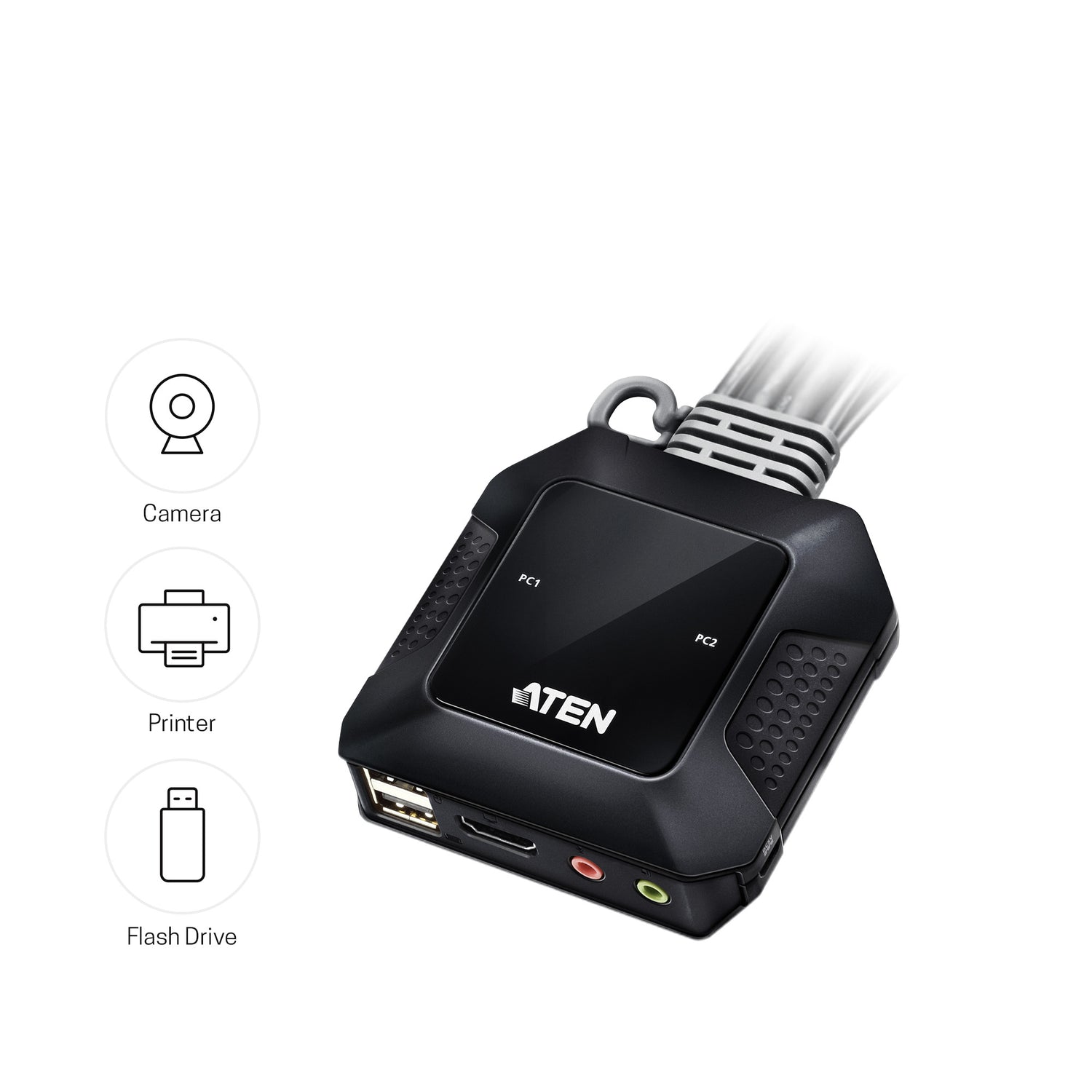

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.

Plug in. Power on
The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.

• One USB keyboard, mouse and one HDMI monitor control two HDMI computers
• Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
• Computer selection via remote port selector
• HDMI compliant; HDCP 2.2 compliant
• Supports USB hot-plugging
• The console USB ports can be used for USB peripheral sharing1
• Multiplatform support – Windows, Mac and Linux

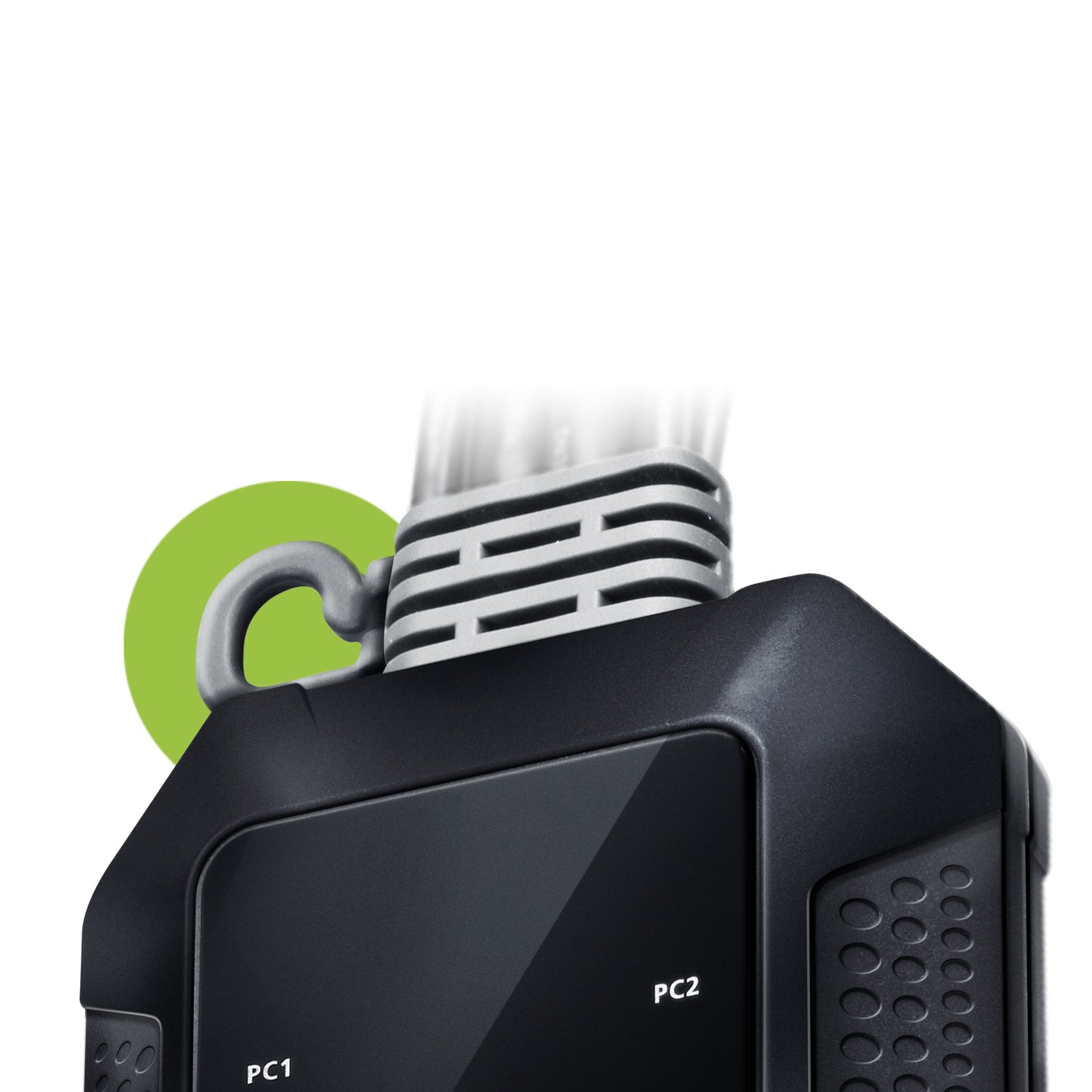

• Hook design for space-saving and organized workstation
• Plug and play
• Bus-powered – no external power adapter required

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI

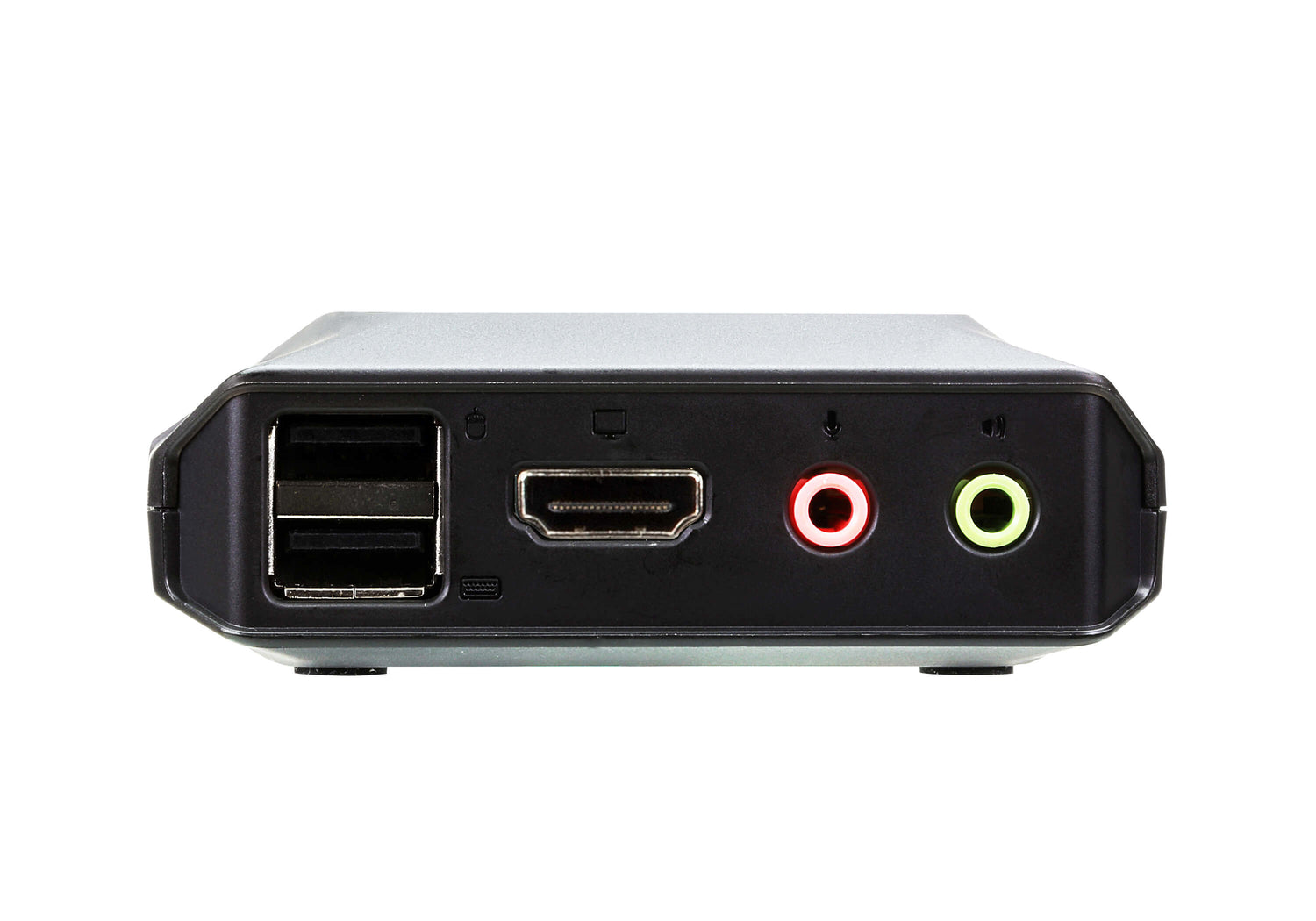

Console ports	3.5mm headphone,3.5mm mic,HDMI,USB A
HDMI ports quantity	3
Console USB ports quantity	2
Console HDMI ports quantity	1
USB connector type	USB Type-A
Audio connections	Y
Headphone outputs	3
Number of microphone inputs	3
HD type	4K Ultra HD
Maximum resolution	4096 x 2160
Video bandwidth	60
HDCP	Y
Hot-Plug support	Y
Plug and Play	Y
HDCP version	2.2
Rack mounting	N
Product colour	Black
Housing material	Plastic
Wired remote switch	Y
Cable length	1.2
Remote switch cable length	1.8
LED indicators	Y
Built-in display	N
Power source	USB
Input voltage	5
Power consumption (typical)	3.47
Windows operating systems supported	Y
Linux operating systems supported	Y
Mac operating systems supported	Y
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-20 - 60
Operating relative humidity (H-H)	0 - 80
Storage relative humidity (H-H)	0 - 80
Width	84.2
Depth	83.4
Height	30.4
Weight	340
Package width	55
Package depth	155
Package height	223
Package weight	420
Quick installation guide	Y
Manual	Y
Master (outer) case net weight	6800
Harmonized System (HS) code	85176200
Master (outer) case width	328
Master (outer) case length	389
Master (outer) case height	330
Master (outer) case gross weight	9300
Products per master (outer) case	20
