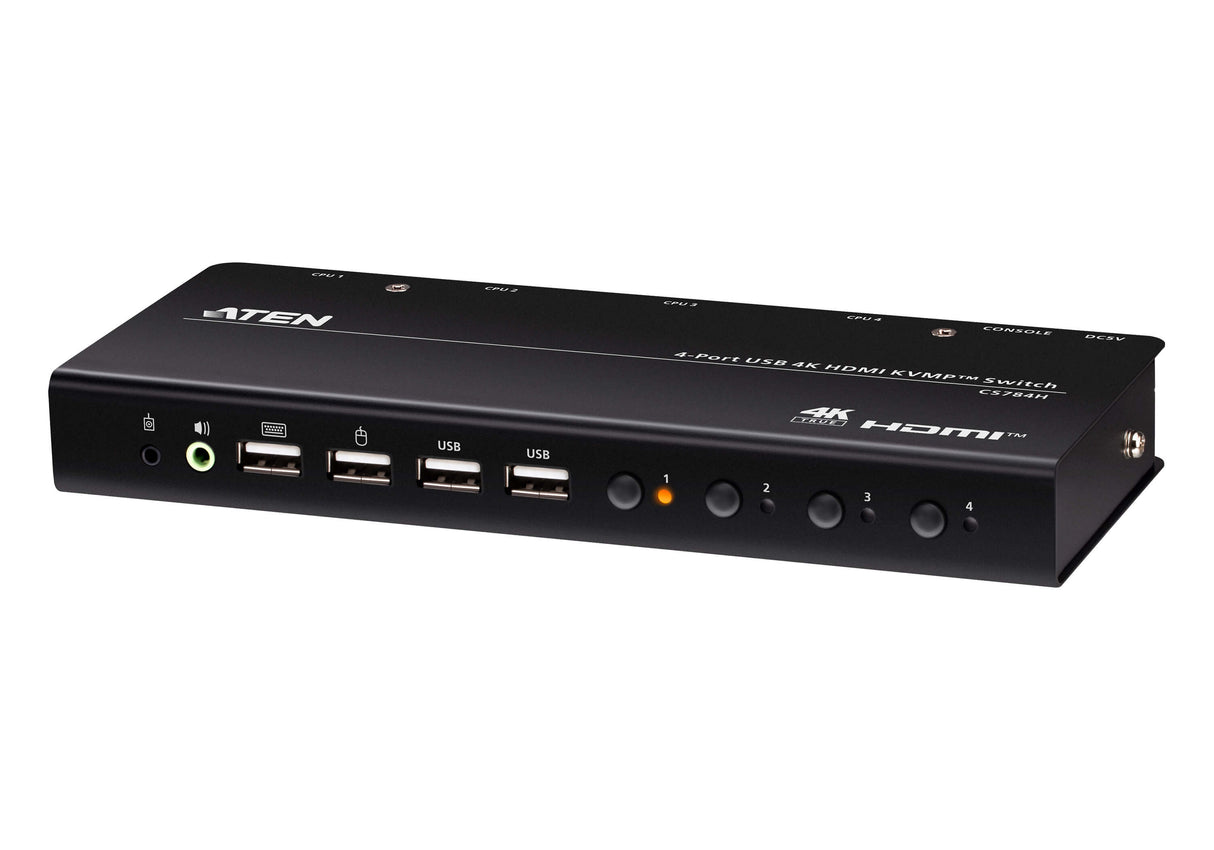

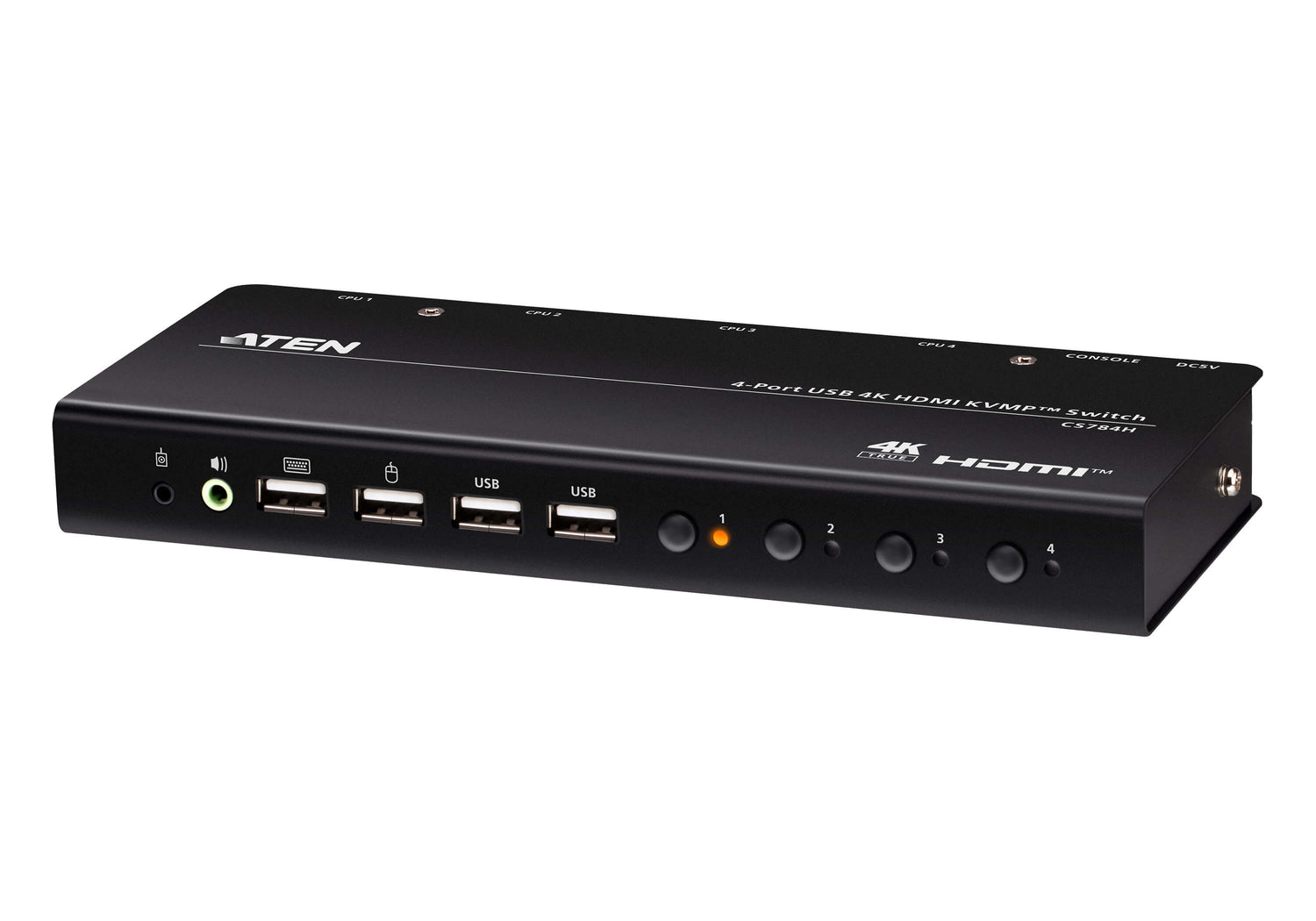

ATEN 4-Port USB 4K HDMI KVMP™ Switch - CS784H

The CS784H is a 4-port desktop KVM switch designed for those who demand a streamlined workflow and uncompromising visual quality across multiple systems. It enables fast, reliable switching between four HDMI computers with up to 4K DCI resolution, while sharing a single keyboard, monitor, mouse, audio output, and USB peripherals through one KVM console. With multiple switching methods – including pushbuttons, hotkeys, and a remote port selector – the CS784H is the perfect companion for desktop setups in offices, content creation, remote work, design, and more.

Space-Efficient Desktop Setup
The CS784H simplifies control of up to four HDMI computer systems by sharing a single keyboard, monitor, and mouse from one KVM console, delivering a clutter-free and organized desktop workspace.

Superior Visual Clarity
The KVM switch is designed to deliver exceptional visual performance, supporting 1080p@60, 4K@60, and up to 5120×1440@60.

USB Peripheral Sharing
Media and data sharing between computers is fast and effortless via plug-n-play connection (e.g. hard drive, flash drive, printer, etc) to the USB ports on the KVM switch.

Flexible Port Selection
Port switching is quick and flexible via pushbuttons, hotkeys, or the remote port selector – whichever best fits your workflow.

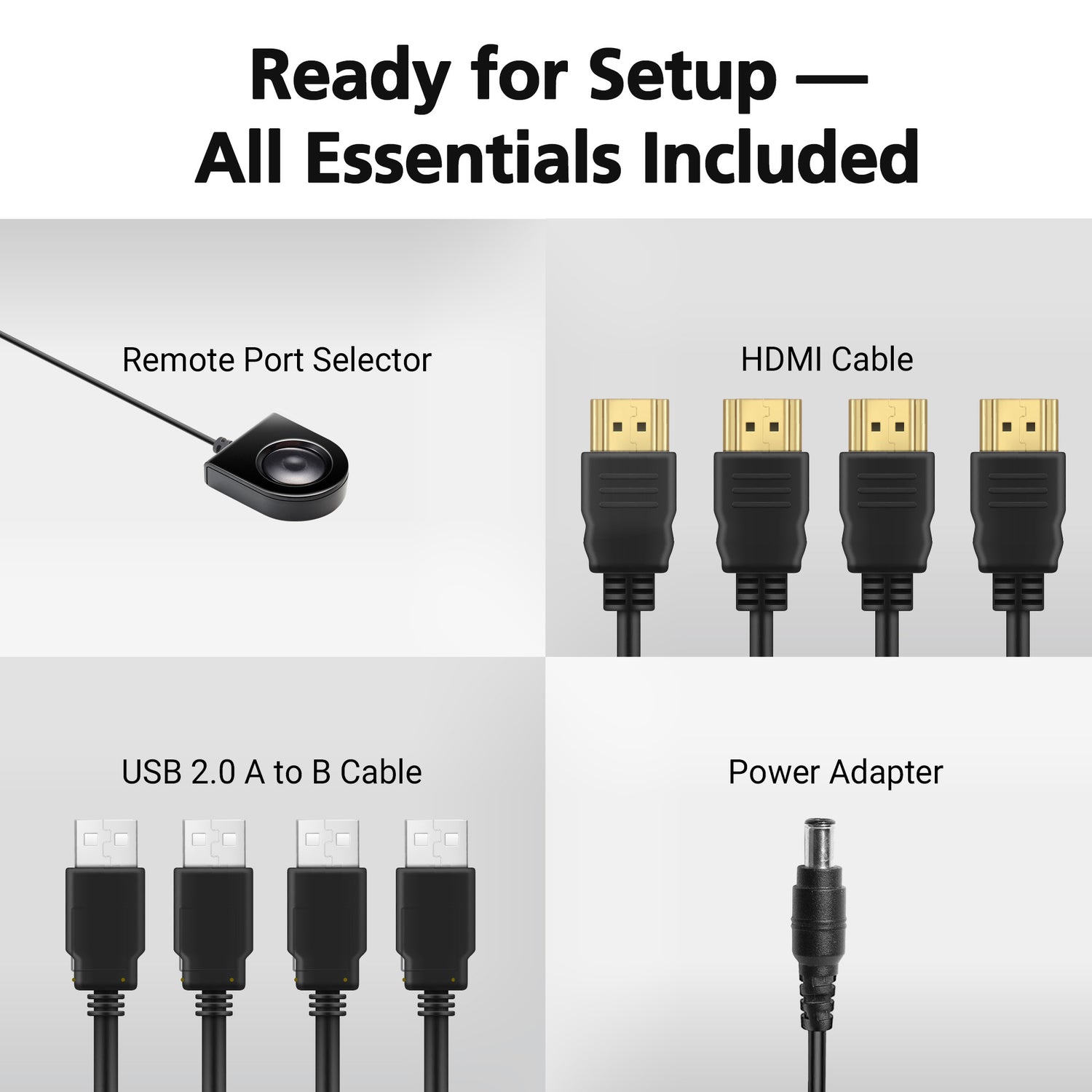

All Essentials Packed. No Extras Needed.
Everything you need is included – 4 HDMI cables, 2 USB 2.0 A to B cables, 1 power adapter, and 1 remote port selector (wired switch button) – for instant setup.

Applications

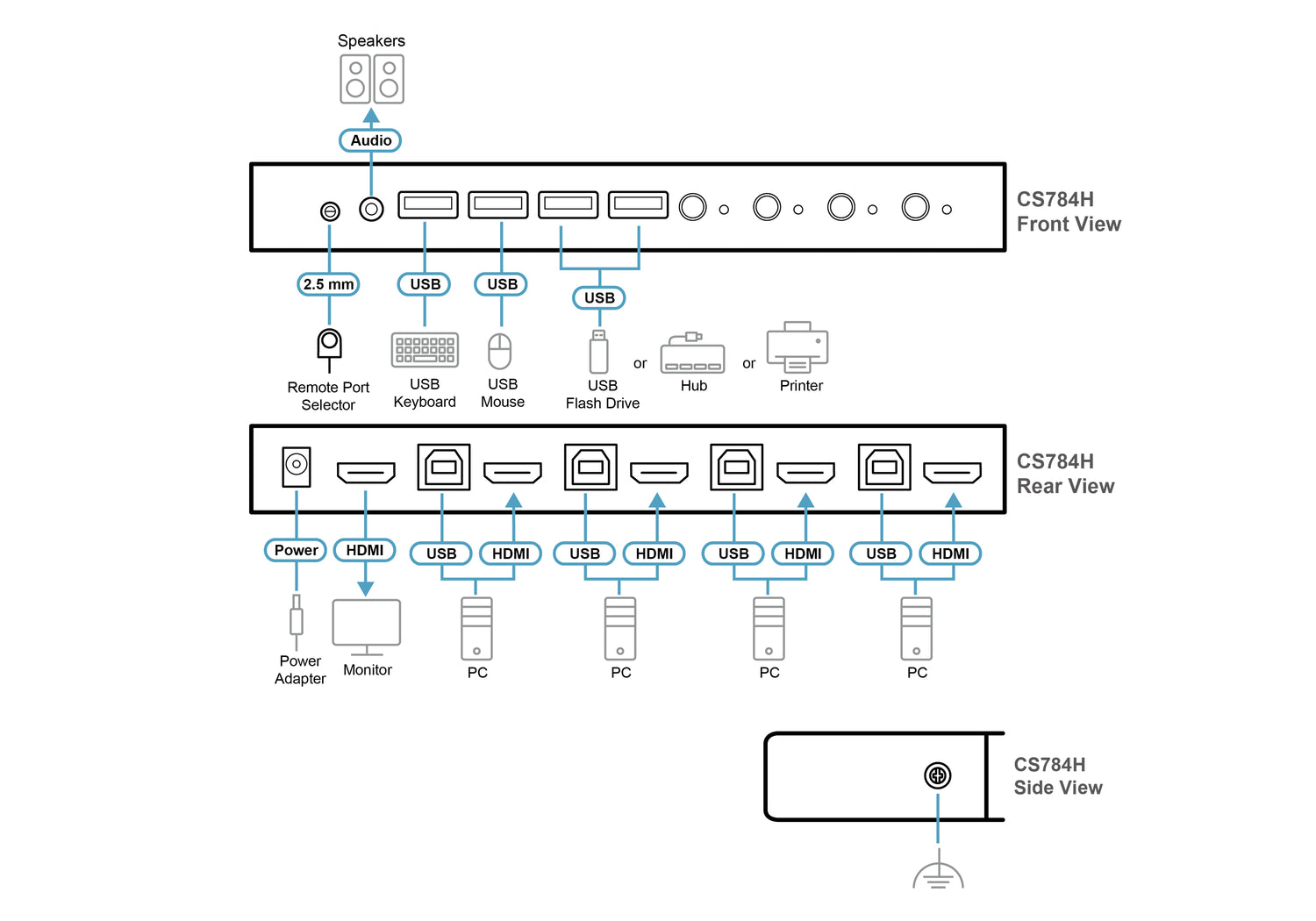

The CS784H enables centralized control of up to 4 HDMI computers via one keyboard, mouse, and monitor, delivering a tidy and efficient desktop workspace where multitasking is streamlined and cable clutter is minimized.

• Superior video quality – up to 4096 x 2160 @ 60 Hz
• Supports Video DynaSync™
• All HDMI & USB cables included
• Computer selection via remote port selector, hotkeys, and USB mouse

Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Console ports	3.5mm headphone,HDMI,USB A
HDMI ports quantity	4
USB 2.0 Type-B ports quantity	4
Console USB ports quantity	2
Console HDMI ports quantity	1
USB hub	Y
USB 2.0 Type-A hub ports quantity	2
Audio connections	Y
HD type	4K Ultra HD
Maximum resolution	4096 x 2160
Video bandwidth	60
Scan interval	1,99
Product colour	Black
Housing material	Metal,Plastic
LED indicators	Y
Push button	Y
Built-in display	N
Power source	DC
Power consumption (typical)	1.73
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 60
Operating relative humidity (H-H)	0 - 80
Width	81.7
Depth	202.3
Height	25
Weight	470
Package width	100
Package depth	283
Package height	173
Package weight	1520
Master (outer) case width	292
Master (outer) case length	517
Master (outer) case height	194
Master (outer) case gross weight	8300
Country of origin	Thailand
