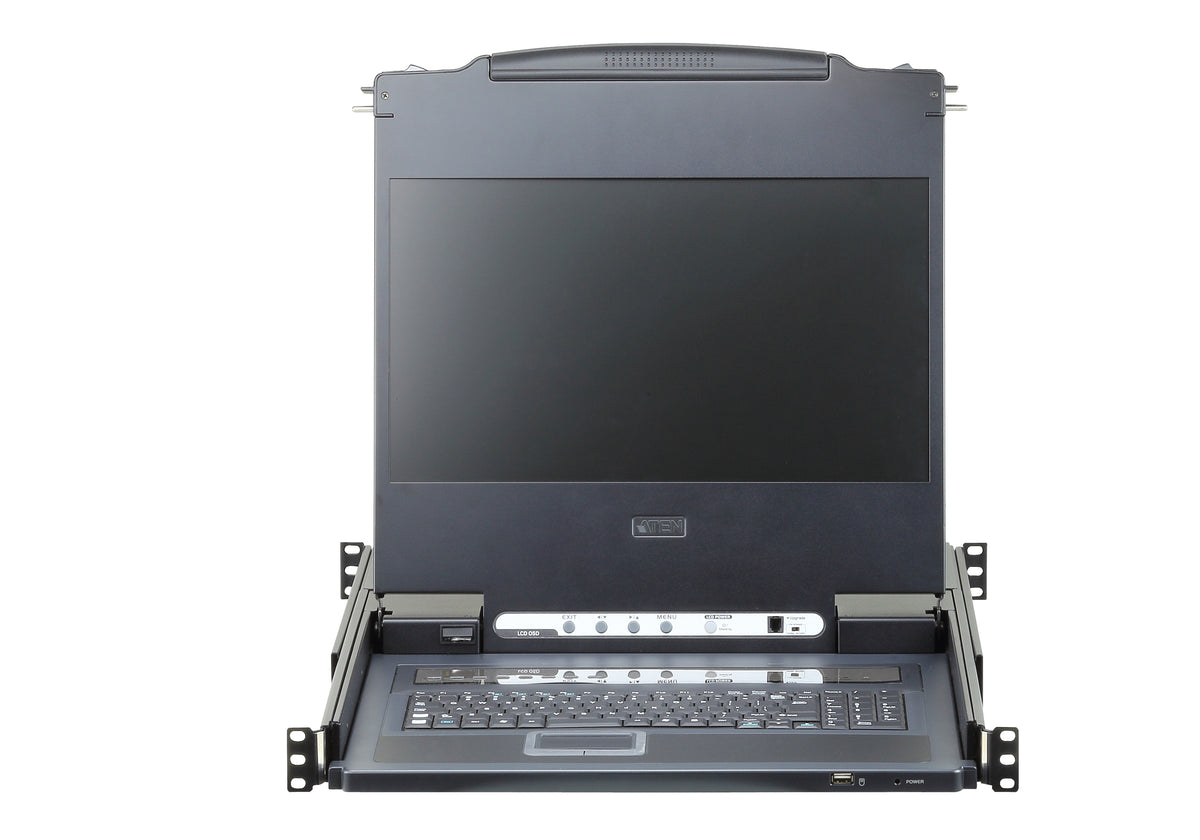

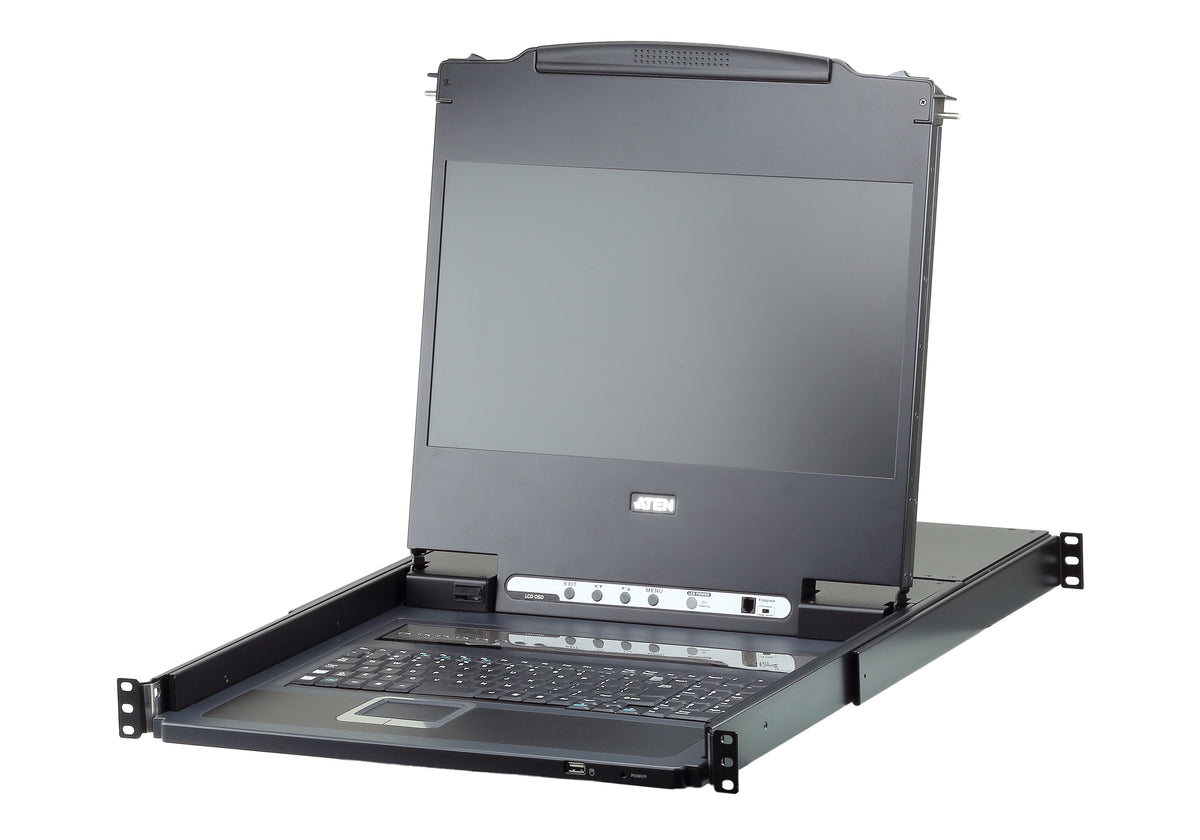

ATEN 8-Port 17.3" DVI Full HD LCD KVM Switch (USB) - CL6708MW

The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – which integrates an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.

Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.

To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM with a 17.3” Widescreen DVI Full HD LCD monitor
• A single console controls up to 64 computers by cascade to 1 level and connect up to 8 switches
• Superior video quality – 1920 x 1080 @ 60Hz; DDC2B

Display diagonal	17.3
Display resolution	1920 x 1080
Display	LCD
Display brightness	250
Contrast ratio (typical)	800:1
Viewing angle, horizontal	170
Viewing angle, vertical	170
On Screen Display (OSD)	Y
Pixel pitch	0.1989 x 0.1989
Aspect ratio	16:9
Display type	TFT
Response time	16
Supported resolutions	up to 1920 x 1200 @ 60 Hz (all resolution @ 60 Hz only); 1920 x 1080 @ 60 Hz, DDC2B
Rack capacity	1U
Material	Metal,Plastic
Product colour	Black
Hot-Plug support	Y
Operating relative humidity (H-H)	0 - 80
Built-in KVM switch	Y
Maximum resolution	1920 x 1200
Rack mounting	Y
Number of computers controlled	64
On/off switch	Y
LED indicators	Y
Push button	Y
Compliance certificates	RoHS
3.5 mm (1/8-inch) out	Y
3.5 mm (1/8-inch) in	Y
DVI connector type	DVI-I
DVI input ports	1
DVI output ports	8
Keyboard port type	USB
Mouse port type	USB
USB 2.0 Type-A ports quantity	3
USB 2.0 Type-B ports quantity	8
Built-in touchpad	Y
Keyboard language	US English
Keyboard layout	QWERTY
Hot keys	Y
Power consumption (typical)	29.26
AC adapter input voltage	100 - 240
AC adapter frequency	50/60
Input current	1
AC (power) in	Y
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 60
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Other operating systems supported	Y
Width	689.2
Height	44
Depth	480
Weight	12700
Cables included	AC,KVM
Quick installation guide	Y
Manual	Y
AC adapter included	Y
Rack mount kit	Y
I/O ports	1x RJ-11
