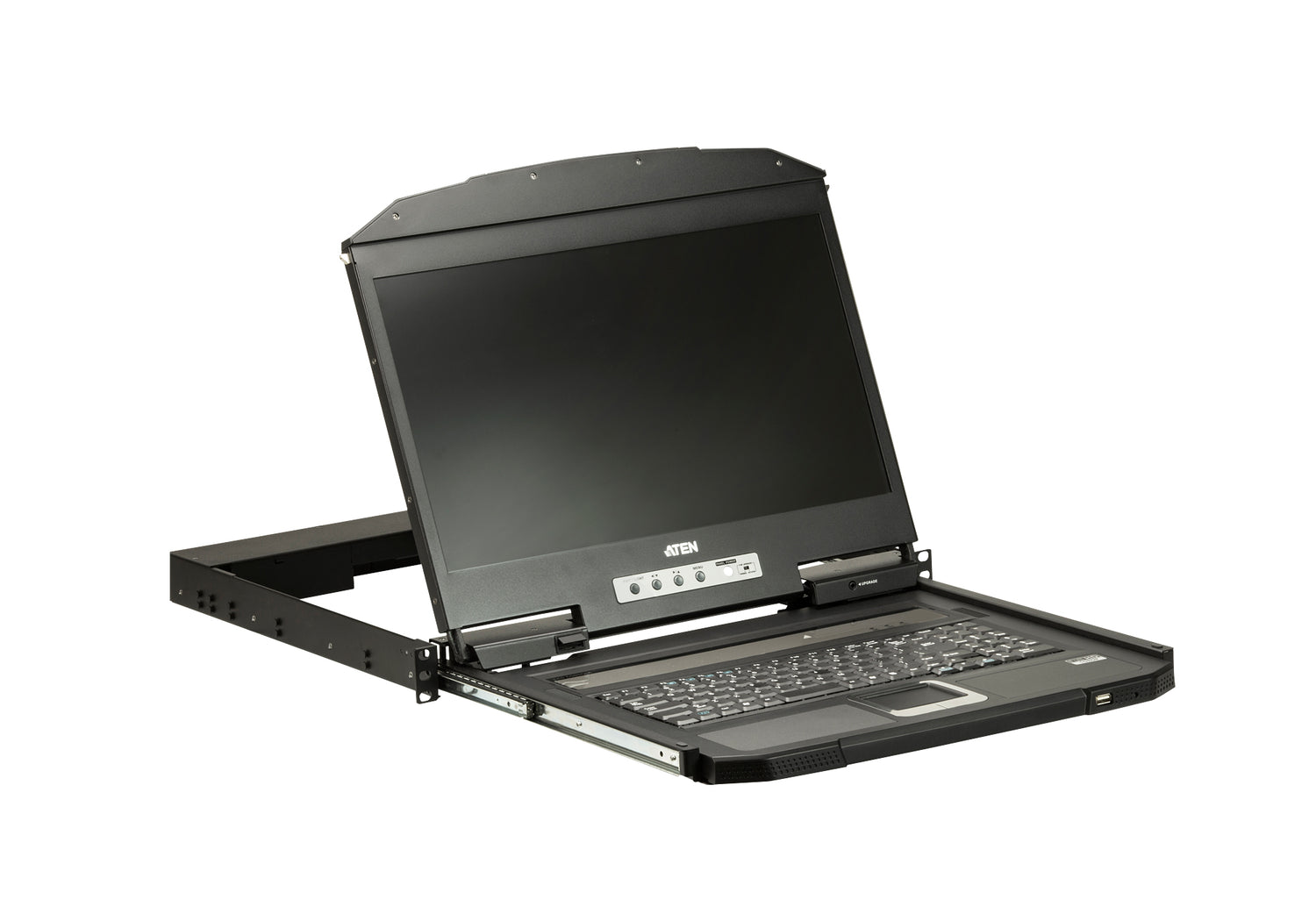

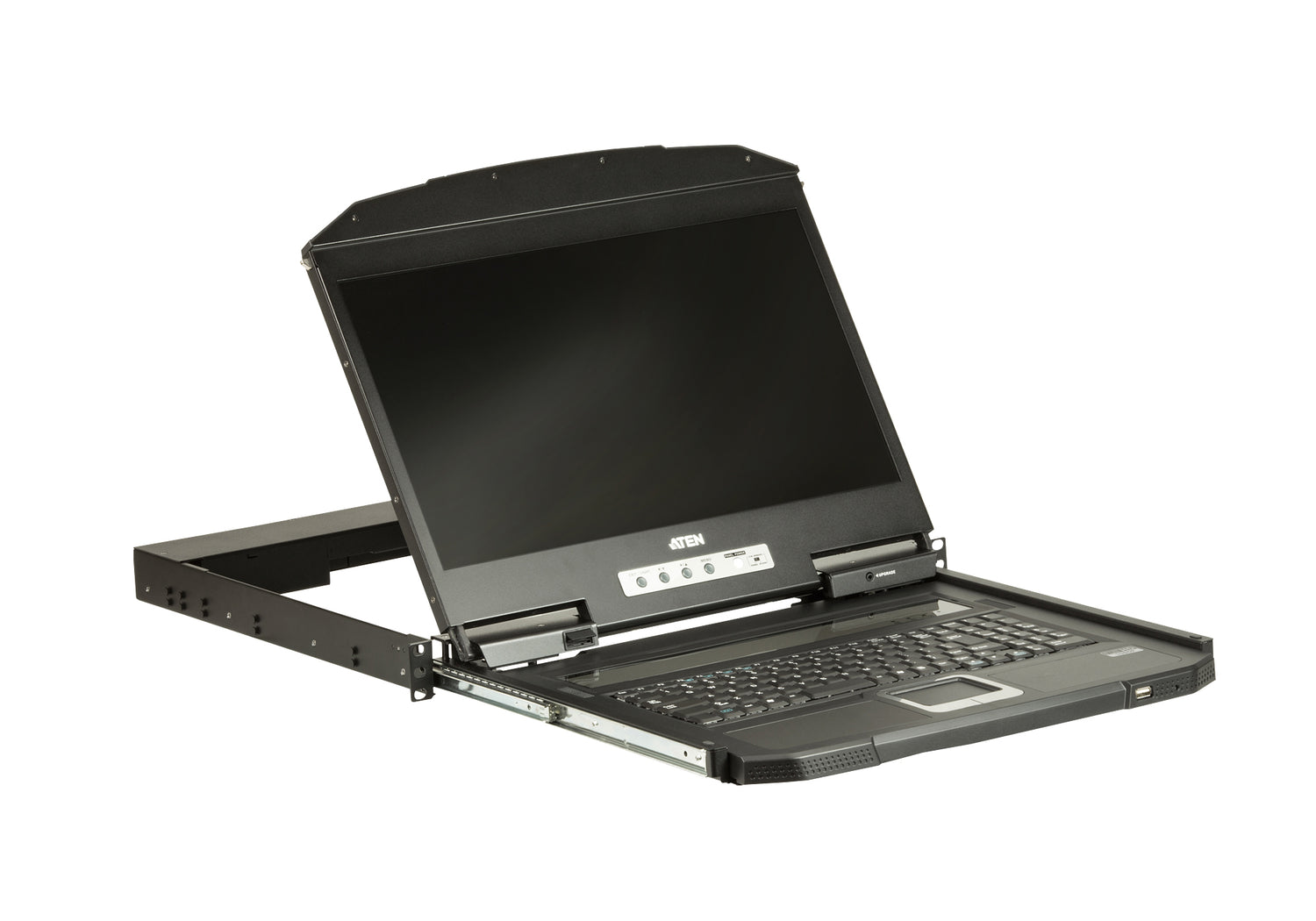

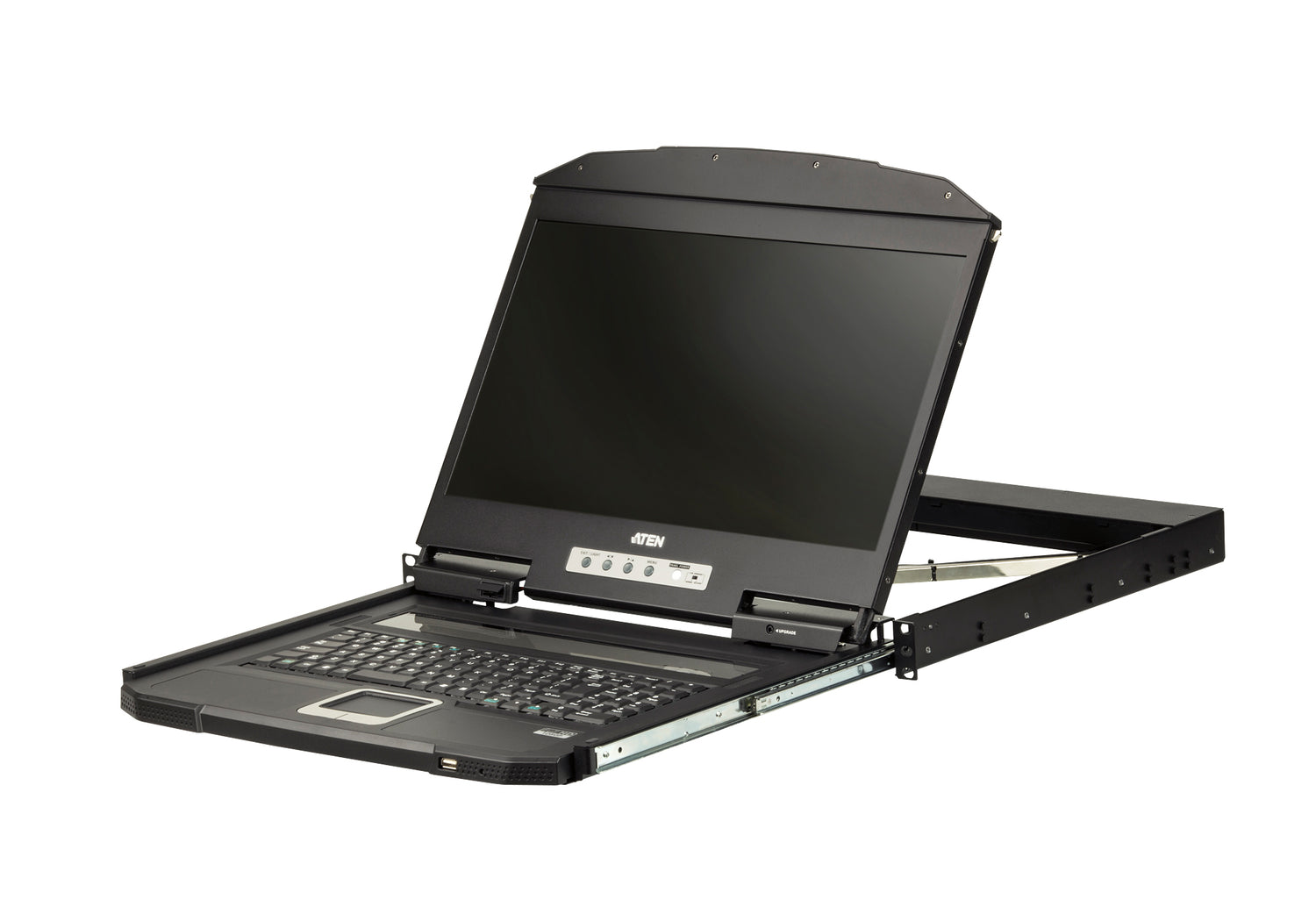

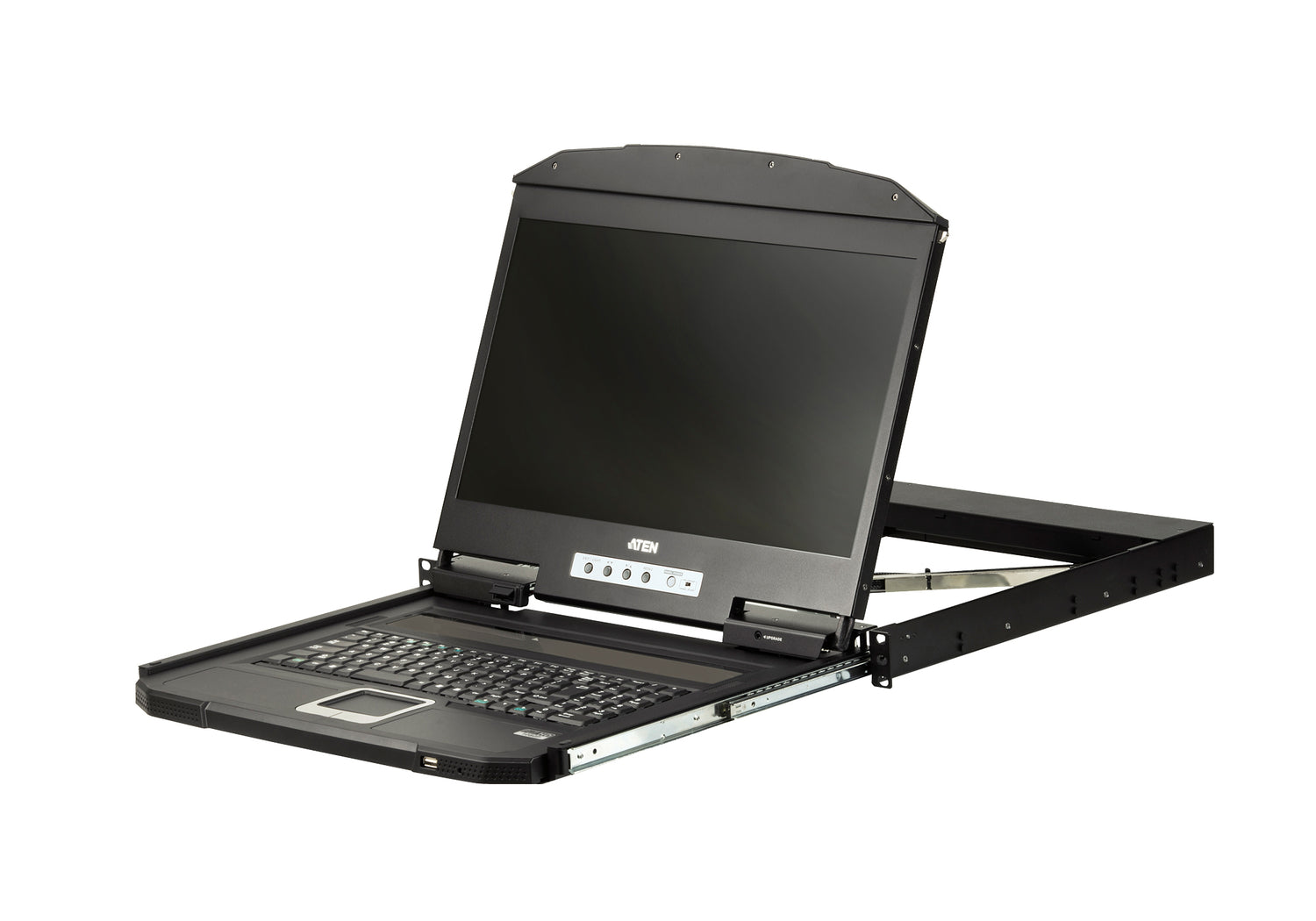

ATEN CL3700NW rack console 47 cm (18.5") 1920 x 1080 pixels Metal, Plastic Black 1U - CL3700NW

The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

The CL3700 is a dedicated front end sliding console for compatible HDMI KVM switches. The CL3700NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area. For added convenience, users can choose to manage the computer from an external console. The CL3700 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI monitor) are provided on the rear panel.

With a rich feature set, the CL3700 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM Console with short depth single rail design and a 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
• 18.5" LCD screen supports Full HD resolution of 1920 x 1080 @ 60Hz (CL3700NW); 18.5" LCD screen supports resolution of 1366 x 768 @ 60Hz (CL3700NX)
• Supports an external console with USB / HDMI connectors; supports input video resolutions up to 1920 x 1200 @ 60Hz

Display diagonal	18.5
Display resolution	1920 x 1080
Display brightness	350
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178
Viewing angle, vertical	178
Pixel pitch	0.213 x 0.213
Display type	LED
Response time	20
Display number of colours	16.78 million colours
Rack capacity	1U
Material	Metal,Plastic
Product colour	Black
Hot-Plug support	Y
Operating relative humidity (H-H)	0 - 80
Built-in KVM switch	Y
Key lock	Y
Number of computers controlled	1
On/off switch	Y
LED indicators	Y
Compliance certificates	RoHS
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Built-in touchpad	Y
Hot keys	Y
Power supply type	AC
AC adapter input voltage	100 - 240
AC adapter frequency	50/60
Input current	1
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 60
Width	477
Height	480.6
Depth	42.8
Weight	9010
Cables included	AC,HDMI,USB
Manual	Y
Rack mount kit	Y
