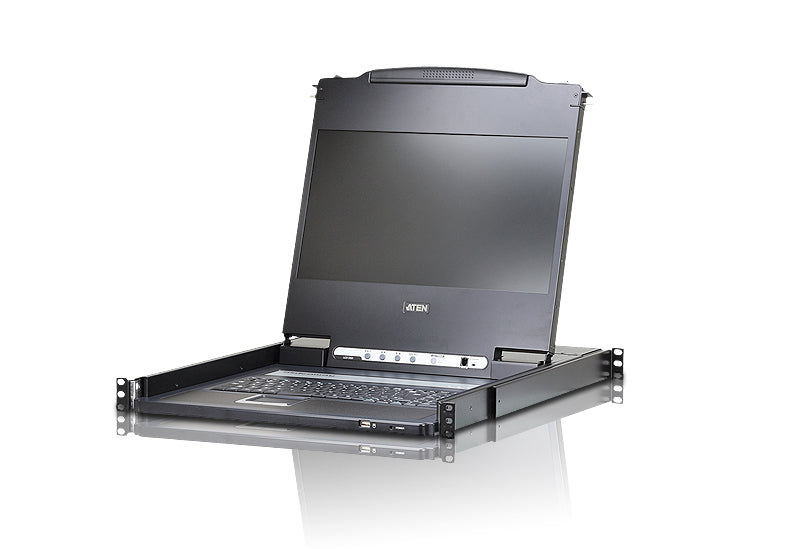

ATEN CL6700MW KVM switch Rack mounting Black - CL6700MW

The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes flat and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-definition monitor to the console port, and/or an HDMI compatible switch to the KVM port.

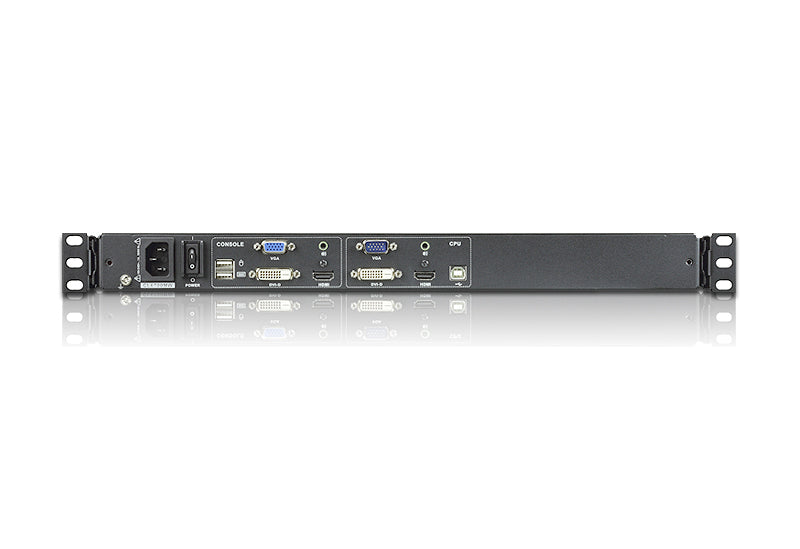

The CL6700MW features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers.

Features:
-Integrated KVM console with a 17.3’’ LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
-Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
-Supports an external console with USB / DVI / VGA / HDMI connectors
-Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
-Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
-Audio support for connecting speakers
-Standard 105-key keyboard; Sun keyboard emulation
-Multiplatform support – Windows, Linux, Mac, and Sun
-Adjustable depth to fi t within the rack
-Firmware upgradeable
-Console lock – enables the console drawer to remain securely locked away in position when not in use
-DDC emulation – video settings of attached computers are automatically adjusted for optimal output to the monitor
-Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek

• Rack mounting 1U Black
• Number of computers controlled: 1
• Keyboard port type: USB Mouse port type: USB Video port type: DVI-D
• Full HD 1920 x 1080 pixels
• Housing material: Metal
• Hot keys
• LCD Built-in display
• AC 19.4 W

Number of computers controlled	1
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-D
Console ports	DVI-D,HDMI
HDMI ports quantity	2
DVI-D ports quantity	2
Console USB ports quantity	3
USB connector type	USB Type-A,USB Type-B
HD type	Full HD
Maximum resolution	1920 x 1080
Video bandwidth	60
DDC/DDC2 supported	Y
DDC2B support	Y
Rack mounting	Y
Product colour	Black
Rack capacity	1U
Housing material	Metal
LED indicators	Power
Push button	Y
Hot keys	Y
Keyboard language	Chinese Traditional,French,German,Greek,Hungarian,Italian,Japanese,Korean,Russian,Spanish,Swedish,Swiss,UK English,US English
Built-in display	Y
Display	LCD
Display diagonal	17.3
On Screen Display (OSD)	Y
Power source	AC
Input voltage	100-240
AC input frequency	50 - 60
Input current	1
Power consumption (typical)	19.4
Mac operating systems supported	Y
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 60
Operating relative humidity (H-H)	0 - 80
Width	480
Depth	589.2
Height	44
Weight	11380
