ATEN CS1142DP4 KVM switch Black - CS1142DP4

ATEN PSD PP v4.0 Secure KVM Switch CS1142DP4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1142DP4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

ATEN PSD PP v4.0 Secure KVM Switch CS1142DP4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1142DP4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1. With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1142DP4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

• Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
• Always-on chassis intrusion detection –renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
• Configurable Device Filtration –supports administrative configuration to filter USB HID devices

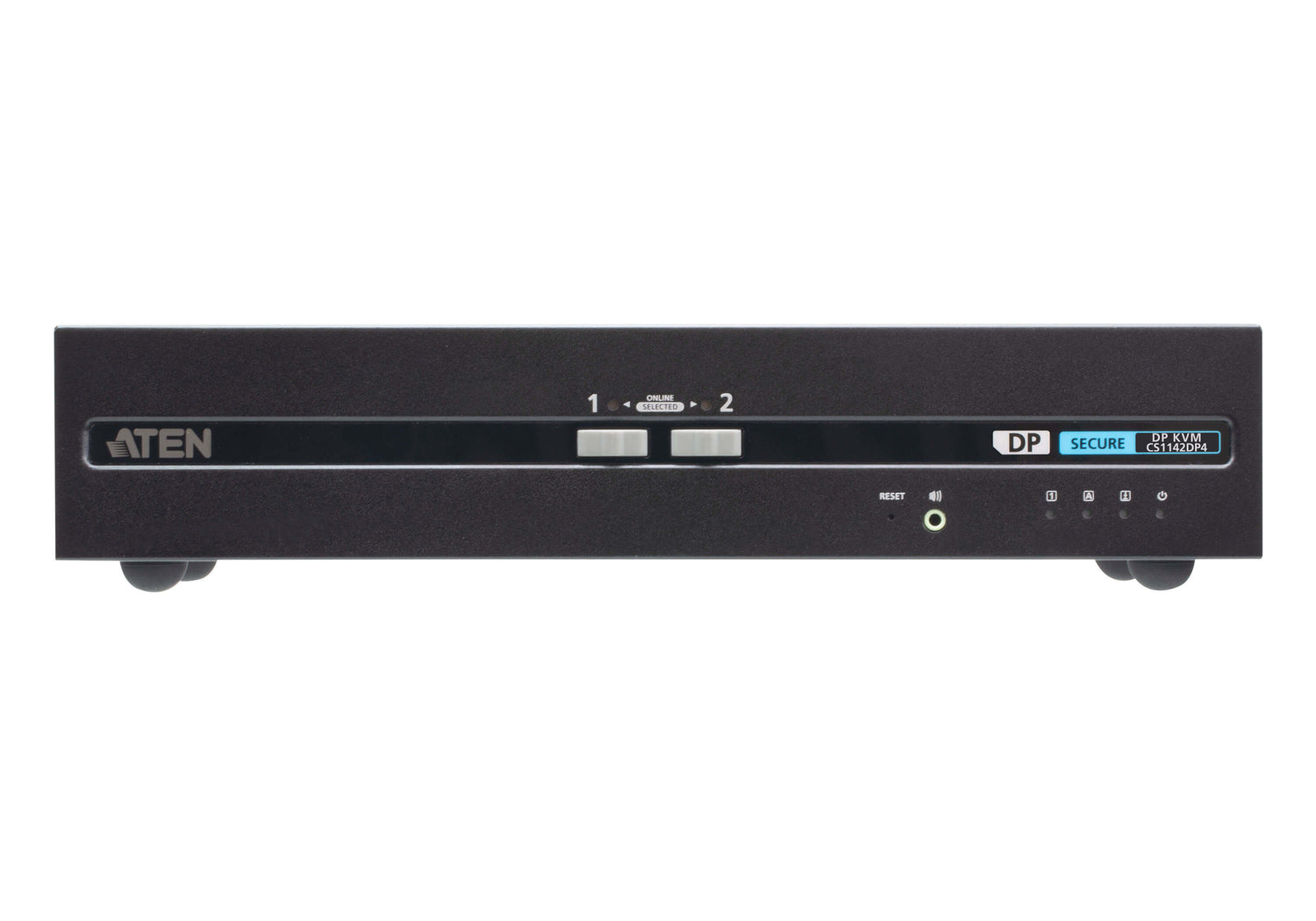

• Port selection via pushbuttons / Remote Port Selector (RPS) only to enhance security

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Console ports	DisplayPort,USB A
DisplayPorts quantity	4
USB 2.0 Type-B ports quantity	2
Console USB ports quantity	2
USB hub	Y
USB 2.0 Type-A hub ports quantity	1
Audio connections	Y
Headphone outputs	2
RJ-11 ports quantity	1
HD type	4K Ultra HD
Maximum resolution	3840 x 2160
Product colour	Black
Housing material	Metal
Wired remote switch	Y
LED indicators	Y
Push button	Y
Built-in display	N
Power source	AC
Input voltage	100 - 240
AC input frequency	50 - 60
Input current	1
Power consumption (typical)	10.19
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-20 - 60
Operating relative humidity (H-H)	0 - 80
Width	163.9
Depth	335
Height	65.5
Weight	2070
Package width	131
Package depth	540
Package height	233
Package weight	2910
Cables included	AC
Quick installation guide	Y
Manual	Y
Country of origin	Taiwan
