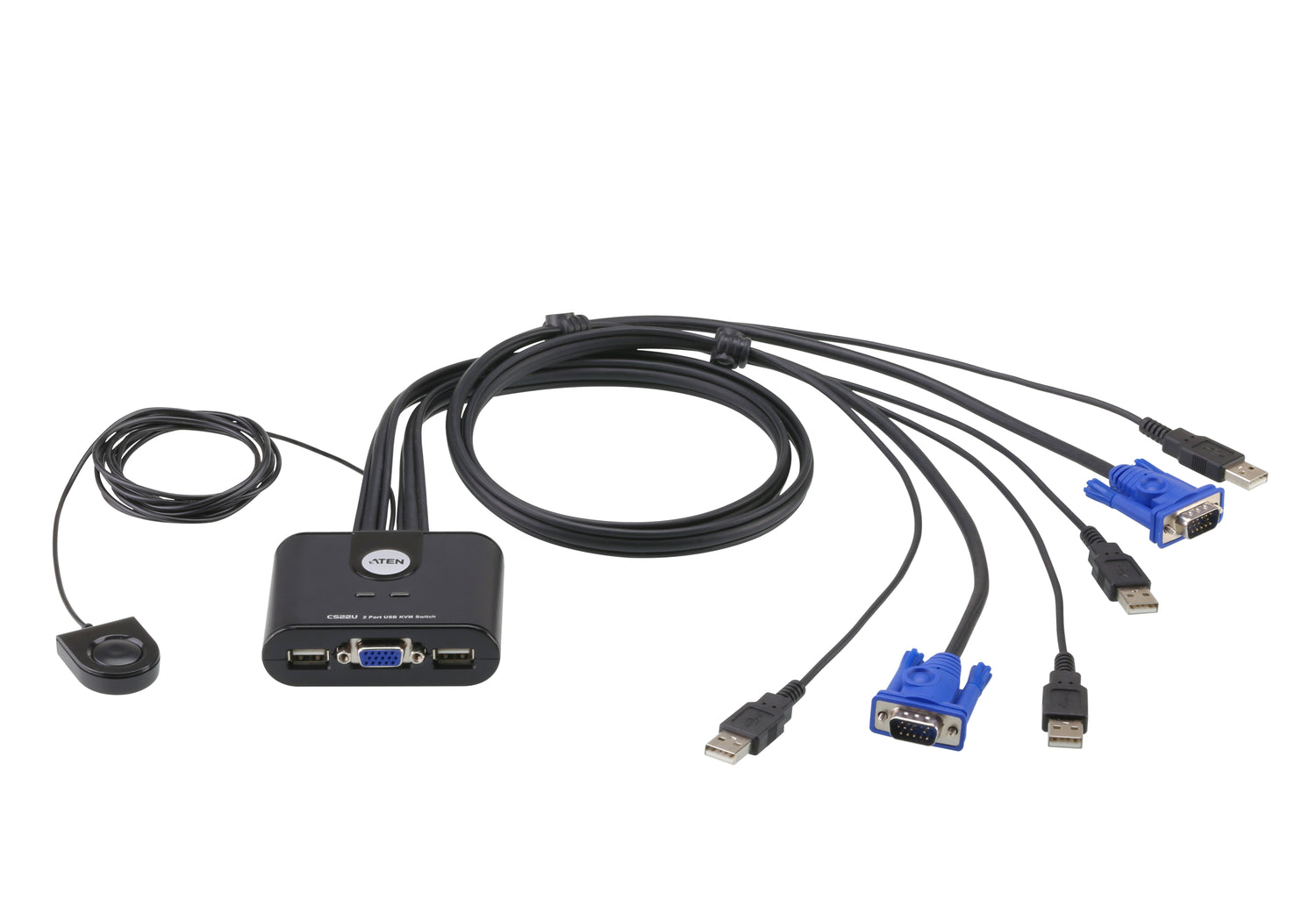

ATEN CS22U KVM switch Black - CS22U

The compact CS22U allows quick switching between 2 VGA-interfaced PCs via one KVM console and flexible media sharing via the console USB ports, which helps to expand desktop workspace while keeping it tidy and organized for improved productivity.

Smooth Cross-Platform Integration

The CS22U enables the integration of different computer systems (Windows, Mac, Linux and Sun) that are accessible from one KVM console.

Flexible USB Peripheral Sharing

The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.

Plug in. Power on

The CS22U supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.

• Superior video quality - up to 2048 x 1536; DDC2B
• Computer Selection via a Remote Port Selector
• Multiplatform support - Windows, Mac, Linux and Sun
• Bus-powered design

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA

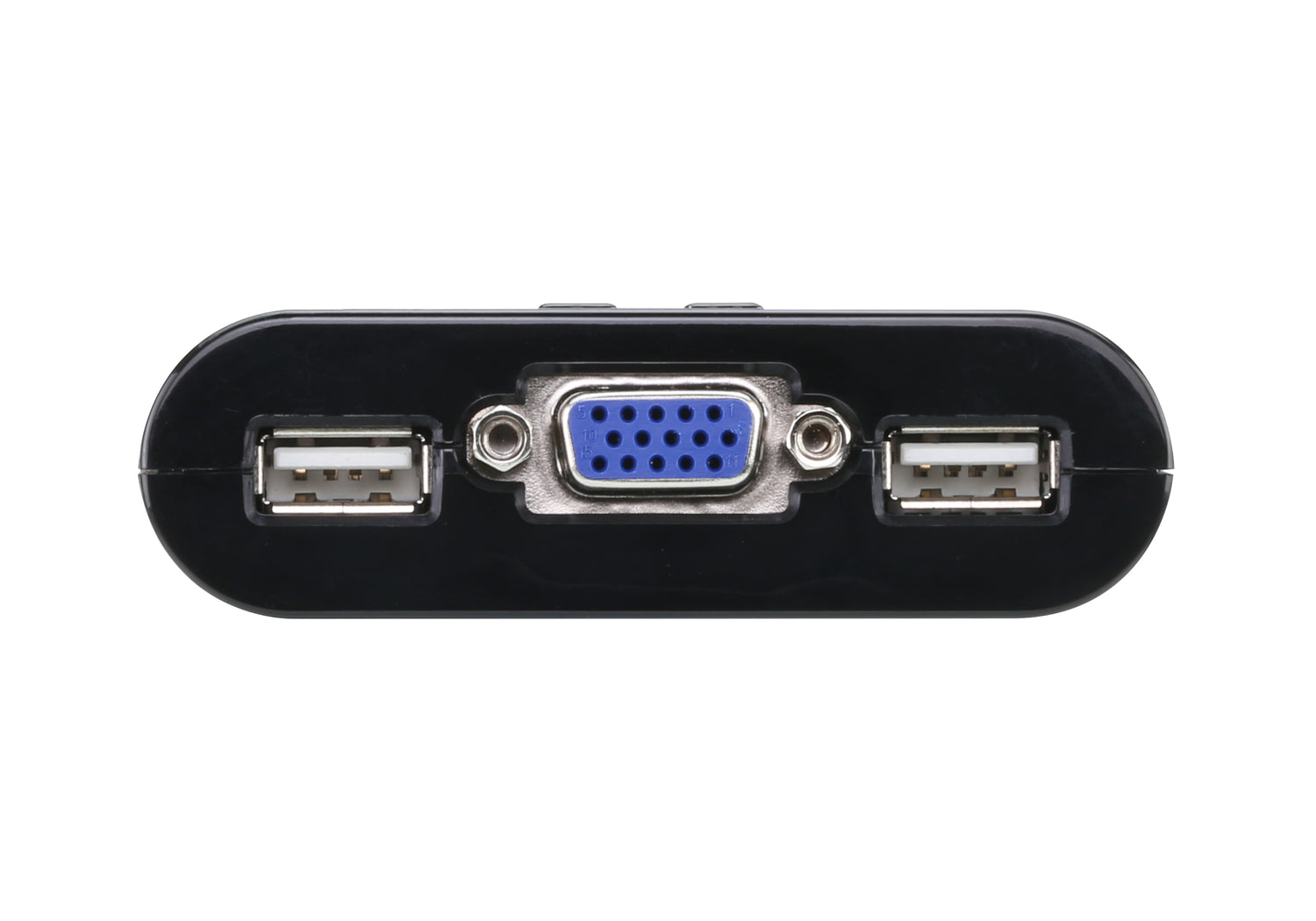

Console ports	USB A,VGA (D-Sub)
VGA (D-Sub) ports quantity	2
USB hub	Y
USB 2.0 Type-A hub ports quantity	4
USB connector type	USB Type-A
HD type	QXGA
Maximum resolution	2048 x 1536
DDC2B support	Y
Rack mounting	N
Product colour	Black
Housing material	Plastic
Cable length	0.9
Remote switch cable length	1.8
LED indicators	Y
Built-in display	N
Power source	DC
Input voltage	5
Power consumption (typical)	0.14
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-20 - 60
Operating relative humidity (H-H)	0 - 80
Storage relative humidity (H-H)	0 - 80
Width	82.4
Depth	70.1
Height	24.6
Weight	300
Quick installation guide	Y
