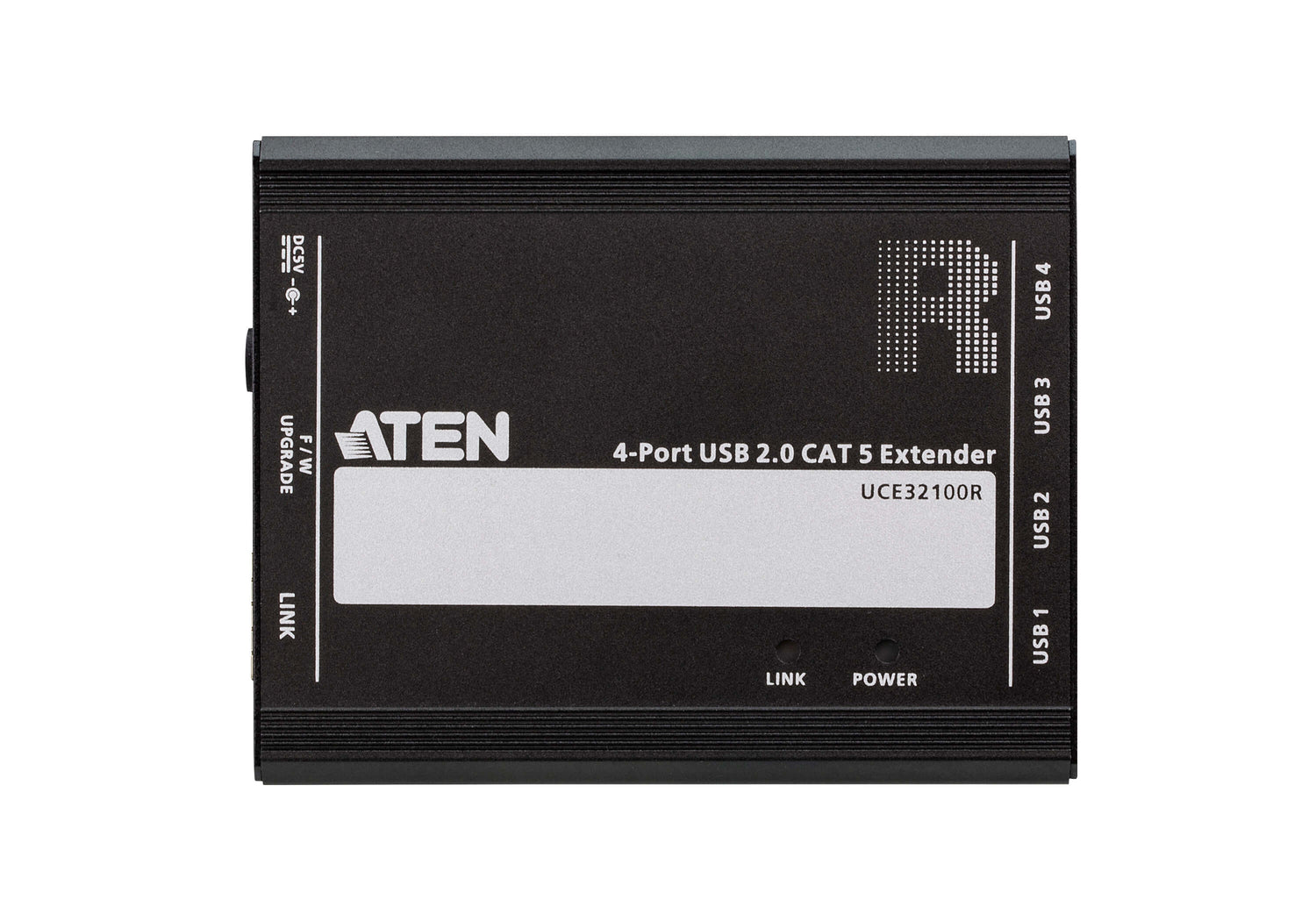

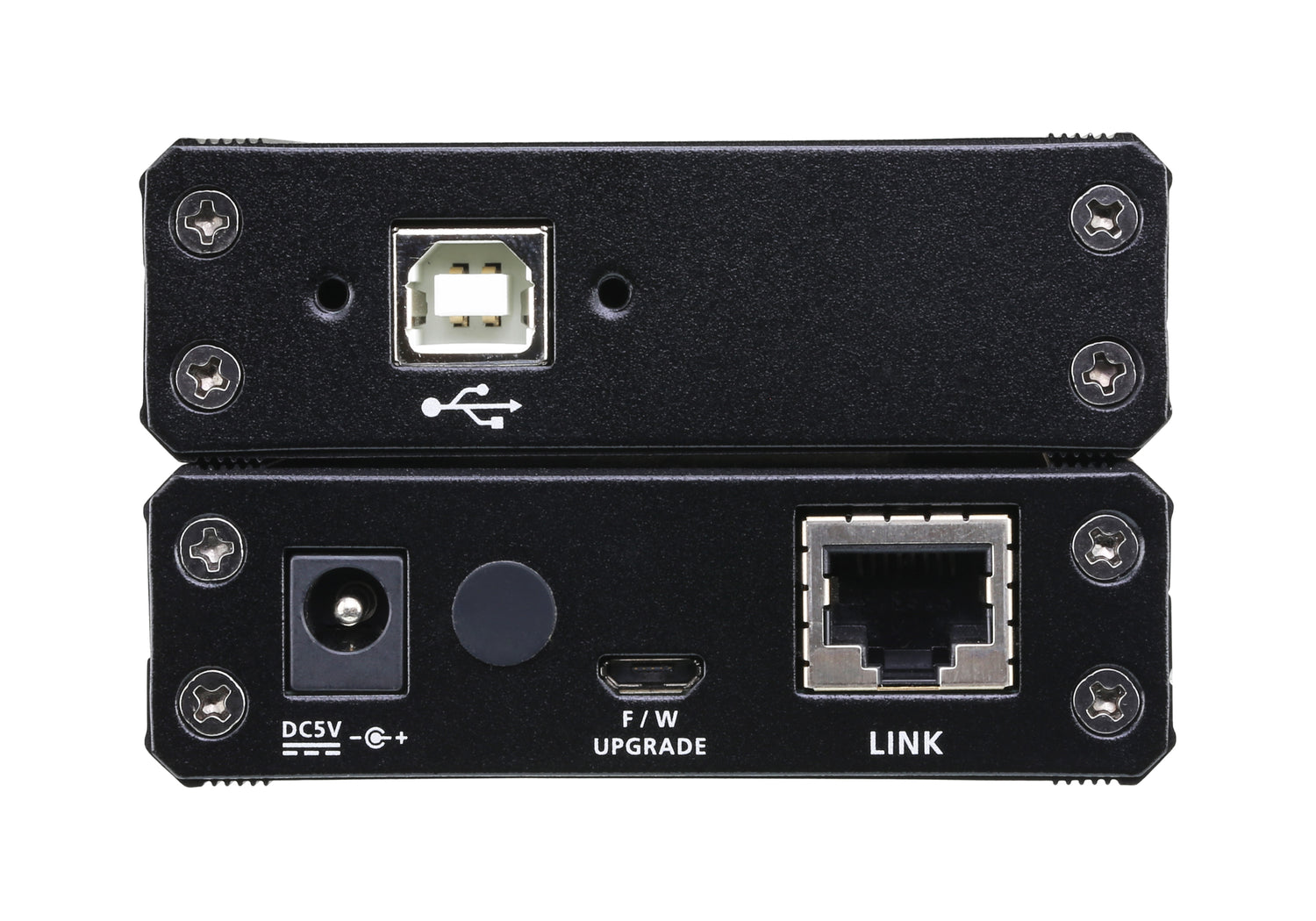

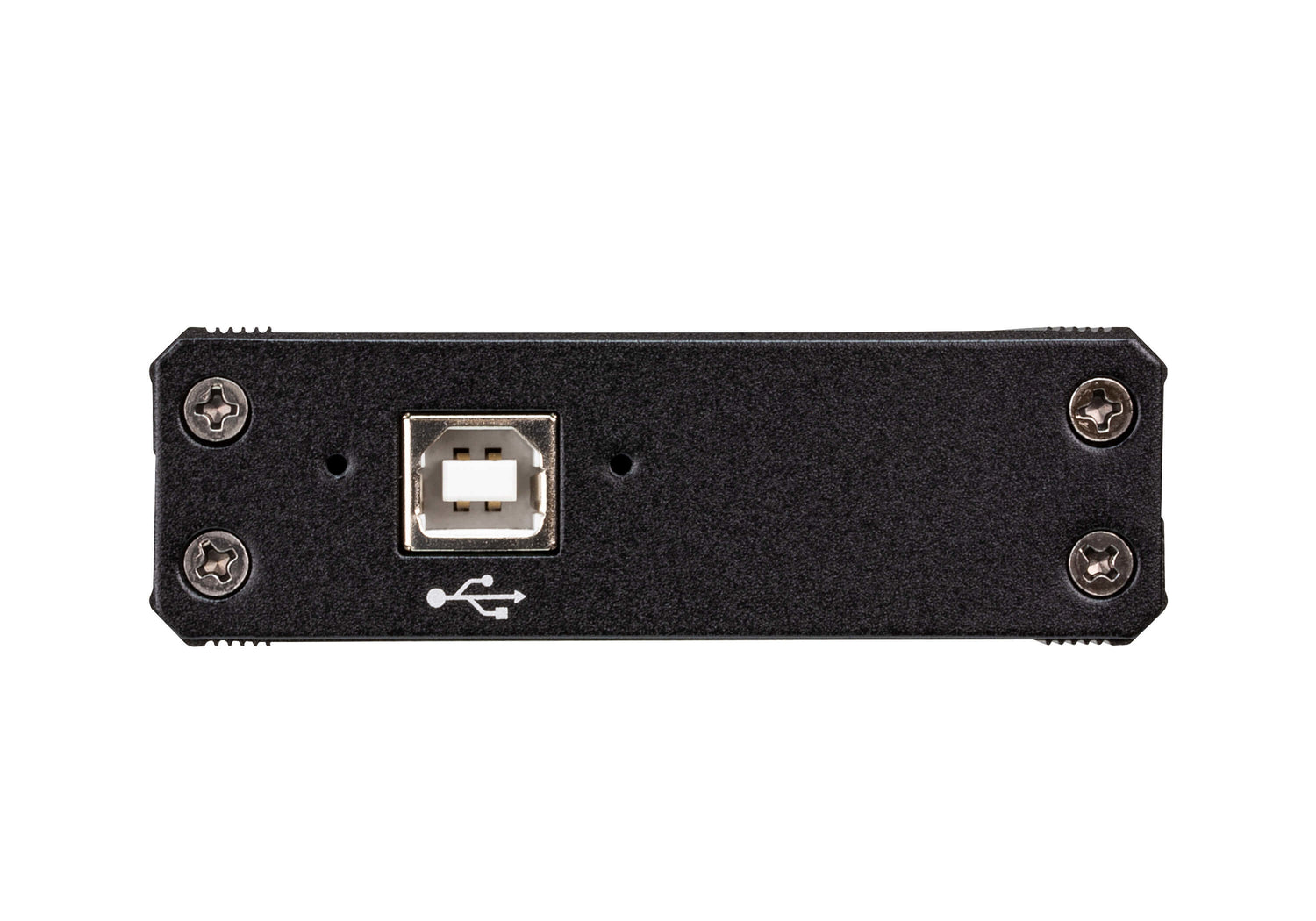

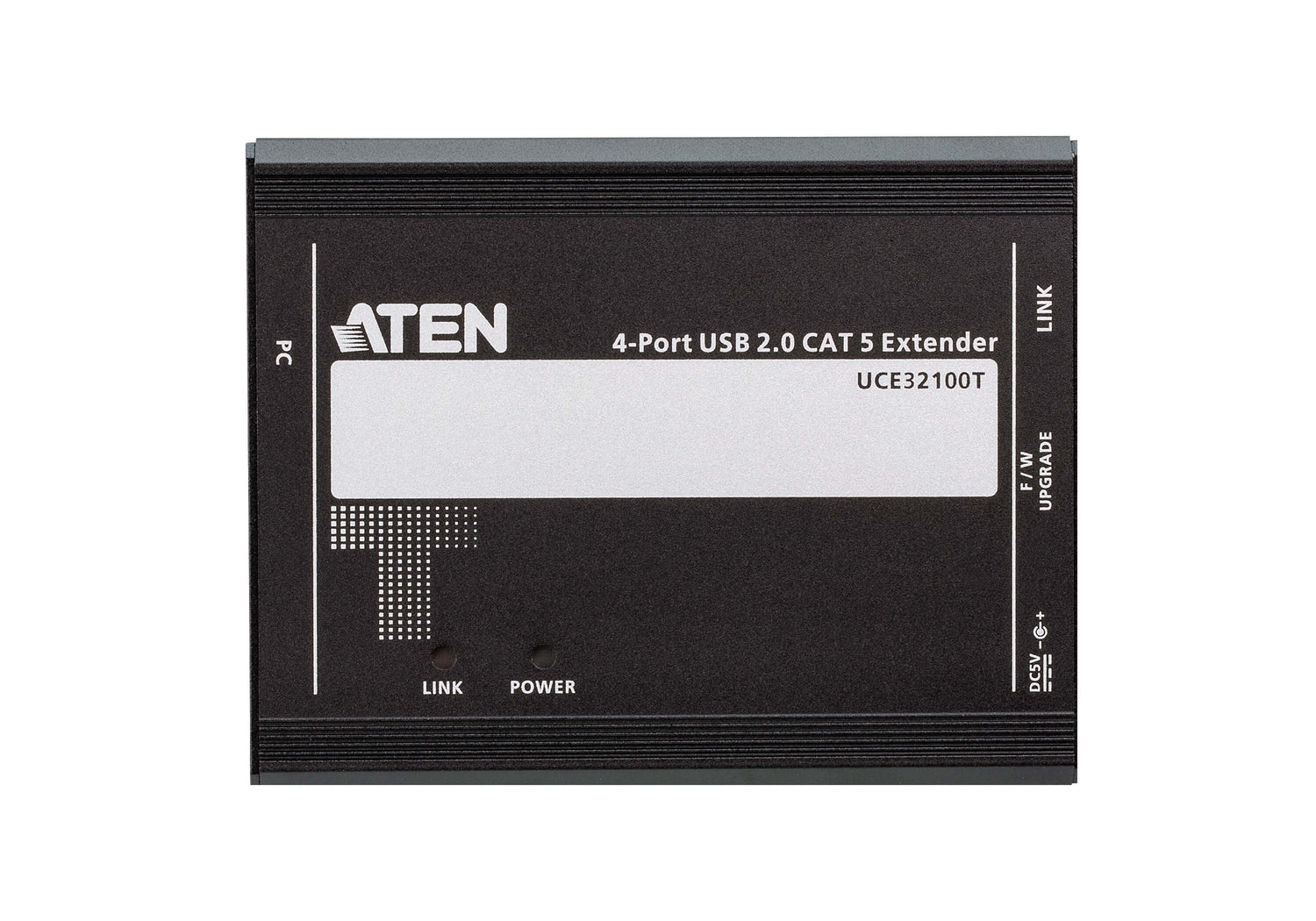

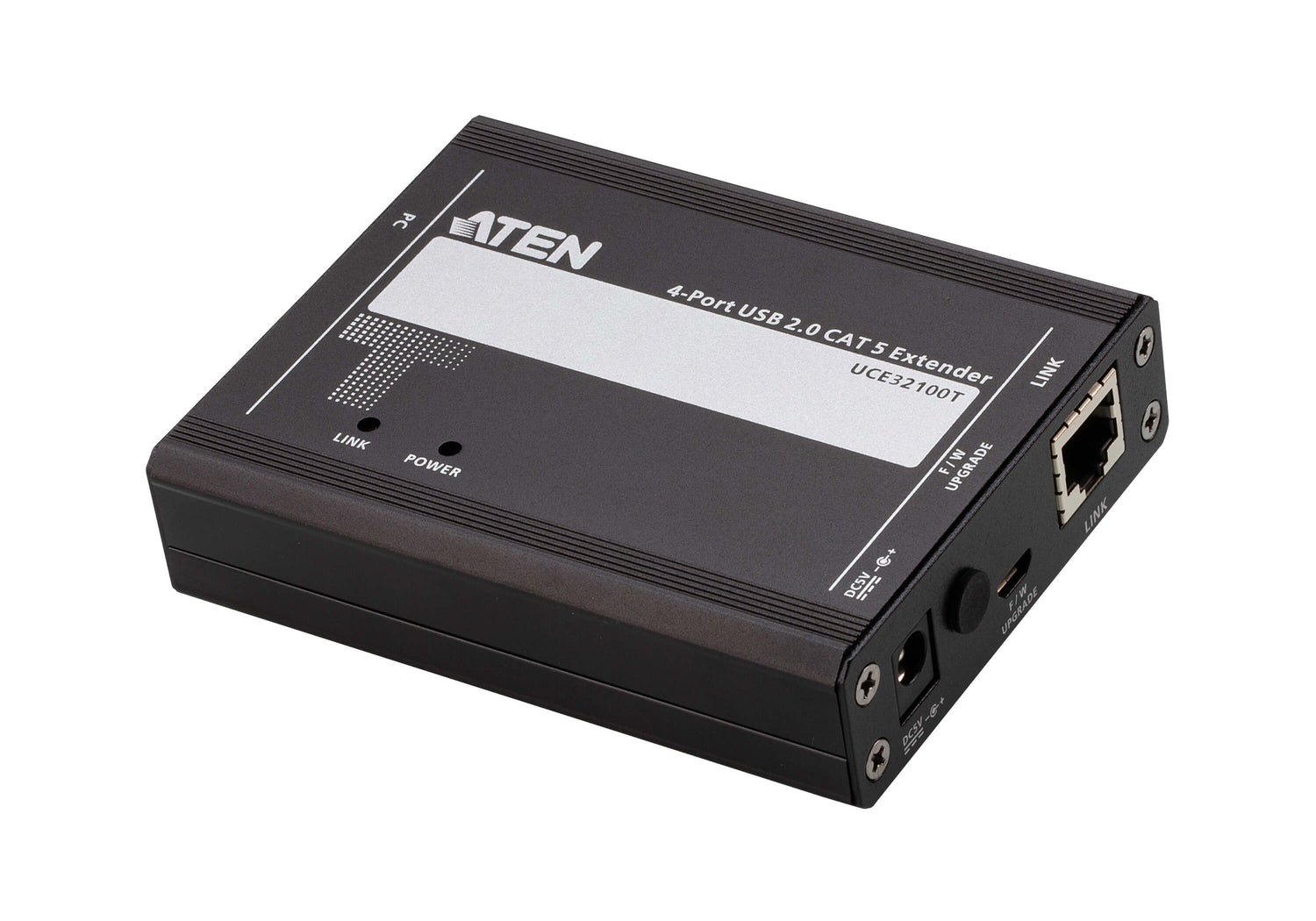

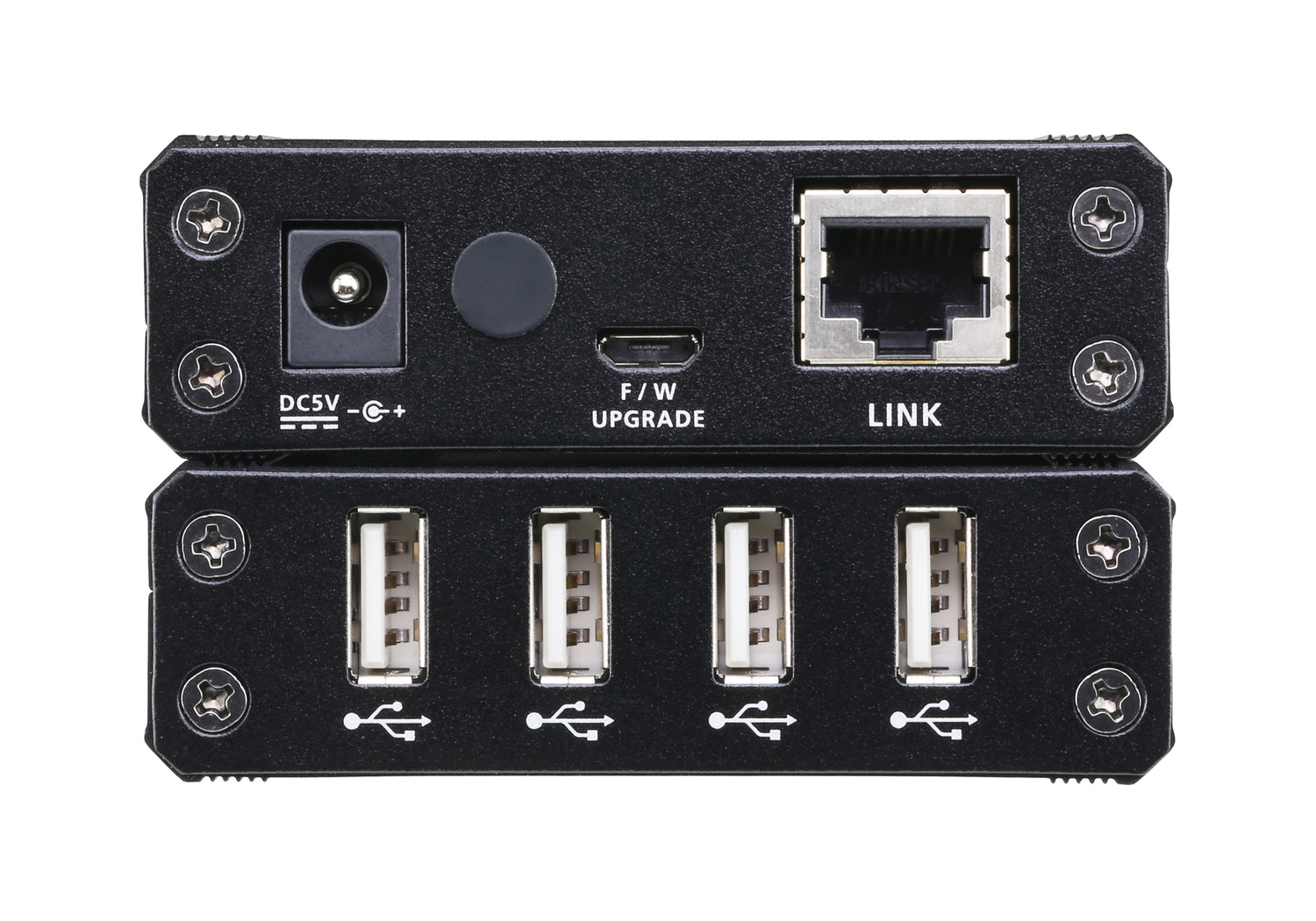

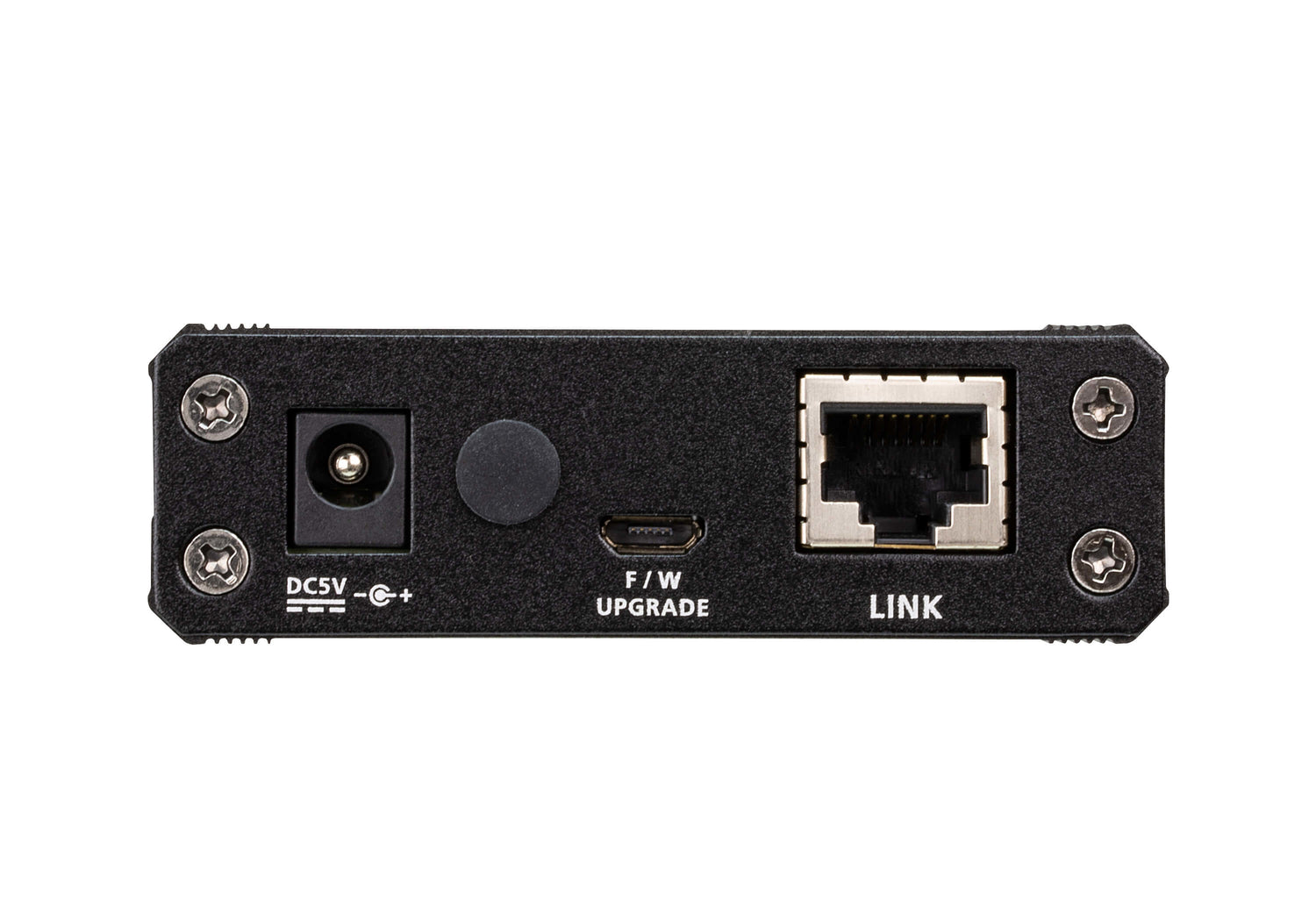

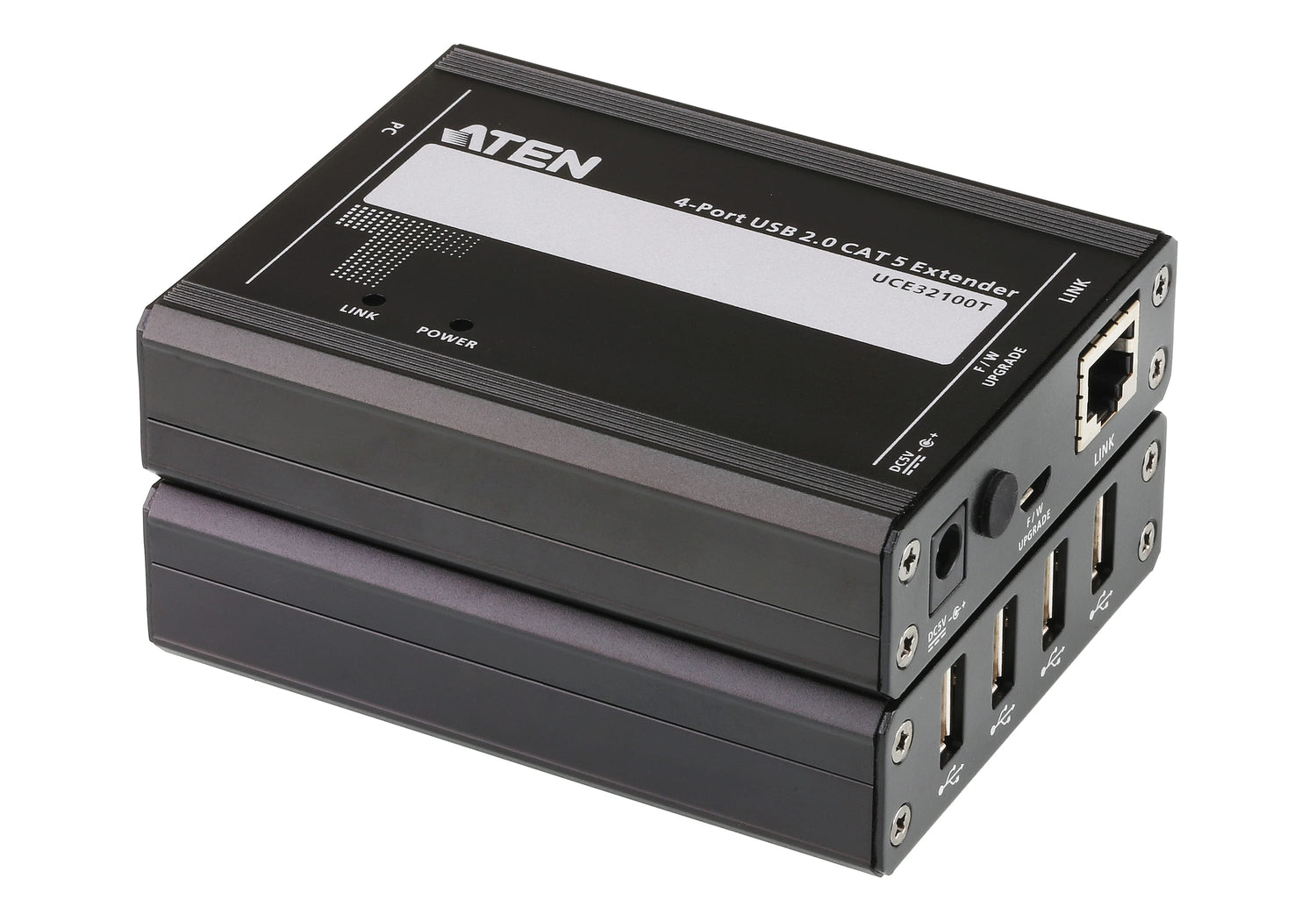

ATEN UCE32100 console extender Console transmitter & receiver 25 Mbit/s - UCE32100

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.

The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.

A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.

• True USB 2.0 transparent extension over CAT 5 cabling up to 100 meters
• Supports all USB 2.0 devices up to 480Mbps
• USB Lossless – Higher compatibility of remote USB devices
• An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub
• Power supply for remote unit to ensure power delivery to multiple devices at once
• Compact size with wall mounting and din rail included for flexible installation
• DC jack lock kit included to ensure durable power adapter connection
• Supports Windows®, OS X®, and Linux®
• Plug-and-play

Type	Console transmitter & receiver
Data transfer rate	25
Ethernet LAN	Y
Maximum transfer distance	100
Product colour	Black
Housing material	Metal
LED indicators	Y
Cable types supported	Cat5
USB 2.0 Type-A ports quantity	4
USB 2.0 Type-B ports quantity	1
RJ-45 ports quantity	1
Width	79
Depth	101.5
Height	24.4
Weight	210
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-20 - 70
Operating relative humidity (H-H)	0 - 80
Cables included	AC,USB
Mounting kit	Y
Manual	Y
AC adapter included	Y
Power source type	DC
Input voltage	5
Harmonized System (HS) code	84733020
