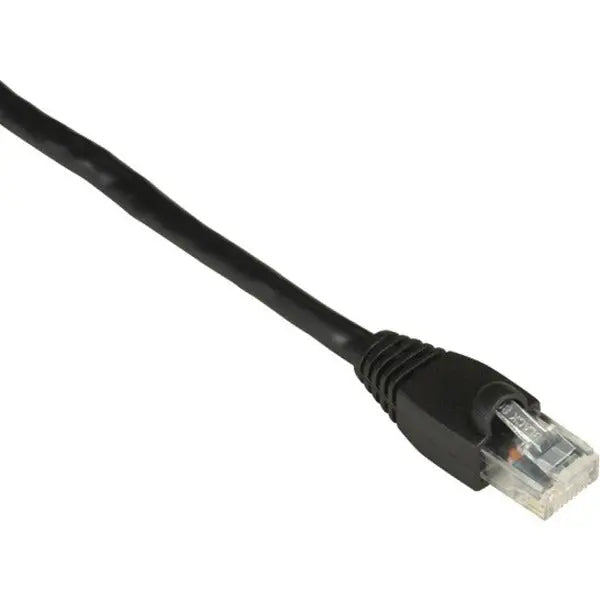

Black Box GigaTrue Cat. 6 Channel UTP Patch Cable - RJ-45 Male - RJ-45 Male - 6ft - Black - EVNSL647-0006

• Perfect for full broadband and baseband video
• Full Power Sum performance
• Provides full-duplex operation
• Meets balance requirements (LCL/LCTL)
• Improved attenuation provides cleaner data and video transmissions
• Attenuation: 23.6 dB at 100 MHz, 39.1 dB at 250 MHz
• Delay Skew (Maximum): 25 ns/100 m (328 ft.)
• Impedance: 100 ± 15 ohms at 100 MHz, 100 ± 22 ohms at 100-550 MHz
• Mutual Capacitance (Maximum): 56 pF/m
• NEXT: 45.0 dB at 100 MHz, 39.0 dB at 250 MHz
• PS-ACR: 32 dB (Typical) at 100 MHz
• PS-NEXT: 43.0 dB at 100 MHz, 37.0 dB at 250 MHz
• Resistance (Maximum): 9.09 Ohms/100 m (328 ft.)
• Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz
• Structured Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz

Applications:

• 1000BASE-T
• 100BASE-TX
• 100BASE-VG
• 155-Mbps ATM
• 100-Mbps FDDI/CDDI

GigaTrue Premium cable constructed to exceed industry standards
Cable Tested to 550 MHz, surpassing 250-MHz CAT6 standard
Cabling ETL verified to ANSI/TIA-568-C2
50-micron gold-plated contacts provide superior conductivity
Connector designed for an insertion and extraction life of 750 cycles
This cable offers superior near-end crosstalk (NEXT) compared to standard CAT6 cable
Snagless boots prevent connector damage due to snags during installation
This cable is ideal for 1000BASE-T, 100BASE-TX, 10BASE-T and other high-speed applications
