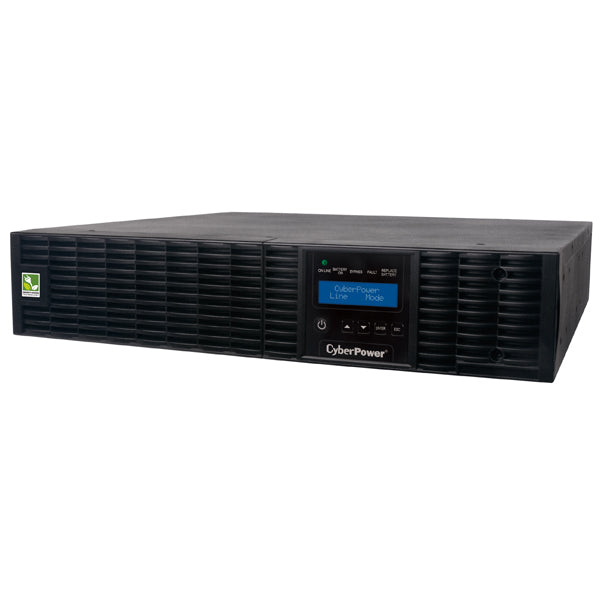

CyberPower OL1500RTXL2U uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 8 AC outlet(s) - OL1500RTXL2U

Smart App Online UPS | Network, Servers and Datacenter

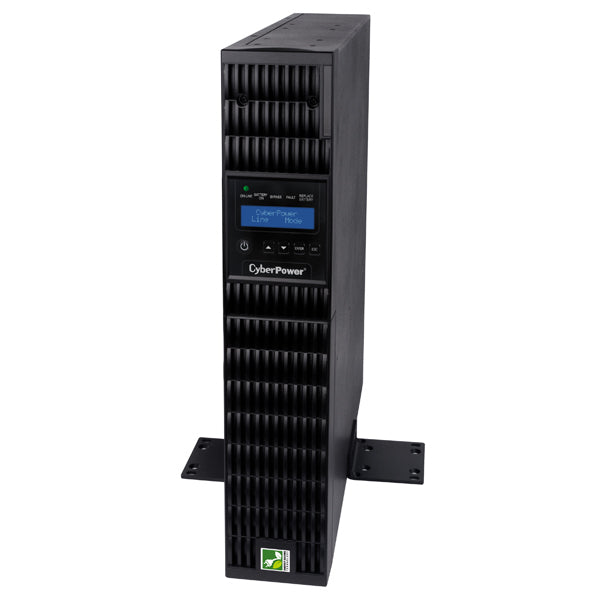

The CyberPower Smart App Online OL1500RTXL2U rack/tower uninterruptible power supply (UPS) with LCD control panel and pure sine wave output safeguards mission-critical servers, data center and telecom equipment, VoIP and internetworking hardware that require seamless power correction. Its Double-Conversion topology is generator compatible and delivers consistent and clean AC power with zero transfer time, protecting connected equipment and preventing costly business interruptions. Auto-bypass insures connected equipment continues to operate seamlessly when an overload or internal fault is detected.

Configurable GreenPower UPS™ ECO Mode improves UPS efficiency to 93% and reduces electrical and cooling costs. Smart Battery Management (SBM) uses a 3 cycle charging mode to improve battery life while reducing heat being generated.

The LCD control panel provides 43 different settings to check status and customize the operating parameters for the OL1500RTXL2U, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (19) different parameters, (23) settings for setup, control and testing of the UPS and (1) selection for event logging. With a DB26 cable (sold separately) the LCD control panel can be removed from the UPS and relocated up to 10ft. away from the UPS for ease of viewing when installed in hard to reach locations.

The UPS incorporates microprocessor-based fully digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and control. An optional SNMP/HTTP Remote Management adapter (RMCARD302) supports remote management and control of the OL1500RTXL2U through a standard web browser.

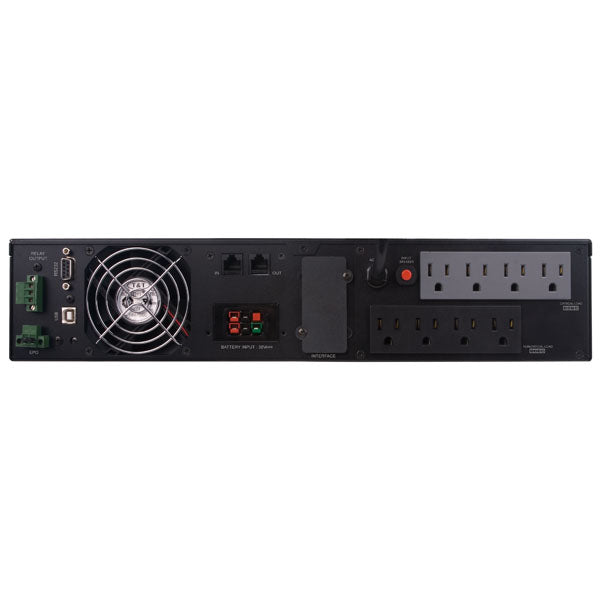

The OL1500RTXL2U unit has a capacity of 1,500VA/1,350Watts (0.9 power factor) that can be configured for an output of 100V, 110V, 115V, 120V and 125V +/- 2%. It features eight (8) outlets with NEMA 5-15R receptacles and maintenance-free, hot swappable, user-replaceable batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. Network grade surge suppression and EMI/RFI filters increase the immunity of the load to noise disturbances. The runtimes are expandable by adding a hot swappable, user replaceable BP36V60ART2U Extended Battery Module (EBM).

• Double-conversion (Online)
• 1.5 kVA 1350 W
• 8 AC outlet(s)
• Sealed Lead Acid (VRLA)
• Rackmount/Tower Black

UPS topology	Double-Conversion (Online)
Output power capacity	1.5
Output power	1350
Input operation voltage (min)	100
Input operation voltage (max)	125
Input frequency	40/70
Output operation voltage (min)	100
Output operation voltage (max)	125
Response time	0
Efficiency	93
Power factor	0.9
Crest factor	3:1
Output voltage Total Harmonic Distortion (THD)	3
EMI/RFI noise filtering	Y
Noise level	50
Surge protection	Y
Surge protection features	Network
Power protection features	Overload
AC outlet types	NEMA 5–15R
Power plug	NEMA 1-15P
AC outlets quantity	8
USB 2.0 ports quantity	1
Serial ports quantity	1
Modem (RJ-11) ports	2
Ethernet LAN (RJ-45) ports	2
Battery technology	Sealed Lead Acid (VRLA)
Number of battery cells	3
Typical backup time at full load	3
Typical backup time at half load	9
Battery recharge time	5
Replacement battery cartridge	RB1290X3
Form factor	Rackmount/Tower
Product colour	Black
Housing material	Steel
Rack capacity	2U
Cable length	3.05
Display type	LCD
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-15 - 45
Operating relative humidity (H-H)	0 - 90
Non-operating altitude	0 - 15000
Compliance certificates	RoHS
Certification	UL1778, CSA C22.2 NO.107.3-05, FCC DOC A
Width	433
Depth	430
Height	88
Weight	18000
Package weight	24400
Battery type	12V/9Ah
Package dimensions (WxDxH)	550 x 590 x 240
