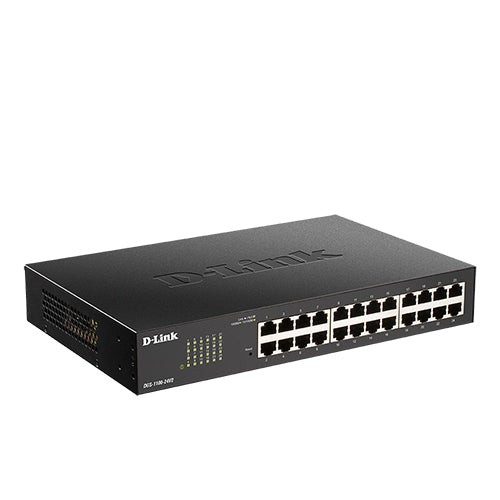

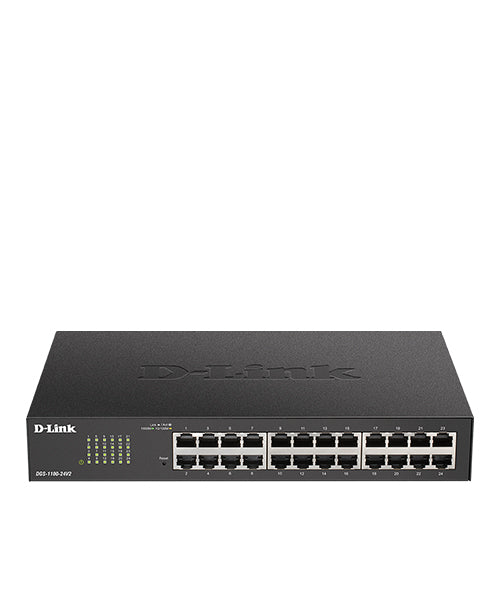

D-Link 24-Port Gigabit Smart Managed Switch - DGS-1100-24V2

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

• 24 x 10/100/1000BASE-T ports
• Fanless design for silent operation
• Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
• Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
• Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
• IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
• Innovative energy saving features are good for your budget, as well as the environment
• Get up and going quickly with streamlined first-time setup and ongoing management

Switch type	Managed
Switch layer	L2
Web-based management	Y
System event log	Y
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Networking standards	IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x
Port mirroring	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Rate limiting	Y
Auto MDI/MDI-X	Y
Spanning tree protocol	Y
Head-of-line (HOL) blocking	Y
VLAN support	Y
Virtual LAN features	Port-based VLAN,Voice VLAN
Number of VLANs	4094
MAC address table	8000
Switching capacity	48
Forwarding rate	35.71
Store-and-forward	Y
Number of queues	4
Jumbo frames support	Y
Jumbo frames	9216
Packet buffer memory	4.1
DHCP features	DHCP client
IGMP snooping	Y
IGMP entries	64
Security algorithms	SNMP,SSL/TLS
Queue scheduling algorithms	SPQ,Weighted Round Robin (WRR)
Multicast support	Y
Rack mounting	Y
Form factor	1U
Product colour	Black
LED indicators	Y
Electromagnetic compatibility	FCC A, CE A, VCCI A, C-Tick, BSMI, CCC
Built-in processor	Y
Processor frequency	125
Flash memory	16
Noise level	0
Mean time between failures (MTBF)	424762
AC input voltage	100 - 240
AC input frequency	50 - 60
Power consumption (typical)	4.5
Power consumption (max)	15.9
Power over Ethernet (PoE)	N
Operating temperature (T-T)	-5 - 50
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	0 - 95
Storage relative humidity (H-H)	0 - 95
Operating altitude	0 - 2000
Heat dissipation	54.3
Width	280
Depth	180
Height	44
Weight	1470
Rack mount kit	Y
Certification	RoHS 6 cUL, CE LVD, CB, BSMI, CCC
Harmonized System (HS) code	85176990
