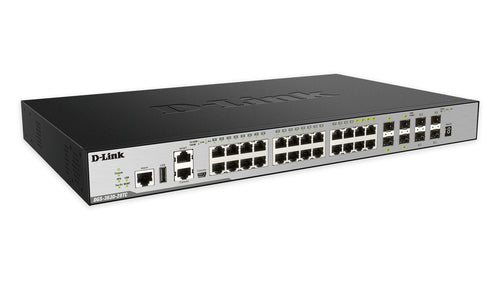

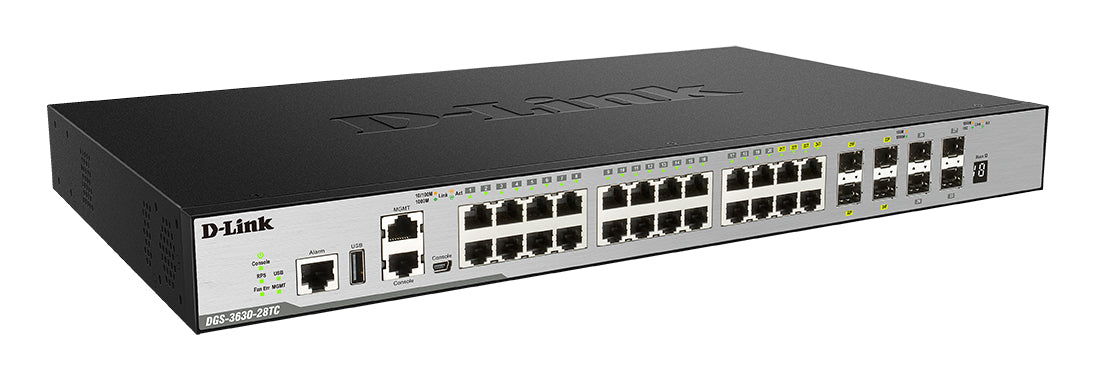

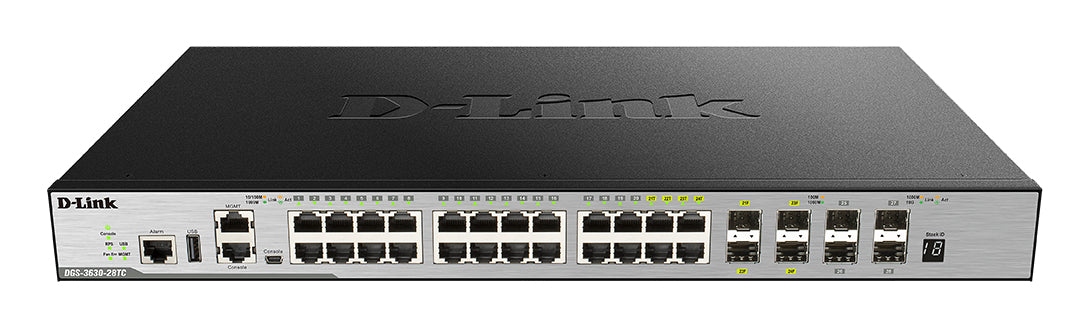

D-Link 24-Port L3 Stackable Managed Gigabit Switch including 4 x 1000BaseT/SFP & 4 x 10GE SFP+ - DGS-3630-28TC/SI

The DGS-3630 Series Gigabit L3 Stackable Managed Switches are a range of switches designed for Small to Medium Businesses (SMBs), Small to Medium Enterprises (SMEs), enterprises and ISPs. With Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches.

Stackable Managed Switches
- Designed for Small to Medium Businesses, Enterprises and ISPs
- Deliver high performance, flexibility, fault tolerance, and advanced software features
- Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches
- High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications
- DGS-3630-28PC and DGS-3630-52PC feature Power over Ethernet, which allows PoE-powered devices to be powered by the switch through a standard Ethernet cable.

Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.

Versatile Management

The DGS-3630 Series provides:

- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface

Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.

A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.

High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.

Scale your network using just a stacking cable and without the need for stacking modules.

Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.

Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.

The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.

• Managed L3 Web-based management SNMP, NTPv3/v4, Telnet
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 20 Console port: RJ-45/Mini-USB
• 10G support 10BASE-T, 100BASE-TX, 1000BASE-T
• MAC address table: 68000 entries Switching capacity: 128 Gbit/s
• Access Control List (ACL)
• 1U Rack mounting Stackable
• AC Power supply included

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Y
Web-based management	Y
Traffic classification	Y
ARP inspection	Y
System event log	Y
Basic switching RJ-45 Ethernet ports quantity	20
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	20
Combo SFP ports quantity	4
SFP+ module slots quantity	4
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1
Power connector	AC-in jack
Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1Qbb,IEEE 802.1ag,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ah,IEEE 802.3x,IEEE 802.3z
10G support	Y
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Port mirroring	Y
Full duplex	Y
Routing entries	16000
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Spanning tree protocol	Y
Ethernet Ring Protection Switching (ERPS)	Y
VLAN support	Y
Virtual LAN features	IP subnet–based VLAN,MAC address-based VLAN,MVRP,Multicast VLAN,Port-based VLAN,Private VLAN,Protocol-based VLAN,Stacked VLAN,Tagged VLAN,Voice VLAN
Number of VLANs	4094
MAC address table	68000
Switching capacity	128
Forwarding rate	95.24
Number of queues	8
Static route	Y
Number of static routes	512
Number of IP interfaces	256
Jumbo frames support	Y
Jumbo frames	12000
Packet buffer memory	4
DHCP features	DHCP auto-config,DHCP client,DHCP guarding,DHCP relay,DHCP server,DHCP snooping
Access Control List (ACL)	Y
IGMP snooping	Y
Security algorithms	802.1x RADIUS,SSH,SSH-2,SSL/TLS
MAC address filtering	Y
SSH/SSL support	Y
Loop protection	Y
BPDU filtering/protection	Y
Authentication	Guest VLAN,Port-based authentication
Root protection	Y
Authentication type	IEEE 802.1x
Queue scheduling algorithms	SP,WRR+SP,Weighted Round Robin (WRR),Weighted random early detection (WRED)
Multicast support	Y
Multicast Listener Discovery (MLD) snooping	Y
Management protocols	SNMP, NTPv3/v4, Telnet
Routing protocols	BGP4,OSPFv3,RIP,RIP-1,RIP-2,RIPng,VRRP
IP Source Guard (IPSG)	Y
Rack mounting	Y
Stackable	Y
Form factor	1U
Product colour	Black
LED indicators	Y
Number of fans	2
Safety	cUL, CB, CE, CCC, BSM
Electromagnetic compatibility	CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
Virtual stacking (units)	32
Noise level	52.7
Dying Gasp	Y
Mean time between failures (MTBF)	300190.46
Power source	AC
Power supply included	Y
Redundant power supply (RPS) support	Y
Number of power supply units	1
AC input voltage	100 - 240
AC input frequency	50 - 60
Power consumption (max)	42.4
Surge protection	Y
Surge protection voltage	6
Power over Ethernet (PoE)	N
Operating temperature (T-T)	-5 - 50
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 95
Storage relative humidity (H-H)	5 - 95
Heat dissipation	144.58
Width	441
Depth	259.8
Height	44
Weight	3740
Package width	415
Package depth	528
Package height	91
Package weight	5327.2
Shipping (inner) case height	450
Shipping (inner) case width	296
Shipping (inner) case length	549
Shipping (inner) case net weight	14100
Products per shipping (inner) case	3
Pallet gross weight (air)	562820
Master (outer) cases per pallet (air)	32
Products per pallet (air)	96
Pallet gross length	1100
Pallet gross width	1200
Pallet height (air)	1935
Pallet gross weight (sea)	562820
Master (outer) cases per pallet (sea)	32
Products per pallet (sea)	96
Pallet height (sea)	1935
Shipping (inner) case gross weight	17010
Compliance certificates	BSMI,CCC,CE,Federal Communications Commission (FCC),RoHS,VCCI
Harmonized System (HS) code	85176990
