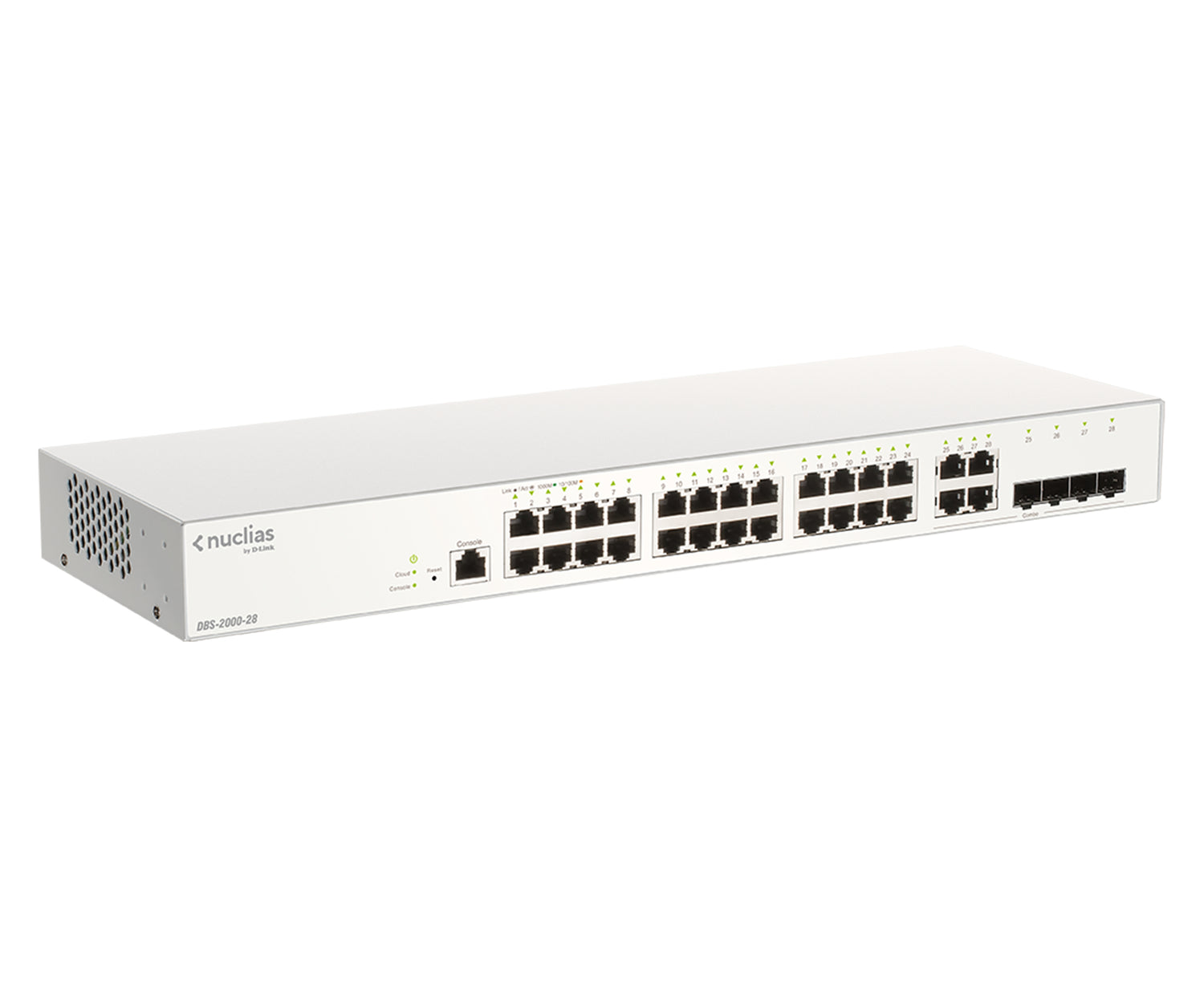

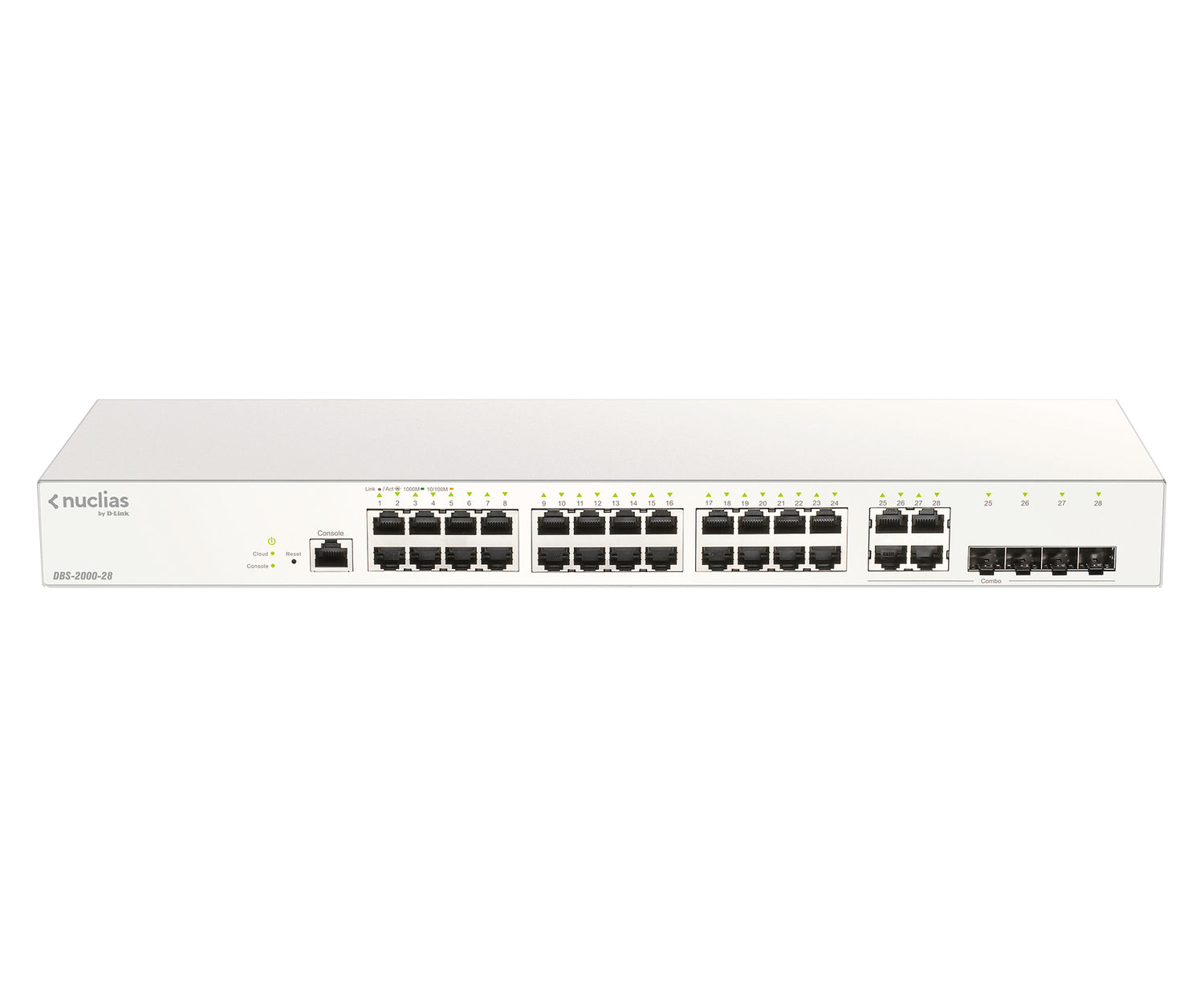

D-Link 28-Port Gigabit Nuclias Smart Managed Switch including 4x 1G Combo Ports - DBS-2000-28

Cloud Networking, Refreshed
The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.

Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.

Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.

Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.

• 24 x 10/100/1000BASE-T ports
• 4 x 10/100/1000BASE-T ports
• Zero-Touch Deployment
• Cloud Management w/99.9% SLA
• WPA/WPA2/WPA3 Encryption
• Innovative D-Link Green Energy-saving features
• Intuitive Web Portal for comprehensive switch management
• Multilingual Support

Switch type	Managed
Switch layer	L2
Web-based management	Y
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4
Console port	RJ-45
Networking standards	IEEE 802.3ad
10G support	N
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Link aggregation	Y
Auto MDI/MDI-X	Y
Spanning tree protocol	Y
Switching capacity	56
Forwarding rate	41.7
Packet buffer memory	4.1
IGMP snooping	Y
Security algorithms	WPA,WPA2
Rack mounting	Y
Product colour	Grey
LED indicators	Y
Number of fans	0
Built-in processor	Y
Processor frequency	500
Memory type	DDR3-SDRAM
Internal memory	256
Flash memory	32
Mean time between failures (MTBF)	992594
AC input voltage	100 - 240
Power consumption (max)	17.32
Power over Ethernet (PoE)	N
Operating temperature (T-T)	-5 - 50
Storage temperature (T-T)	-20 - 70
Operating relative humidity (H-H)	0 - 95
Storage relative humidity (H-H)	0 - 95
Operating altitude	0 - 1500
Heat dissipation	59.09
Width	440
Depth	140
Height	44
Weight	2150
Package width	250
Package depth	492
Package height	72
Package weight	3107
Shipping (inner) case height	292
Shipping (inner) case width	381
Shipping (inner) case length	510
Shipping (inner) case net weight	15535
Products per shipping (inner) case	5
Pallet gross weight (air)	413340
Master (outer) cases per pallet (air)	24
Products per pallet (air)	120
Pallet gross length	1100
Pallet gross width	1200
Pallet height (air)	1318
Pallet gross weight (sea)	610760
Master (outer) cases per pallet (sea)	36
Products per pallet (sea)	180
Pallet height (sea)	1902
Shipping (inner) case gross weight	16410
Harmonized System (HS) code	85176990
