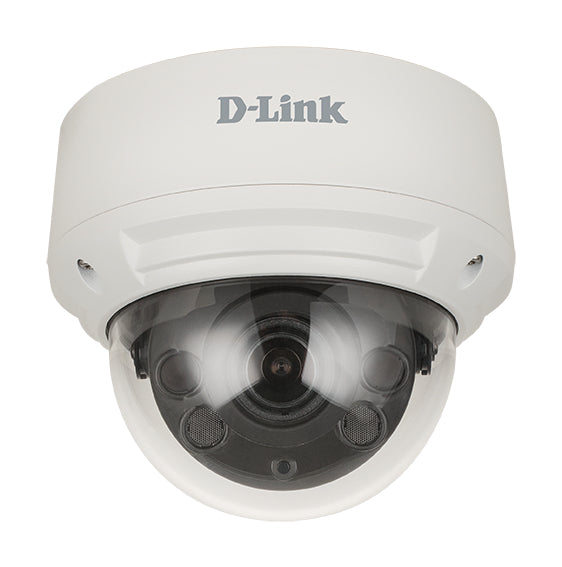

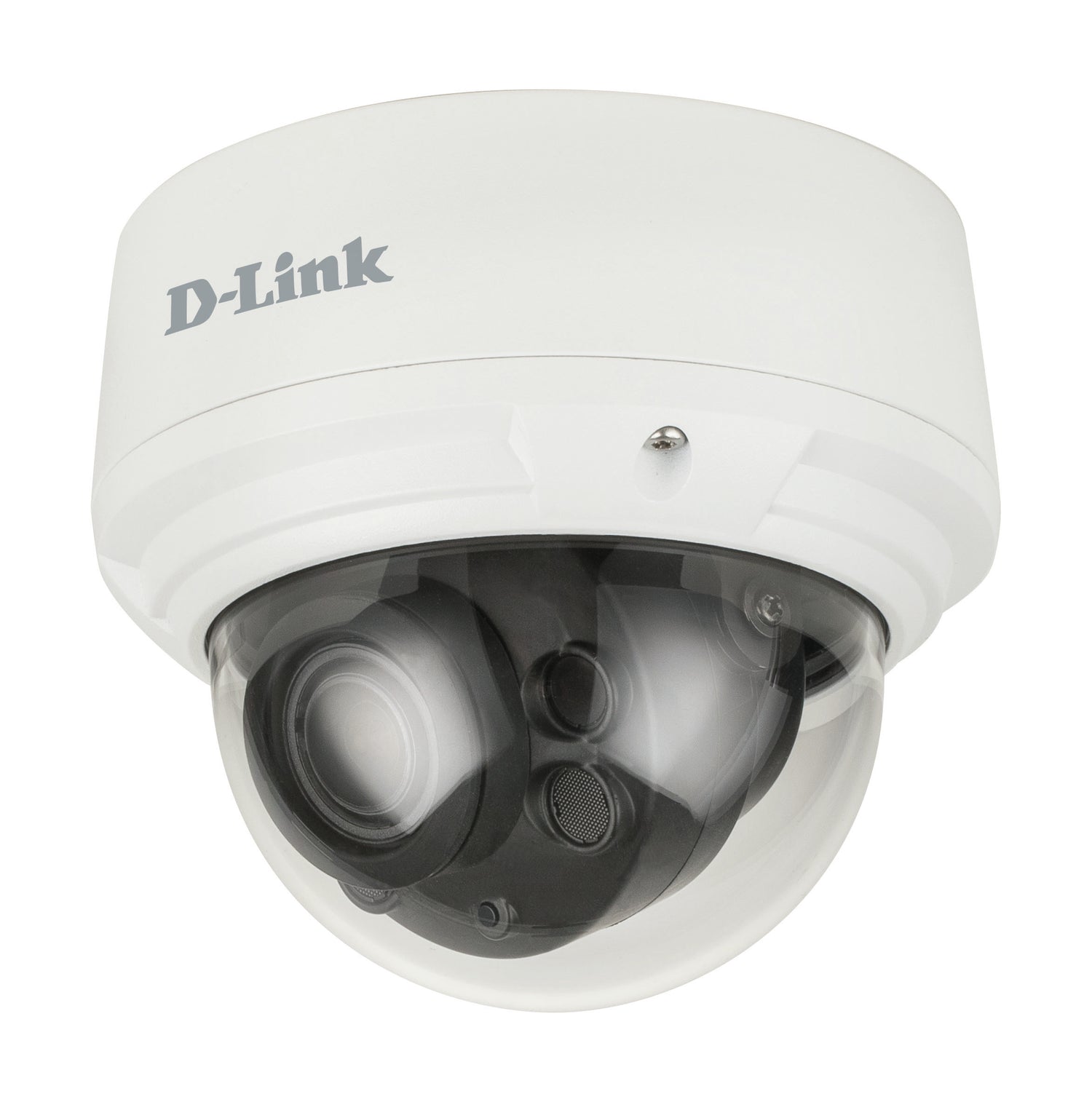

D-Link 8 Megapixel H.265 Outdoor Dome Camera DCS‑4618EK - DCS-4618EK

Professional Surveillance in Vandal‑proof 4K Ultra High Definition
An 8 Megapixel lens and state-of-the-art image enhancement features, packed into a secure and compact form factor that’s ready to face the outdoors.

4K Ultra HD Resolution
8-megapixel sensor with 4K Ultra HD resolution up to 3840 x 2160 for detailed footage

Vandal-proof
IK10-rated housing for protection against physical impacts

Weather-Resistant
IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 °C

Day & night surveillance
Built-in IR LED illuminators with 30-meter range for pitch-black areas

PoE Capable
Supports 802.3af PoE for flexible and simple installation

Storage options
Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or NAS

Wide Dynamic Range with LowLight+
Improved image quality in high-contrast conditions with WDR & optimised for low-light environments

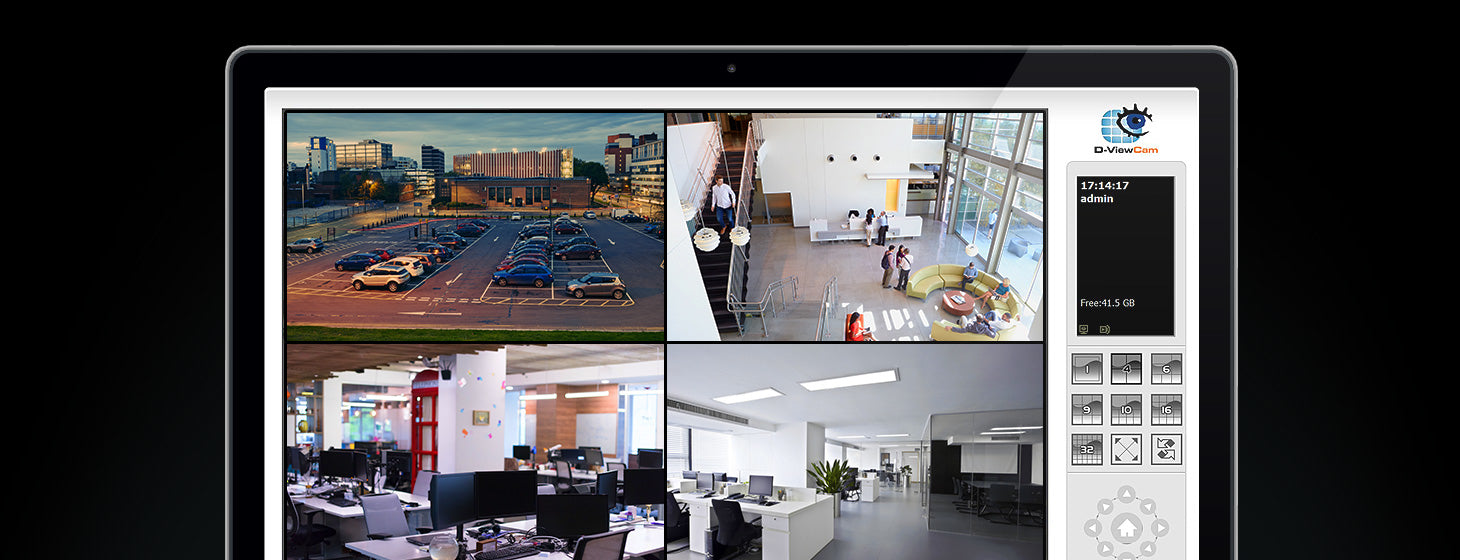

Free Video Management Software
Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive

High quality videos, whatever the lighting
Video resolutions of up to 3840 x 2160 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions. The DCS-4618EK offers unbelievable flexibility to be manually angled to provide surveillance where you need it the most.

Viewing Angles
(H) 108.6° - 35°
(V) 56° - 21°
(D) 125° - 42°

High Quality Lens
Motorised varifocal 3.3 - 12 mm lens with an F1.4 aperture

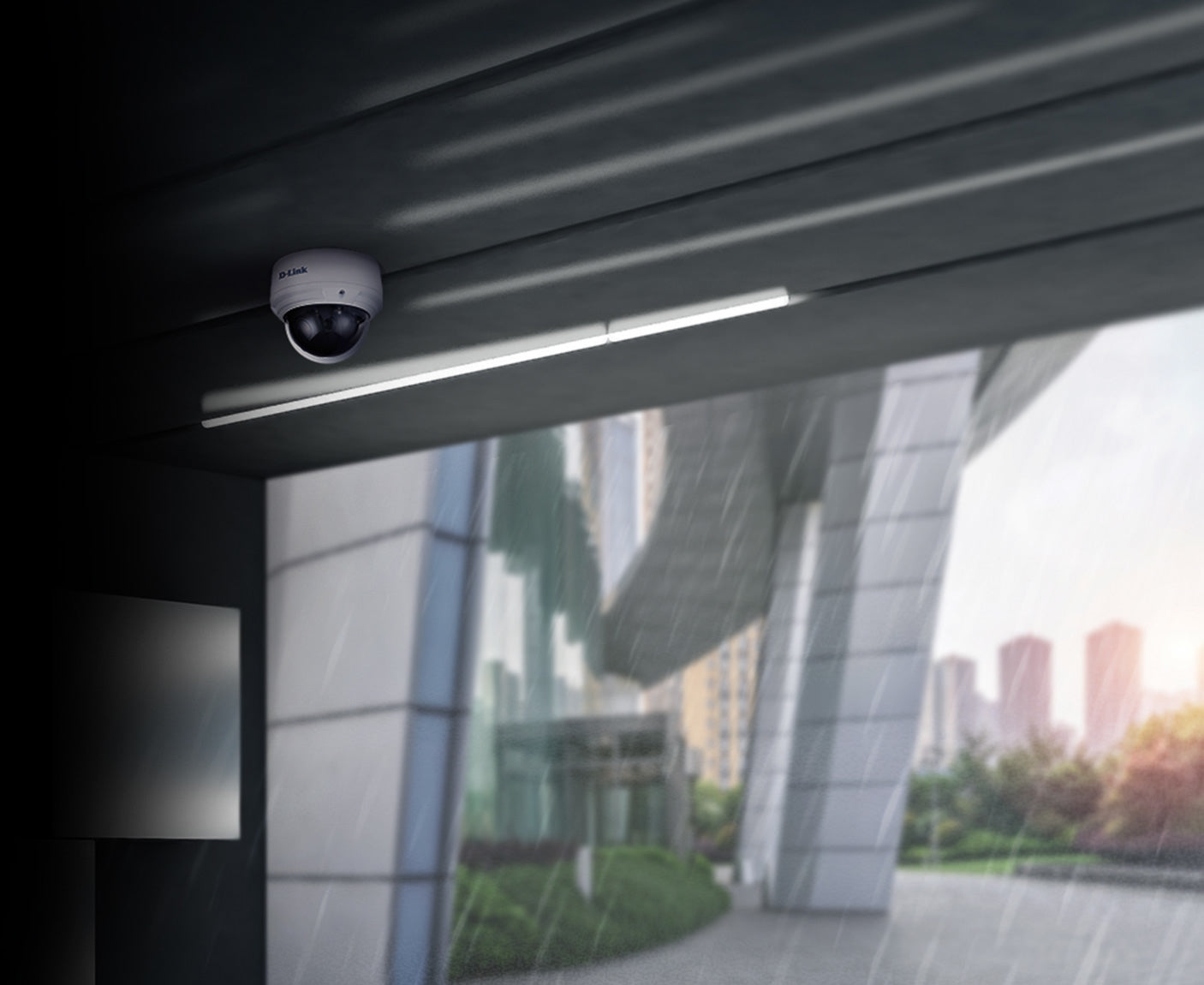

Versatile Monitoring in All Environments
IP66 certification ensures the camera is completely protected from dust and water in any environment and the IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.

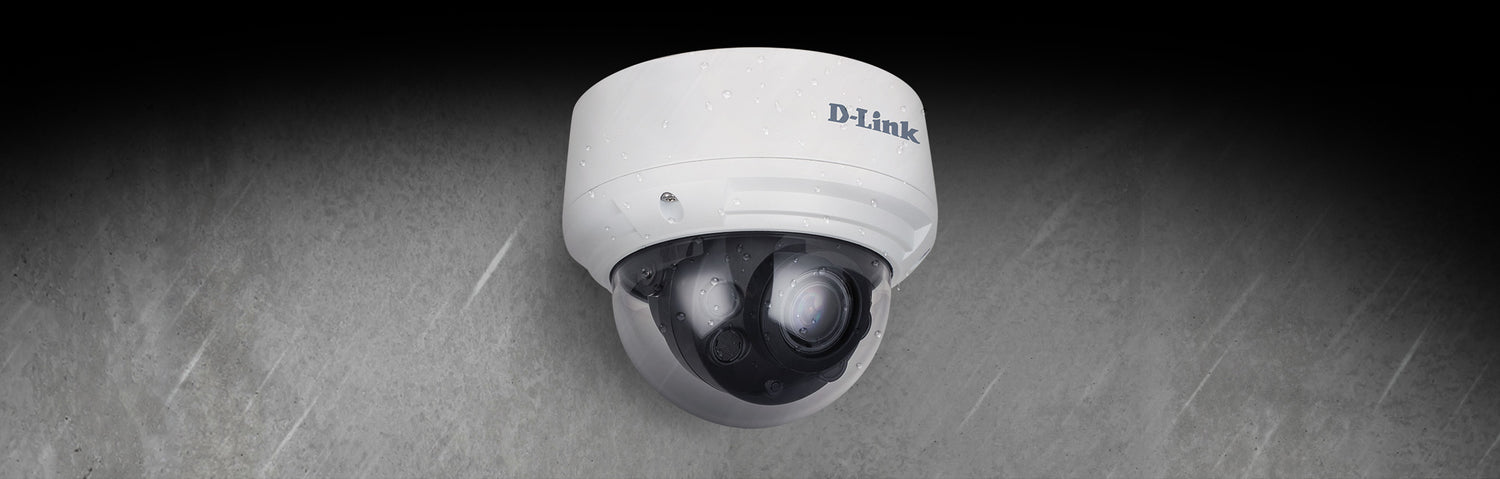

Weather resistant
Withstands rain and moisture with a wide operating temperature range of -30°C to 50°C.

Vandal‑proof
The IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.

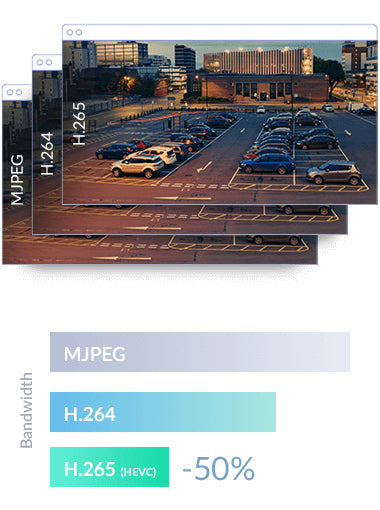

Optimising Bandwidth and Storage
To maximise bandwidth efficiency and improve image quality, the DCS-4618EK provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting three separate profiles for simultaneous video streaming and recording.

Flexible Connectivity
Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single standard network cable.

Optional recording to an NVR, VMS or NAS system
Support for ONVIF Profile S lets you easily record video streams to your ONVIF compliant NVR, VMS or NAS system for centralized viewing or continuous, 24/7 recording.

• 4K Ultra HD 8-megapixel sensor
• Vandal-proof IK10-housing
• IP66 Weather-Resistant
• Motorised varifocal lens
• 30m Night Vision with WDR & LowLight+
• PoE for easy installation
• Easy remote management with D-ViewCam

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Y
Wide Dynamic Range (WDR)	Y
Day/night mode	Y
Infrared (IR) cut-off filter	Y
Certification	CE, FCC, RCM
Mounting type	Ceiling
Product colour	White
Form factor	Dome
Protection features	Vandal proof
International Protection (IP) code	IP66
IK code	IK10
Camera pan control	Y
Camera tilt control	Y
Minimum illumination	0

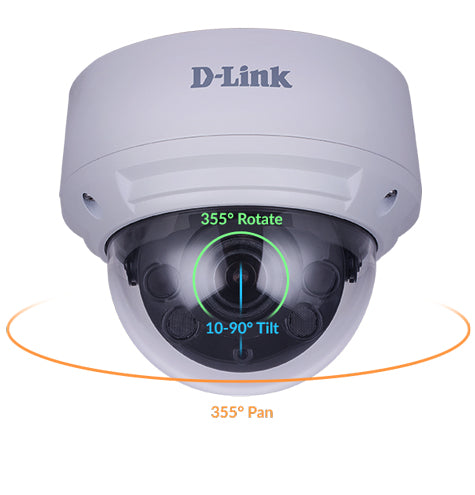

Angle of rotation	355
Lens viewing angle, horizontal	108.6
Lens viewing angle, vertical	56
Lens viewing angle, diagonal	125
Tilt angle range	10 - 90
Pan range	0 - 355
White balance	Auto
Camera shutter type	Electronic
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.5
Digital zoom	18
Focal length range	3.3 - 12
Maximum aperture number	1.4
Closest focusing distance	0.5
Night vision	Y
Night vision distance	30
LED type	IR
Maximum resolution	3840 x 2160
Total megapixels	8
Video compression formats	H.264,H.265,M-JPEG
Video recording	Y
Frame rate	20
Noise reduction	Y
Noise reduction technology	3D noise reduction
Gain control type	Auto
Privacy masking	Y
Ethernet LAN	Y
Wi-Fi	N
Bluetooth	N
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, HTTP/HTTPS,RTSP/RTP/RTCP, TCP, UDP, DHCP, DNS, DDNS, NTP, FTP, SMTP, Client, ONVIF Profile S compliant, ARP, ICMP, PPPoE, SNMP v1/v2c/v3
Built-in HDD	N
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash),SDHC,SDXC
Maximum memory card size	256
Ethernet LAN (RJ-45) ports	1
Video motion detection	Y
Alert notification type	E-mail,Snapshot alert message
Motion sensor	Y
Web-based management	Y
Firmware upgradeable	Y
Reset button	Y
Power source type	AC,DC,PoE
AC input voltage	100 - 240
AC input frequency	50 - 60
Power consumption (max)	8
DC output voltage	12
DC output current	1.5
Operating temperature (T-T)	-30 - 50
Storage temperature (T-T)	-20 - 70
Operating relative humidity (H-H)	0 - 90
Storage relative humidity (H-H)	0 - 90
Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64
Width	130
Depth	130
Height	112
Weight	750
Number of cameras	1
Harmonized System (HS) code	85258900
