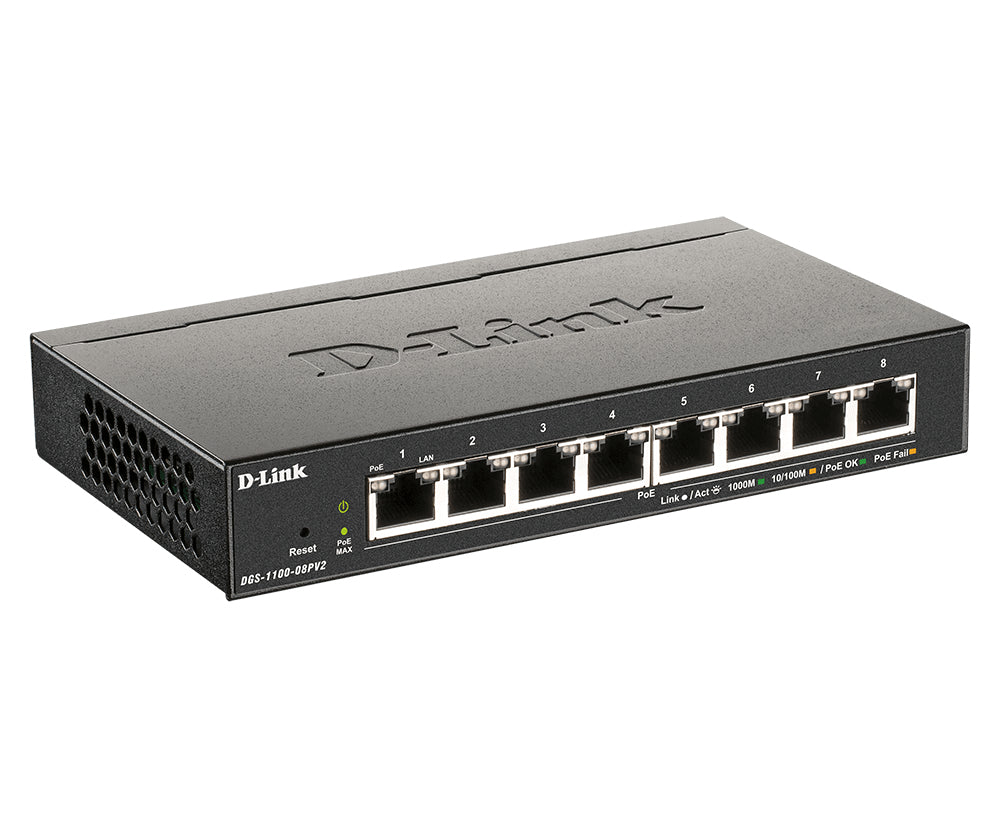

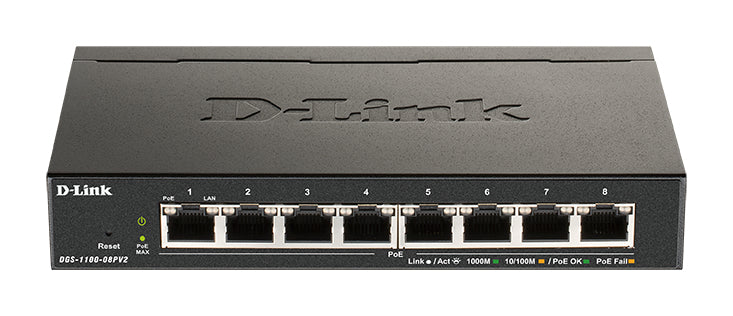

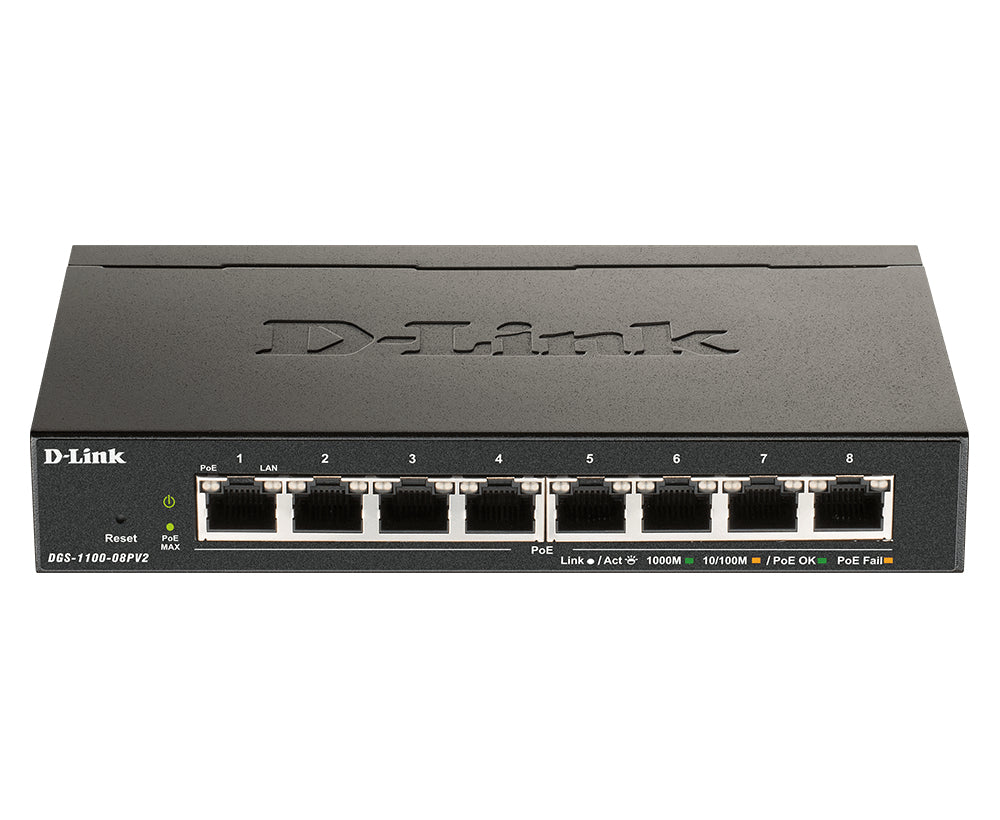

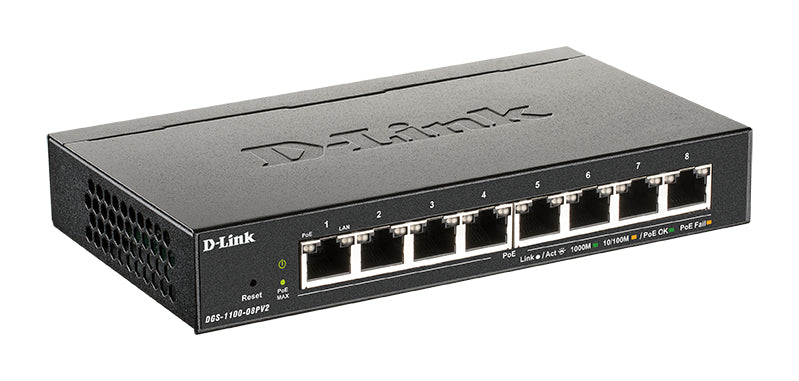

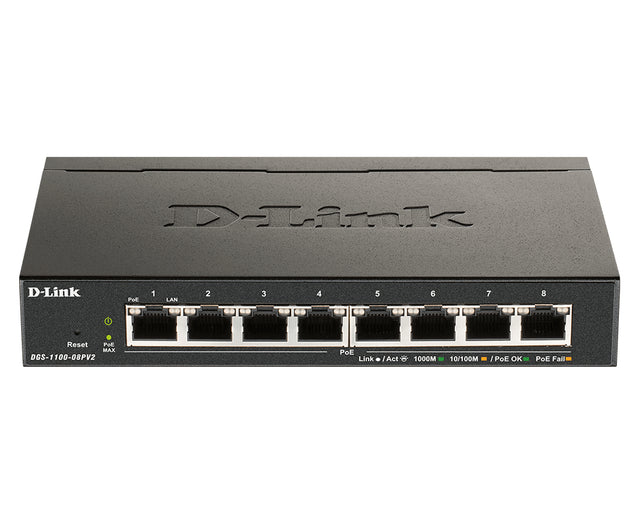

D-Link 8-Port PoE Gigabit Smart Managed Switch - DGS-1100-08PV2

Powerful and flexible networking solution for small, medium, and enterprise businesses.

Simple. Easy. Smart

WebUI Web UI

Easy to use web interface to access management features.

Static Routing VLANs

Segment your network into VLANs.

Surveillance mode Surveillance Mode Interface

Get a snapshot of your security topology in an instant.

Advanced Security Features

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

Simplify Network Management

D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

Full PoE Support

The DGS-1100-08PV2 supports IEEE 802.3af/at Power over Ethernet on all eight copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet. Each individual port has capacity to support up to 30W of PoE power, while the switch has an overall budget of 64W.

Easy Troubleshooting

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.

• 8 x 10/100/1000BASE-T PoE ports
• Supports IEEE 802.3at PoE
• 64W PoE power budget
• Compact design for convenient placement
• Fanless design for silent operation
• Innovative D-Link Green energy saving features
• Complete web interface for comprehensive switch management

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Y
Web-based management	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	8
Networking standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u
10G support	N
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Port mirroring	Y
Full duplex	Y
Half duplex	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Auto MDI/MDI-X	Y
Ethernet LAN data rates	10,100,1000
VLAN support	Y
Virtual LAN features	Port-based VLAN,Tagged VLAN,Voice VLAN
Number of VLANs	4094
MAC address table	4096
Switching capacity	16
Forwarding rate	11.9
Number of queues	4
Jumbo frames support	Y
Jumbo frames	9216
IGMP snooping	Y
Loop protection	Y
Queue scheduling algorithms	SP,Weighted Round Robin (WRR)
Multicast support	Y
Rack mounting	N
Product colour	Black
LED indicators	Y
Flash memory	2
Fanless	Y
Mean time between failures (MTBF)	786841
Power supply included	Y
AC input voltage	100 - 240
AC input frequency	50 - 60
Power consumption (max)	77.9
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30
Total Power over Ethernet (PoE) budget	64
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	0 - 90
Storage relative humidity (H-H)	0 - 95
Heat dissipation	265.85
Width	171
Depth	97.8
Height	28.6
Weight	430
Compliance certificates	CE,RoHS
Certification	FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI
Harmonized System (HS) code	85176990
Sustainability compliance	Y
