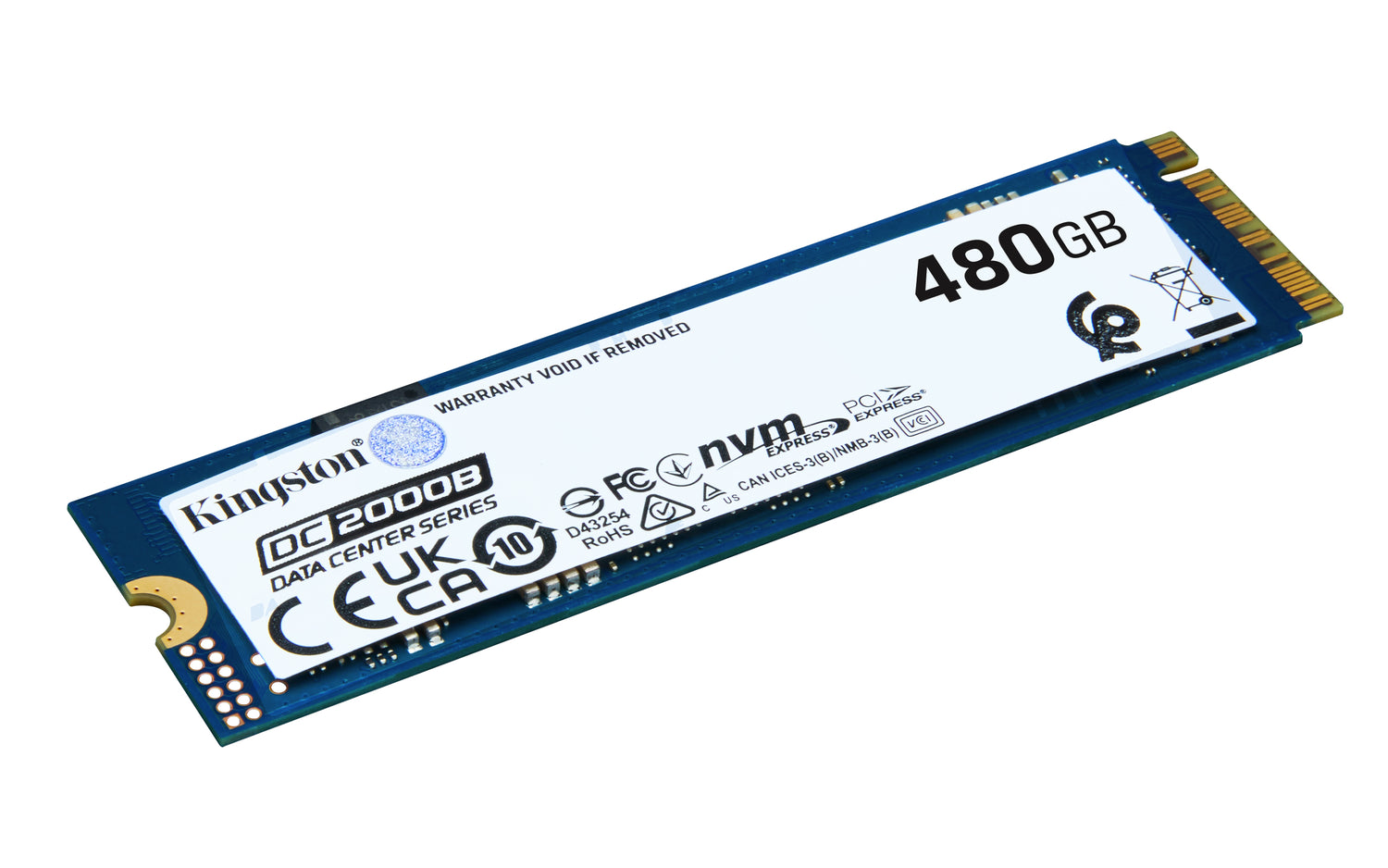

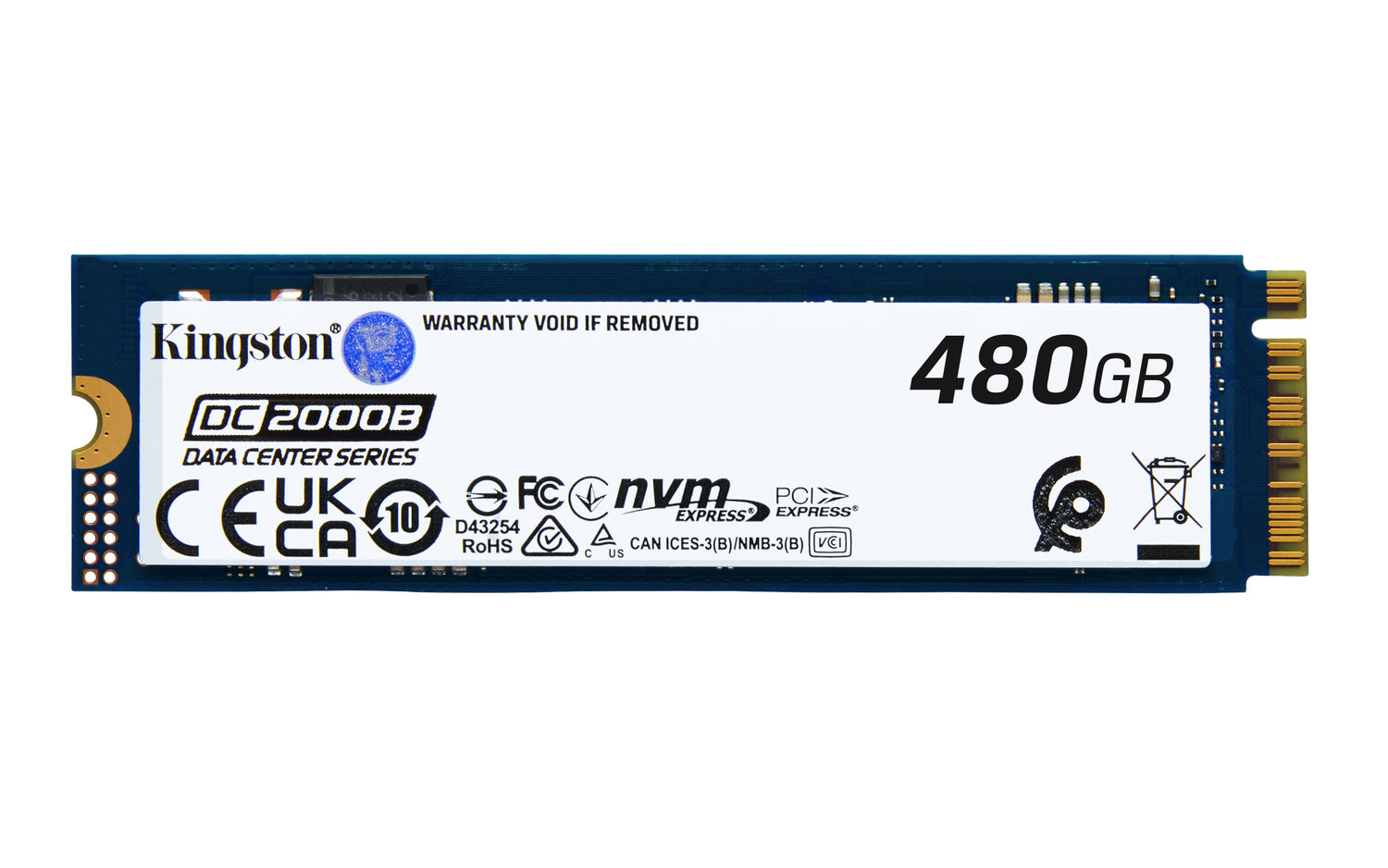

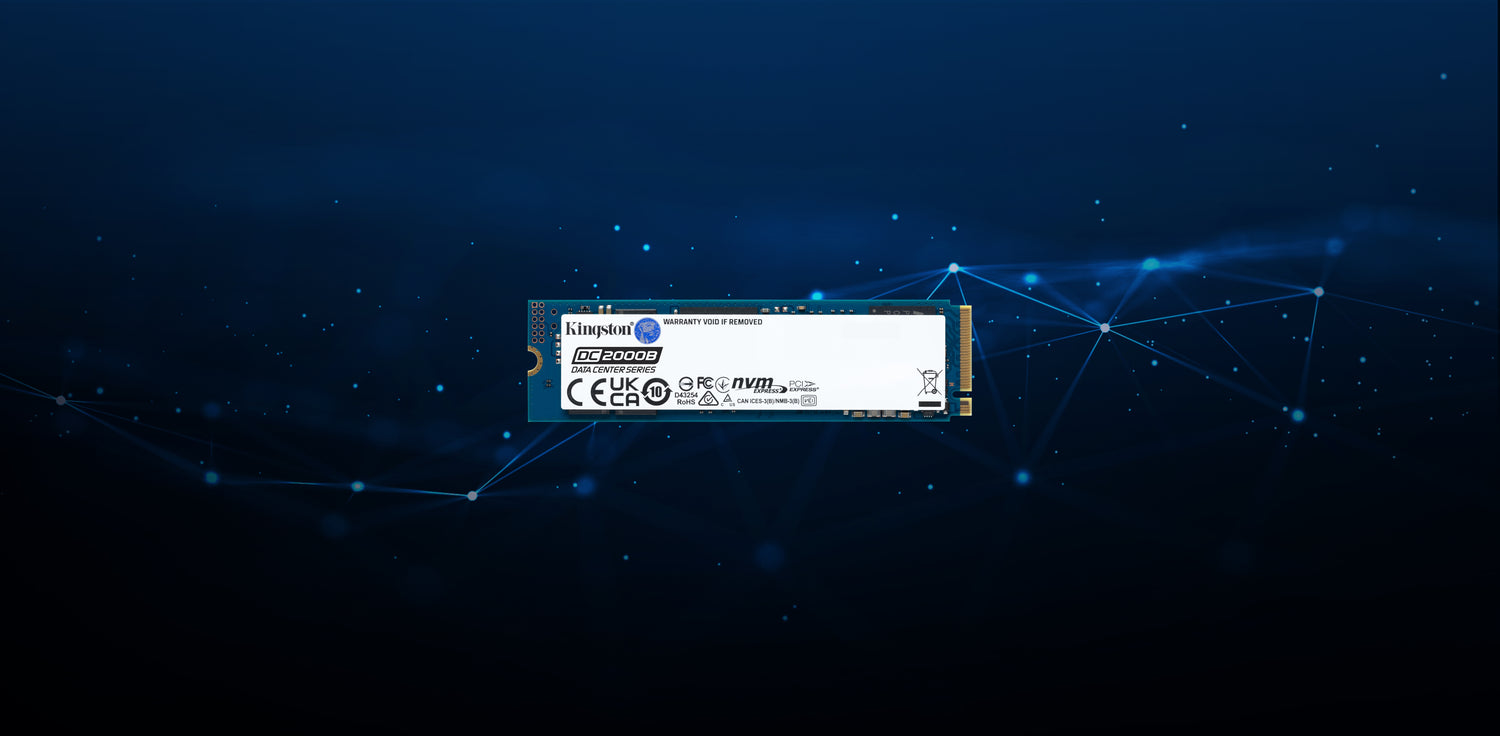

Kingston Technology 480G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD - SEDC2000BM8/480G

Enterprise class for server applications
Kingston’s DC2000B SSD is a high-performance boot drive designed for data centers using the latest Gen 4x4 PCIe interface with 3D TLC NAND. With low latency, IOPS consistency and hardware-based power loss protection, it ensures reliability and efficiency. Available in capacities of up to 960GB, it's ideal for enterprise server boot and caching applications.

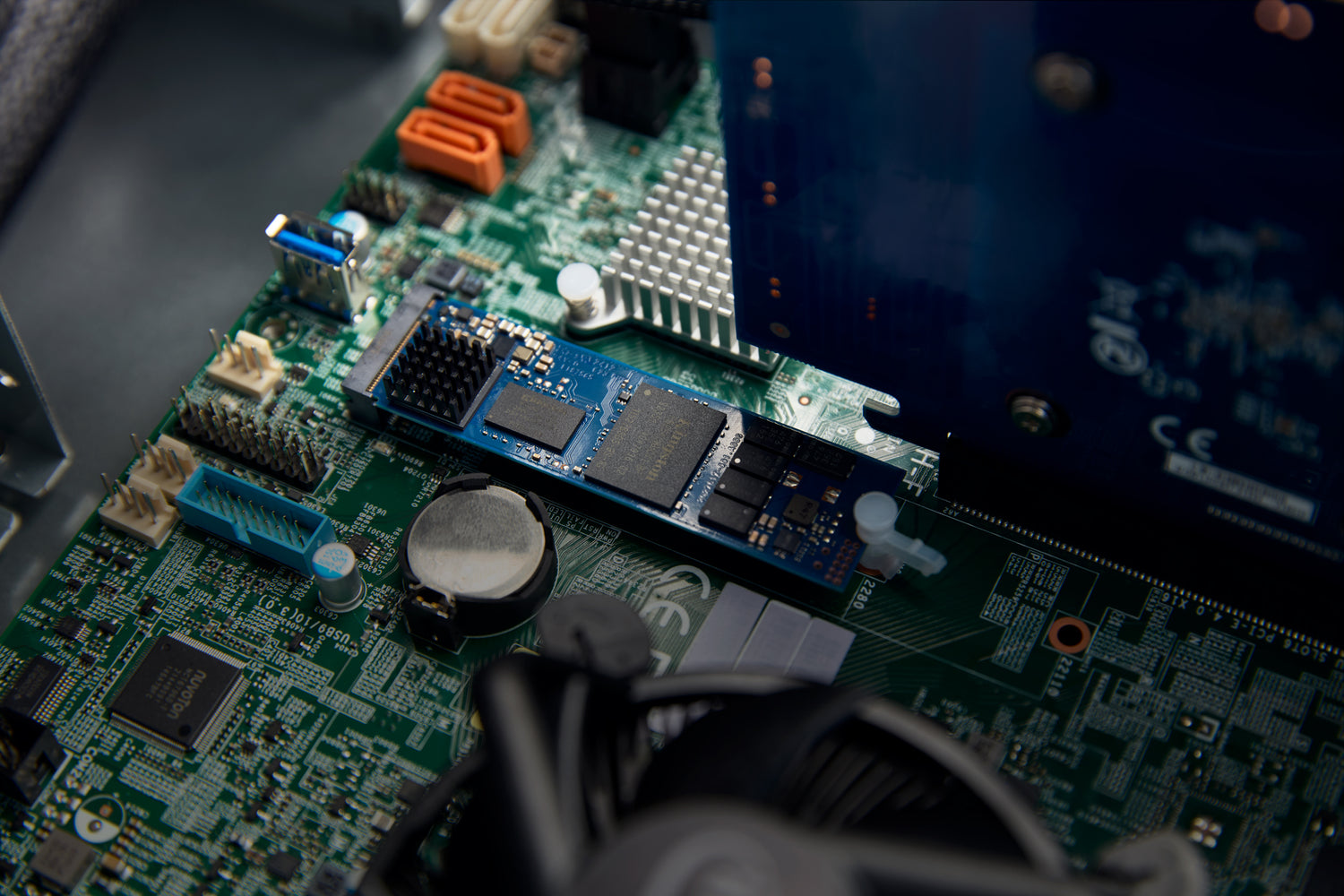

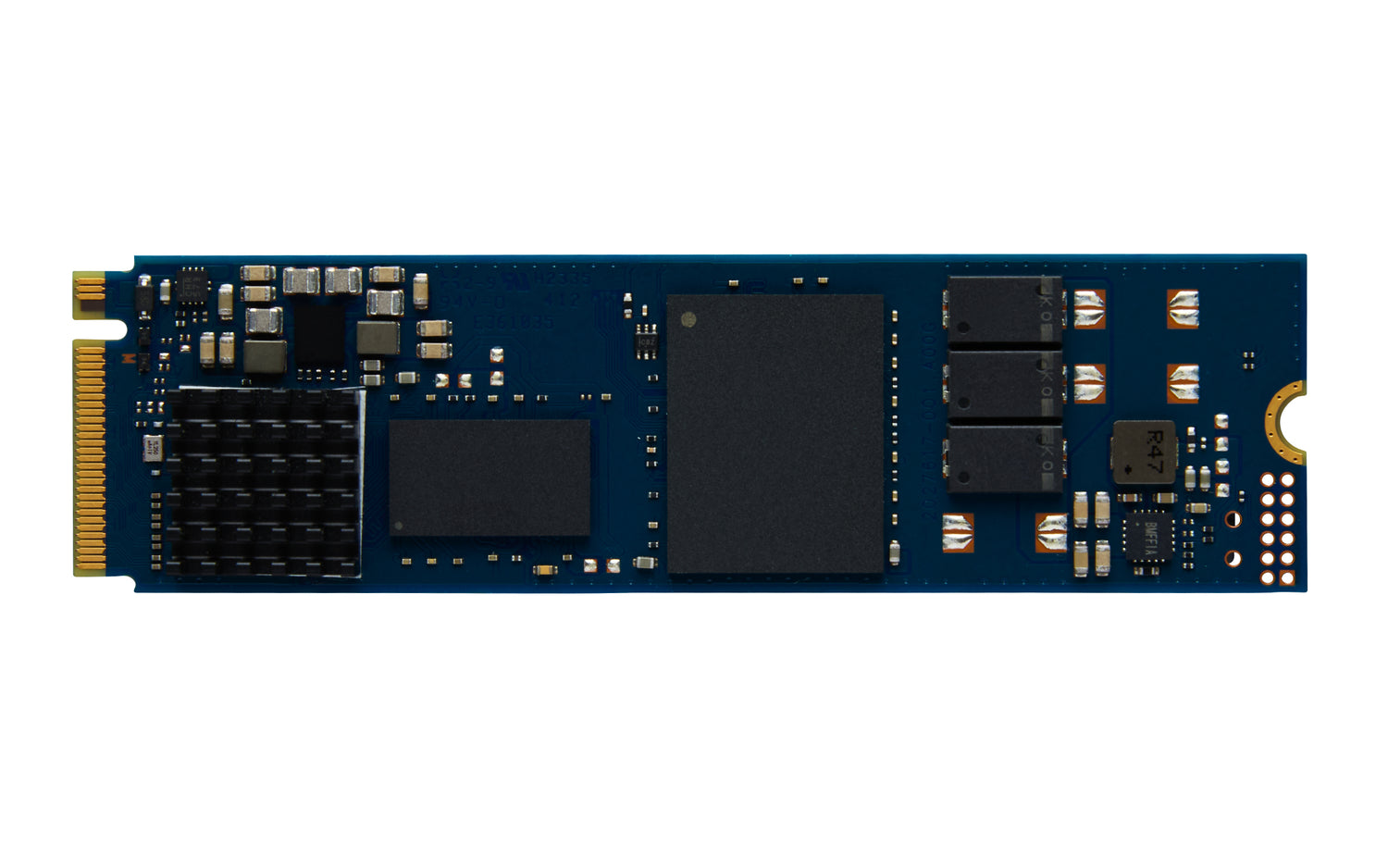

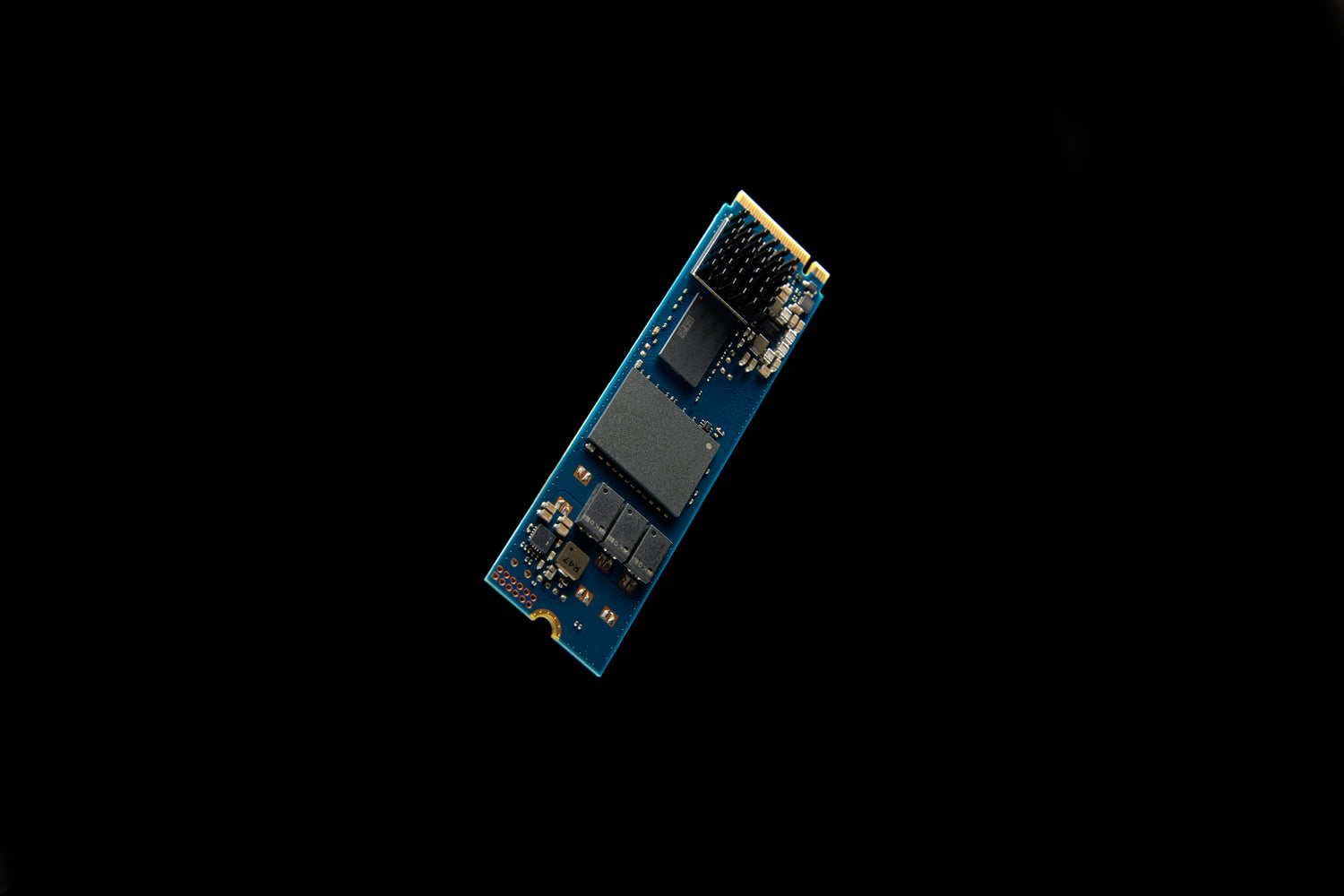

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using a Gen 4x4 PCIe controller and 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a 5-year warranty."

PCIe 4.0 NVMe performance
Utilises PCIe Gen 4x4 lanes for high-performance speeds.

On-board power loss protection (PLP)
Reduce the possibility of data loss and/or corruption due to unexpected power-off.

Low latency and IOPS consistency
Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads.

Designed for data center environments
Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.

• PCIe 4.0 NVMe Gen 4x4 performance
• Hardware-based power loss protection
• Latency and IOPS consistency
• Designed for data center environments

SSD capacity	480
SSD form factor	M.2
Interface	PCI Express 4.0
NVMe	Y
Memory type	3D TLC
Component for	Server
M.2 SSD size	2280 (22 x 80 mm)
Read speed	7000
Write speed	800
Random read (4KB)	530000
Random write (4KB)	32000
Read latency	70
Write latency	29
PCI Express interface data lanes	x4
S.M.A.R.T. support	Y
H/W PLP function	Y
Mean time between failures (MTBF)	2000000
Drive writes per day (DWPD)	0.4
TBW rating	350
Use conditions	Server/Enterprise
Power consumption (read)	3.29
Power consumption (write)	5.77
Average power consumption (read)	3.22
Average power consumption (write)	5.6
Width	22
Depth	80
Height	8.9
Weight	10
Package width	129.54
Package depth	14.22
Package height	184.15
Package weight	33.77
Operating temperature (T-T)	0 - 70
Storage temperature (T-T)	-40 - 85
Non-operating vibration	20
Cooling type	Heatsink
Country of origin	China,Taiwan
Master (outer) case width	135.89
Master (outer) case length	203.2
Master (outer) case height	69.85
Master (outer) case gross weight	280.62
Products per master (outer) case	6
