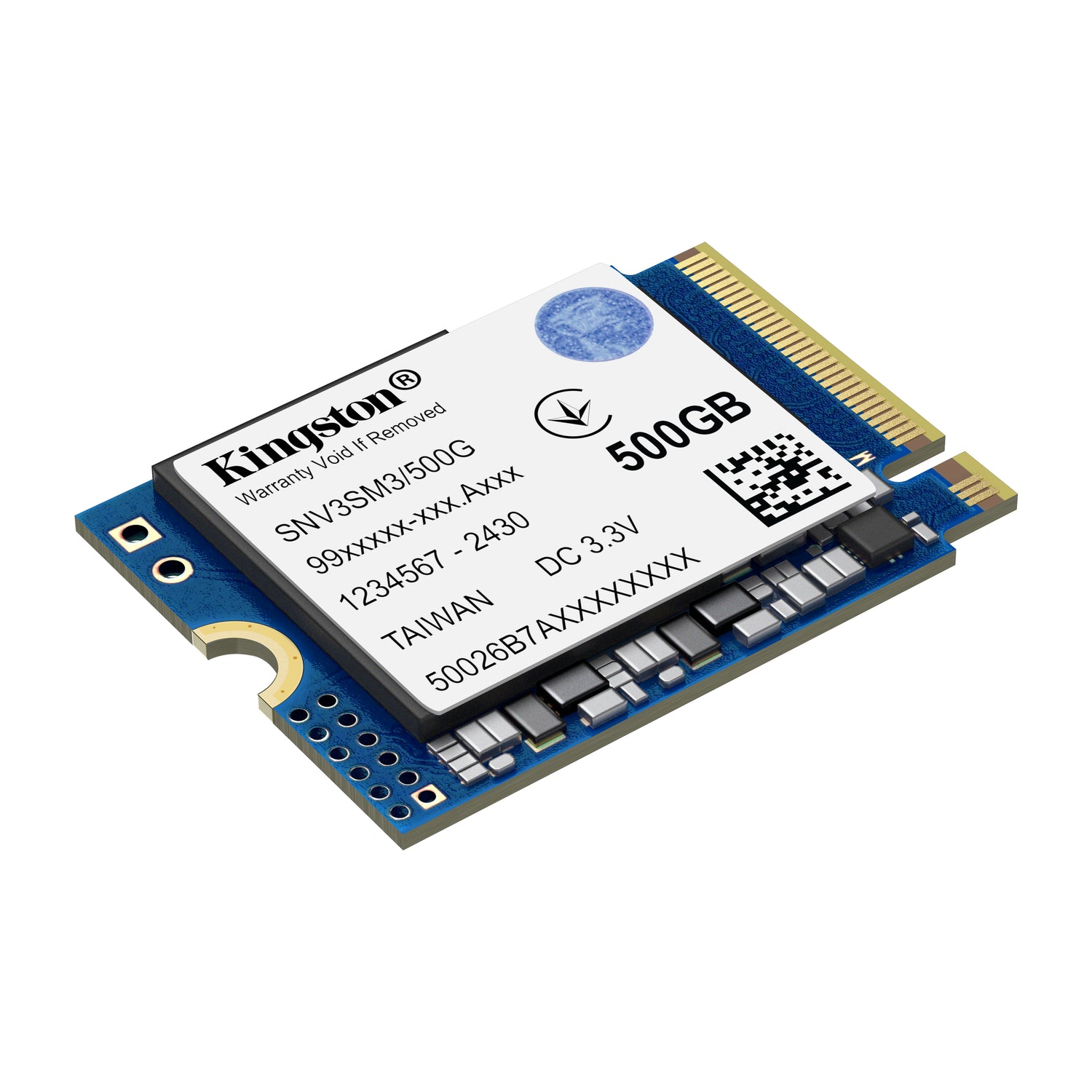

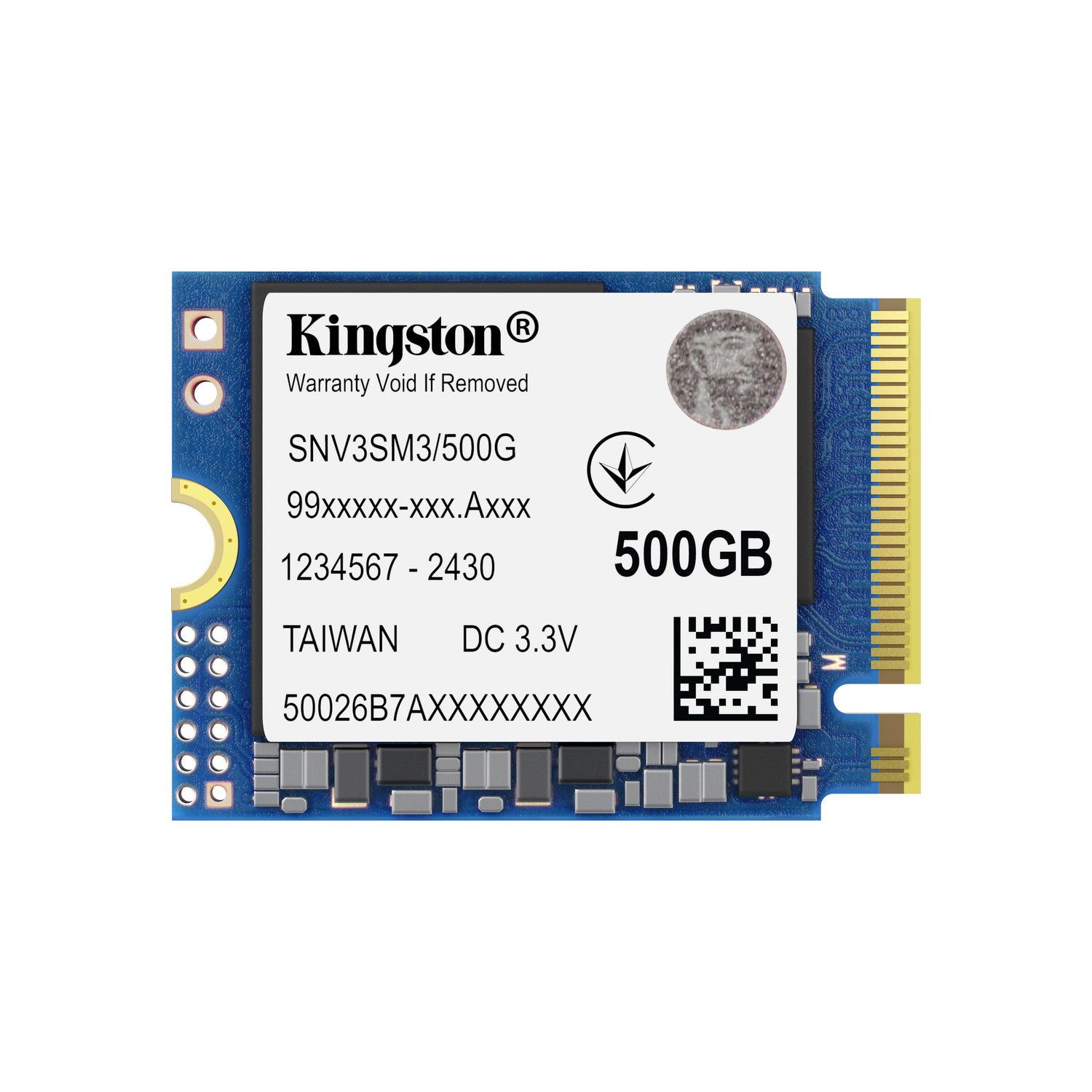

Kingston Technology 500G NV3 M.2 2230 NVMe SSD - SNV3SM3/500G

For high-speed, low-power storage needs
Kingston’s NV3 PCIe 4.0 NVMe SSDs are next-gen storage solutions powered by a Gen 4x4 NVMe controller, delivering read/write speeds of up to 6,000/5,000MB/s*. They come in both compact, single-sided M.2 2280 (22x80mm) and 2230 (22x30mm) sizes to expand storage in small-form-factor systems like laptops and handheld gaming consoles*****. They offer lower power consumption and reduced heat, optimising your system's performance without compromising value. Available in capacities from 500GB– 4TB** to give you all the space you need for applications, documents, photos, videos, games and more.


Gen 4x4 NVMe PCIe performance
Upgrade your system with read/write speeds up to 6,000/5,000MB/s*.

Small size, big performance
NV3 2280 and 2230 easily integrate into thin laptops and ultra-small PCs with M.2 connectors and limited space.

Increased storage space
Available in a variety of high capacities up to 4TB**, providing ample space to store files, videos, documents, and games with room to spare.

Store more, play more
With NV3 2230 upgrade compatible handheld gaming systems to get in the game faster*****.

• Gen 4x4 NVMe PCIe performance
• Ideal for high-speed, low-power storage
• Capacities up to 4TB**

SSD capacity	500
SSD form factor	M.2
Interface	PCI Express 4.0
NVMe	Y
Memory type	3D NAND
Component for	Notebook/Game console
M.2 SSD size	2230 (22 x 30 mm)
Read speed	5000
Write speed	3000
PCI Express interface data lanes	x4
Mean time between failures (MTBF)	200000
TBW rating	160
Width	30
Depth	22
Height	2.3
Weight	2.6
Package width	101.6
Package depth	8.13
Package height	114.3
Package weight	11.94
Operating temperature (T-T)	0 - 70
Storage temperature (T-T)	-40 - 85
Non-operating vibration	20
Country of origin	China,Taiwan
Master (outer) case width	120.65
Master (outer) case length	171.45
Master (outer) case height	114.3
Master (outer) case gross weight	384.15
Products per master (outer) case	25
