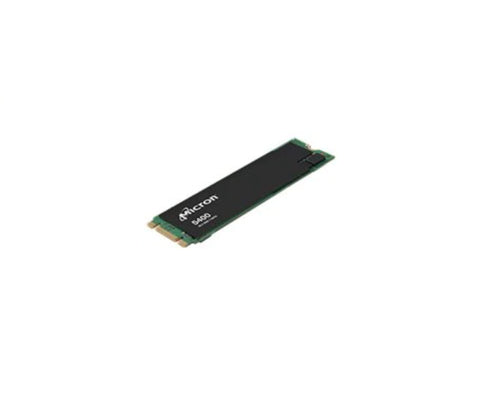

Lenovo 4XB7A82286 internal solid state drive M.2 240 GB Serial ATA III 3D TLC NAND

"The ThinkSystem 5400 PRO Read Intensive SATA 6Gb SSDs are general-purpose self-encrypting SSDs (SEDs) based on the Micron 5400 PRO platform and are available in capacities ranging from 240GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
\n
\nThis product guide provides essential presales information to understand the 5400 PRO SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 5400 PRO SSDs and consider their use in IT solutions.""Lenovo 4XB7A82286. SSD capacity: 240 GB, SSD form factor: M.2, Component for: Server\/workstation"

Features

SSD form factor	M.2
SSD capacity	240 GB
Interface	Serial ATA III
Memory type	3D TLC NAND
Component for	Server/workstation
Random read (4KB)	75000 IOPS
Random write (4KB)	37000 IOPS
Read latency	170 µs
Write latency	150 µs
S.M.A.R.T. support	Y
Hot-swap	Y
Mean time between failures (MTBF)	3000000 h
Certification	Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS FCC: CFR Title 47, Part 15 Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRA (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: compliance with EU WEEE directive 2012/19/EC TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: approval to EN55032/EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139)

Power

Power consumption (read)	2.5 W
Power consumption (write)	3 W

Operational conditions

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Non-operating vibration	3.13 G
Non-operating shock	1500 G

Weight & dimensions

Width	22 mm
Depth	80 mm
Height	3.9 mm
