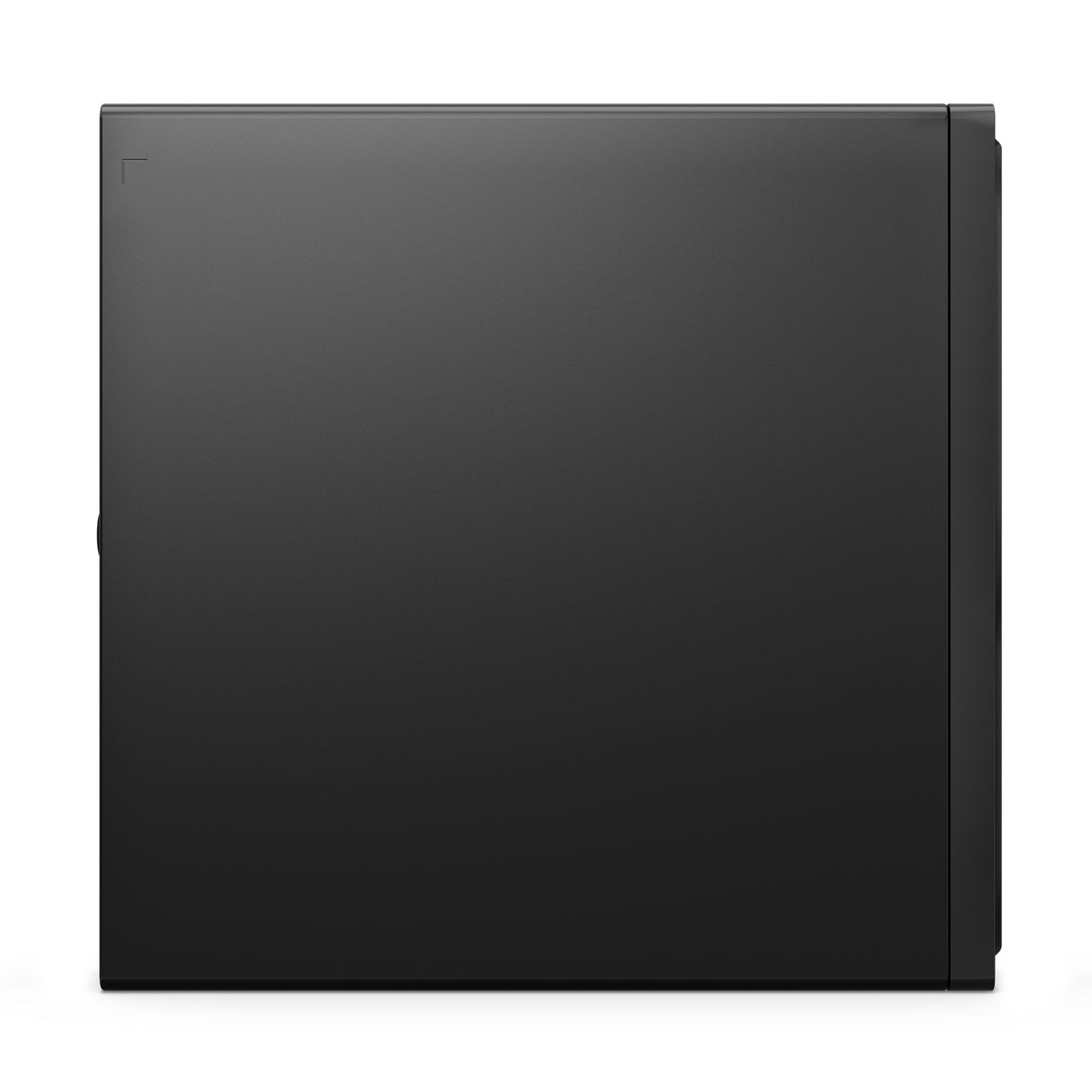

Lenovo ThinkCentre M70q Gen 6 Intel Core Ultra 5 225T 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black - 13A40024US

ENSURED PRODUCTIVITY FOR PROFESSIONALS
AI-Assisted Performance

Supercharge your workflow with the ThinkCentre M70q Gen 6 Tiny PC. Powered by Intel® Core™ Ultra processors, it features Intel vPro® for security and IT manageability. Lenovo AI Now drives AI acceleration, while the AI Turbo Engine allocates workloads between CPU, GPU, and NPU for peak performance. Plus, WiFi 7 ensures blazing-fast connectivity.

BIG POWER & FLEXIBILITY
Multitask Like a Pro

Enjoy unmatched productivity with faster USB speeds and multiple ports. Connect the ThinkCentre M70q Tiny PC to up to four displays to power through tasks with vast memory and expandable storage. With an optional USB-C® (Thunderbolt™ 4) port and Neural Processing Unit (NPU), enhance hybrid and digital workplace expansion for a broadened ecosystem.

ALL-AROUND SAFETY IN PLACE
Robust Security & Manageability

This secured-core PC (L3) features ThinkShield security, encompassing hardware and software solutions. Get additional safeguards with a self-healing BIOS, dTPM chip, Kensington Security Slot™, and Smart USB Protection. Choose Intel vPro® security for advanced threat protection while securing your data and business with ThinkCentre Customization.

DURABILITY YOU CAN RELY ON
Intentional Engineering to Boost Efficiency

This PC uses the US Department of Defense MIL-STD-810H for a balance of reliability and durability. With TüV anti-dust, low surface, and shock-resistance certifications, it stands strong in tough environments, while ensuring safety through IEC Electrical Safety and Electromagnetic certifications, offering first-class manageability for any workspace.

CREDIBILITY & COLLABORATION
Sustainability

Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specifications may vary depending upon region / model.

• Windows 11 Pro
• Intel Core Ultra 5 225T (20MB Cache)
• 32GB (5600MHz) DDR5-SDRAM (1 x 32) & 1000GB SSD

Processor family	Intel Core Ultra 5
Processor manufacturer	Intel
Processor model	225T
Processor generation	Intel Core Ultra (Series 2)
Processor cores	10
Processor threads	10
Processor boost frequency	4.9
Performance cores	6
Efficient cores	4
Performance-core Max Turbo Frequency	4.9
Efficient-core Max Turbo Frequency	4.4
Performance-core base frequency	2.5
Efficient-core base frequency	1.9
Processor cache	20
Processor cache type	Smart Cache
Number of processors installed	1
Processor base power	35
Maximum turbo power	114
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Y
Windows Studio effects support	Y
AI software frameworks supported by NPU	DirectML,OpenVINO,Windows ML,ONNX RT,WebNN
Total processor performance up to	23
NPU performance up to	13
GPU performance up to	4
Internal memory	32
Maximum internal memory	64
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 32
Memory slots	2x SO-DIMM
Memory clock speed	5600
Memory channels	Single-channel
Total storage capacity	1000
Optical drive type	N
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	1000
Number of SSDs installed	1
SSD capacity	1000
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	N
Discrete graphics card	N
On-board graphics card	Y
Discrete graphics card model	Not available
On-board graphics card model	Intel Graphics
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Graphics
Product type	Mini PC (<= 3L)
Motherboard chipset	Intel Q870
Password protection	Y
Password protection type	BIOS,HDD,Power on,Supervisor
Fingerprint reader	N
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Built-in speaker(s)	Y
Ethernet LAN	Y
Wi-Fi	Y
Ethernet LAN data rates	100,1000
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel I219-LM
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Antenna type	2x2
Bluetooth	Y
Bluetooth version	5.3
Wake-on-LAN ready	Y
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
DisplayPorts quantity	2
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Y
DVI port	Y
Power supply	90
Chassis type	Mini PC
Product colour	Black
Colour name	Raven black
Volume	1
Placement supported	Horizontal/Vertical
Cable lock slot	Y
Cable lock slot type	Kensington
Operating system installed	Windows 11 Pro
Operating system language	ENG
Display included	N
Operating temperature (T-T)	5 - 35
Storage temperature (T-T)	-40 - 60
Operating relative humidity (H-H)	20 - 80
Storage relative humidity (H-H)	10 - 90
Operating altitude	0 - 3048
Non-operating altitude	0 - 12192
Width	179
Depth	182.9
Height	36.5
Weight	1180
Package width	250
Package depth	490
Package height	128
Package weight	3200
Mouse included	Y
Mouse connectivity	Wired
Keyboard included	Y
Compliance certificates	RoHS
Sustainability certificates	ENERGY STAR,TCO
Keyboard connectivity	Wired
