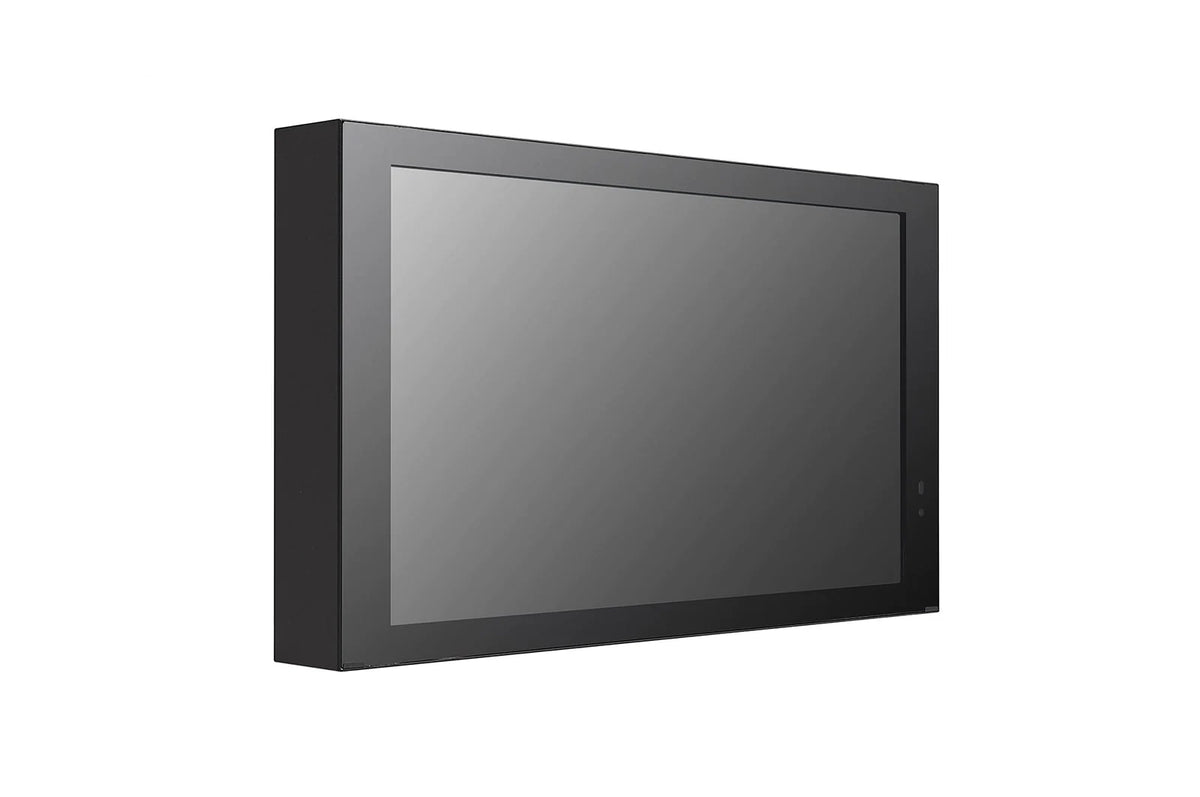

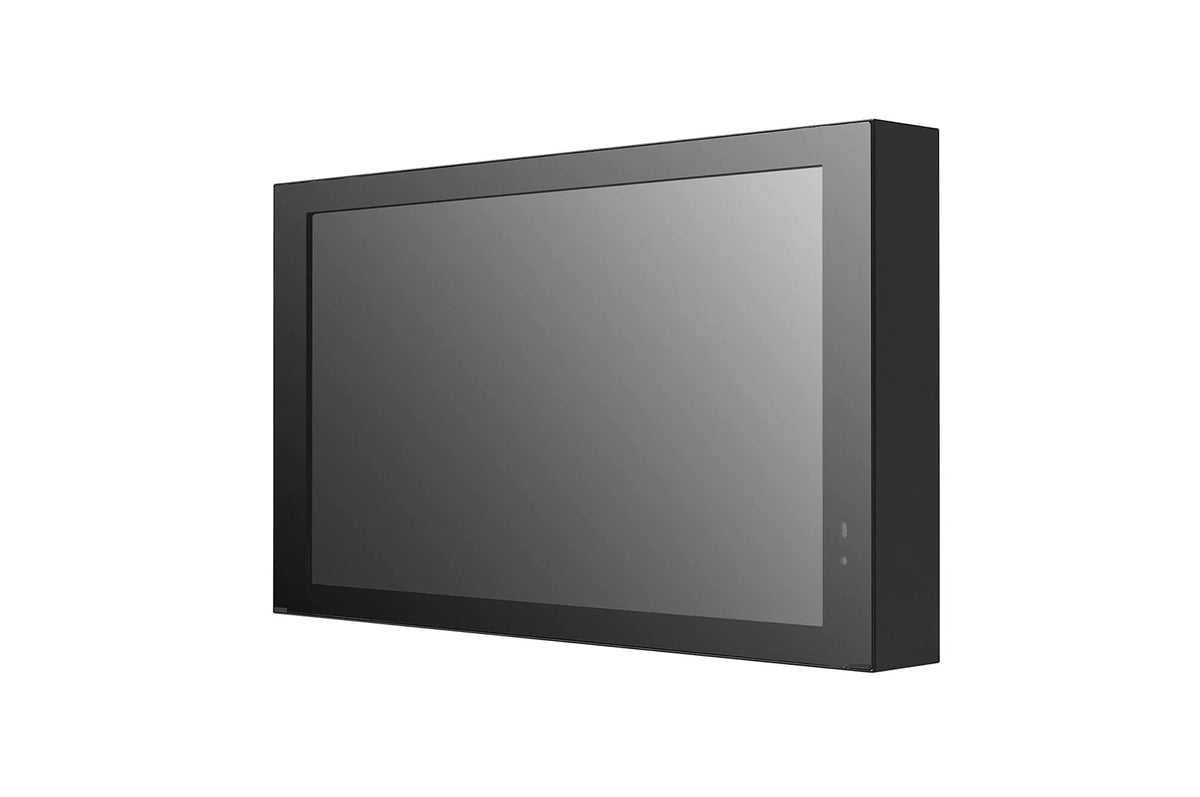

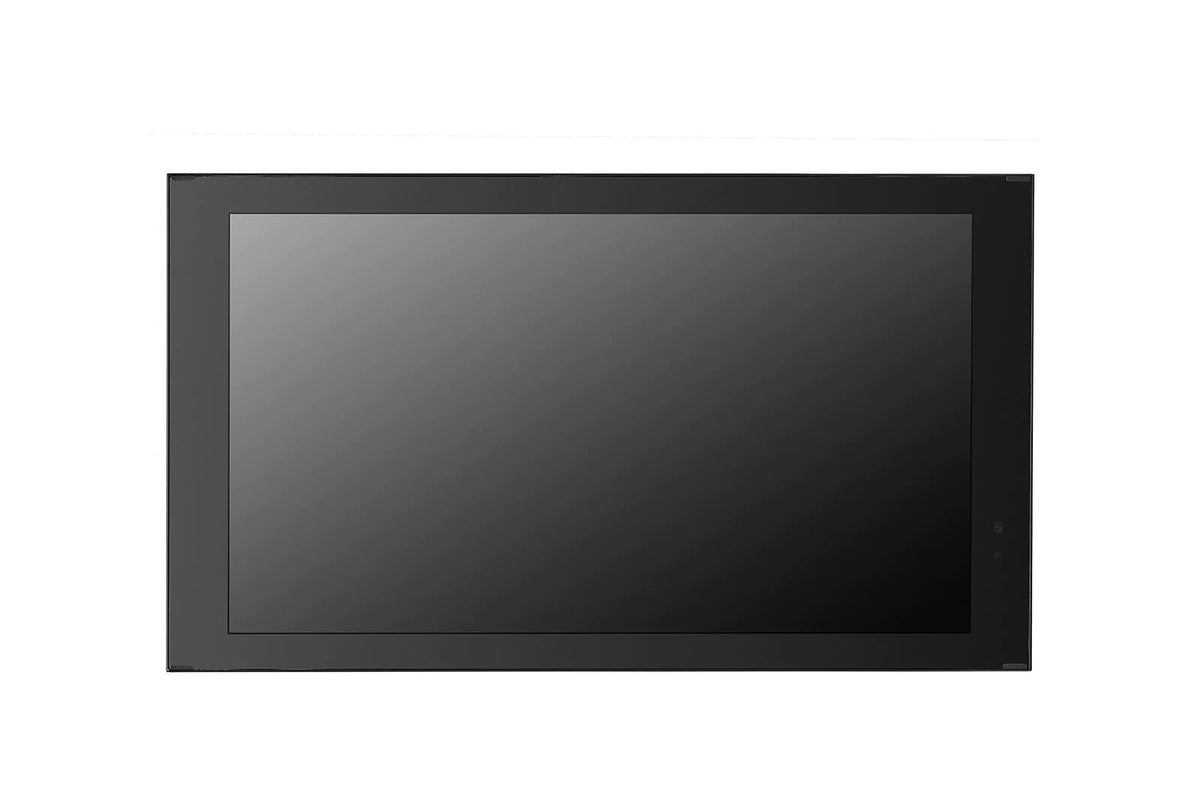

LG 22XE1J-B Signage Display Digital signage flat panel 54.6 cm (21.5") IPS Wi-Fi 1500 cd/m² Full HD Black Built-in processor WebOS 24/7 - 22XE1J-B

High Visibility Under Bright Environments
With a brightness of 1,500 nits, 22XE1J boasts high visibility in bright environments. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

21.5 inches of Versatile Screen Size
The small and light size of 21.5 inches allows for flexible use in various spaces. In particular, you can install the display in various way allowing for high utilization for small-medium businesses (SMB) to large businesses.

Secured Protection with IP56 Design
The display is sealed with IP56 design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, which is an essential feature for outdoor application.

Wide Operating Temperature Range
22XE1J can be used under a wide range of operating temperatures which results in fewer constraints for outdoor installation.

Conformal Coating
Conformal Coating* improves reliability of the circuit board, power board by protecting it against dust, iron powder, humidity, etc.

Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

High Performance with webOS
Quad Core SoC can execute several tasks at the same time without a separate media player. In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.

Easy Content Distribution
& SW Update
22XE1J features embedded Wi-Fi*, Bluetooth, Beacon making it easy to distribute content wirelessly and update Firmware. In particular, using Beacon and BLE (Bluetooth Low Energy), shop manager can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.

Web Monitoring
(Control Manager)
This is a web-based monitoring solution, which provides a ease of control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network while having access to both current and past data. It allows users to monitor the unit, make any adjustments and control it remotely in real-time.

LG's Simple Advertisement Helper, Promota
Using LG's Promota* application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more to your customers while recommending easy-to-use templates relevant to your industry.

Real-time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

• Brightness (Typ, w/ Glass) : 1,500 nits
• IP56 Rated Dust / Water Proof
• 21.5" of Versatile Display Size
• Wide Operating Temperature Range
• webOS Smart Platform
• Web-based Monitoring Solution

Display diagonal	21.5
Display technology	IPS
Display resolution	1920 x 1080
Display brightness	1500
HD type	Full HD
Touchscreen	N
LED backlighting type	Edge-LED
Native aspect ratio	16:9
Response time	25
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178
Viewing angle, vertical	178
Display number of colours	16.7 million colours
Rated lifetime	70000
Native refresh rate	60
Haze rate	25
Surface hardness	3H
RGB colour space	NTSC
HDMI ports quantity	1
DVI port	N
DisplayPorts quantity	0
USB port	Y
USB ports quantity	1
USB version	2.0
Ethernet LAN (RJ-45) ports	1
Number of speaker outputs	1
RS-232C	Y
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor/outdoor
VESA mounting	Y
Panel mounting interface	100 x 100
Anti-glare screen	Y
Purpose	Universal
On Screen Display (OSD)	Y
Number of OSD languages	21
On Screen Display (OSD) languages	ARA,CHI (SIMPL),CHI (TR),CZE,DAN,DEU,DUT,ENG,ESP,FIN,FRE,GRE,ITA,JPN,KOR,NOR,POR,RUS,SWE,TUR
Operating hours (hours/days)	24/7
HDCP	Y
International Protection (IP) code	IP56
HDCP version	1.4
Power consumption (typical)	85
Power consumption (standby)	0.5
Power consumption (off)	0.5
AC input voltage	100 - 240
AC input frequency	50 - 60
Computer system	Y
Built-in processor	Y
Computer system type	System on Chip (SoC)
Internal memory	16
Operating system installed	WebOS
Display width	557.3
Display depth	65
Display height	319.8
Display weight	8300
Package width	632
Package depth	187
Package height	394
Package weight	10000
Tilt angle	15
Remote control included	Y
Batteries included	Y
Power adapter included	Y
Cables included	RS-232
Tilt adjustment	Y
Operating temperature (T-T)	-30 - 50
Operating relative humidity (H-H)	5 - 100
Harmonized System (HS) code	85285210
Wi-Fi	Y
Sustainability certificates	ErP
Compliance certificates	CE
