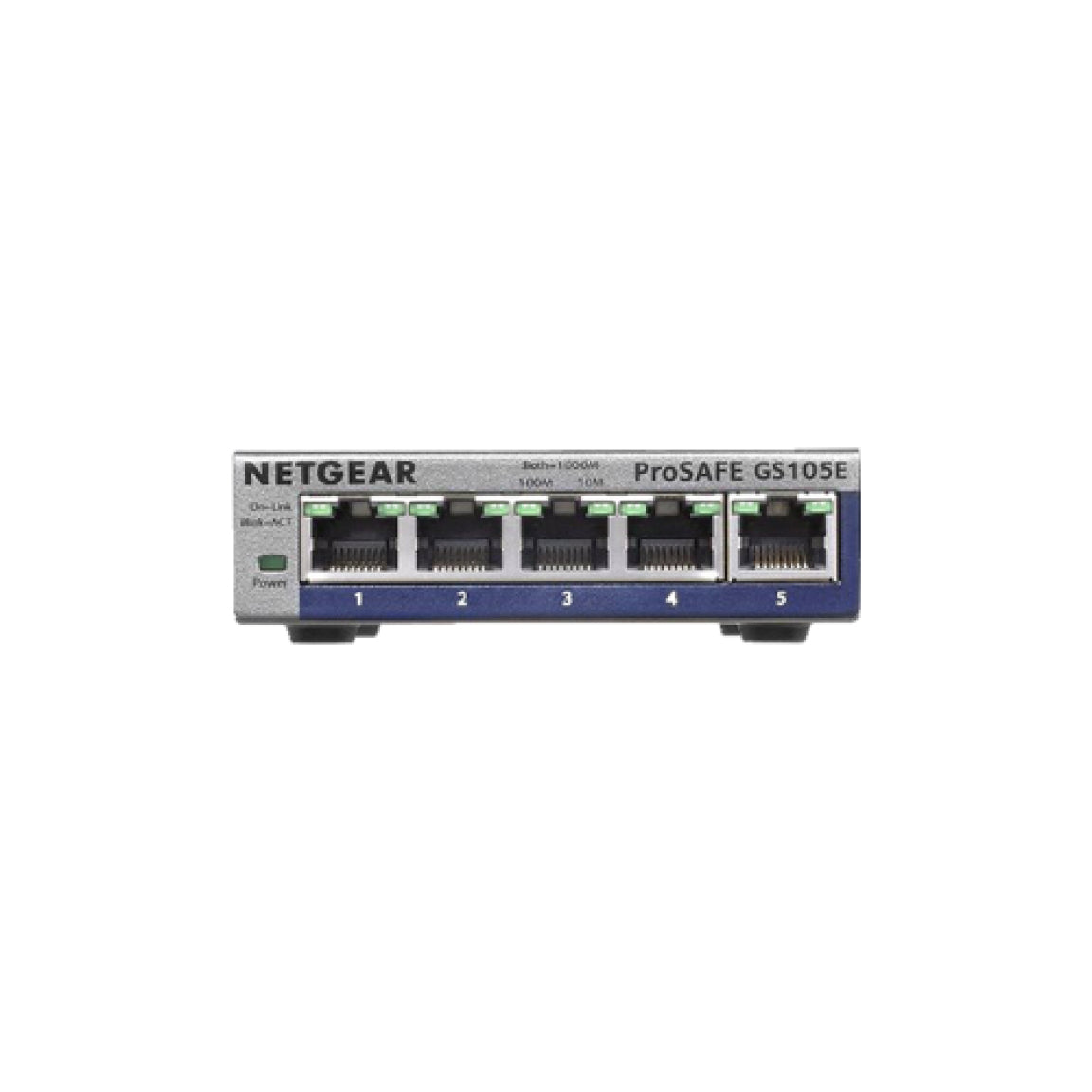

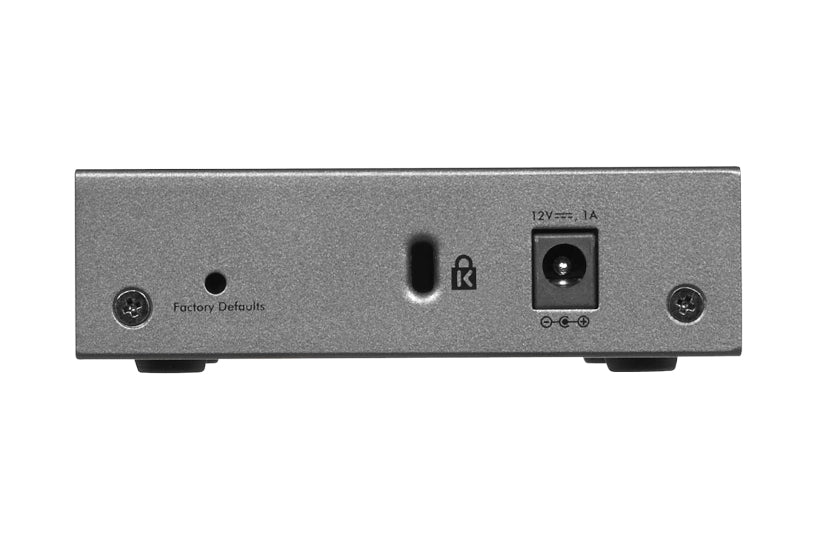

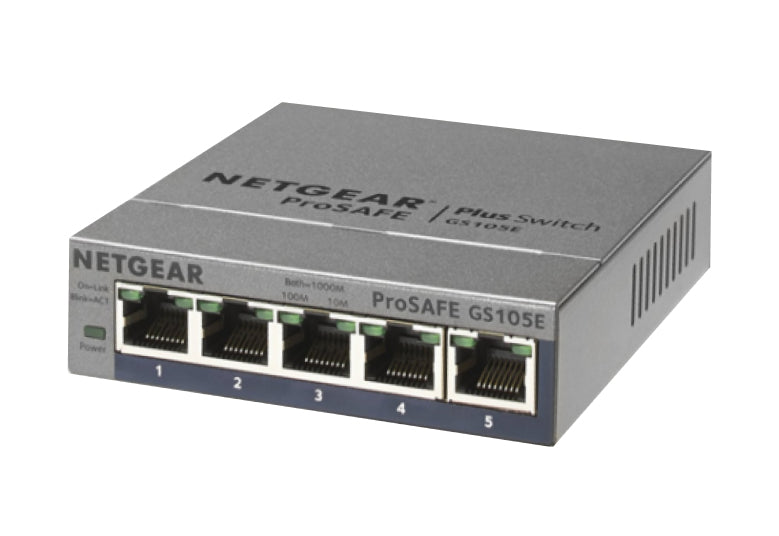

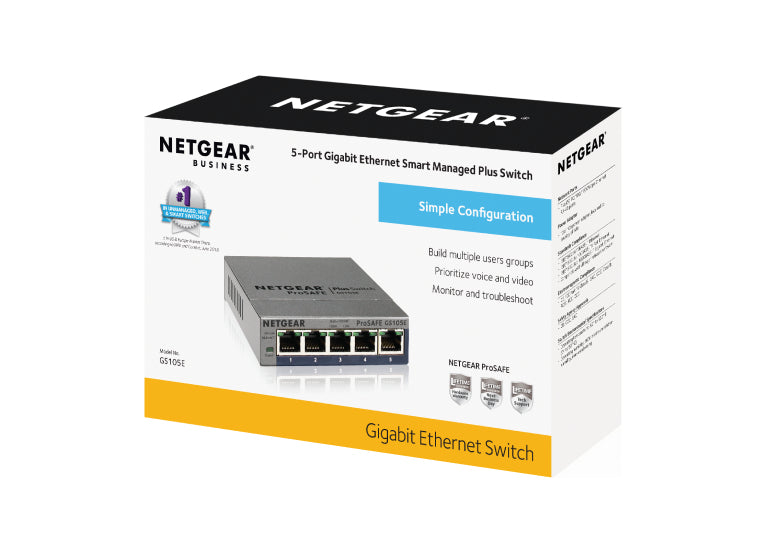

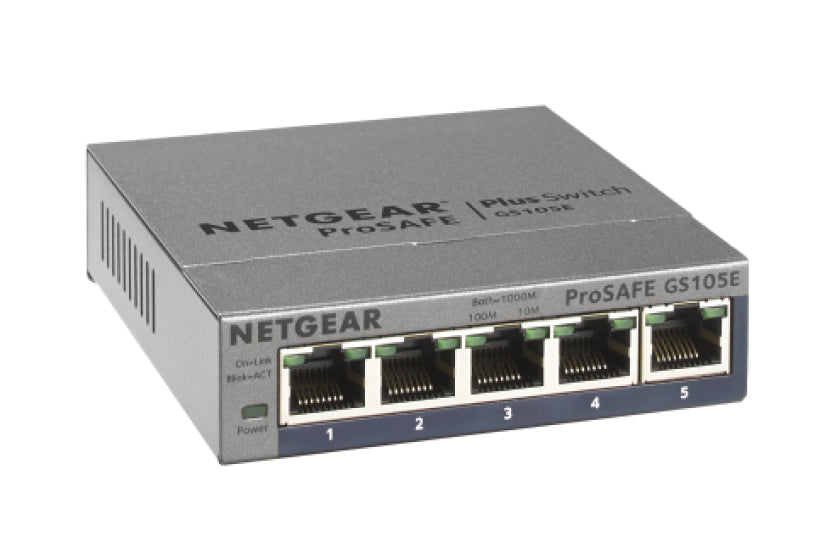

NETGEAR 5-Port Gigabit Ethernet Plus Switch (GS105Ev2) - GS105E-200NAS

Gigabit Plus Switch Series (GS105Ev2)
5-Port Gigabit Plus Switch
NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.

More Capabilities beyond Plug-and-play Connectivity
Today’s growing businesses demand and rely more on their network to carry out mission-critical business activities. Companies are putting more network traffic and applications on their Ethernet infrastructure. For example, the increasing deployments of VoIP phones and IP cameras require more than simple plug-and-play connectivity. It needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced
training to deal with complex managed switches. The NETGEAR ProSAFE Plus Switches meet this growing need by providing fundamental network features that will help optimize the performance of business networks. ProSAFE Plus Switches also offer traffic monitoring for users to observe traffic behavior. If there are connectivity issues, these switches can identify and even locate
connection problems via cable diagnostic test. To optimize traffic through the switches, ProSAFE Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, ProSAFE Plus Switches offer port and 802.1Q-based VLAN as a means of improving security and network performance. ProSAFE Plus Switches are an upgrade from the plug-and-play Unmanaged Switch, delivering great value for empowering your network, delivering great value to the end user.

• Managed L2/L3
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 5
• 10BASE-T, 100BASE-T, 1000BASE-T
• MAC address table: 8000 entries Switching capacity: 10 Gbit/s

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Y
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Networking standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T,100BASE-T,1000BASE-T
Port mirroring	Y
Full duplex	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
VLAN support	Y
Virtual LAN features	Port-based VLAN
Number of VLANs	64
MAC address table	8000
Switching capacity	10
Forwarding rate	7.4
Store-and-forward	Y
Latency (1 Gbps)	2.45
Jumbo frames support	Y
Jumbo frames	9000
Packet buffer memory	0.4
DHCP features	DHCP client
IGMP snooping	Y
Multicast support	Y
Number of multicast groups filtered	128
Rack mounting	N
Product colour	Grey
Housing material	Metal
LED indicators	Y
Mean time between failures (MTBF)	2531294
AC input voltage	100 - 240
AC input frequency	50 - 60
Power consumption (typical)	5.6
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-20 - 70
Operating relative humidity (H-H)	0 - 90
Storage relative humidity (H-H)	0 - 95
Operating altitude	0 - 3000
Width	94
Depth	101
Height	26
Weight	270
Cables included	AC
Quick start guide	Y
User guide	Y
Manual	Y
Package width	155
Package depth	239
Package height	63
Package weight	570
Shipping (inner) case height	280
Shipping (inner) case width	497
Shipping (inner) case length	344
Shipping (inner) case net weight	9920
Products per shipping (inner) case	15
Master (outer) cases per pallet layer	6
Layers per pallet (air)	4
Layers per pallet (sea)	7
Certification	CE,CSA (CSA 22.2 #950), UL (UL 1950)/cUL IEC 950/EN 60950, FCC Part 15, VCCI, EN55022 (CISPR 22), C-Tick, EN50082-1, EN55024, CCC
